Многопротокольный беспроводной модуль 2 4 ГГц bluetooth 51 5 1 чиповые модули серии nrf52 в скандинавском стиле решения
- Категория: IoT Solutions & Products >>>
- Поставщик: Shenzhen,Lan,Ke,Xuntong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7.5 $* | 7.32 $* |
| Aug-16-2025 | 7.35 $* | 7.60 $* |
| Jul-16-2025 | 6.12 $* | 6.11 $* |
| Jun-16-2025 | 7.95 $* | 7.36 $* |
| May-16-2025 | 6.95 $* | 6.17 $* |
| Apr-16-2025 | 7.86 $* | 7.40 $* |
| Mar-16-2025 | 7.67 $* | 7.28 $* |
| Feb-16-2025 | 7.67 $* | 7.14 $* |
| Jan-16-2025 | 7.81 $* | 7.94 $* |
Характеристики

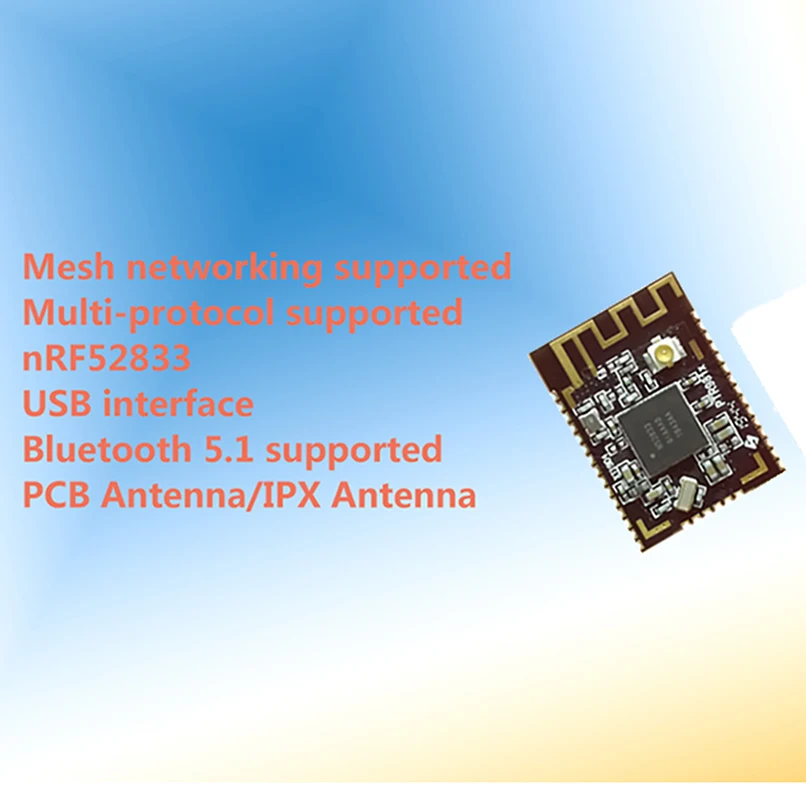

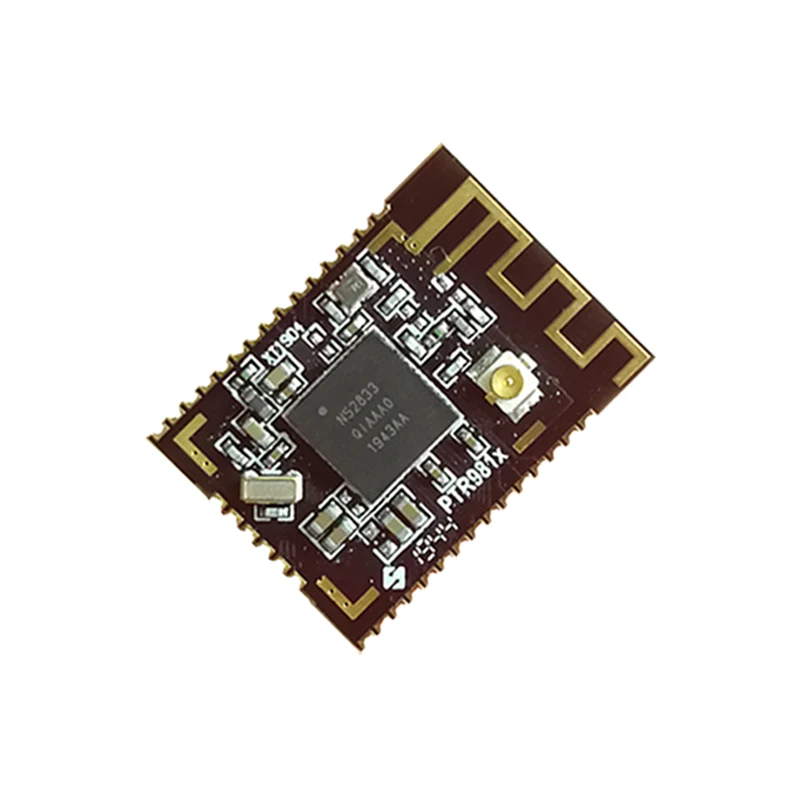

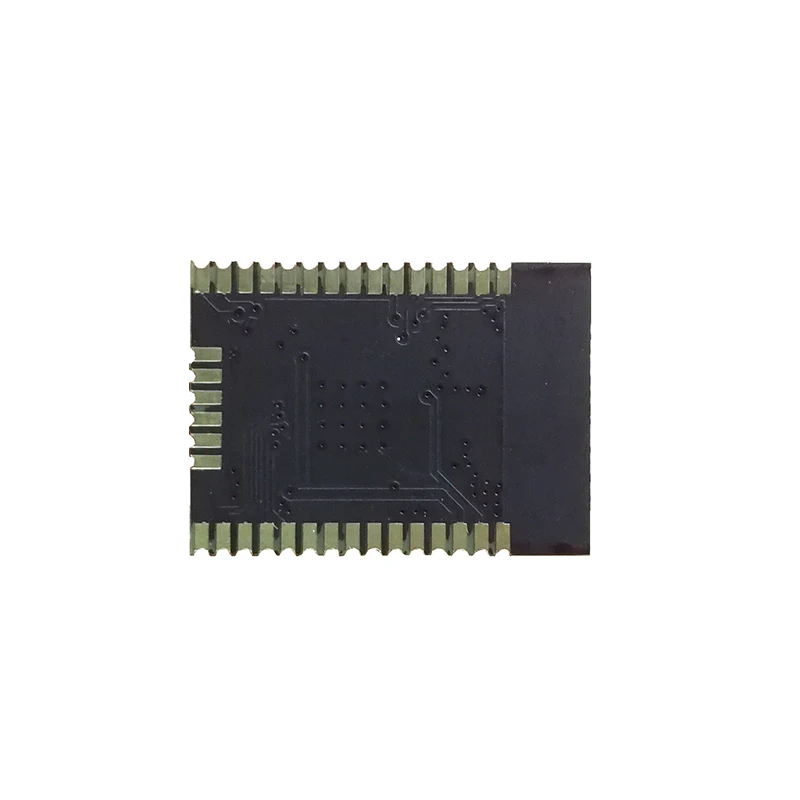

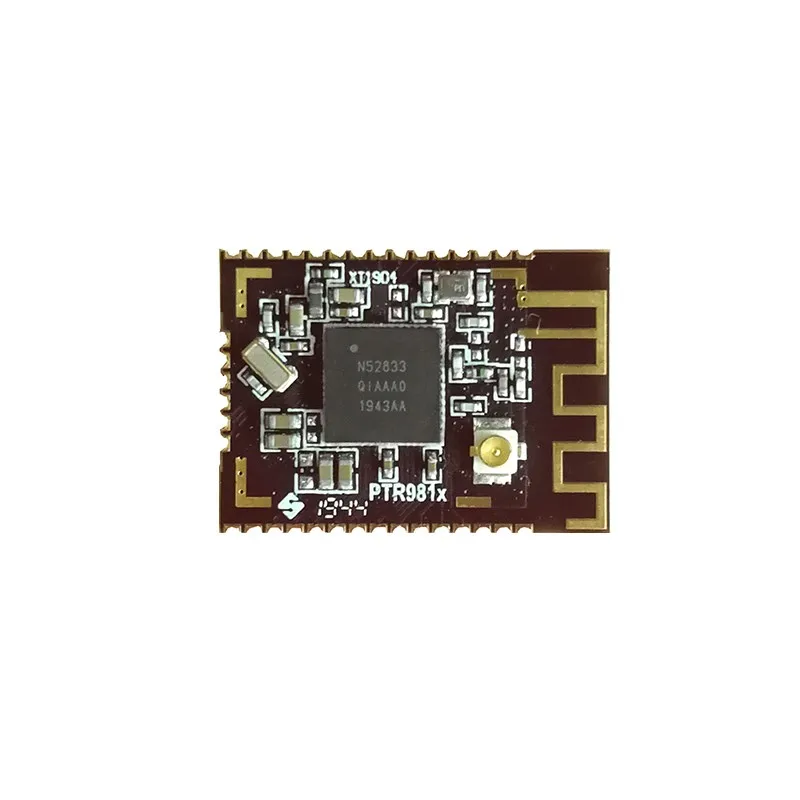

Product Show
Product Feature
1 | Nordic nRF52833 with ARM Cortex M4F |
2 | Multiprotocol support: Bluetooth5.1, ANT/ANT+,and 2.4Ghz proprietary, 802.15.4 Thread and Zigbee. |
3 | Bluetooth 5: 2Mbps,1Mbps, 500kbps,125kbps Bluetooth5.1 Direction Finding AOA/AOD |
4 | IEEE802.15.4-2006:250kbps |
5 | Proprietary2.4GHz:2Mbps,1Mbps |
6 | Integrated DC-DC converter |
7 | Serial Wire Debug(SWD) |
8 | Nordic SoftDevice Ready |
9 | Over-the-Air(OTA)firmware update. |
10 | Flash/RAM:512KB/128KB |
11 | 40 General purpose I/O pins |
12 | 15 level low-power comparator with wake-up from System OFF mode. |
13 | Two 2-wire Master / Slave (I2C compatible) |
14 | I2S audio interface |
15 | 12 bit/200KSPS ADC |
16 | High-speed 32Mbps SPI |
17 | 4 SPI Master/3 SPI Slave(8Mbps) |
18 | 2 UART(with CTS/RTS and DMA) |
19 | 4X4-channel PWM unit with EasyDMA |
20 | USB2.0 full speed (12 Mbps) controller |
21 | 20 channel CPU independent Programmable Peripheral Interconnect(PPI) |
22 | Quadrature Demodulator (QDEC) |
23 | 128-bit AES HW encryption |
24 | 5*32 bits,3*24bits Real Time Counters(RTC) |
25 | TX power:+8dBm to-20dBm in 4 dB steps |
26 | Size: 24.3*17.5*1.8mm with Antenna |
27 | Integrated high performance PCB antenna |
28 | DC/DC on board |
29 | No external components required |
30 | Operation voltage:1.7V to 5.5 V |
Typical Applications
1 | 2.4 GHz Bluetooth low energy systems |
2 | Proprietary 2.4 GHz systems |
3 | Sports and leisure equipment |
4 | Mobile phone accessories |
5 | Health Care and Medica |
6 | Consumer Electronics, Game pads |
7 | Human Interface Devices, Remote control |
8 | Building environment control / monitoring |
