Испытательное оборудование для литиевых батарей JK5530 + тестер емкости аккумуляторов 0-60 в сопротивления и
- Категория: Battery Testers >>>
- Поставщик: Changzhou,Jinailian,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1546.7 $* | 1577.7 $* |
| Jul-18-2025 | 1254.47 $* | 1279.62 $* |
| Jun-18-2025 | 1521.3 $* | 1551.16 $* |
| May-18-2025 | 1509.10 $* | 1539.68 $* |
| Apr-18-2025 | 1205.82 $* | 1229.65 $* |
| Mar-18-2025 | 1485.64 $* | 1515.52 $* |
| Feb-18-2025 | 1473.50 $* | 1502.58 $* |
| Jan-18-2025 | 1460.65 $* | 1489.67 $* |
Характеристики
Product Description
Product introduction:
The common rechargeable batteries include lithium batteries, nickel cadmium batteries, nickel hydrogen batteries, and sealed lead-acid batteries. Among them, lithium battery has the characteristics of large capacity, light weight and high cycle times. It is widely used in mobile phones, PDA, digital cameras, camcorders, notebook computers and other fields.Is currently the most advanced rechargeable battery, referred to here is the finished lithium battery lithium battery pack by lithium batteries (lithium ion batteries or Li polymer batteries) and lithium battery protection board. Nickel cadmium battery is a relatively early application of rechargeable battery. It has the characteristics of low cost, low internal resistance and high current discharge. So far, it has been widely applied in some electric tools and electric cars.

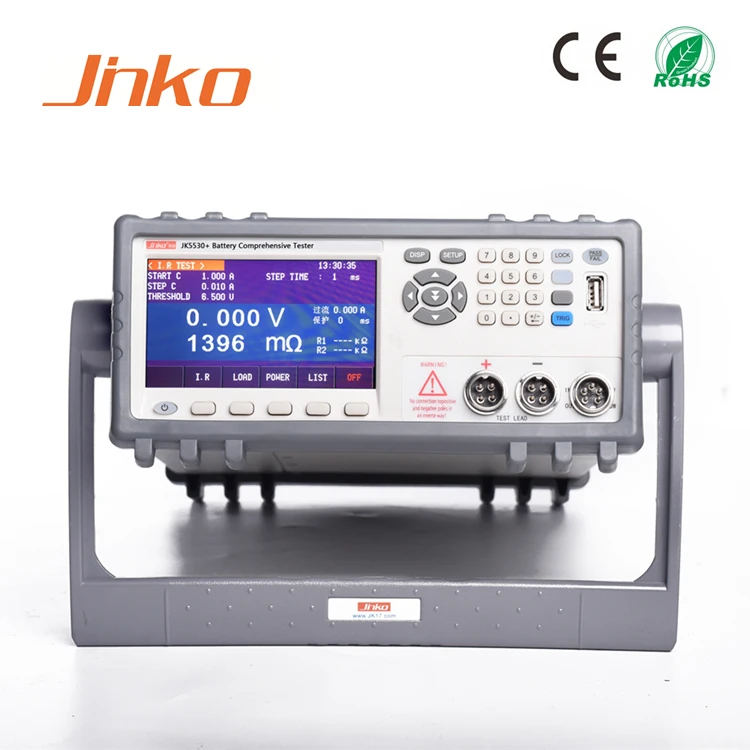

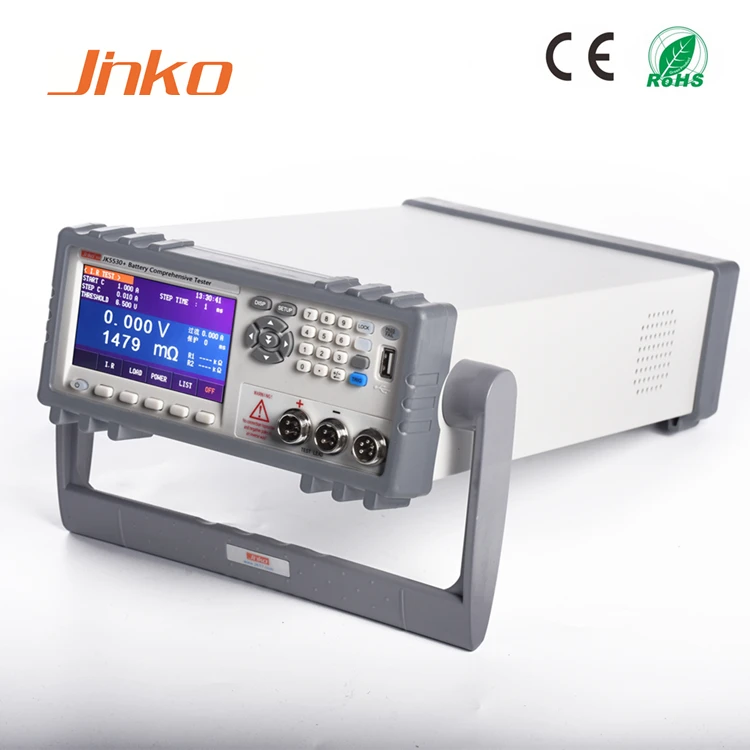

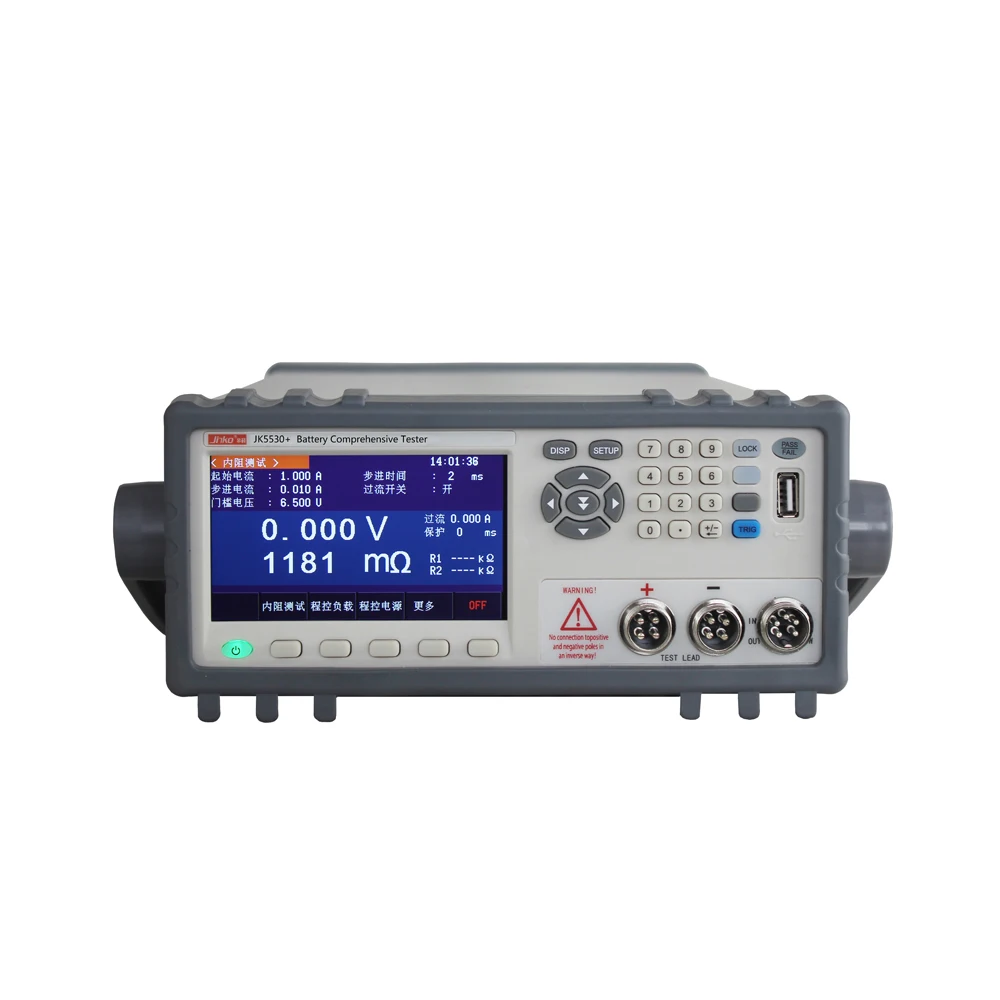

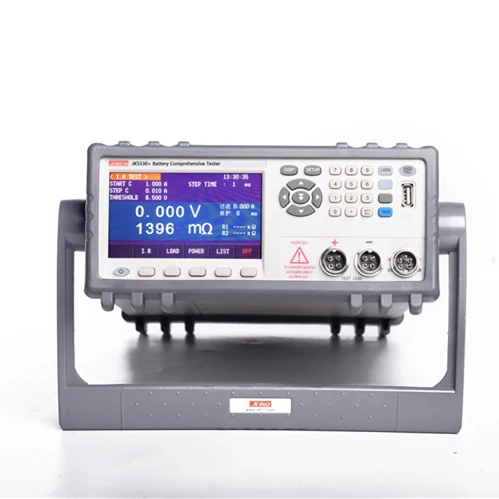

The basic functions of the JK5530+ battery comprehensive tester include:
1.The static parameters of the battery are detected quickly.
2.Battery capacity detection.
3.The battery charging function can be selected separately.
4.The battery discharge function can be selected separately.
5.The function of the numerical control current and voltage source.
6.Numerical control electronic load function.
7.Function of voltage and internal resistance meter
8.Instrument calibration function
Technical parameters:
Model | JK5530 | JK5530+ | JK5530C | JK5530B | ||
Test range
| Voltage measurement range | 0-36V, resolution:1mV | 0-60V resolution:1mV | 0-62V,resolution 1mV accuracy:±5mV | ||
Internal resistance measurement range | 0-1999mΩ Resolution 1mΩ | |||||
Capacity measurement range | 0-99999mAH,Minimum resolution 1mAH | |||||
R1 R2 resistance | 1kΩ ~ 200kΩ | |||||
Accuracy | Voltage measurement accuracy | ±(result*0.1%+3mV) (voltage 0~36V) | ||||
Current measurement accuracy | ±(result*0.2%+30mA)(current 0~10A) | |||||
Internal resistance measurement accuracy | ±(result*1%+1mΩ) | |||||
Capacity measurement accuracy | ±2% | |||||
Test speed | Static test (All functions) | 1.1-2s | ||||
Capacity test (1C current charge and discharge) Determine the capacity test time according to the battery capacity and discharge power | ||||||
Internal CNC | Maximum output voltage(Constant voltage + constant current) | 20V | 60V | |||
Voltage source index | Output maximum current | 5A | 10A(common) | |||
Output maximum power | 80W | 200 W | ||||
Ripple voltage | <20mV | 100mV | ||||
Load adjustment rate | <10% | |||||
Response time (time from 0 to the highest output voltage) | 1S | |||||
Internal CNC electronic load index | Maximum discharge voltage | 30V | 62 V | |||
Maximum discharge current | 10A(continuous) | 30A(continuous) | 60A(continuous) | 20A(continuous) | ||
Limit power | 80W(continuous) | 100W(continuous) | 500(continuous) | 200W(continuous) | ||
Load mode | constant current | Constant voltage, constant current | ||||

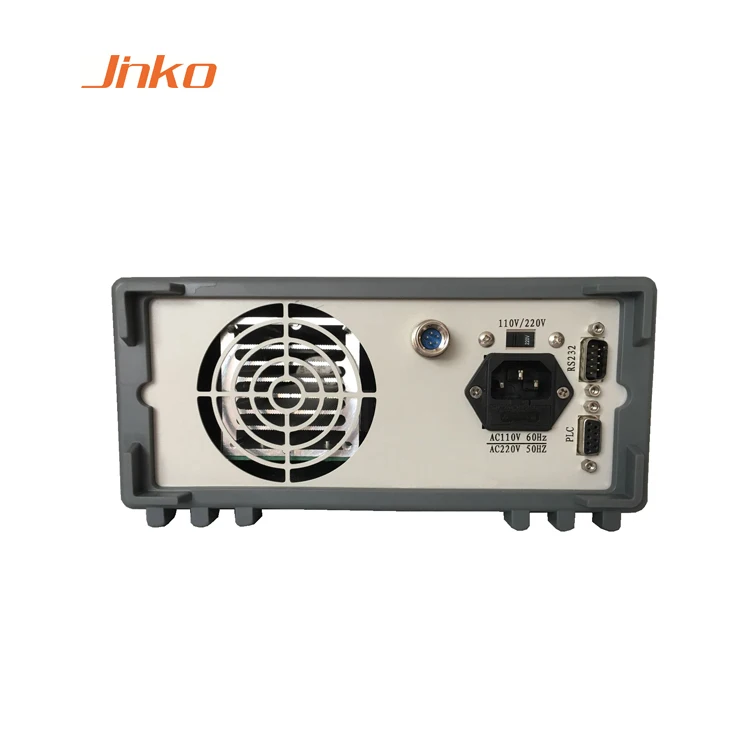

Interface |
| No | Yes (with host computer software) | |||
Accessories |
| Kelvin test line, test probe | ||||
Size&Weight |
| JK5530/JK5530+ JK5530B Dimension(mm):225(W)*110(H)*405(D)About 4.5kg JK5530C Dimension(mm):420(W)*130(H)*430(D)About 8.5kg | ||||
Packaging & Shipping
Company Information
Changzhou Jinailian Electronic Technology Co., Ltd. , established in 2000, is a private hi-tech enterprise integrating R&D, manufacturing and marketing. After 20 years of development, Jinko has developed 30 varieties, including: LCR Digital Bridge series; capacitance and inductance measurement (sorting) series; leakage current tester series; DC low resistance tester, MOS tube tester, transistor tester, multiplex temperature tester, paperless recorder, electrical parameter measuring instrument, and other high-precision measuring instruments and testers. Other active products such as: DC stabilized voltage supply and high power switching power supply.
