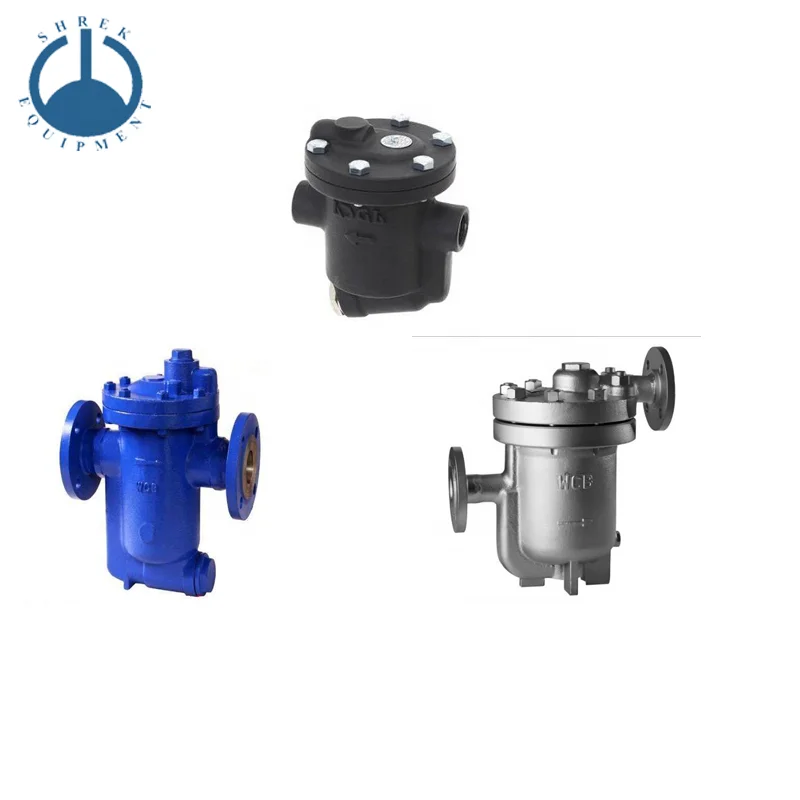

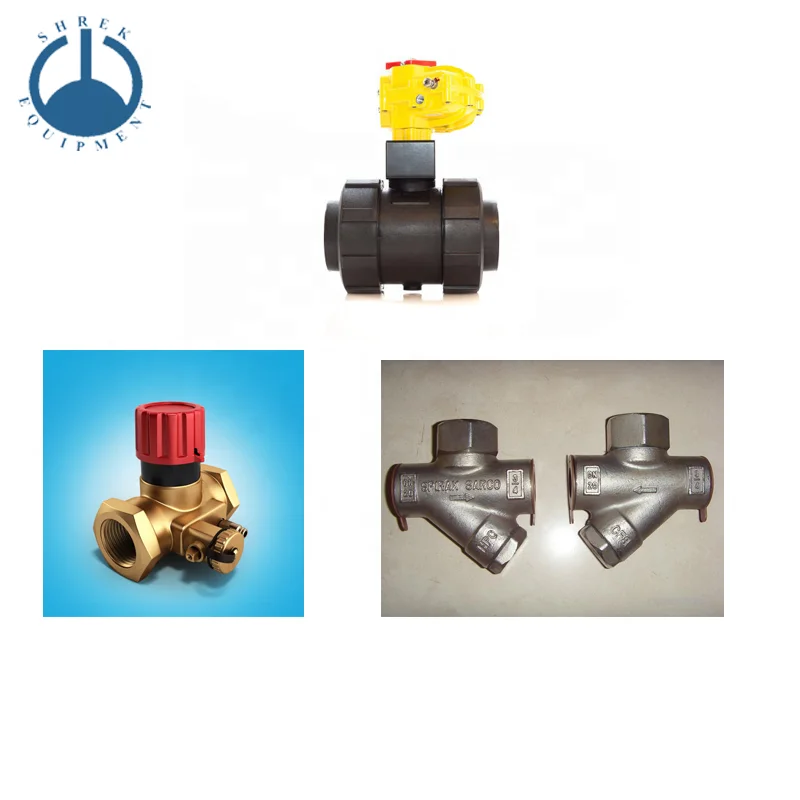

Высококачественная ловушка для дисков с резьбой сертифицированная CE. Резьбовая Паровая ловушка. Тип штекера в одну

Steam trap, threaded disc trap, threaded steam trap, plug-type one-way trap

  A trap is a valve used in steam pipe networks and equipment to automatically discharge condensed water, air and other non-condensable gases and prevent water vapor leakage. According to the different working principles of steam traps, steam traps can be divided into the following three types:
  Mechanical type: Rely on the change of the height of the condensed water in the steam trap to act,

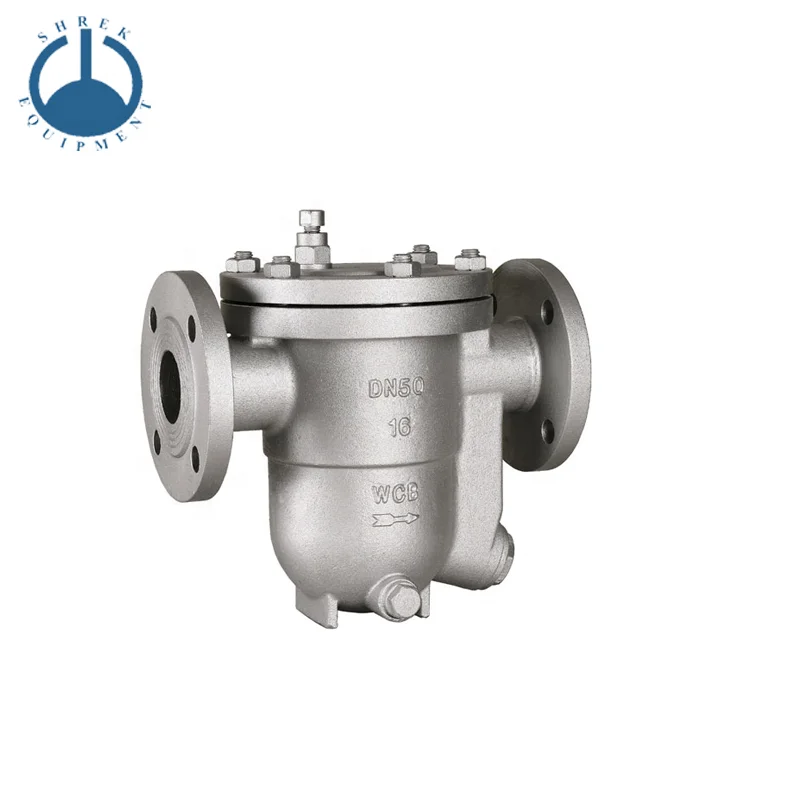

 1. The steam trap is installed between the steam heating equipment and the condensate return header. When driving, the barrel is at the bottom and the valve is fully open. After entering the trap, the condensate flows to the bottom of the bucket, fills the valve body, and completely immerses the bucket body. Then, the condensate water is discharged to the return header through the fully open valve.
 2. Steam also enters the trap from the bottom of the barrel and occupies the top of the barrel to generate buoyancy. The barrel slowly rises and gradually moves the lever toward the valve seat until the valve is completely closed. Air and carbon dioxide gas pass through the vent holes in the barrel and gather at the top of the trap. The steam discharged from the vent will be condensed due to heat dissipation from the trap.
 3. When the incoming condensate starts to fill the barrel, the barrel begins to exert a pulling force on the lever. As the condensate level continues to rise, the force generated continues to increase until the pressure difference can be overcome and the valve can be opened.

 4. When the valve starts to open, the pressure difference acting on the disc will decrease. The barrel will drop rapidly, making the valve fully open. The non-condensable gas accumulated on the top of the trap is discharged first, and then the condensed water is discharged. When the water flows out of the barrel, the dirt will flow out of the trap. At the same time as the condensate is discharged, steam starts to enter the trap again, and a new cycle begins.

1. Q:Are you a manufacturer accepting OEM order?
A: We are a manufacturer and we can professional manufacture OEM equipment for customers
2. Q:What's your products MOQ?
A: Different model has different MOQ, pls check with salesman.
3. Q: How can I get some samples?
A: Yes, we provide sample for customer trial use;
4 Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-7 days.
2.The batch order can be shipped to you within 5-15 days after order confirmation
5 : Q:What's your warranty & after service policy?
A: 2 Months for all products, and some products warranty is 24 months.
6 Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7 Q: What's the payment can you accept?
A:Usually we accept L/C,T/T ,Western Union, PayPal and Alipay, also RMB transfer in China.

 1, Export safe standard packing or customed packing according to customers' requirement;

 2  By courier(TNT, FEDEX, DHL, UPS, EMS etc.)

 3, By air

 4, By sea

 5, By railway or by truck

Shaanxi Shrek Equipment Co., Ltd. was founded in 1982, and has been committed to developing a full range of chemical equipment as well as carbon steel, titanium steel and stainless steel pressure vessels for various industries ever since. For over 30 years, Shrek has thrived on providing customers with quality products and Shrek has since grown to become a world leader in the field of custom fabrication for chemical reactors, tanks, vessels and related laboratory/pilot reactors and other chemical production equipments including parts and fittings;

Advanced equipment technology, reliable product quality and incomparable price and service have brought us great reputation among customers.

At present, Shrek covers a total area of 170,000 square meters, including 110,000m2 workshops. With the most up-to-date glass-lined equipment manufacturing technology, equipment and over 1000 employees including more than 300 professional technicians, we hold a capacity to produce 30,000 sets of glass-lined equipment per year. We have been an admittedly the largest glass-lined equipment producer in China with a net asset of 500 million RMB. The annual output and sales of Shrek glasslined steel equipments are 30% more than the sum of that of competitors in China. Outstanding durability helps us win the users' trust and favorable comment at home and abroad. Shrek has obtained the Design and Manufacture Licenses for National Class I, II, III Pressure Vessels, and we are the first in the industry in China to win American ASME Certificate, European PED Certificate and Russian RTN Certificate, as well as ISO9001 Certificate and ISO14001 Certificate. And, we own glass-lined equipment manufacture license and the license for free import and export. In addition, Shrek has been awarded the title of Shaanxi Star Enterprise and the Shaanxi Famous Brand for glass-lined equipment. Hundreds of certificates of honors have been granted to Shrek, and because of our innovation we have gotten 36 utility model patents for our glass-lined equipment. Continuous development of new products and advanced technology makes Shrek far ahead in glasslined equipments industry. Since its inception,Shrek has made the science and technology innovation as the motto of the company. This promotes continuous improvement of technology and keeps Shrek always in the leading area of glass-lined equipment industry

No matter what your requirements, Shrek can custom build a vessel that will outperform your expectations. Every Shrek vessel is individually designed to meet particular conditions specified by you, our customer. Our vessels can operate at a range of pressures, from high vacuum conditions to over 70 MPa. Temperature is also no challenge for Shrek, as our vessels can operate at temperatures as low as absolute zero to as high as 650 degrees Celsius;

Shrek has long been a popular choice for those in the market for a custom alloy vessel. Our pressure vessels can be found all over the world, and excel in all types of applications. From petrochemical plants and offshore drilling platforms, to food processing facilities and manufacturing plans, Shrek vessels have done it all.

Shrek also plays an enduring role in cryogenic service in different locales all over the world. We specialize in double-walled dewars with vacuum insulating but can also create other custom vessels, including triple-walled dewars. Furthermore, we have designed numerous custom vessels for cryogenic purposes and our chairman is a charter member of the Cryogenic Society of China

Shrek is dedicated to providing customers with the best technology available. We thrive on keeping up-to-date on all technological improvements so you can adapt to the needs of the future.

In virtue of superior product quality and considerate after-sales service, Shrek has won the trust of customers both at home and abroad. Currently, our glass-lined equipment has been sold to more than 30 countries and regions including the US, France, Russia, Latvia, Brazil, South Africa, Argentina, Chile, Turkey, Greece, Spain, Thailand, Japan, South Korea, Egypt, India, etc.

 1, Top quality equipment guarantee;
Shrek Equipment Pump subsdiary is a large professional ISO9001:2008 pump enterprise, specialised in designing, production and sales of high  quality pumps,liquid supply systems and pump control systems. It is the leading pump manufacturing group in China. The strength of more than  2800 staff members, comprising of over 80% of college diploma holders, over 250 engineers, doctors, makes it the best choice for the talent.
2, Pump Exportation Guarantee
Shrek Equipment have 2006/42/EC,GCS,EAC/CU-TR,PSE and series certification for worldwide customers;And Shrek Equipment will gurantee all  shipment delivery to get to global customers;
3, Professional enginners worldwide provide all detailed technical support after sales
4, Working in 7×24 hours and your request will be processed by our professional staff in different shift period.
5, No risk working with Shrek Equipment;
Free sample can be arranged before shipment and SGS,BV and other third party inspection company are accepted before loading.For regular  customers, we accept L/C 180 Days, D/P,D/A payment term. If there is any quality problem after goods arrive. Shrek equipment will do fully  payment refund.
Shrek Only Supply You Top Quality Equipment and Working with Shrek is working With Safety!!
