Шанхай yiyou пластиковое изделие Термоформовочная Машина дизайн
US $120000-$150000
Полностью автоматическая Заказная маленькая машина для производства пластиковых ПЭТ преформ бутылок
- Категория: >>>
- Поставщик: Jiangsu,Faygo,Union,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 104720.95 $* | 109956.0 $* |
| Aug-18-2025 | 103840.33 $* | 109032.63 $* |
| Jul-18-2025 | 87120.19 $* | 91476.54 $* |
| Jun-18-2025 | 102080.35 $* | 107184.68 $* |
| May-18-2025 | 88880.24 $* | 93324.19 $* |
| Apr-18-2025 | 100320.40 $* | 105336.66 $* |
| Mar-18-2025 | 99440.40 $* | 104412.99 $* |
| Feb-18-2025 | 98560.32 $* | 103488.78 $* |
| Jan-18-2025 | 97680.14 $* | 102564.78 $* |
Характеристики
Product Description

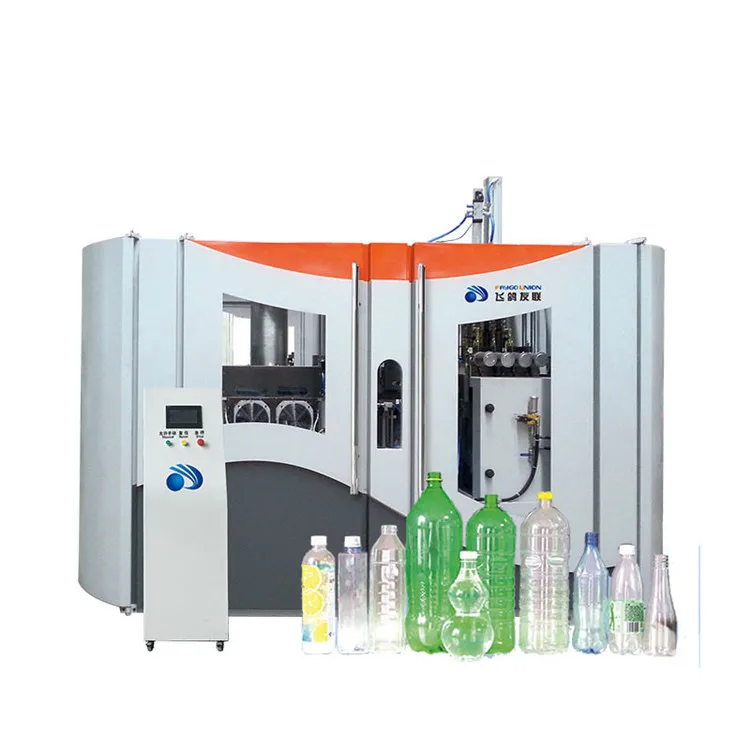

FG6 PET bottle blow molding machine
Specification
Model | FG6 | ||||
Mold Number (piece) | 6 | ||||
Max Capacity (BPH) | 9000--10000 | ||||
Bottle specification | Max Volume ( ml) | 2000 | |||
Max Height (mm) | 328 | ||||
Round bottle Max Diameter (mm) | 105 | ||||
Square bottle max diagonal (mm) | 105 | ||||
Perform specification | Suitable inner bottle neck (mm) | 20--25 | |||
Max preform length (mm) | 150 | ||||
Electricity | Total installation power (kw) | 51 | |||
Heating oven total power (kw) | 46 | ||||
Heating oven real power (kw) | 26 | ||||
Voltage/frequency (V/HZ) | 380V(50HZ) | ||||
Allowed voltage fluctuation range | 342V-- 418V | ||||
Compressed air | Pressure (bar) | 30 | |||
Air consumption (m3/min) | 6 | ||||
Cooling water | Mold water | Pressure (bar) | 4--6 | ||
Temperature regulation range (℃) | 6--13 | ||||
Flow rate (L/min) | 45 | ||||
Oven water | Pressure (bar) | 4--6 | |||
Temperature regulation range (℃) | 6--13 | ||||
Flow rate (L/min) | 22 | ||||

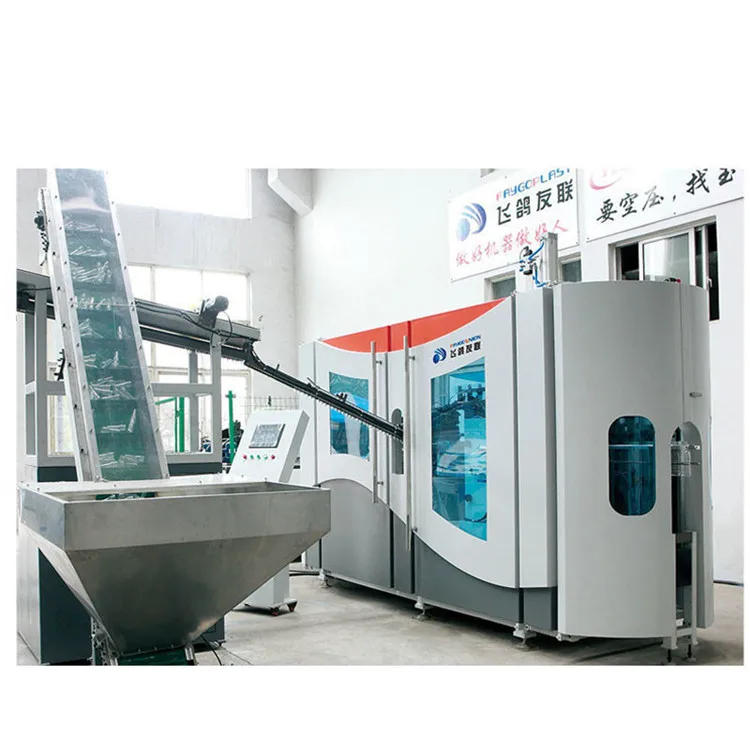

Workflow of FG6 bottle blow machine
Preform Preform unscrambler FG6 bottle blower PET bottle
Configuration
Blowing valve
Servo system
Reducing valve
Frequency inverter
PLC touch screen
Magnetic valve & Cylinder
One-way valve
Throttle valve
Detailed Image
Servo driving system
The unique cam linking system integrates molding-opening, mold-locking and bottom mold-elevating in one moment, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerate the speed.
heating system
Equipped with remote monitoring system, engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile, feedback will be informed to the client's site if something abnormal, give the machine 24 hours' baby care in the cradle.
Air cycling system
Heater distance in the heating oven is minimized to 38mm, compared with the conventional heating oven, it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat disacharge system, it ensures the constant temperature in the heating zone.
Molds
The machine adopts modularized design concept to make it convenient and cost-saving for the maintence and changingovers, To change mold only need 30 minutes.
Our Advantages
Recommend Products
Packing & Delivery
Packing by film or wooden cases. Also we can pack the products according to customers' needs.
Company Profile
Our company
Our company is a high-tech enterprise covering 20000 m2 ，which specalizes in reserching and manufacturing blowing machines near twenty years. we are a strong team and big familiy, we are always stand-by to provide servise for all our customers.
Our staff
Thickness and thickness!
New Year Day's Party
Tour of Tonglu
Playing basketball
Our customer
Our service
Because of more expensive labor in the United States , so there are less staff in customers' workshop. And the stability of the machine and automation requirements are higher. The customer had not been exposed to the bottle blowing machine before, so after testing the machine to the customer, did a long time of training. After the training, the customer can operate the machine, and can independently remove some simple failure, can carry on the maintenance of the machine, the customer is very satisfied with the performance of this machine.
Our certification
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory, we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information..
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory, we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information..
