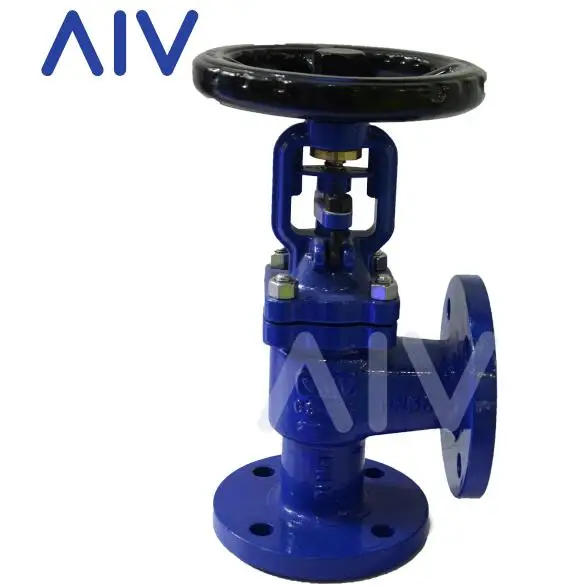

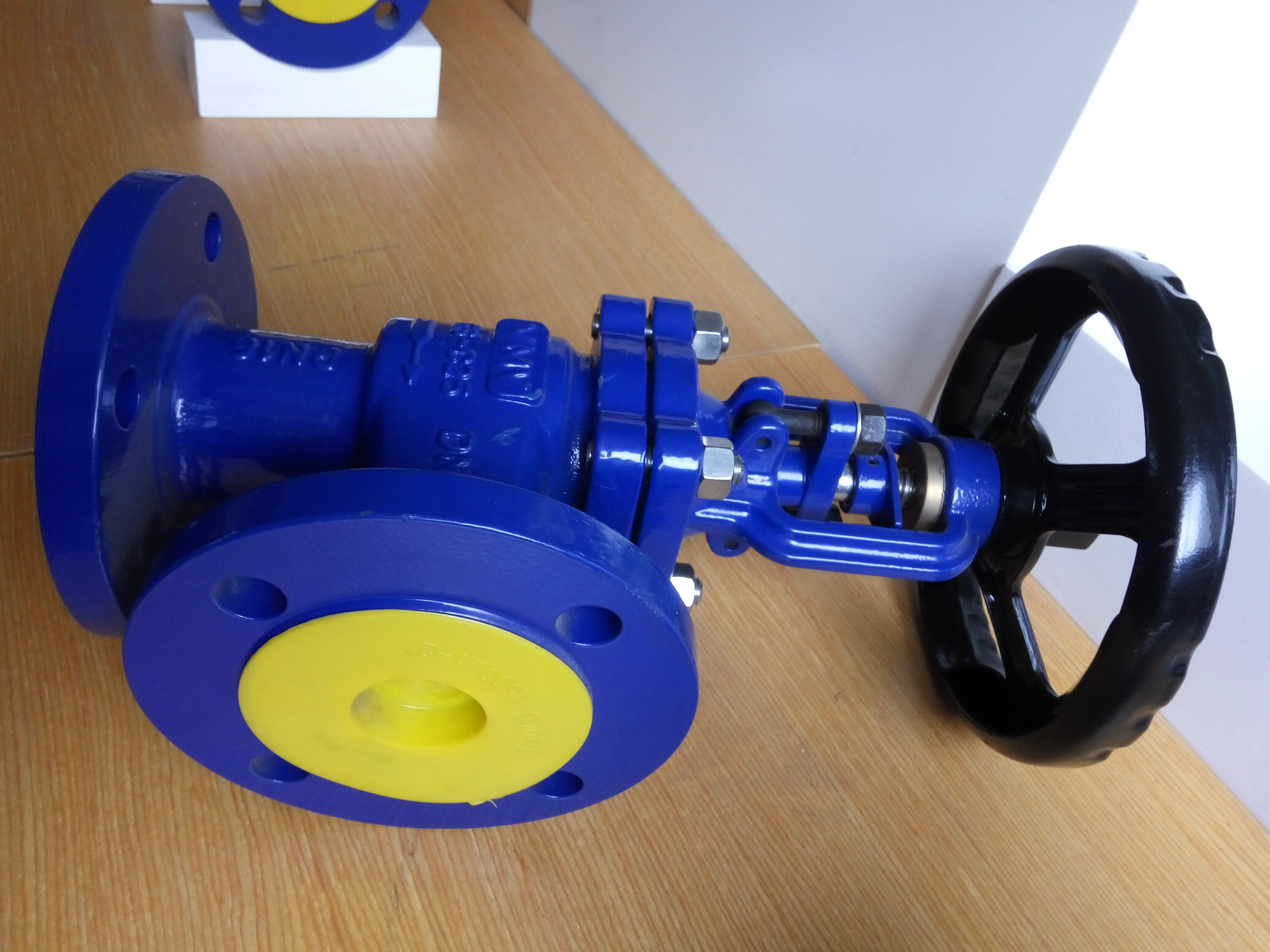

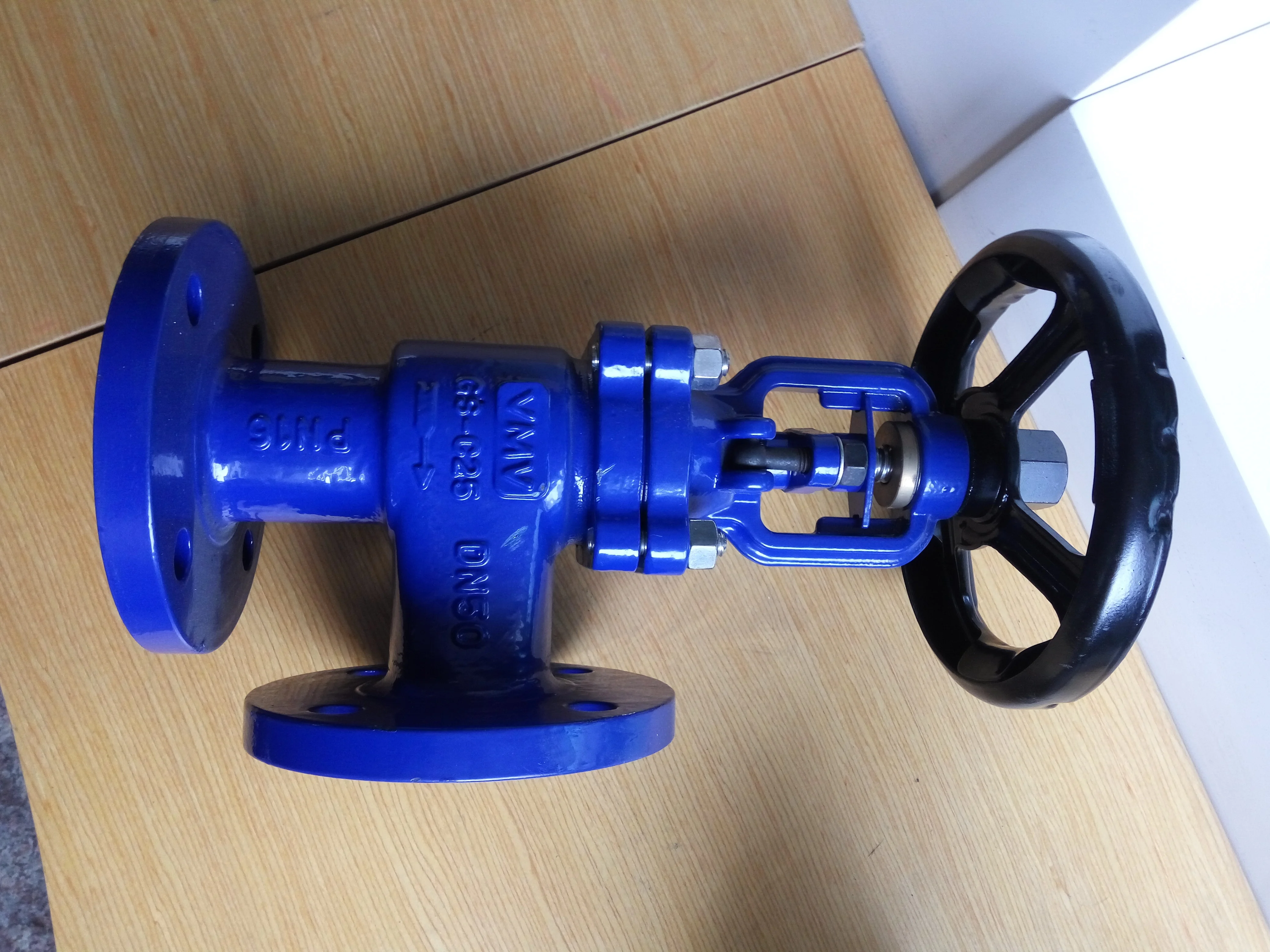

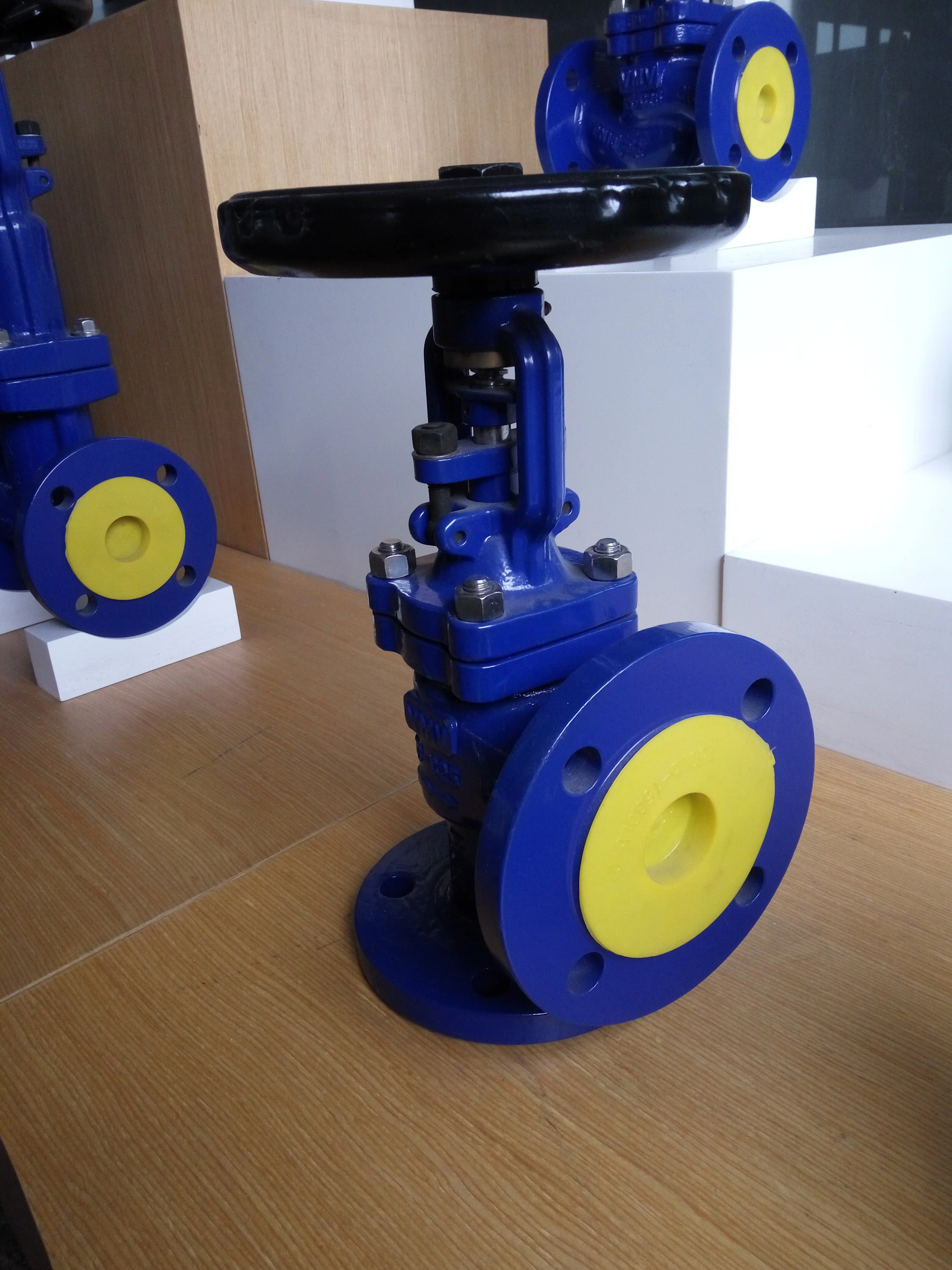

Чжэцзян масло Вода пара DIN угловой шаровой


Поделиться:


Цена:16,00 $ - 20,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 19.62 $* 20.19 $*
Aug-19-2025 19.21 $* 20.50 $*
Jul-19-2025 16.33 $* 17.82 $*
Jun-19-2025 19.14 $* 20.12 $*
May-19-2025 16.2 $* 17.86 $*
Apr-19-2025 18.32 $* 19.25 $*
Mar-19-2025 18.75 $* 19.58 $*
Feb-19-2025 18.93 $* 19.83 $*
Jan-19-2025 18.47 $* 19.61 $*

Характеристики















                          1




























Technical specification


Design standard


DIN 3356


Face to face dimension


DIN 3202


Flanged ends


DIN 2543-2545


Test & inspection


DIN 3230










Advantage

1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is
the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
3.Grease nipple. It can direct lubricate the stem, nut and sleeve.
4.Ergonomic hand wheel. It provide longer service life and easier operation.







































































Main part materials


Part name


Material


Body


GS-C25, 1.4301, 1.4408


Seat


1.4301, Stellite


Disc


1.4021, 1.4401


Stem


1.4021, 1.4401


Bellow assemble


1.4021, 1.4401


Stud


ASTM 193-B7,A193-B8,A193-B8M


Nut


ASTM 194-2H,A194-8,A194-8M


Gasket


Stainless steel+ Flexible graphite


Packing


Flexible graphite


Gland


1C25, 1.4401


Stem nut


Copper alloy,D2,BL-2


Hand wheel


1025/KTH330


Locator


1C25







Applications








Hot oil system, steam system, hot and cold water system etc












.webp









More Products







.webp









Company View







.webp









Exhibitions







.webp









Certifications







.webp









Production Line







.webp









Packaging&Shipping
















FAQ







1. Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.



2. Can I request to advance the shipment?

A: It should be depends on whether there is sufficient inventory in our warehouse.



3. Can I have my own Logo on the product?

A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.



4. Can you produce the products according to my own drawings?

A: Yes, we can produce the products according to your drawings that will be most satisfy you.



5. Which price terms could accepted?

A: FOB,CIF all acceptable.
