Hot selling QT10-15 Block Making Machine Construction Used Fully Automatic Brick Making Machine
Product Description
Hot selling QT10-15 Block Making Machine Construction Used Fully Automatic Brick Making Machine

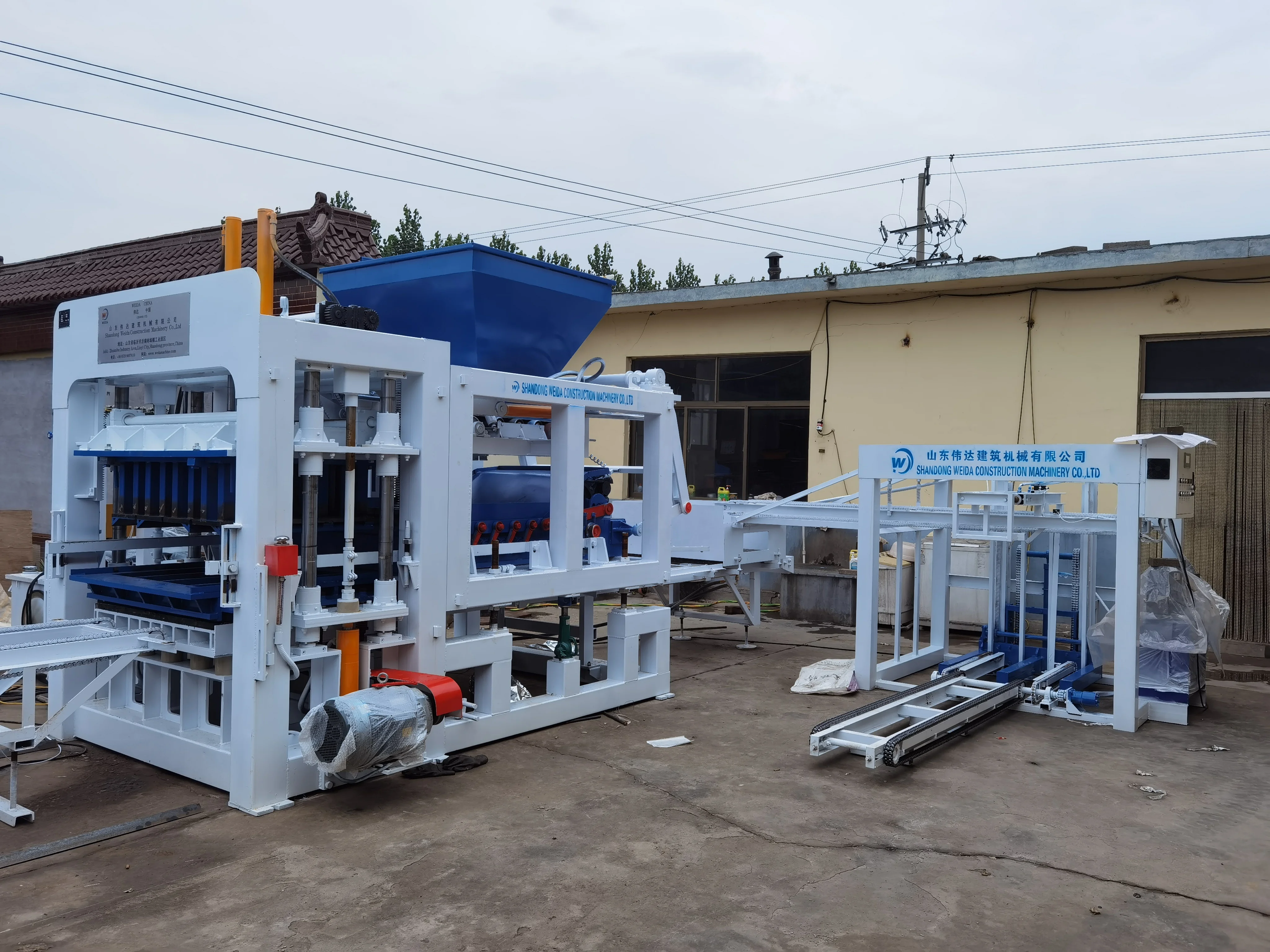

QT10-15 is a full automatic block machine with hydraulic pressure .It can make hollow block solid block , paver blocks , curstone and others by changing molds , the material can be fly ash , cinder, coal ganue ,sand ,cement and so on . The machine is controled by PLC , which is more easy to operate and high efficiency.The Vibration force can reach 100KN , final products pressure can reach 16Kpa. It is usually used in large construction projects and brick factories.
Place of Origin | Shandong, China |
Capacity | 12000-14000pcs/day |
Type | Hollow Block Making Machine |
Certification | CE/ISO9001 |
Processing | Brick Production Line |
Method | Hydraulic pressure +Vibration |
Brick Raw Material | concrete,cement,sand,crushed stone,fly ash, |
Automatic: | Yes |
Voltage: | 380/415/440V |
Dimension(L*W*H) | 3500x2300x2930mm |
condition | new |
Warranty | 1 year |
Key Selling Points: | Long Service Life |
Pallet size: | 1100x900x28mm |
Product Name: | QT10-15 block making machine |
Block Type: | hollow block,solid brick,paver brick,cuberstone |
Motor: | Siemens standars |
Color: | customized |
Vibration force | 100KN |
Workers: | 5 |
PLC: | Siemens standars |
Switch: | Schneider |
Main parts
Name | Host Machine QT10-15 |
Weight | 10T |
Power | 44KW |
Vibration | 100KN |
Water consumption | 10-13ton/day |
workshop area | 300m2 |
Name | 3 warehouse Baching Machine JS750 |
Discharge /chargeing volume | 750L/1200L |
Theoretical capacity | ≥35m3 |
Aggregate size | ≤60/80mm |
working circle | 60s |
speed | 30.5r/min |
Dimensions | 4550x2250x2450mm |
Name | 3 warehouse batching machine (PLD 1200) |
Capacity of storage hopper | 3.7m³x3 |
Productivity | 60m³/h |
Feeding height | 2981mm |
Power | 4x4=16kw |
Overall weight | 4130kg |

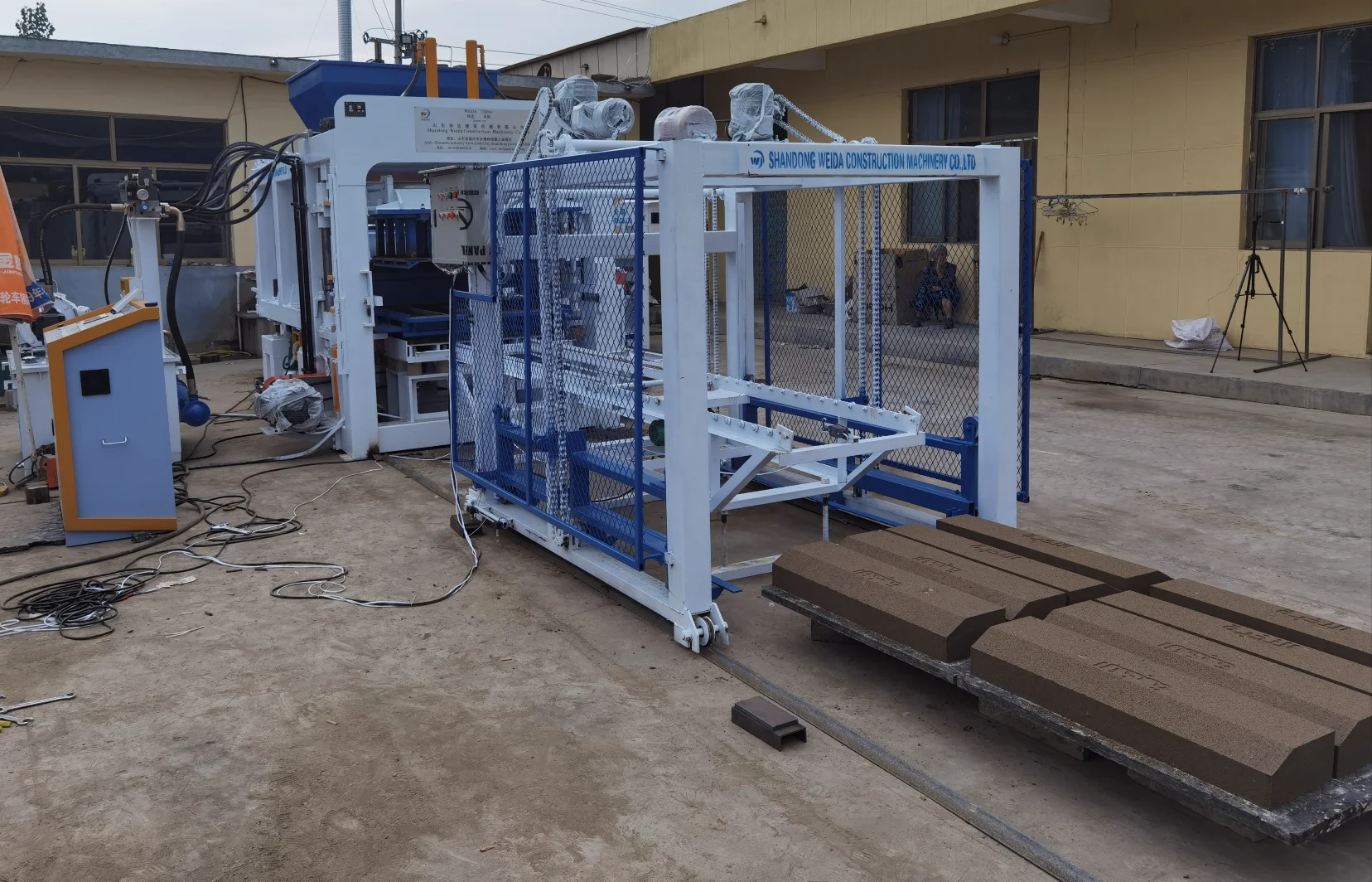

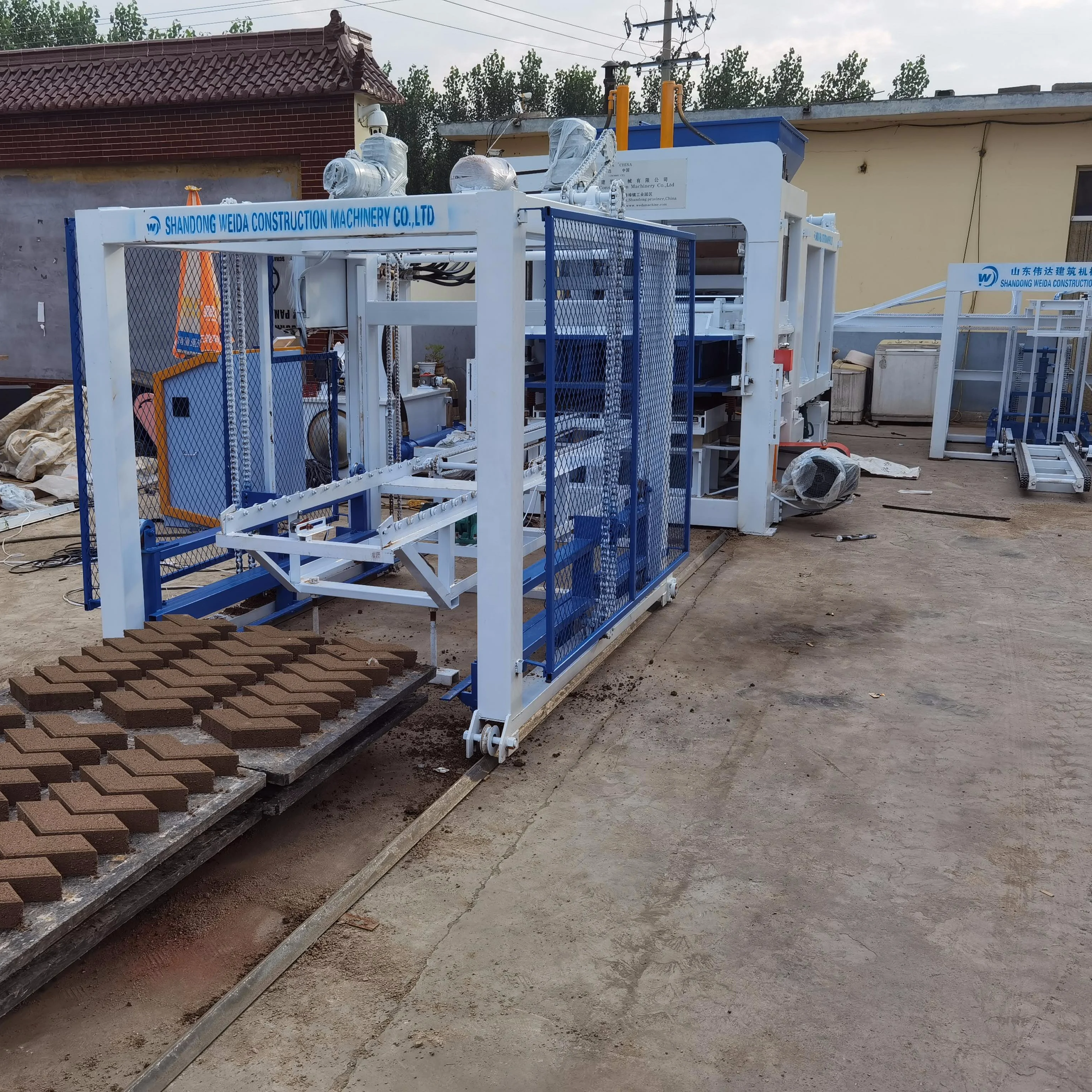

Name | Stacker wd-10 |
Lifting motor | 1.5kw |
Moving motor | 1.5kw |
Cycle | 15-20s |
Weight | 2500kg |
Stacker layer | 4 layer |
Dimension | 2500x1800x2300mm |

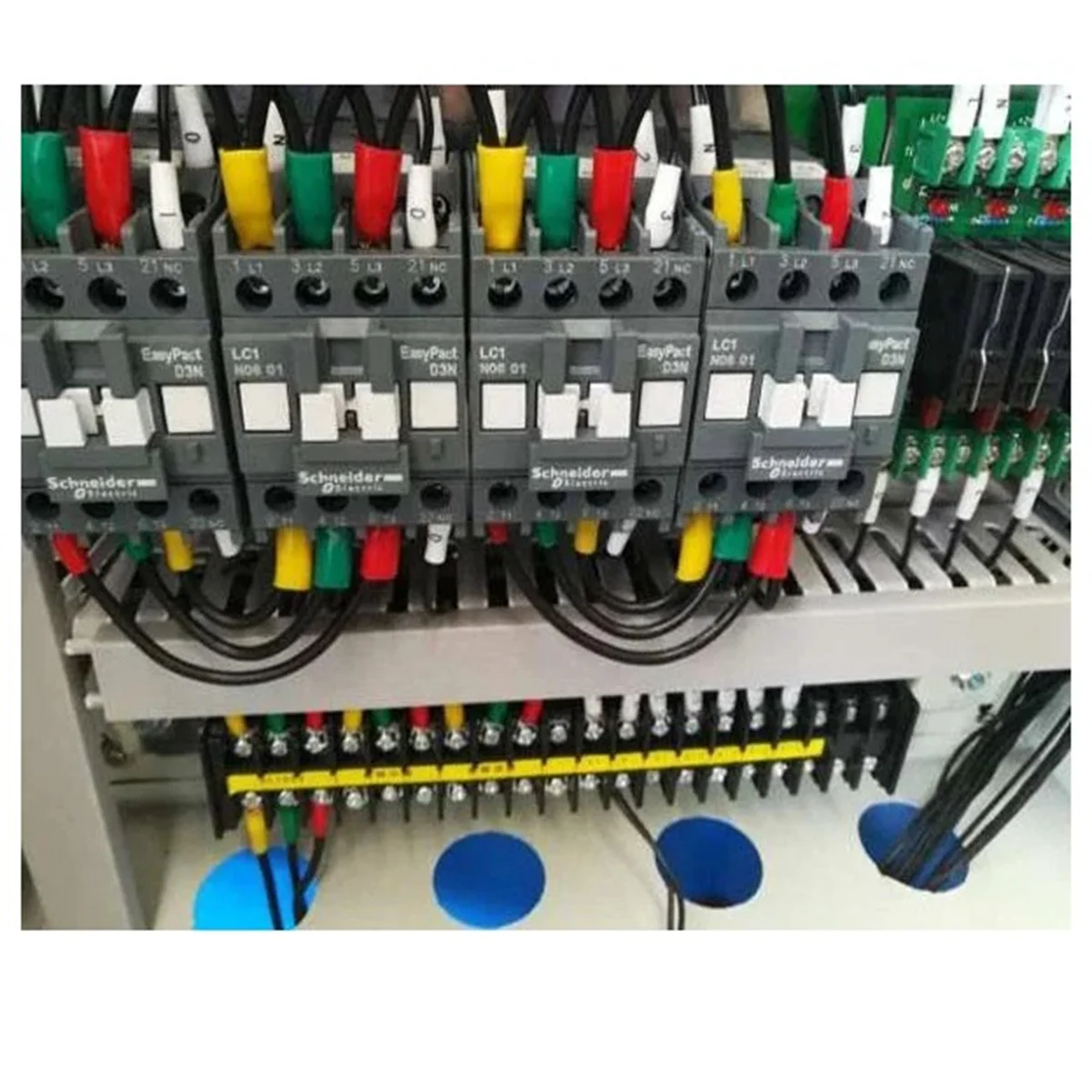

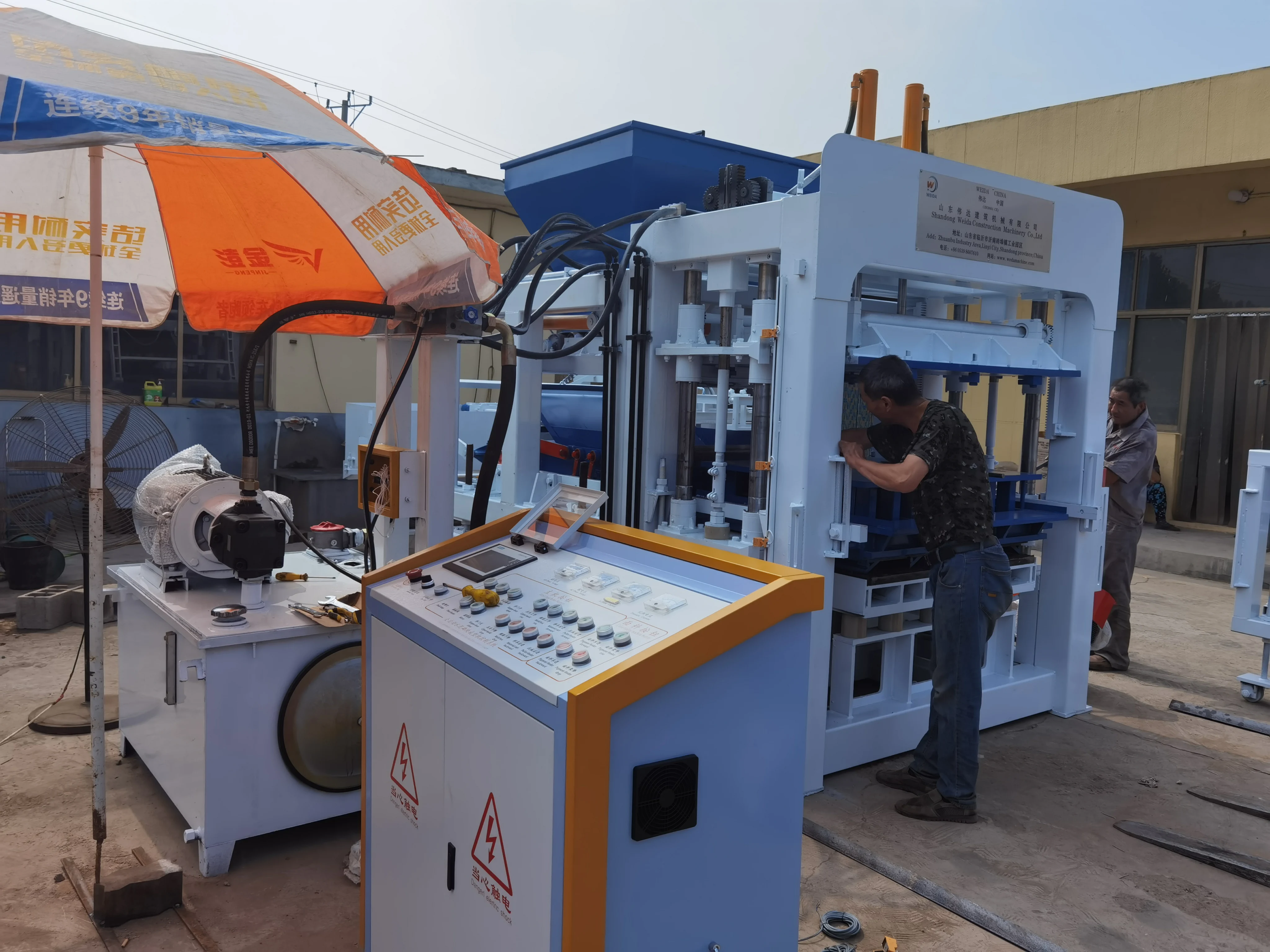

PLC control cabinet
Simenes s-200

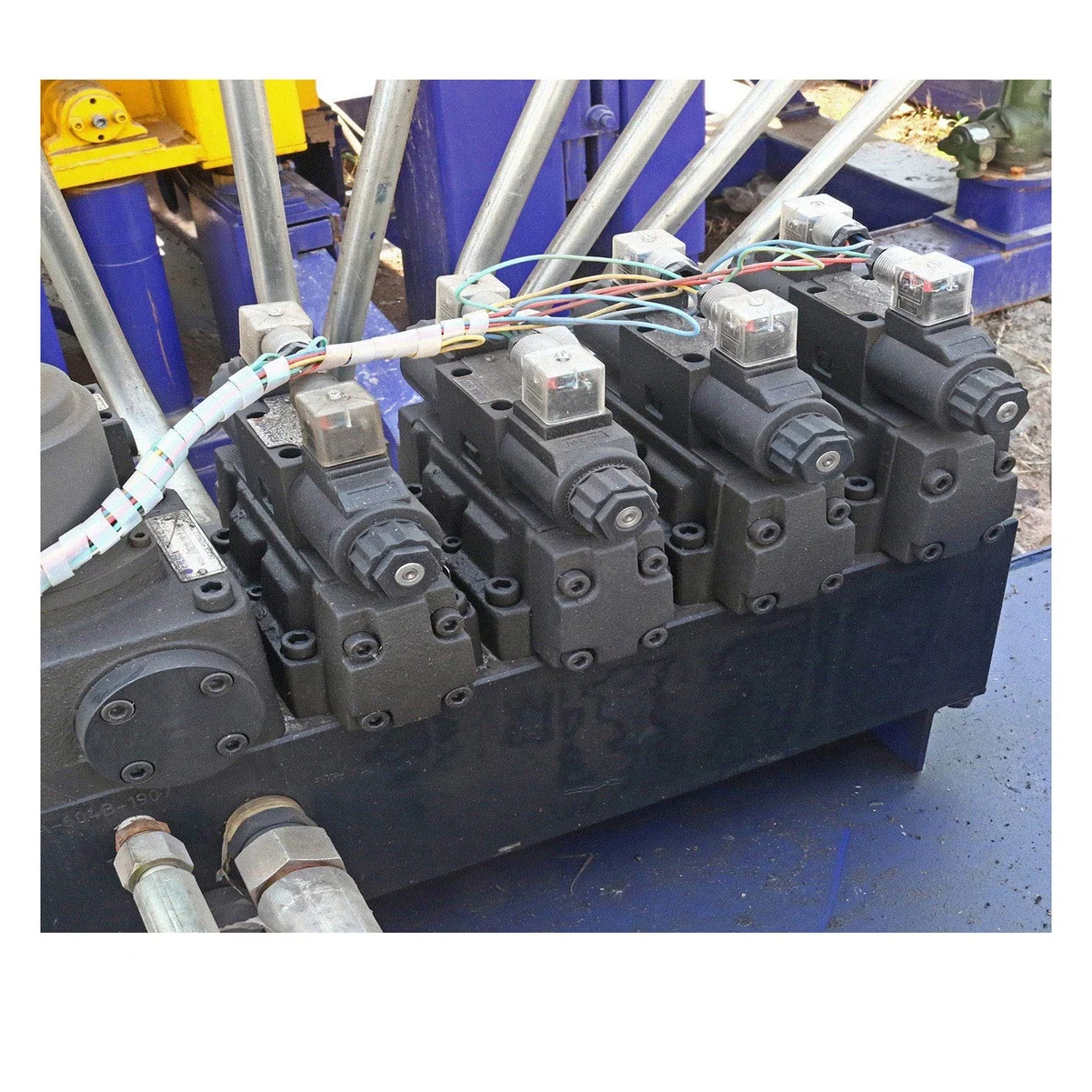

Hydraulic station
Hydraulic pressure :21KPA
Customer Case
Packing & Delivery
Certifications
Company Profie
About Us
Shandong Weida Construction Machinery CO., Ltd（was renamed as Shandong weida environmental protection machinery co.,ltd) is located in Linyi City, Shandong Province, China. With 20 million USD investment and 53,000 square meters area, it is a high-tech development enterprise with a high starting point. Its main business covers autoclaved aerated concrete production line, large and medium-sized non-burning brick machine, high-strength gypsum powder extraction equipment.
