Магнитные индикаторы уровня погружной воды датчик жидкости магнитный
- Категория: Levels >>>
- Поставщик: Zhuhai,Qixinli,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 324.14 $* | 330.95 $* |
| Jul-18-2025 | 263.79 $* | 268.84 $* |
| Jun-18-2025 | 319.18 $* | 325.43 $* |
| May-18-2025 | 316.92 $* | 322.90 $* |
| Apr-18-2025 | 252.5 $* | 257.6 $* |
| Mar-18-2025 | 311.1 $* | 317.74 $* |
| Feb-18-2025 | 309.13 $* | 315.22 $* |
| Jan-18-2025 | 306.89 $* | 312.26 $* |
Характеристики
Product Overview

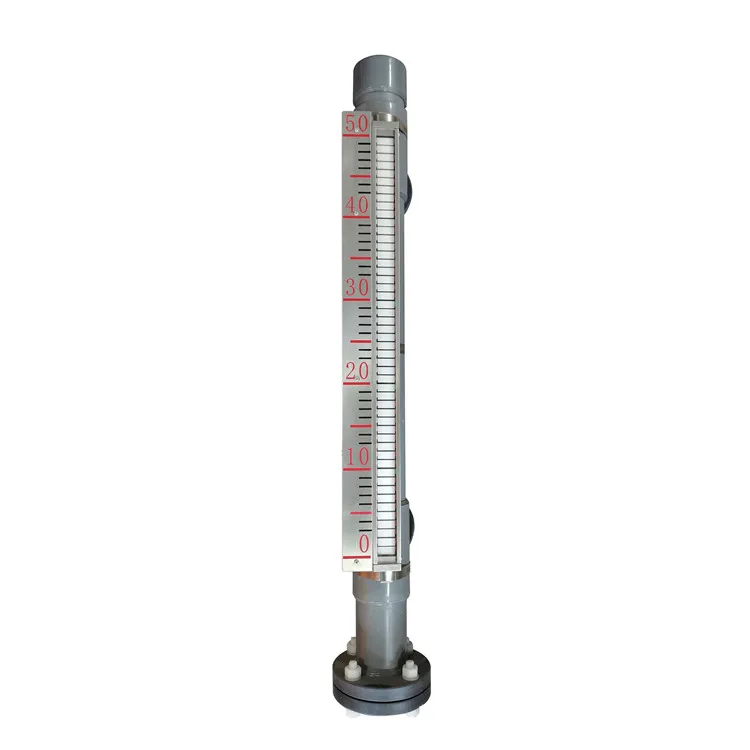

Magnetic Level Indicators Submersible Liquid Level Sensor Magnetic Water Level Transmitter Price
QXMLI is QXL’s standard, high performance magnetic level indicator. QXMLI is a single chamber design with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models.
QXMLI magnetic level indicators are produced in a wide range of materials of construction, including plastics. QXL also offers one of the most complete selections of process connection types and sizes in the industry.

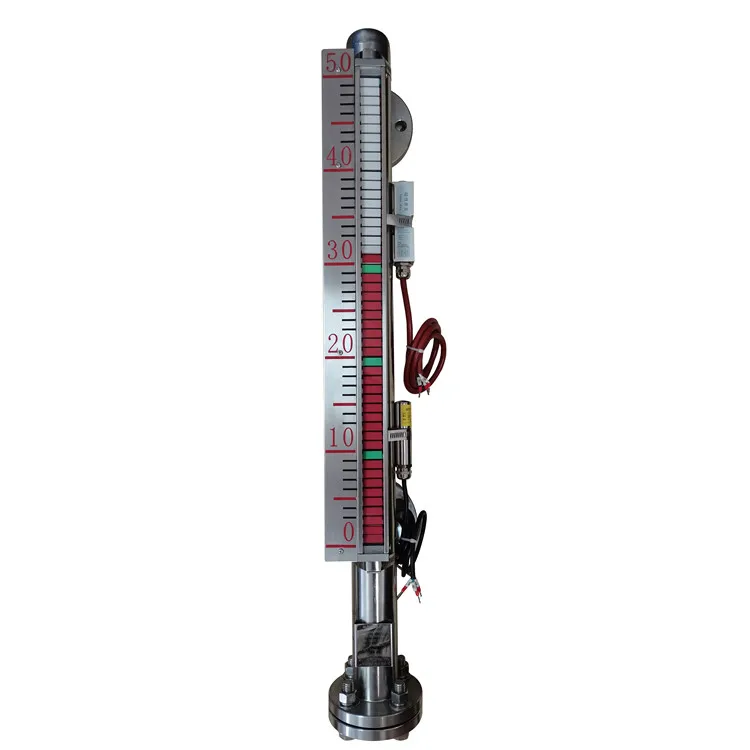

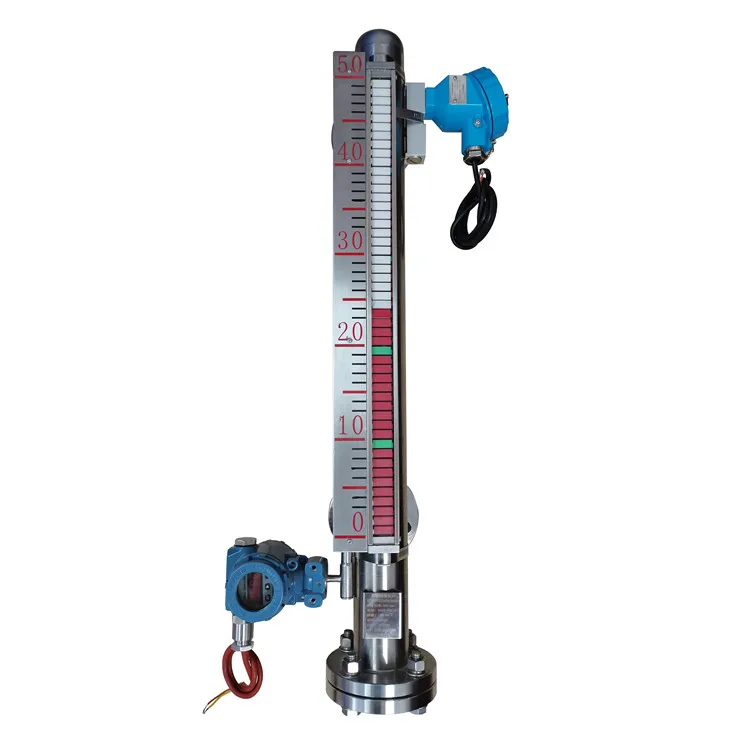

QXMLI may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the QXMLI to be a complete level and monitoring control.
QXMLI magnetic level indicators are produced in a wide range of materials of construction, including plastics. QXL also offers one of the most complete selections of process connection types and sizes in the industry.
QXMLI may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the QXMLI to be a complete level and monitoring control.
Measurement Principle
A change of level in the process tank corresponds to a similar change within the QXMLI chamber. In response to the level movement, the QXMLI float moves accordingly, actuating the flags or shuttle for visual indication.
A change of level in the process tank corresponds to a similar change within the QXMLI chamber. In response to the level movement, the QXMLI float moves accordingly, actuating the flags or shuttle for visual indication.
Features
Numerous chamber styles (or configurations) for each design. Custom designs available.
Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar

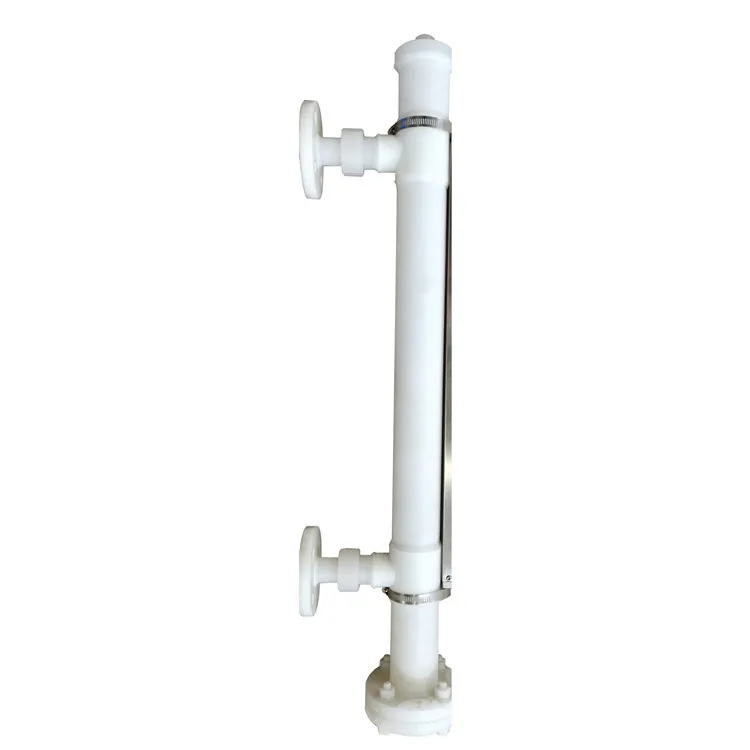

Fabricated, non-magnetic chamber assembly produced in a wide range of metal and plastic materials
ANSI and EN 1092 process connections available
Precision manufactured float with internal magnets and magnetic flux ring

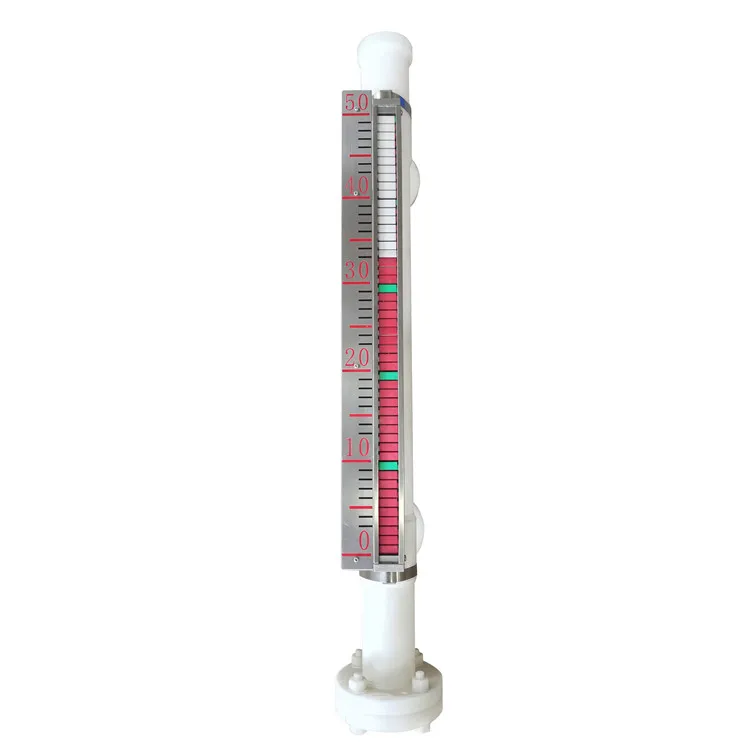

Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level
Standard float stop springs at top and bottom of chamber
Numerous chamber styles (or configurations) for each design. Custom designs available.
Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar
Fabricated, non-magnetic chamber assembly produced in a wide range of metal and plastic materials
ANSI and EN 1092 process connections available
Precision manufactured float with internal magnets and magnetic flux ring
Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level
Standard float stop springs at top and bottom of chamber
APPLICATIONS
Exceptional code qualified welding
Feed water heaters , Industrial boilers
Oil/water separators
Flash drums, Surge tanks
Gas chillers
Deaerators
Blowdown flash tanks
Hot wells
Vacuum tower bottoms
Alkylation units
Boiler drums
Propane vessels, Storage tanks
Exceptional code qualified welding
Feed water heaters , Industrial boilers
Oil/water separators
Flash drums, Surge tanks
Gas chillers
Deaerators
Blowdown flash tanks
Hot wells
Vacuum tower bottoms
Alkylation units
Boiler drums
Propane vessels, Storage tanks
Selection parameters
1.Measuring range (C-C)
2.Liquid temperature, Ambient temperature
3.Material (medium to be measured)
4.Installation method (flange, thread size...)
5.Pressure range
6.Remote transmitter
7.Level alarm switch
1.Measuring range (C-C)
2.Liquid temperature, Ambient temperature
3.Material (medium to be measured)
4.Installation method (flange, thread size...)
5.Pressure range
6.Remote transmitter
7.Level alarm switch
Specification
Medium Density | ≥ 0.5Kg / L |
Medium pressure | ≤ 5.0Mpa |
Medium temperature | -40 ~ 130 °C / 200 °C |
Measuring range | 300-6000mm |
Accuracy | ± 8mm |
Measuring tube material | SUS304/SUS316L/PP/PVDF |
Float material | SUS304/SUS316L |
Connection | Flange connection (Customizable) |
Top Connection | Dome + race header (Customizable) |
Limit switch | Customizable |
Whether the remote | Customizable |
Whether the explosion | Customizable |
Product Structure
Typical Drawing
Typical Float Ball
Company Profile
Zhuhai Qixinli Technology Co., Ltd
We are dedicated in providing complete customized solutions for a wide range of industrial automation process applications – in material level, liquid flow, pressure and temperature.
We can provide you with high-precision measurement technology. We have more than 12 years of experience in industrial automation.
Our products can be used in many different industries such as food & beverage, water, energy, pharmaceutical etc. In the past 5 years, the company has undergone tremendous growth and development – flourishing internationally and providing customers worldwide with the best customized solutions for process automation
Main products include:
Level switch, Level transmitter
Components of magnetic level indicator
We can provide you with high-precision measurement technology. We have more than 12 years of experience in industrial automation.
Our products can be used in many different industries such as food & beverage, water, energy, pharmaceutical etc. In the past 5 years, the company has undergone tremendous growth and development – flourishing internationally and providing customers worldwide with the best customized solutions for process automation
Main products include:
Level switch, Level transmitter
Components of magnetic level indicator
Sales And Service Network
Successful Project
Project in Thailand
Project in India
Project in Russia
Packaging & Shipping
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2.Can I buy samples placing orders?
-Yes.Please feel free to contact us.
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
