Electrical UU10.5 25mH line filter common mode chokes for
Electrical UU10.5 25mH line filter common mode chokes for
Electrical UU10.5 25mH line filter common mode chokes for
Electrical UU10.5 25mH line filter common mode chokes for
Electrical UU10.5 25mH line filter common mode chokes for

Electrical UU10.5 25mH line filter common mode chokes for


Поделиться:


Цена:6,69 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 7.24 $* 7.3 $*
Aug-18-2025 7.58 $* 7.3 $*
Jul-18-2025 6.82 $* 6.67 $*
Jun-18-2025 7.59 $* 7.72 $*
May-18-2025 6.76 $* 6.12 $*
Apr-18-2025 7.34 $* 7.62 $*
Mar-18-2025 7.76 $* 7.92 $*
Feb-18-2025 7.11 $* 7.12 $*
Jan-18-2025 7.57 $* 7.41 $*

Характеристики

_01

_02

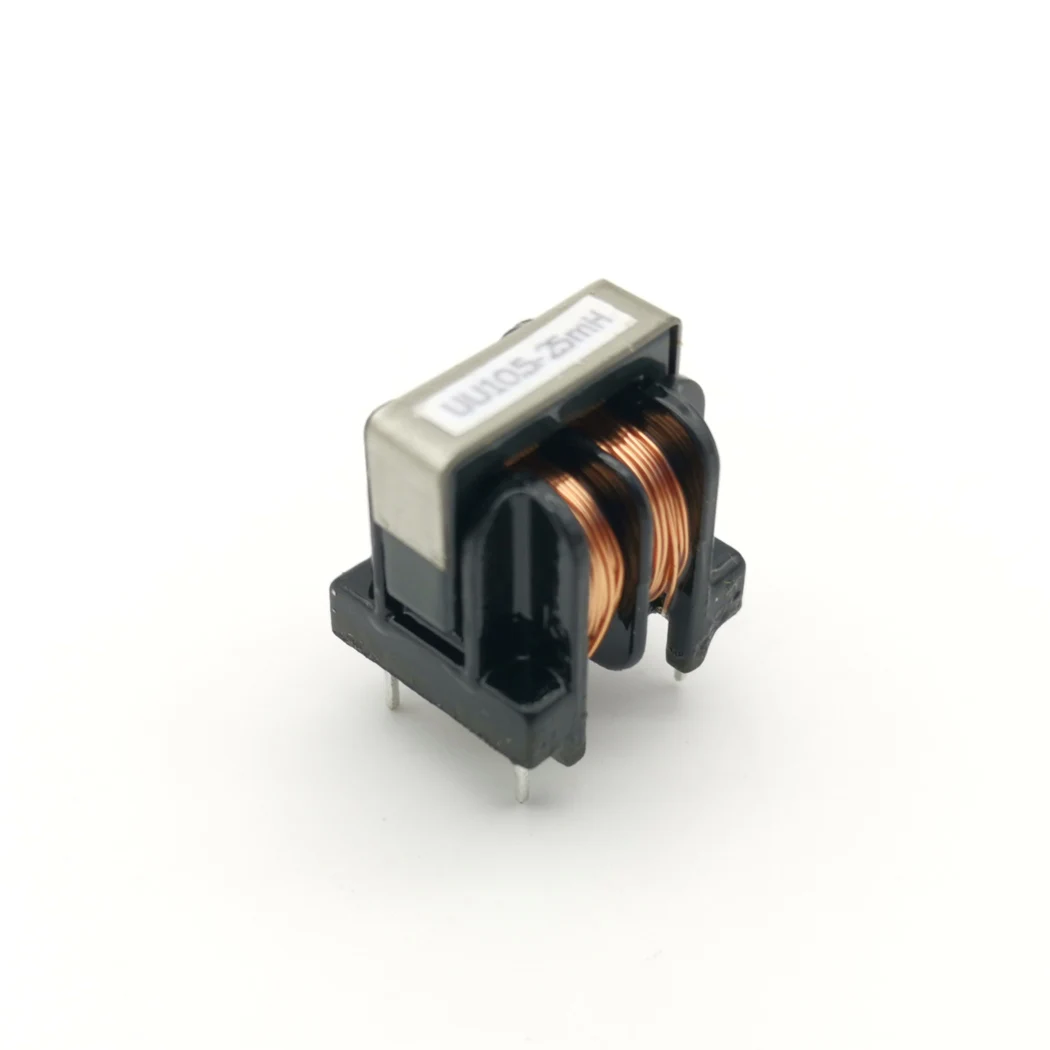

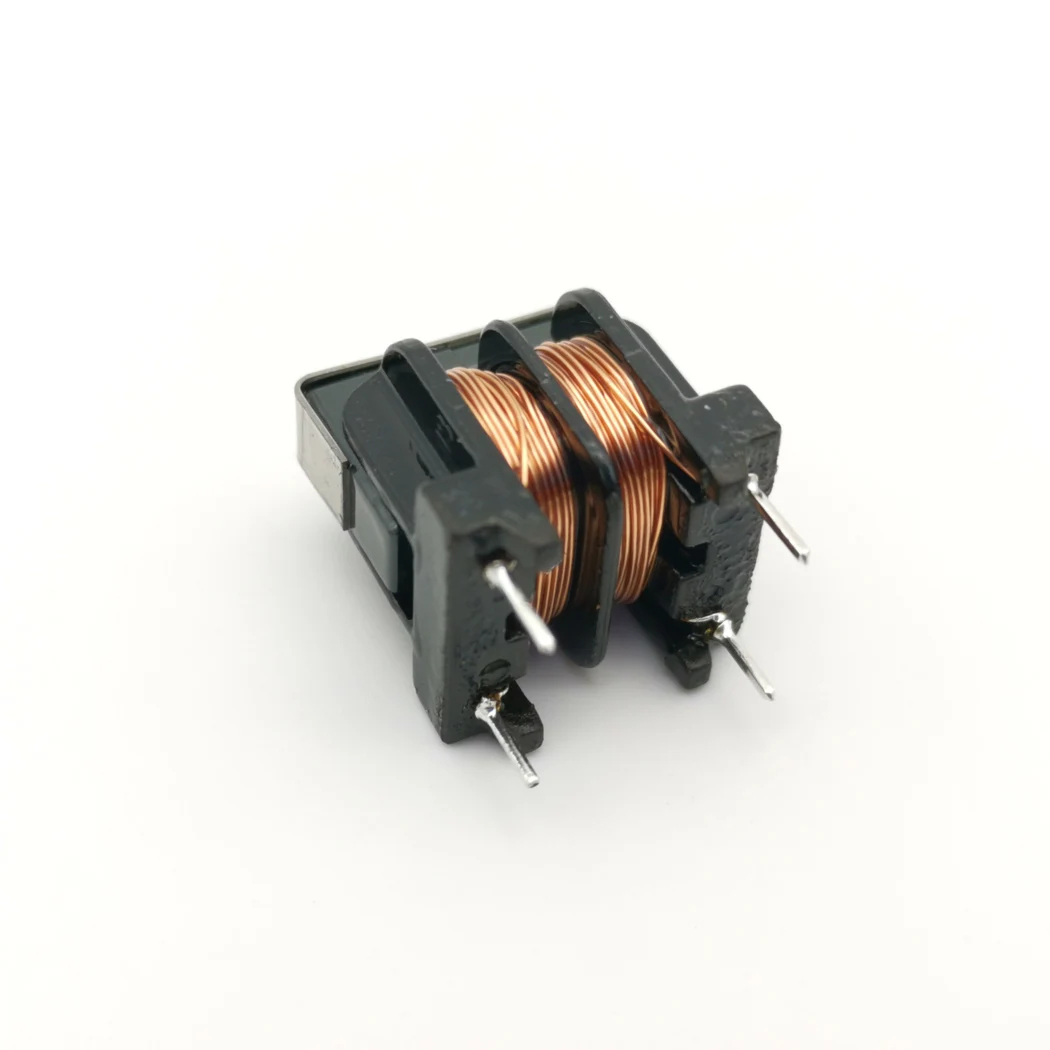

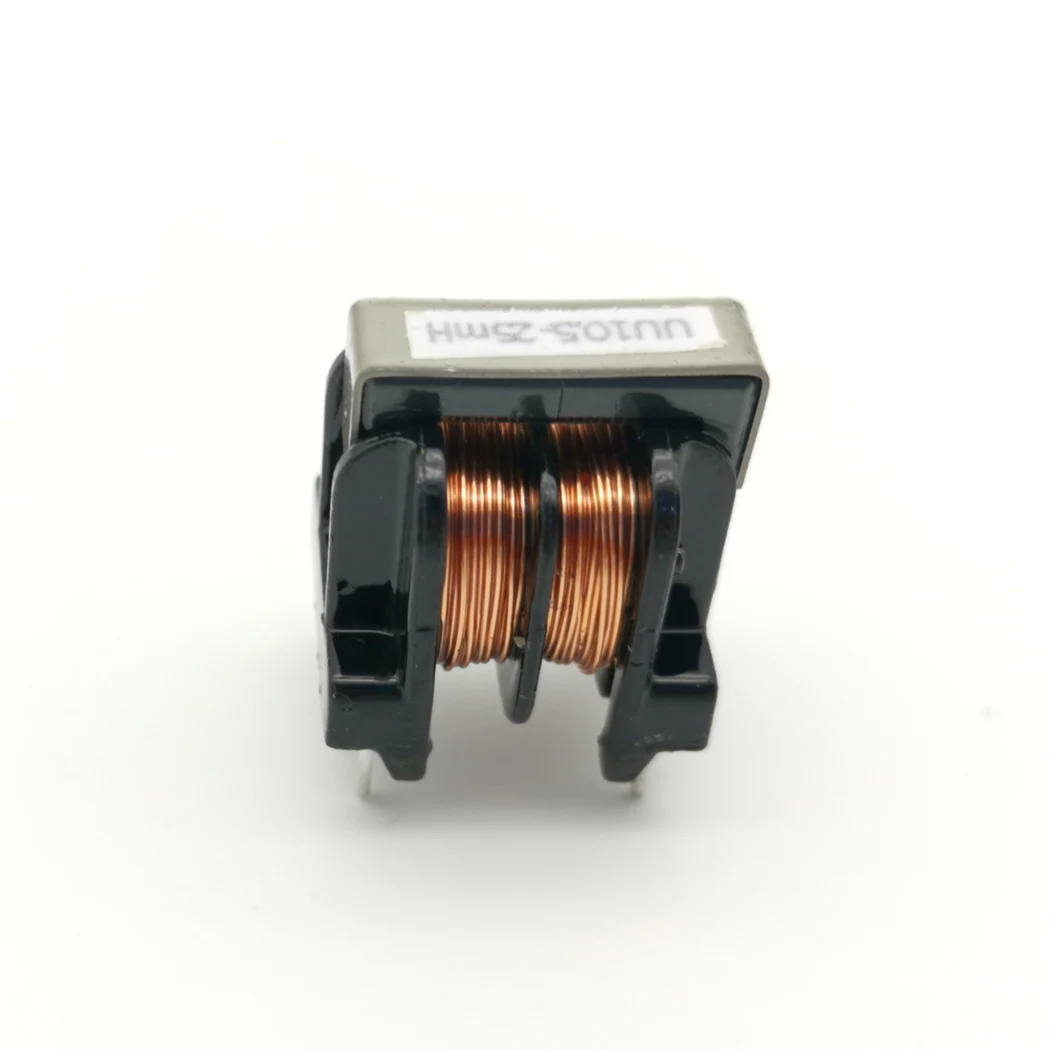

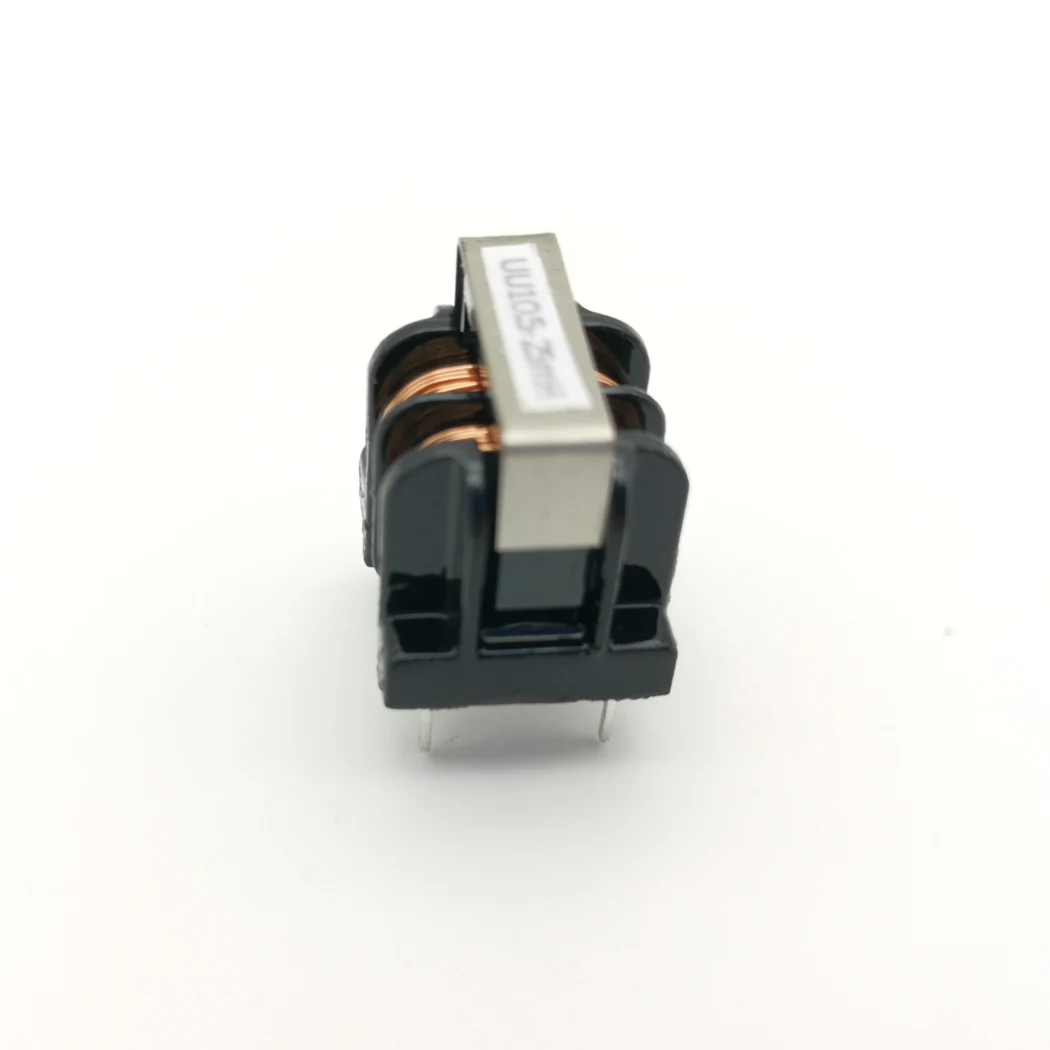

UU10.5  common mode choke(line filters)  25mH

Lead free RoHS compliant, .This type is the best for energy-saving in the low DC resistance.

IMG_20200731_102814.jpg IMG_20200731_102820.jpg







Hot sell-Common mode chokes(Line filters) - UU16 Type

All the raw materials are certified by UL.

Part  No.: TYC-UU16-03 Materials: Product Picture:
Features: Ferrite core: UU16/TL7 TYC-UU16.jpg
Customizable, Phenolic bobbin: T375J /150℃  94V-0
High inductance Copper wire: 2UEW Φ0.49mm /130℃
Low magnetic flux leakage Clip: UU16
Larger transmission power Tape:CT280
Operating temperature: -40°C to +125°C





Dimensions:(Unit:mm)



Electrical Charactersistics:

No. Items Test Terminals Specification Test Conditions (At 25℃) Test meters
1 Inductance 1-2 L=10mH Min 1KHz /0.25V HP4284A
4-3 L=10mH Min
2 Difference inductance |L1-L2| 0.2mH Max 1KHz /0.25V HP4284A
3 Insulation resistance Coil - Core 100MΩ Min DC 500V NF2511
Coil - Coil 100MΩ Min
4 Withstand voltage Coil - Coil No Abnormal AC2500V 50Hz 5mA/1Sec. DZ2672B


Our all  types:





NO. Product Name TYPE Detailed Type
1 High frequency transformers EE EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85
EC/ER ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49
ETD ETD29, ETD35, ETD40, ETD49
EF EF16, EF20, EF25
EFD EFD15, EFD20/21, EFD25/26, EFD30
EDR EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008
EP EP7, EP10, EP13
EPC EPC11.5, EPC13, EPC19, EPC25
EQ EQ2512, EQ2610, EQ3209, EQ4013,
POT POT3016, POT3930
PQ PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49
RM RM6, RM8, RM10, RM12, RM14
2 Common mode chokes(Line filters) Bobbin EE8.3, EE12, EE19, EE25
UU UU9.8, UU10.5, UU16
ET ET20, ET24, ET28, ET35
SQ SQ1212, SQ1515, SQ2418
FT FT20-22, FT20-21, FT20-15, FT20-13, FT20-10
Toroidal  6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core)
3 Inductors(Choke coils) Peaking/Drum  4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20
Toroidal  6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16
Rod  3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30
Bobbin EE8.3, EE10, EE13, EE16, EER(PFC)
4 SMD power inductors Unshielded MT, MTQ, MTF, MTG
Shielded MTH, MTHII, MTP, MTB, MTE, MTL, MTF
5 Low frequency transformers EI EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5,  EI41,EI48,  EI57, EI60, EI66, EI74,  EI76, EI86, EI96, EI105, EI114

_04

_05

packingshipping

_07

_08
