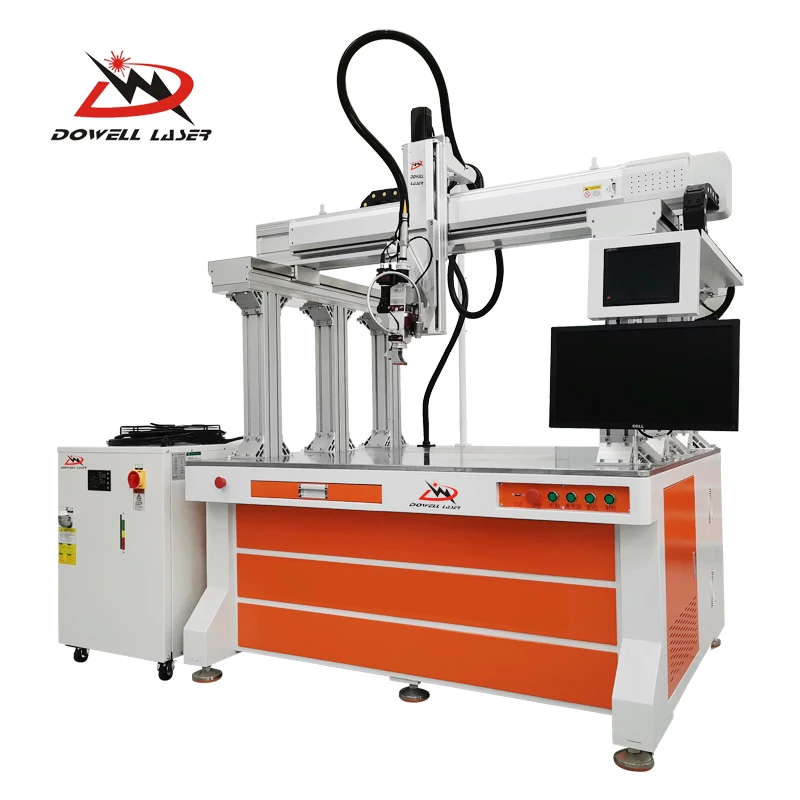

Сварочный аппарат волокна полностью автоматический лазерный сварочный аппарат/сварные нержавеющая сталь алюминий медь литиевая


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.36 $* 0.83 $*
Aug-16-2025 0.10 $* 0.81 $*
Jul-16-2025 0.89 $* 0.9 $*
Jun-16-2025 0.79 $* 0.84 $*
May-16-2025 0.73 $* 0.27 $*
Apr-16-2025 0.9 $* 0.99 $*
Mar-16-2025 0.66 $* 0.78 $*
Feb-16-2025 0.19 $* 0.78 $*
Jan-16-2025 0.92 $* 0.9 $*

Характеристики



Product Description


-1


Protuct Features





Less consumables, long life, safer and more environmentally friendly.Simple operation, simple training can be operated, without teachers can also weld beautiful products.The welding speed is 2-10 times faster than the traditional welding speed, and a machine can save at least two welders a year.Repeated operation has good stability. The flux pollutes the welding tools little, and the laser irradiation time and output power are easy to control, and the laser welding yield is high.Breaking through the limitations of the original worktable, it is suitable for all kinds of complex welds, easy to weld any part of the workpiece at any angle, humanized design and technical upgrading.With ordinary or swing hand-held laser gun, common welding and swing welding modes, the spot width can be adjusted, and the welding fault tolerance is strong, which makes up for the disadvantage of small spot in laser welding, enlarges the tolerance range of processing parts and the weld width, and achieves better weld formation.














Product parameter





























































































Max. average power200W/300W/ 400W/ 500W /600W
 Laser wavelength 1064nm
 Working Substance Nd:YAG / Fiber laser source
 Working Area100*100mm
 Maximum Single Pulse80J / 20ms
 Power Comsuption<12kw
 Maximum Welding Depth3mm
 Maximum Spot Diameter2mm
 Power Stability (8h)<±3%rms
 Pulse Width0.15-20ms
 Pulse Frequency0-50/100HZ
 Repeated Precision±0.01mm
 Transmission fiber wireOriginal Japan Mitsubishi Φ0.4 / Φ0.6
 Positioning methodRed light
 Voltage380V±5% / 50Hz 50A
 Cooling water5HP Chiller 10L/min
 Power Control SystemSingle Chip Microcomputer
 Observation SystemMicroscope
 Dimension (L*W*H)1300*900*1600mm
 Package Size1400*1000*1750mm
 Net Weight450KG
 Gross Weight600KG




Advantages


222





Contact us





Any interest? Welcome to contact me at once





NAME: Lina He










whatsapp/skype/wechat/line:+8615688856582
