Адаптер AV RCA-USB 2 0 для аудио-и видеозахвата DV/TV/VHS/DVD AudioDVD видеоконференции и

Описание и отзывы

Трекер стоимости

Характеристики

The first step: Install the capture card driver
Note: Please be sure to access the USB card. After the system found the hardware. Click Cancel. .
Then install the program. . After installation, remember to restart the computer. , Otherwise prone to poor installation problem.
The random CD-ROM into the computer drive, the system automatically disc content:
Install Driver --------------- Install the driver
Install Video Studio ----------- Install video software
Install Driectx 9
Browse CD ------------------- Browse the disc contents
Exit
Choose the first one: Install the driver. Note: The customer also installs the DRIVER and SETUP packages in the optional CD-ROM.
After installation, connect the USB card on the computer interface, the computer will automatically find the program installed on the computer for a period of time.
Note: When connecting to the AV receiver cable, you must connect the video cable to the video cable, the audio cable to the audio cable, and the wired camera. Capture card yellow is the video input. Red and white are audio inputs.
Select the second: video software installation, follow the prompts to enter the surface of the disc printed on the number of letters plus the serial number (the serial number is the only) is not inside the disc file. On the disc surface
Features Features:
        Standard USB2.0 interface, the latest technology USB AUDIO, stereo input and output, the input interface with AV and S-terminal, you can watch on your desktop or laptop TV, VCR, VCD, DVD, video cameras and other equipment output video images

Detailed specifications:
/ support USB2.0, no need to open the chassis, hot-swappable, support for laptops
/ adjust the screen size, the highest resolution up to 720 × 576, 24-bit true color
/ the latest technology USB AUDIO, stereo input and output
/ image brightness, contrast, saturation, color can be customized
/ Can capture high-quality dynamic and static images, smooth and uninterrupted collection of images
/ input interface with AV and S terminal, you can watch video, VCD, DVD, video camera and other equipment on desktop or laptop computer
/ Support MPEG1 / 2 and other real-time compression formats, easy to make VCD / SVCD / DVD
/ compatible with WINDOW2000 / XP, compatible with Direct8.1, 9.0

system requirement:
A free USB2.0 port
2.Windows 2000 / XP
3.Intel Pentium III 800 above
4.600MB of hard disk space for program installation, it is recommended that more than 4GB of hard disk space for software to store video files
5. Memory: 256 above
6. Screen display resolution is at least 1024X768
Microsoft DirectX 9.0 (Windows 2000 recommended installation)
Microsoft Media Player 7.1 (Windows 2000 recommended installation)
application:
Security Surveillance, Videophone, Videoconferencing, Card Making, Computer Imaging, Fingerprint Analysis, Video Mail, Bank Seal, Medical Analysis

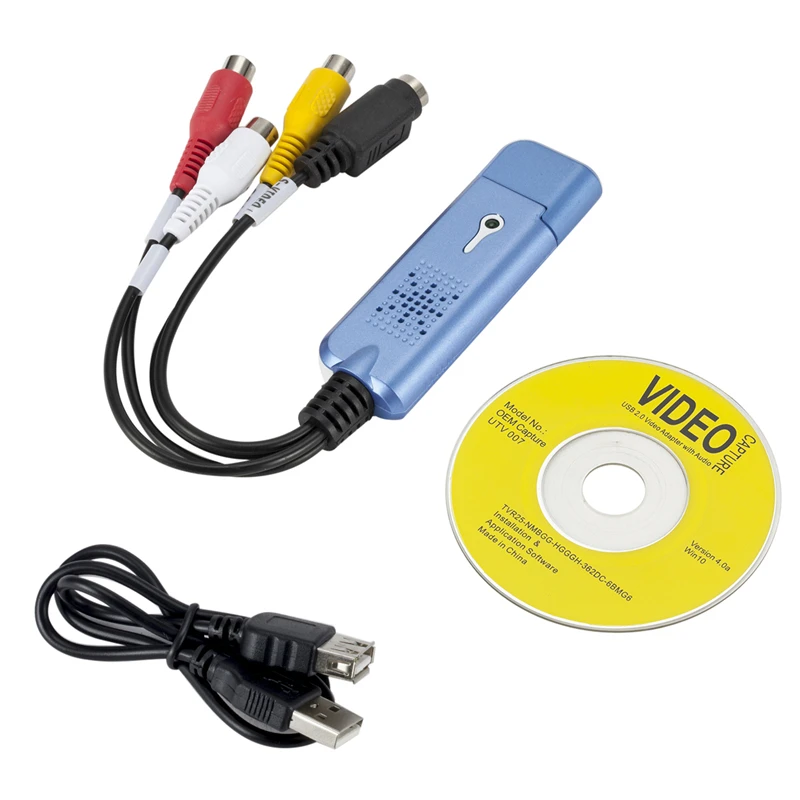

Package Contents:
USB video capture card
Instructions
Installation CD (including drivers

product description:

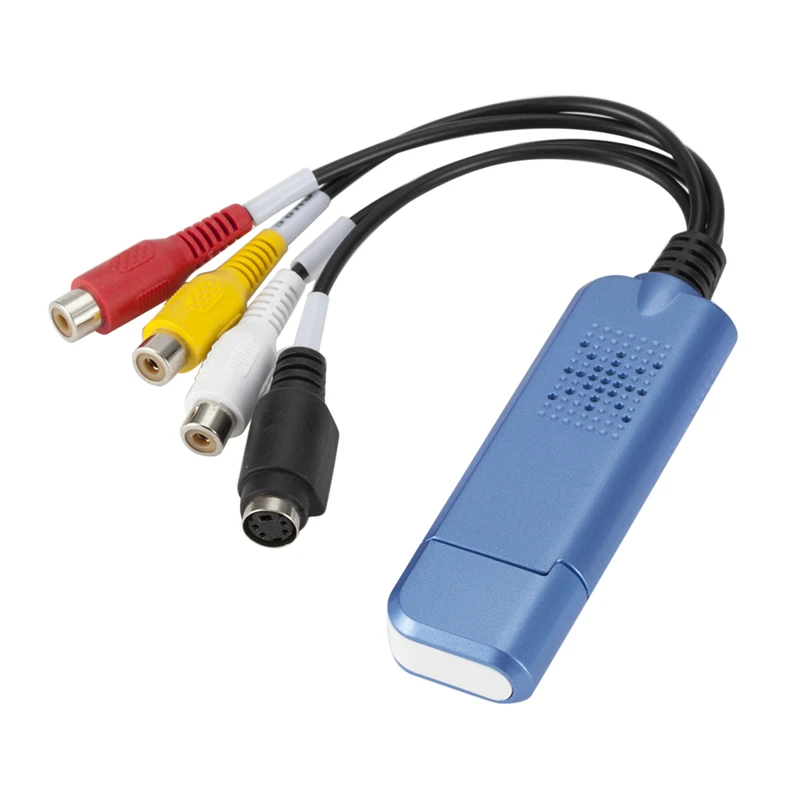

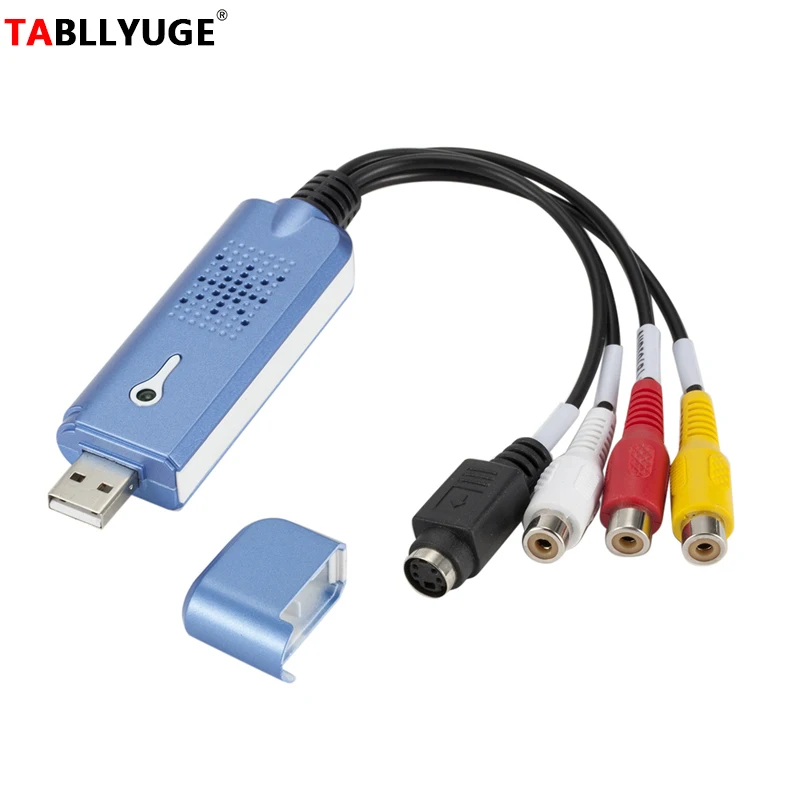

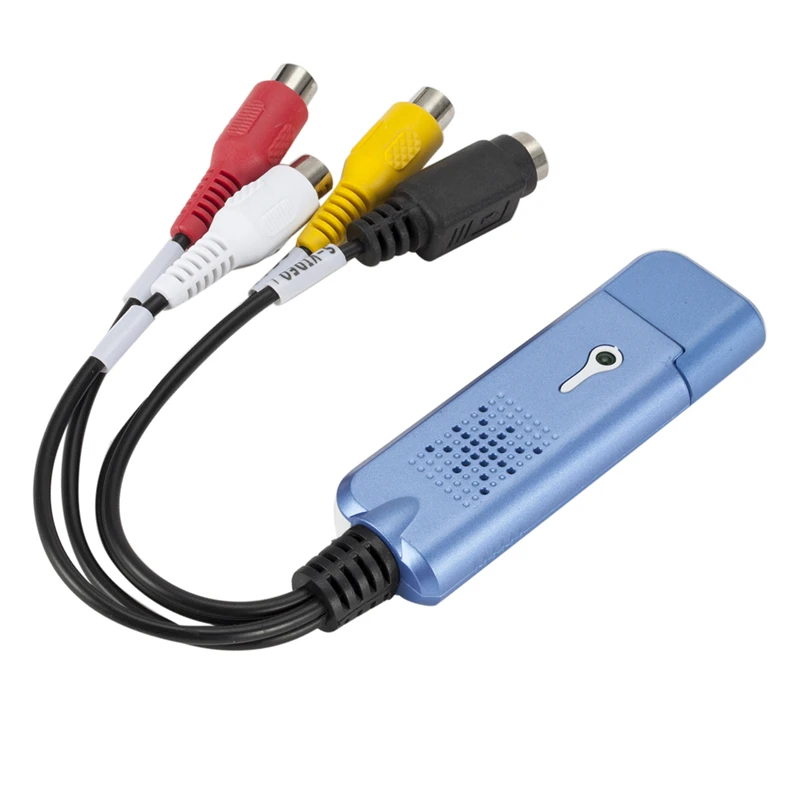

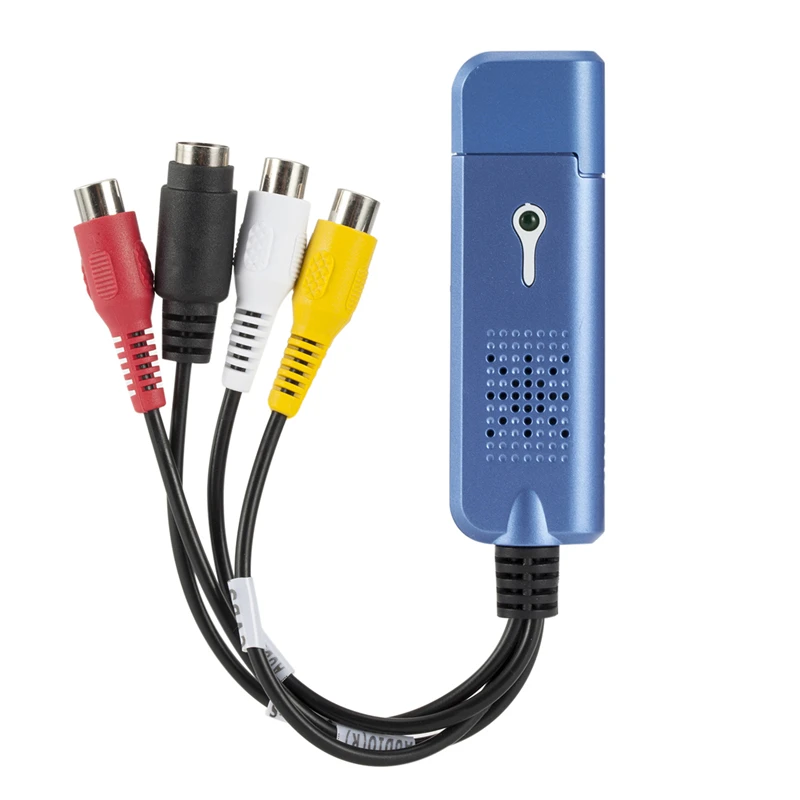

               USB 1-channel capture card design using the elegant black, small size, only U disk size, easy to carry. Through the input digital TV set-top box signal can easily record digital TV on the computer, built-in high-quality stereo Audio ADC without sound card recording, support for 10bit video decoding and 16bit audio decoding. Watch TV images clear and smooth, colorful.
