Ультра HD TV радиатор тепловой материал 50 мкм гибкая

Ультра HD TV радиатор тепловой материал 50 мкм гибкая

Категория: Graphite Products >>>
Поставщик: Hefei,Aoqi,Electronic,Technology,Co.,Ltd.

Цена:0,10 $ - 0,23 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.82 $*	0.35 $*
Aug-15-2025	0.84 $*	0.13 $*
Jul-15-2025	0.29 $*	0.54 $*
Jun-15-2025	0.2 $*	0.90 $*
May-15-2025	0.39 $*	0.14 $*
Apr-15-2025	0.83 $*	0.91 $*
Mar-15-2025	0.25 $*	0.81 $*
Feb-15-2025	0.95 $*	0.70 $*
Jan-15-2025	0.7 $*	0.47 $*

Характеристики

Product Description

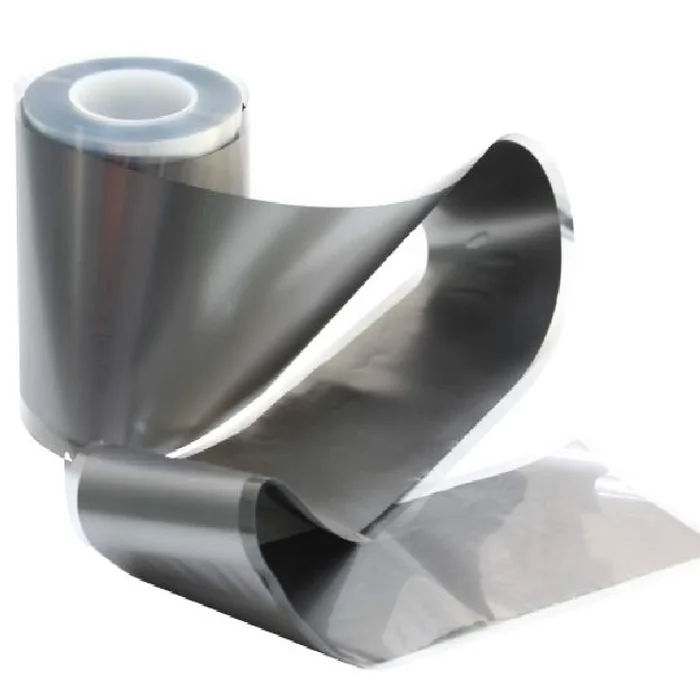

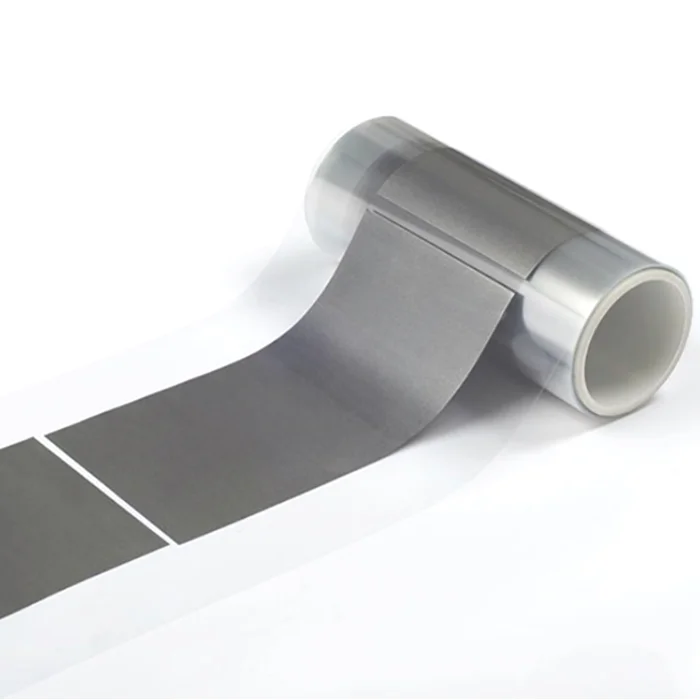

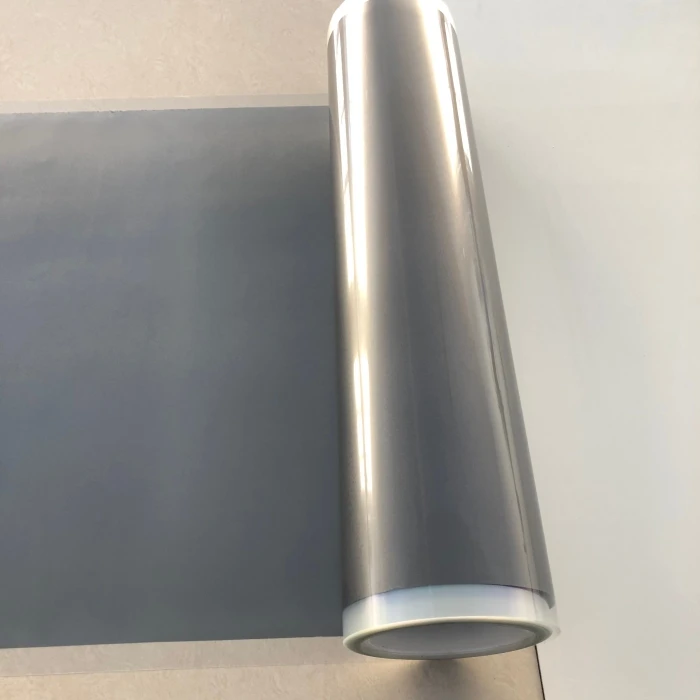

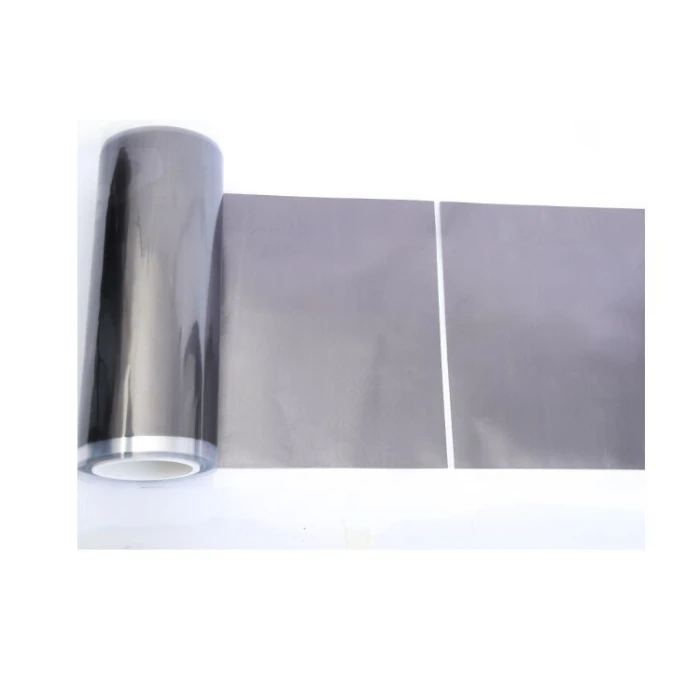

Ultra HD TV heatsink heat material 50um flexible graphite film sheet

Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering. It has a unique grain orientation, can conduct heat evenly along both directions (x-y-axis and z-axis), and the laminate structure can be well adapted to any surface.

The synthetic graphite film bare material is conductive and has no viscosity. If paste is needed, glue and PET film can be added to play the role of insulation and protection, and then the film can be pasted after being torn apart.

Features of synthetic graphite sheet:

★ Ultra-high thermal conductivity —the maximum thermal conductivity in the plane can reach 1900

W/m.k (2 to 5 times as high as copper, 3 to 8 time as high as aluminum).
★ Ultralight —30% lighter than aluminum of the same size and 80% lighter than copper.
★ Ultra-thin —the thickness can be from 0.012 to 0.07mm.
★ Low thermal resistance
★ Temperature resistance —the maximum operating temperature can reach 2800℃ and the minimum can
be lower than -40℃.
★ easy processing —can be die-cut into different sizes, shapes.
★ Flexibility —it is easy to laminate with metal, insulating or double-sided adhesive to increase design
flexibility and can be processed with adhesives

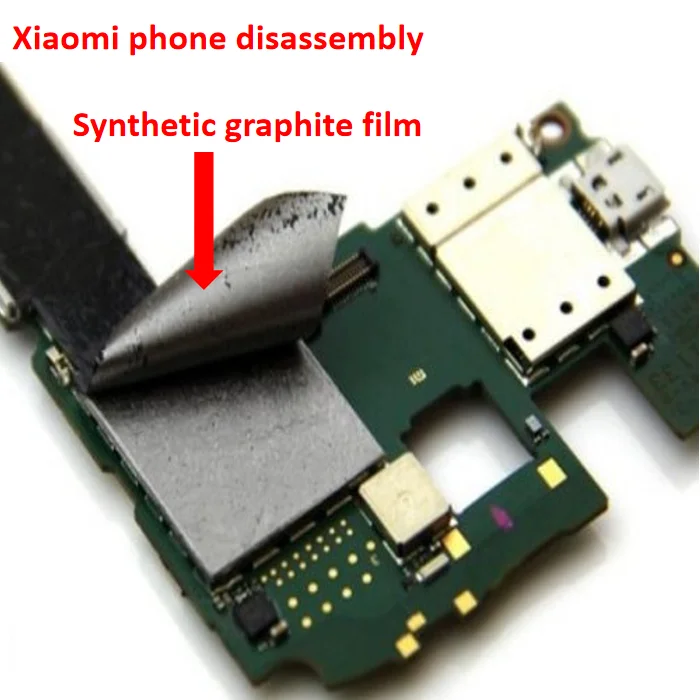

Typical applications:

Parameter table of synthetic graphite sheet

Test Item	Unit	GSH-T32	GSH-T40	GSH-T50	GSH-T70
Carbon content	—	99.99%	99.99%	99.99%	99.99%
Color	—	Silver grey	Silver grey	Silver grey	Silver grey
Thickness	mm	0.032	0.04	0.07	0.07
Thickness tolerance	mm	±0.005	±0.008	±0.008	±0.008
Density	g/cm³	1.6~2.0	1.6~2.0	1.6~2.0	1.6~2.0
Hardness	shore A	85	85	85	85
Tensile Strength	psi	650	650	650	650
Flame Rating	—	94V0	94V0	94V0	94V0
Continuous Use Temp	℃	-40-2800	-40-2800	-40-2800	-40-2800
Thermal Conductive (X-Y axis)	w/m.k	1700~1800	1500~1800	1500~1800	1500~1800
Thermal Conductive (Z axis)	w/m.k	15~20	15~20	15~20	15~20
Thermal resistance	℃	450	450	450	450
Electric Conductivity	s/cm	20000	20000	20000	20000

Related Products

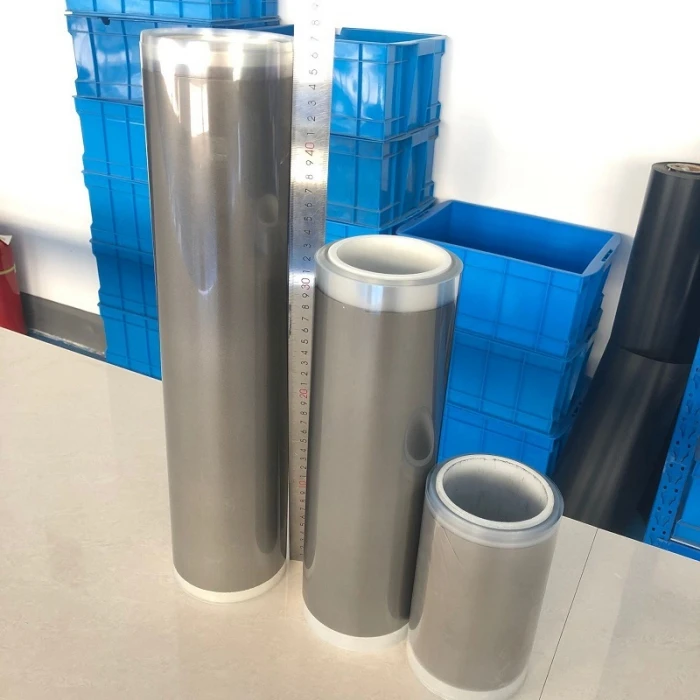

Packing

Company Introduction

Hefei AOQI Electronic Technology Co., Ltd.: is established in 2008, it is an enterprise integrating R & D, die cutting, processing and sales. The company's main products include:Thermal Pad ,Thermal Grease,Thermally conductive mud,Thermal conductive double sided adhesive tape,super high conductivity of synthetic graphite film, potting adhesive, electromagnetic wave shielding material, copper foiltemperature materials, phase change material,conductive, insulation materials etc..

We have a powerful R&D team.We can provide OEM & ODM service for clients.

Certifications

Aoqi passed the international authoritative quality system certification and environmental safety system certification to ensure the quality and safety of customers. Such as: ISO9001: 2015, ISO14001: 2015, UL, RoHs, SGS, REACH and product patents.

Our customers

FAQ

Q1: What’s the different between Natural Graphite Sheet & Systhetic Graphite Sheet?

A1: 1.Natural graphite sheet color darker than Systhetic graphite sheet .
2.Natural graphite sheet price lower than Systhetic graphite sheet .
3.Systhetic graphite sheet has less impurities and density , thermal conductivity can reach at

1900W/m.K,higher than Natural graphite sheet .
4.Natural graphite sheet is softer.

Q2: Do you provide samples?
A2: Yes, we do, and could delivery in 24 hours after confirmation for stock.
And we can offer free samples. Just please pay the shipping fee.

Q3: Do you have MOQ?
A3: No MOQ for the standard product.

Q4: Are you factory or trading company?
A4: No, we are a professional manufacturer for over 12 years.

Q5: What is the lead time for mass production?
A5: The lead time of mass production is about 5 - 7 days.

Accurate delivery date depends on the quantity and season.

Q6: What is your payment method?
A6: Accept TT, Paypal, West Union, L/C, ect.

Q7: Can you provide finished product processing service?
A7: Yes, we can provide the finished product after die-cutting.
