Токарный станок с ЧПУ VMC
US $9600-$10000
Дешевые схожий с термопластичным каучуком ФИО числового программного управления панель 5 axis CNC система комплект ATC + PLC токарный станок ЧПУ
- Категория: Основные и запасные части машин >>>
- Поставщик: Tomatech,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.6 $* | 0.30 $* |
| Aug-19-2025 | 0.71 $* | 0.3 $* |
| Jul-19-2025 | 0.49 $* | 0.76 $* |
| Jun-19-2025 | 0.42 $* | 0.31 $* |
| May-19-2025 | 0.13 $* | 0.98 $* |
| Apr-19-2025 | 0.66 $* | 0.0 $* |
| Mar-19-2025 | 0.48 $* | 0.14 $* |
| Feb-19-2025 | 0.16 $* | 0.93 $* |
| Jan-19-2025 | 0.58 $* | 0.66 $* |
Характеристики
Specifications
Number of Control Axes | 3， 4 ，5 Axes (X, Y, Z, A) |
Minimum Command Unit | 0.001mm |
Maximum Coordinate Range | ± 99999.999mm |
Maximum Rapid Traverse Speed | 60m / min |
Feeding Speed | 0.001-15m / min |
Interpolation Types | Linear , Circular, Helical |
Tool offset | Length compensation, Nose radius C compensation |
Spindle Functions | Gear, Dual analog control, Rigid tapping |
MPG Functions | Axis,Speed options, E-stop , Enable Buttons |
Screen saver Function | Screen saver function |
Communication Function | RS232, U disk interface |
Compensation Function | Tool compensation, Wear compensation, Ballscrew pitch compensation, Radius compensation |
Program Editing | Metric/Inch, Relative / Absolute programming |
Limit Function | Software limit, hardware limit |
Pre-reading function | Short line preprocessing 10,000 lines |
Password Protection | multi-level password protection |
Input and output | 32 Input , 32 Output |
PLC programming | PLC ladder ,editable |
Spindle Encoder | Support |
User Macro Program | A Type Macro |
Electronic Gear Ratio | 1 ~ 65536 |
Addtional Panel | A-type panel with hand wheel; B band switch |
Applicable machine tools | milling machine, boring machine, drilling machine,VMC |

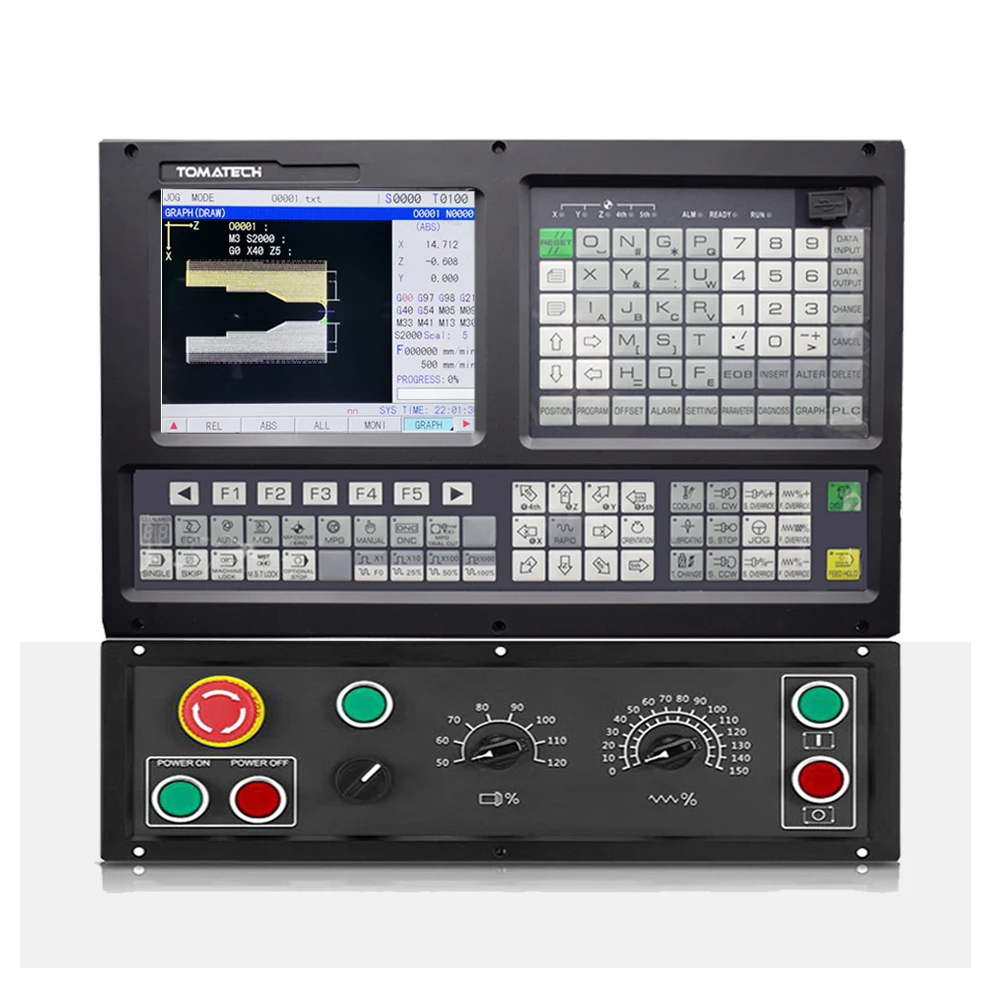

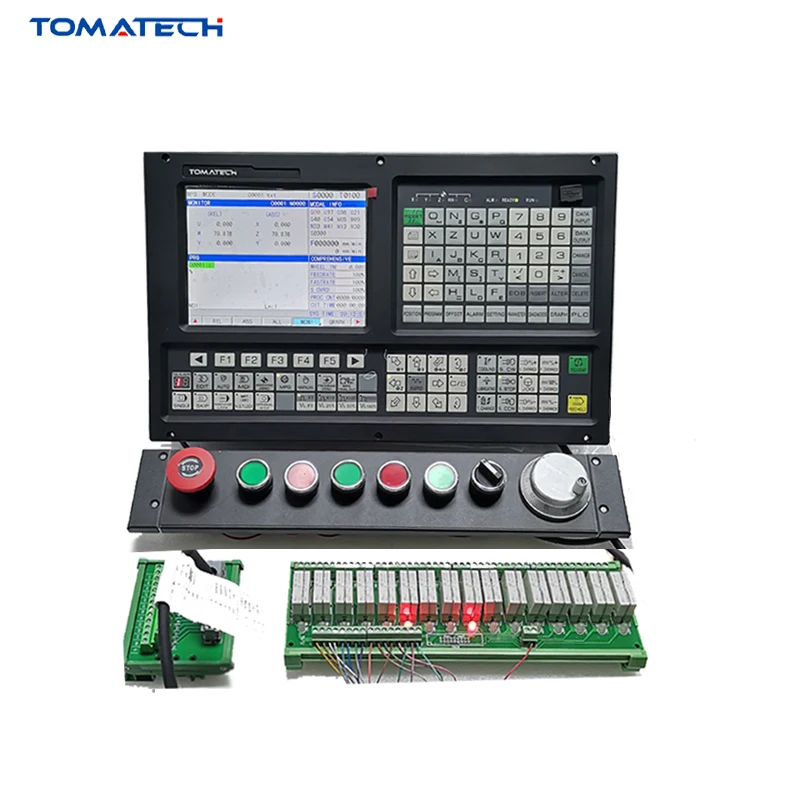

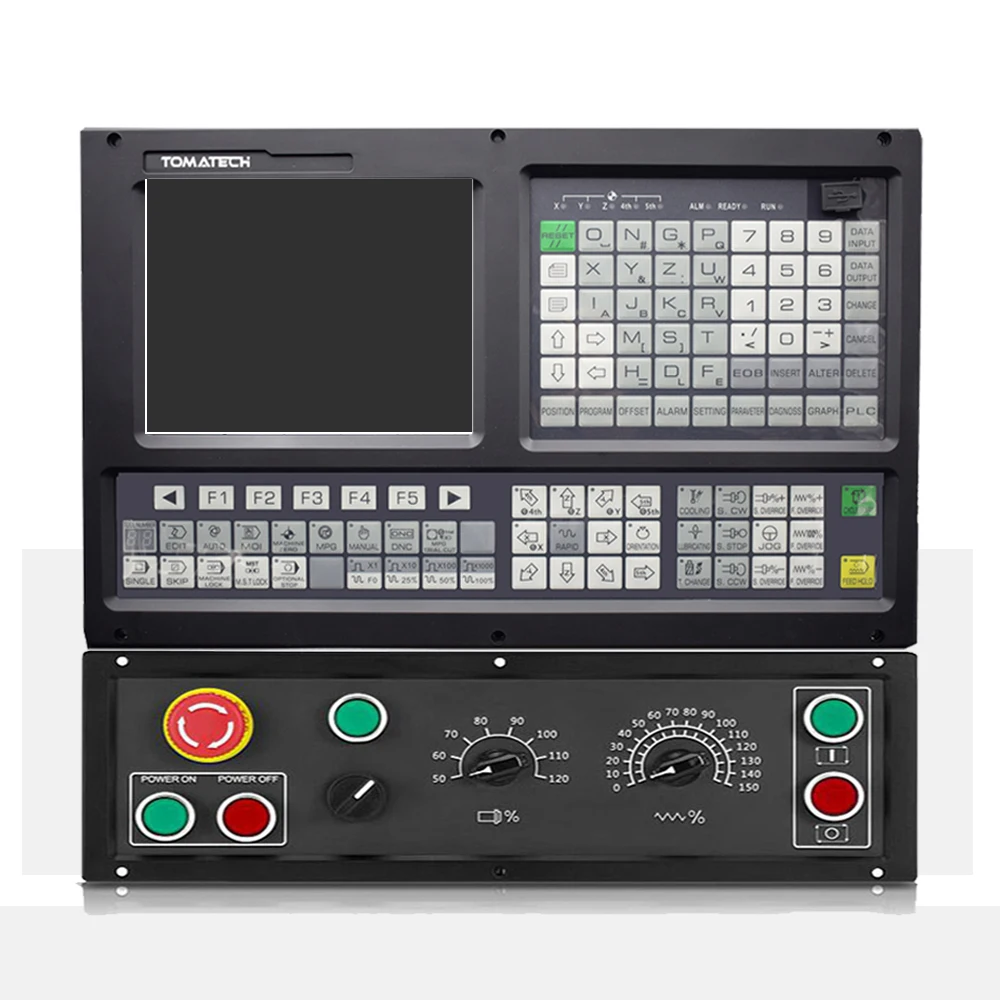

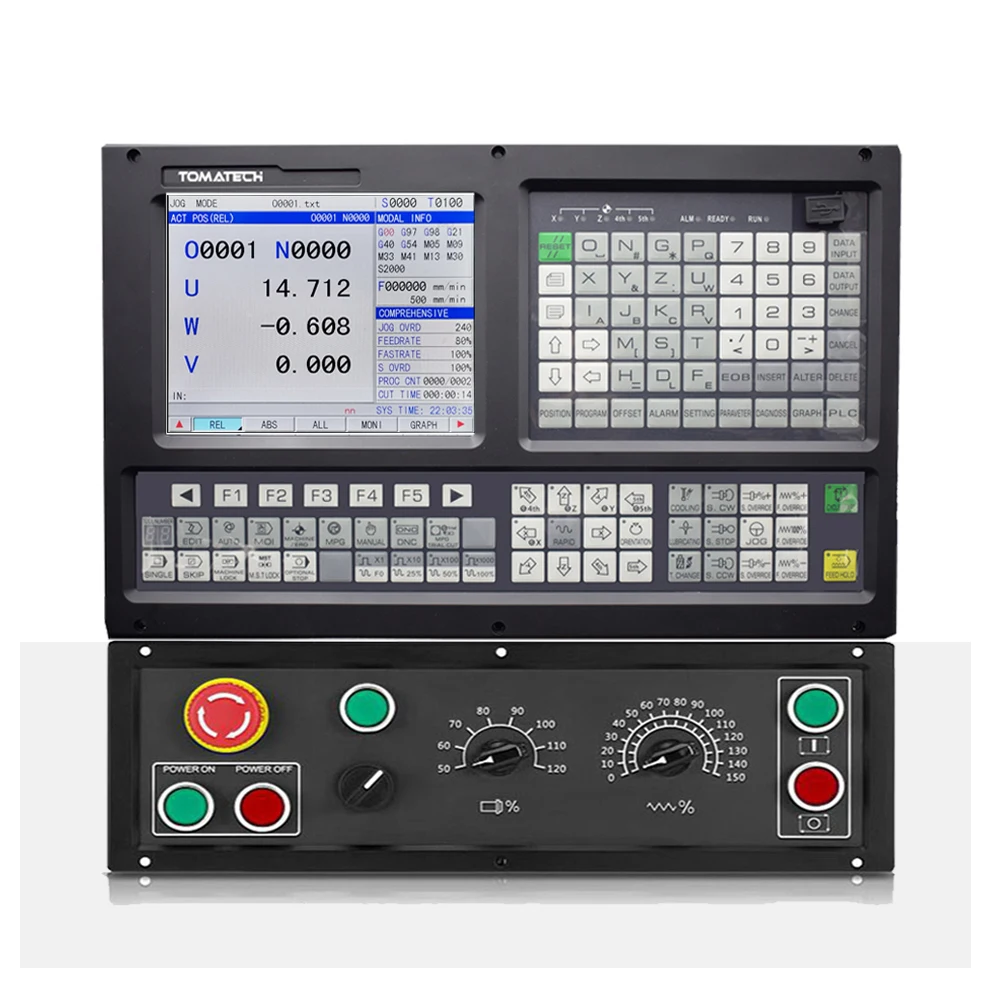

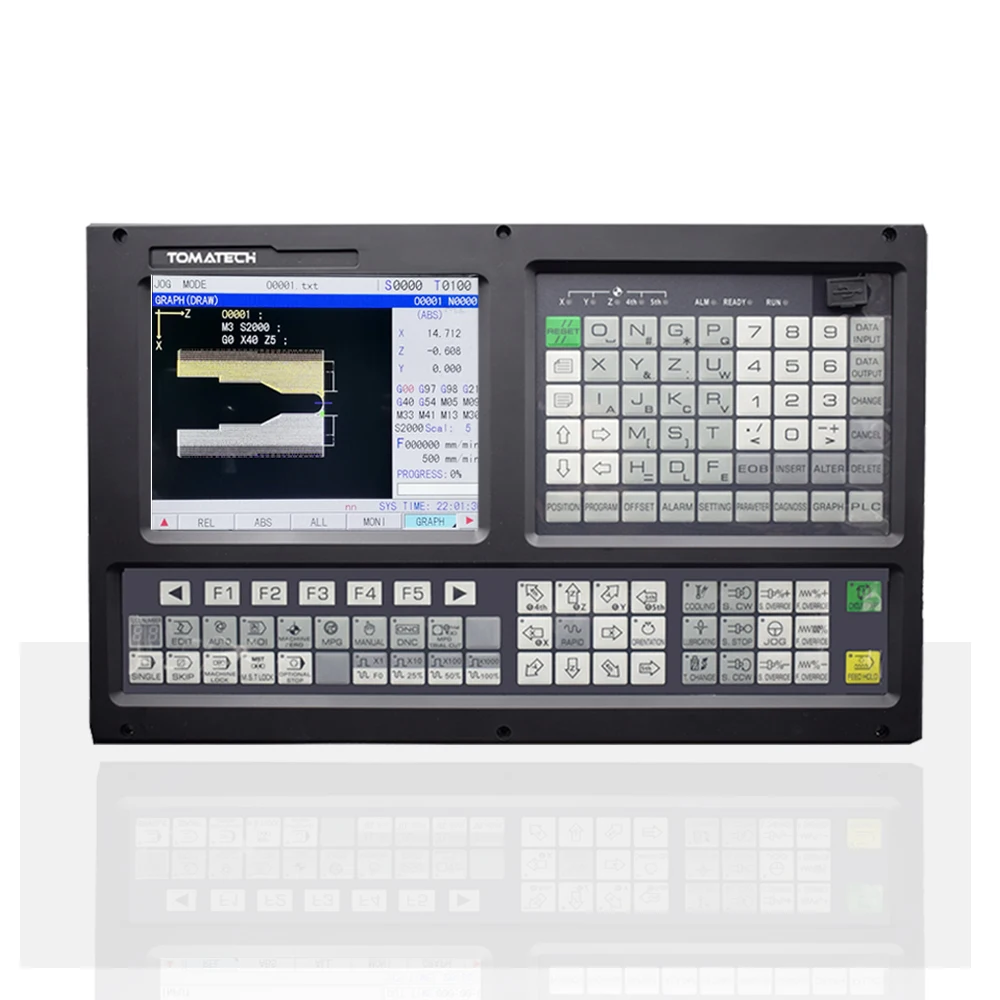

Product display
1. Powerful Macro Function: Easily to do some complicated programming and Logic
2. PLC Ladder Programming: Possible to use PC software for ladder edition.
3. Servo spindle Rigid Tapping : High speed rigid tapping
4. ATC Function : Support most of tool changers, possible to customize ATC program.
5. Rotary Axes Control: 4th/ 5thAxes set as rotary axes
Features
Control axis:
* Control axis: 3-5 axis (X, Y, Z,A,B)
* Interpolationaxis: Any 3 axis linear interpolation , any 2 axis circular interpolation
* Position command range:
Metric input (G21) -9999.9999mm ~9999.9999mm, the mininum command unit: 0.0001mm
Inch input (G20): -999.9999inch ~999.9999inch, the mininum command unit: 0.0001inch
* Electronic gear ration: command multiplier 1 ~ 65536, command multiplier1 ~65536
* Rapid traverse speed: maximum 60m/min
* Rapid traverse override: F0, 25%, 50%, 100% four levels real-time tuning
* Cutting feedrate: maximum feeding speed: maximum 15m/min (G94) or 500.00mm/r (G95)
* Feedrate override: 0 ~ 150% sixteen-level real-time tuning
* Manual feedrate: 0 ~ 150% sixteen-level real time tuning
* MPG feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
* Single step feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
* Interpolation mode: linear interpolation, arc interpolation, spiral interpolation and ragid rapping
Spindle axis functions:
* Two channels 0V ~ 10V analog voltage output, support double spindle control
* Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
* Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)
* Spindle ration: 50% ~ 120% eight stages real-time tunning in total
* Spindle axis constant line speed control
* Tapping circle, rigid tapping
Tool functions:
* Tool length compensation
* Tool point radius compensation (C type)
Precision compensation:
* Thread pitch error compenstation: Compensation points, compensation interval, compensate original position can be set.
* Backlash compensation: can set reverse interval to interpolation machine tool by fixed frequency or lifting speed mode.
* Control axis: 3-5 axis (X, Y, Z,A,B)
* Interpolationaxis: Any 3 axis linear interpolation , any 2 axis circular interpolation
* Position command range:
Metric input (G21) -9999.9999mm ~9999.9999mm, the mininum command unit: 0.0001mm
Inch input (G20): -999.9999inch ~999.9999inch, the mininum command unit: 0.0001inch
* Electronic gear ration: command multiplier 1 ~ 65536, command multiplier1 ~65536
* Rapid traverse speed: maximum 60m/min
* Rapid traverse override: F0, 25%, 50%, 100% four levels real-time tuning
* Cutting feedrate: maximum feeding speed: maximum 15m/min (G94) or 500.00mm/r (G95)
* Feedrate override: 0 ~ 150% sixteen-level real-time tuning
* Manual feedrate: 0 ~ 150% sixteen-level real time tuning
* MPG feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
* Single step feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears
* Interpolation mode: linear interpolation, arc interpolation, spiral interpolation and ragid rapping
Spindle axis functions:
* Two channels 0V ~ 10V analog voltage output, support double spindle control
* Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
* Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)
* Spindle ration: 50% ~ 120% eight stages real-time tunning in total
* Spindle axis constant line speed control
* Tapping circle, rigid tapping
Tool functions:
* Tool length compensation
* Tool point radius compensation (C type)
Precision compensation:
* Thread pitch error compenstation: Compensation points, compensation interval, compensate original position can be set.
* Backlash compensation: can set reverse interval to interpolation machine tool by fixed frequency or lifting speed mode.
PLC functions:
* Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
* Support PLC warning and PLC alarm.
* Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
* 45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)
* I/O unit input/output: 32/32
Related products：
1.CNC Controller
2,Axis servo motor &driver
3.Spindle Servo Motor&driver
4,Rotary table
* Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
* Support PLC warning and PLC alarm.
* Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
* 45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)
* I/O unit input/output: 32/32
Related products：
1.CNC Controller
2,Axis servo motor &driver
3.Spindle Servo Motor&driver
4,Rotary table
Application
CNC milling machinery; CNC drilling machinery; CNC boring machinery;VMC
