Npack производство поршневой линейный тип полностью автоматическая машина для наполнения
- Категория: Фармацевтическая машина завалки >>>
- Поставщик: Shanghai,Npack,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 19040.61 $* | 19992.26 $* |
| Aug-18-2025 | 18880.0 $* | 19824.20 $* |
| Jul-18-2025 | 15840.68 $* | 16632.71 $* |
| Jun-18-2025 | 18560.98 $* | 19488.58 $* |
| May-18-2025 | 16160.9 $* | 16968.66 $* |
| Apr-18-2025 | 18240.36 $* | 19152.51 $* |
| Mar-18-2025 | 18080.45 $* | 18984.52 $* |
| Feb-18-2025 | 17920.71 $* | 18816.56 $* |
| Jan-18-2025 | 17760.99 $* | 18648.67 $* |
Характеристики

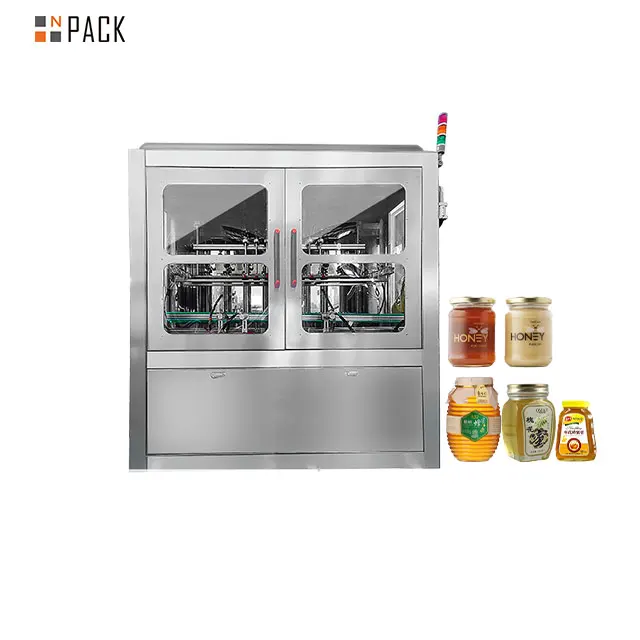

NP-VF AUTOMATIC Honey FILLING MACHINE
Npack honey filling machine adopts the volume measurement method, so that the filling accuracy can reach 100% ± There is no need to control the system due to frequent temperature changes. When filling, put the filling head into the bottle, so that the liquid material will not splash out. The filling nozzle rises slowly with the liquid level. The filling head has a special locking device, so that the filling nozzle will not drip after filling.
Automatic servo filling machine with fast cleaning, fast adjustment, volume metering pump action stepless speed regulation, the whole line adopts intelligent control system, adjust the filling quantity, or change varieties only need to set on the touch screen. The automatic honey filling production line has high filling accuracy and prevents unnecessary material loss. The filling head can be adjusted individually, and the whole production line is convenient to fill. There will be no material plugging and uneven filling.
It is mainly applicable to the filling of the following materials:
① All kinds of semi fluid, paste and viscous materials with or without particles, such as cream, syrup, pulp beverage, honey, etc;
② Various food sauces, such as chili sauce, bean paste, sweet sauce, jam, peanut butter, sesame sauce, fan
Automatic servo filling machine with fast cleaning, fast adjustment, volume metering pump action stepless speed regulation, the whole line adopts intelligent control system, adjust the filling quantity, or change varieties only need to set on the touch screen. The automatic honey filling production line has high filling accuracy and prevents unnecessary material loss. The filling head can be adjusted individually, and the whole production line is convenient to fill. There will be no material plugging and uneven filling.
It is mainly applicable to the filling of the following materials:
① All kinds of semi fluid, paste and viscous materials with or without particles, such as cream, syrup, pulp beverage, honey, etc;
② Various food sauces, such as chili sauce, bean paste, sweet sauce, jam, peanut butter, sesame sauce, fan
Model | NP-VF-2 | NP-VF-4 | NP-VF-6 | NP-VF-8 | NP-VF-10 | NP-VF-12 | NP-VF-16 | ||||||
Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 | ||||||
Range（ml） | 100-500,100-1000,1000-5000 | ||||||||||||
Capacity（bpm）base on 500ml | 12-14 | 24-28 | 36-42 | 48-56 | 60-70 | 70-80 | 80-100 | ||||||
Air Pressure（mpa） | 0.6 | ||||||||||||
Accuracy（%） | ±0.1-0.3 | ||||||||||||
Power | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W | |||||||||||
Main Features
①The body is mainly made of high-quality stainless steel, beautiful appearance, clean and sanitary, and completely meets the food hygiene requirements;
②The quick and flexible connection mode makes disassembly and cleaning more convenient;
③It is light and convenient, and has strong adaptability, and has a variety of anti drip filling heads for selection.
④Honey automatic filling machine is convenient to control, without bottle and can, and has the function of counting
⑤It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance and so on
⑥Honey automatic filling machine automatically goes through bottle and can pack automatically, with high precision. According to different specifications and models of bottles, the volume of the bottle and the size of the bottle mouth can be adjusted at will. It can be equipped with automatic assembly line
②The quick and flexible connection mode makes disassembly and cleaning more convenient;
③It is light and convenient, and has strong adaptability, and has a variety of anti drip filling heads for selection.
④Honey automatic filling machine is convenient to control, without bottle and can, and has the function of counting
⑤It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance and so on
⑥Honey automatic filling machine automatically goes through bottle and can pack automatically, with high precision. According to different specifications and models of bottles, the volume of the bottle and the size of the bottle mouth can be adjusted at will. It can be equipped with automatic assembly line

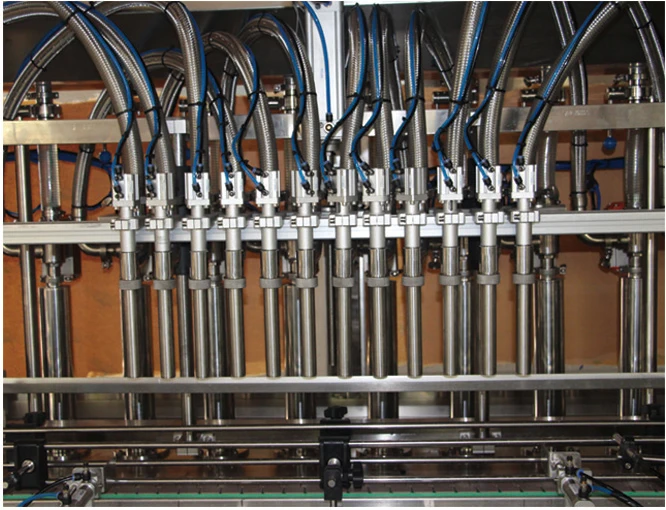

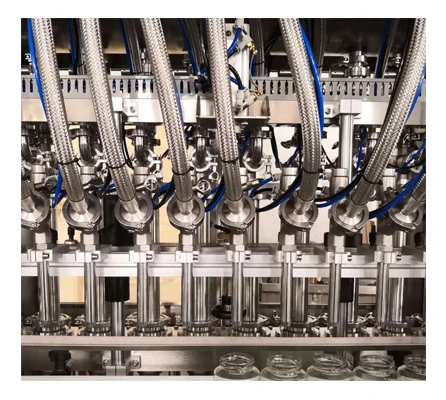

Shut off Filling Head Anti Silk
1.Automatic shut off Filling nozzles for preventing honey silk
2.With Drop tray
3.High Filling Accuracy
4.Diving Nozzles Filling avoid bubble inside of Jar or bottles
5.304SS contruction
6.High quality Food grade O rings and seals inside of the nozzles and piston
7.The Filling head with heating system too.
ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Suitable for thin to viscous liquid
5.Special choosing the suitable model for the food products, no Dead corner and easy cleaning.
Tools Free Adjustment System
1.No need tools adjustment for different size of bottles
2.All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen.

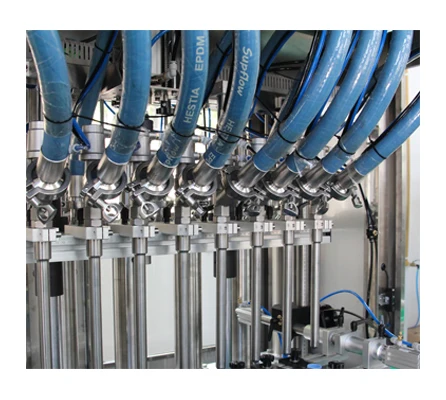

High Quality Hose with Heating System
Adapt world top brand of hose,such as TOYOX.
hose characteristics:
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions).
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions).

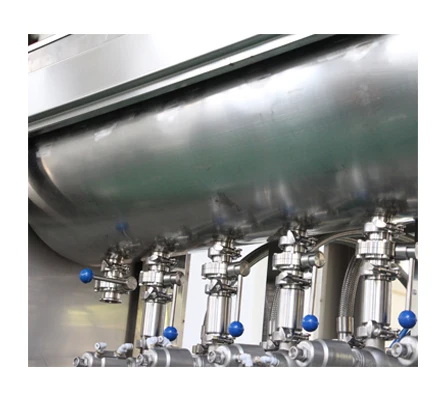

No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy Cleaning
2.Double jacket round hopper with heating system
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option.

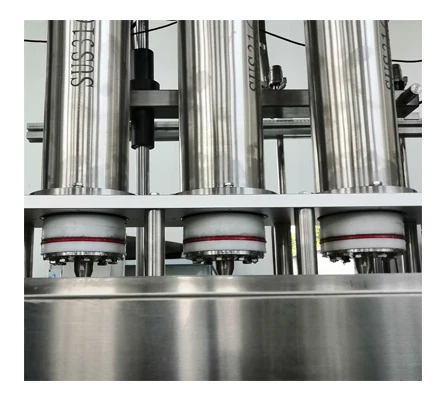

Automatic Piston Take off Sytem
1.Automatic piston take off system, no need manually, and easy cleaning. 2.Double jacket heating system design for honey.
Latest new technology Piston Servo Driven system
Use Panasonic A6 series servo motor to drive piston movement, which is more compact, faster and easier to adjust the filling volume.
Control system
Using the Schneider PLC control and touch screen to guarantee the system more stable. At Edge Control level, Schneider Electric PLCs, PACs and dedicated controllers are easy to program, commission, maintain and IIOT ready.
Control system
Using the Schneider PLC control and touch screen to guarantee the system more stable. At Edge Control level, Schneider Electric
PLCs, PACs and dedicated controllers are easy to program, commission, maintain and IIOT ready.
PLCs, PACs and dedicated controllers are easy to program, commission, maintain and IIOT ready.
