Product Overviews
* Intel X5-Z8350 Quad Core Processor (64-bit)
* Graphics Controller Intel
* Operating system Windows10 Pro 64 Bits
* Memory RAM 4GB DDR3L
* Storage 64GB eMMC 5.1
* Connectivity Wireless Dual Band 802.11 ac,
* H® video outputs ; Mini Displayport
* H® audio outputs , 3.5 mm stereo jack
* Interface for RJ-45 (10/1000 Mbps) Ethernet peripherals ;
Supports Wi-Fi access point exchange; MicroSD card * reader; USB 2.0 port x 3; USB 3.0 x 1, Kensington Lock
* Power Adapter Mini adapter included 12V DC 3A (CE, FCC, Certificate)
Detailed Images
![Z834 PRO 1]()
![Mini-PC]()
![Mini-PC4]()
![Mini-PC6]()
![Mini-PC3]()
![Mini-PC1]()
![Mini-PC2]()
![Mini-PC5]()
![minix neo 334.jpg]()
Product Description
Intel Atom X5-Z8350

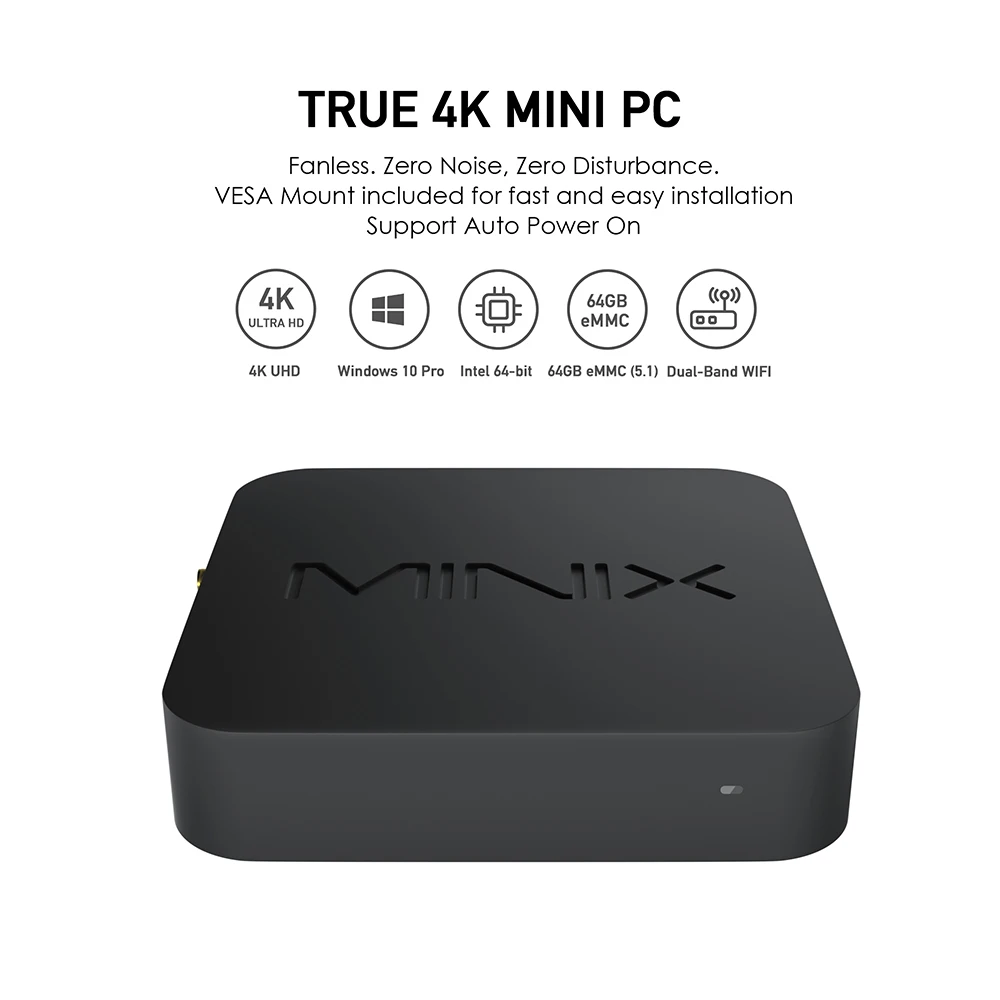

MINIX NEO Z83-4 Plus Mini PC is powered by the quad-core 64-bit Intel Atom X5-Z8350 Processor
at 1.44Ghz with a turbo frequency of 1.92Ghz. The CPU features the latest 14nm manufacturing process and Gen8 Intel Graphics.
Pre-installed Windows10
MINIX NEO Z83-4 Plus Mini PC is pre-installed with licensed Windows10 Pro,
so that our users are able to enjoy the advanced functions of Windows OS directly. Moreover,
the built-in Cortana in Windows10 can turn NEO Z83-4 Plus into a work assistant as well as life-partner.
With Windows10 OS, you can sync game display to any devices of Windows10 OS.
DDR3 4GB RAM + eMMC 64GB
4GB RAM makes bigger games run smoothly and the utilization of 64GB eMMC offers
an array of benefits in terms of performance security and reliability, resulting in a richer end-user experience.
Palm-Sized Computing
NEO Z83-4 Plus Fanless Mini PC re-imagines the desktop PC, delivering an unrivaled combination
of ultra-compact design and premium performance that is ideal for work, play,
and entertainment. Equipped with Intel's Cherry Trail Quad-Core processor
Excellent Thermal Design
The innovative passive cooling design of NEO Z83-4 Plus realizes the perfect balance of speed,
temperature, performance and absolute silence. It is maintaining an incredibly low operation temperature
even when accomplishing the most strenuous tasks. NEO Z83-4 Plus
is unbelievably energy-efficient requiring 80% less energy than traditional desktop PCs.
Desktop Performance
NEO Z83-4 Plus effortless achieve a lightning-fast and highly responsive user experience,
delivering the high-end performance that users have come to expect from MINIX.
NEO Z83-4 Plus also comes packed with 802.11ac Dual-Band Wi-Fi and Gigabit Ethernet.
Multi-Purpose PC
NEO Z83-4 Plus being equipped with dual output display ports (Mini DP and HD cable)
and combining awesomely fast start-up, seamless web browsing, multi-tasking and compatibility with
a vast array of office productivity software. While also being the perfect Home Theater PC,
designed to create a stunning cinematic visual experience in your living room (support up to 4K @ 30fps).
Specification
General |
Brand: MINIX Model: NEO Z83-4 Plus Type: Mini PC Color: Black
|
Hardware |
Operating System: Windows10 Pro CPU: Intel Atom x5-Z8350 GPU: Intel® Graphics 400 RAM: 4GB DDR3L ROM: 64 GB eMMC 5.1 flash
|
Communication |
Wifi Connectivity: 2.4G/5G dual band 802.11 b/g/n/ac Wi-Fi Ethernet: Gigabit Ethernet
|
Interface |

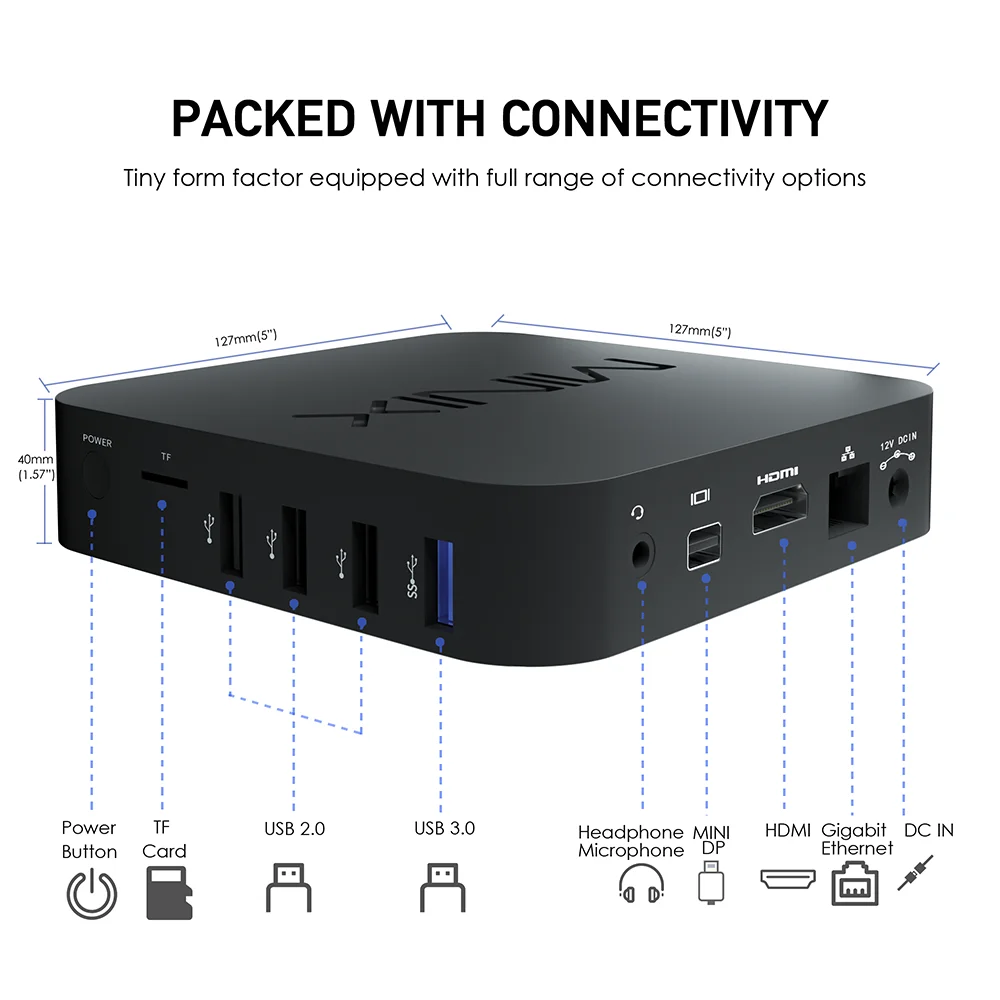

Video Output: 1.4 (up to 4K @ 30 Hz) Audio Output: 1.4, 3.5mm audio jack Audio Input: 3.5mm audio jack Other Interface: RJ-45 Graphics Ethernet, TF card reader USB 2.0 port x3, USB 3.0 port x1 Kensington lock ready, microphone & headphone jack (combined)
|
Power |
DC 12V/3A adapter included (EC, FCC certified) |
Dimensions&Weight |
Product size (L x W x H): 12*12.5*2.5cm Product weight: 0.948kg |
Package Contents |

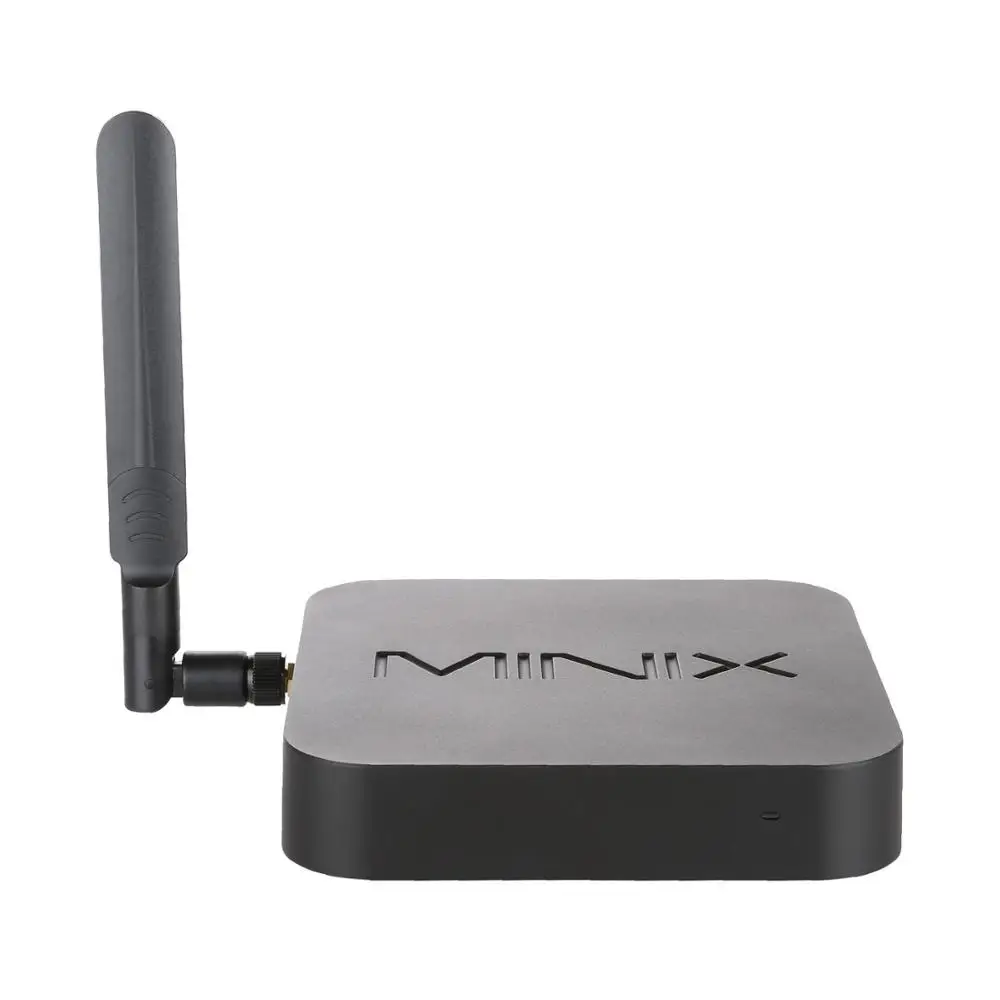

1x mini pc 1x power adapter 1x H cable 1x wifi antenna 1x user manual 1x VESA Mount |
