Цена:5 116,20 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 6088.72 $* 6392.47 $*
Aug-16-2025 6037.99 $* 6339.76 $*
Jul-16-2025 5065.60 $* 5318.15 $*
Jun-16-2025 5935.63 $* 6232.66 $*
May-16-2025 5167.53 $* 5425.37 $*
Apr-16-2025 5832.52 $* 6124.75 $*
Mar-16-2025 5781.71 $* 6070.20 $*
Feb-16-2025 5730.36 $* 6017.47 $*
Jan-16-2025 5679.53 $* 5963.33 $*

Характеристики

3G S-A-A-2 NanoVNA V2 Vector Network Analyzer Digital LCD Nano VNA Tester MF HF VHF UHF USB Logic Antenna Analyzer Standing Wave







Features:

1. Metal case; large-screen touch is more accurate; easy to operate, no need to connect power supply, get rid of the shackles of the data cable, can be used alone. Powerful function: The product can measure 2.4G antennas, and can also measure duplexer and filter .(At present, except for this paragraph, other products do not have such a powerful function).
2. Practical DIY product: This is a practical DIY product with perfect vector network measurement function, and it is light and portable; independent 3.2-inch LCD display, portable battery or USB power supply, and can be used offline for 2 hours .
3. Multiple functions: You can export Touchstone (snp) files from PC software for various radio design and simulation software. This function is used for antenna performance measurement.
4. Better dynamics: The direct output of si5351 in the frequency range of 50k-300MHz provides dynamics better than 70dB, the extended 300M-600MHz frequency band provides dynamics better than 60dB, and the 600M-900M frequency band is better than 50dB Dynamic.
5. Wide range of frequencies: The improved frequency algorithm can use the odd harmonic expansion of si5351 to support measurement frequencies up to 900MHz. The TX/RX method measures complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring.

Specification:

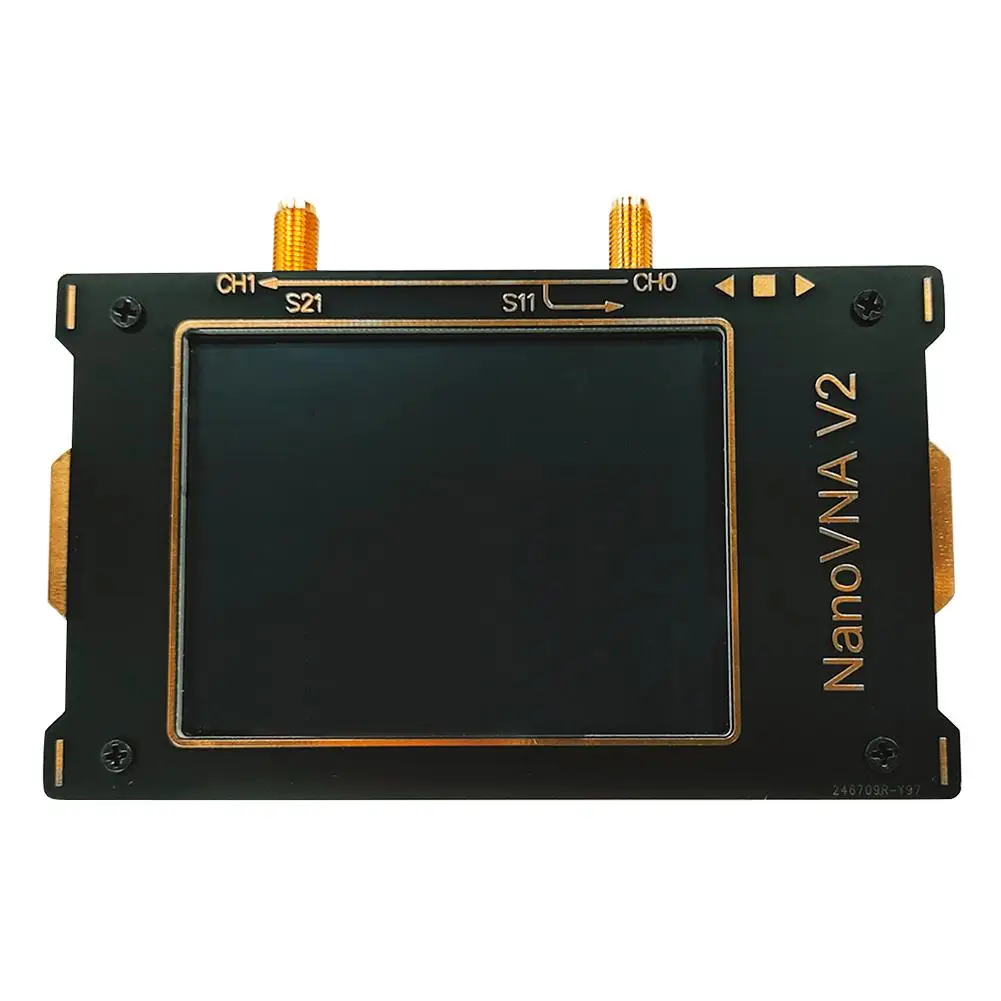

NanoVNA V2
The second-generation NanoVNA vector network analyzer is based on OwOComm's S-A-A-2 design, and its performance is greatly upgraded.
Measuring frequency range: 50kHz-3GH
System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (to 3GHz)
S11 background noise (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
Scan rate: 100 points/
Number of scanning points (on device screen): adjustable, maximum 201
Number of calibration points (maximum number of USB scanning points): 1024
Power supply: USB, 1950MAH
RF port: SMA (not RP-SMA!)

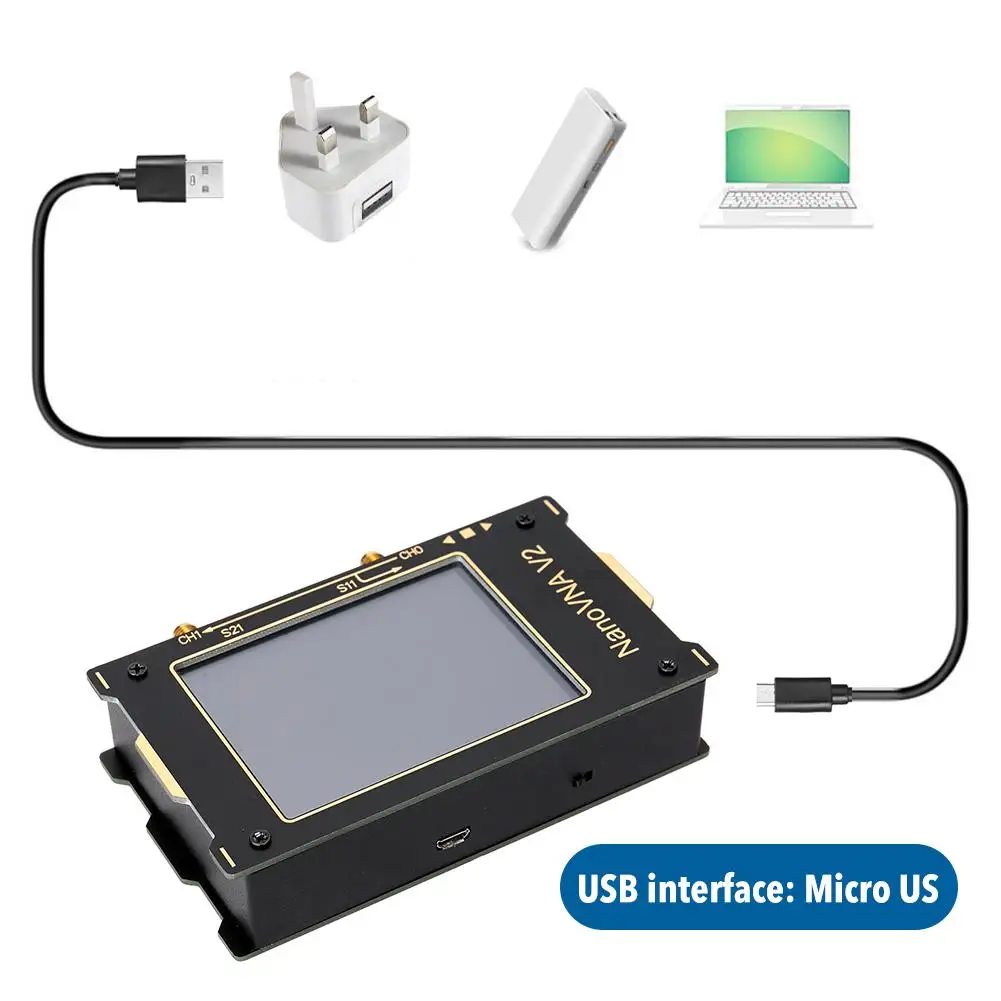

USB interface: Micro US

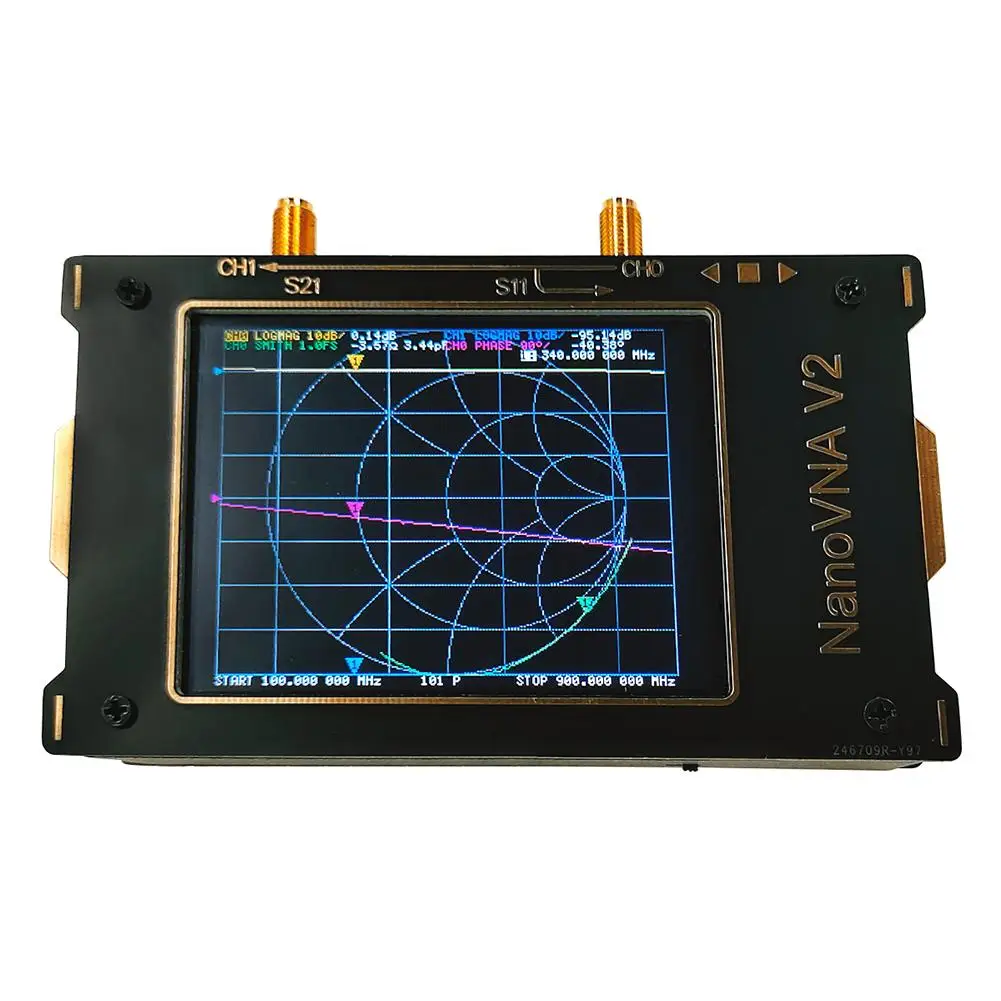

Display screen: 3.2 inch TFT (320 x 240)
Port 2 Return loss: >= 13dB (to 3GHz), 20dB (to 1.5GHz
Display tracking: 4, mark: 4, setting save: 5
Software download: https://github.com/nanovna/NanoVNA-QT/releases; or https://pan.baidu.com/s/1TdoDTAESUUU6yvAWM5UFKA; extraction code kss9
User manual: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf; or https://pan.baidu.com/s/1EAF8CnHzW_AiGJiQVqvjWA; extraction code z8mi

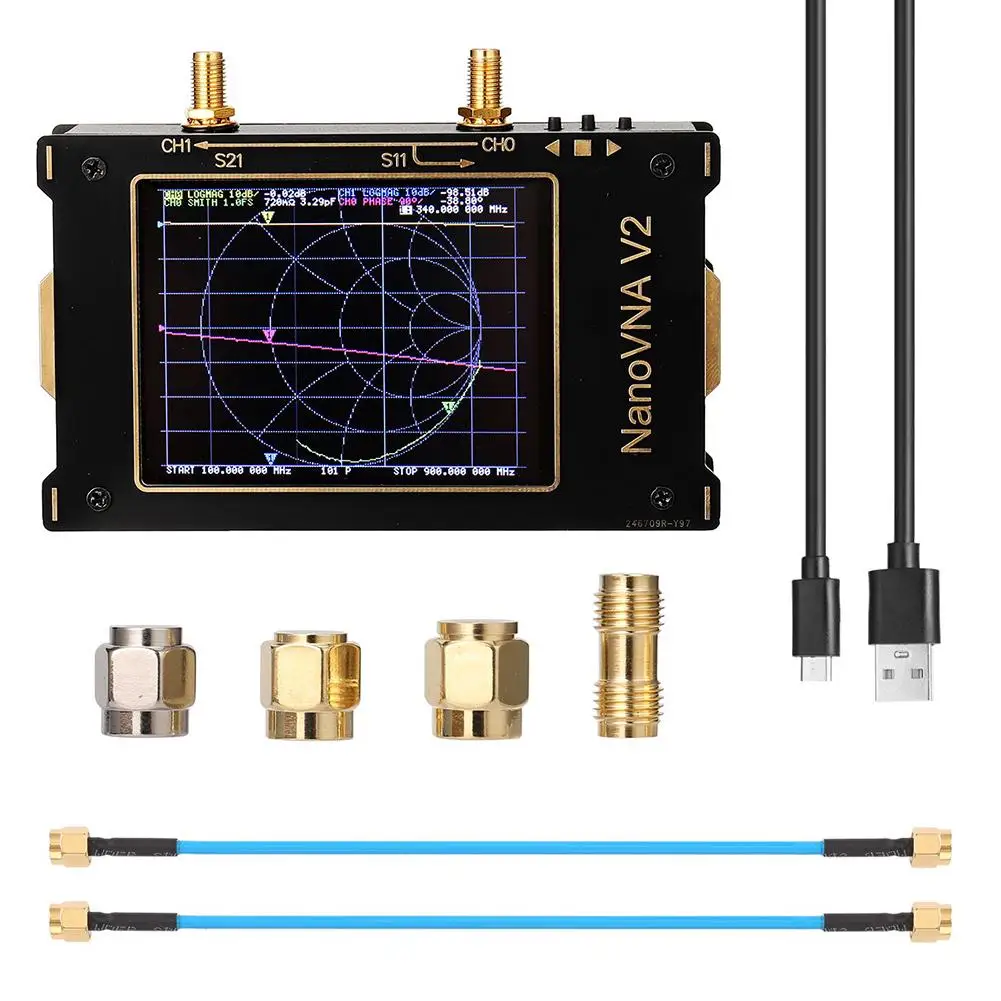

Packing List:
2 SS405 MSA Double Male Needles 30cm*1
Calibration Piece 50 Ohm Load*1
Calibration Short Circuit*1
Calibration Open Circuit*1
SMA Female*1
USB Cable*1

3.2 inch Touch Screen NanoVNA V2 Main Unit*1
