Product Overview

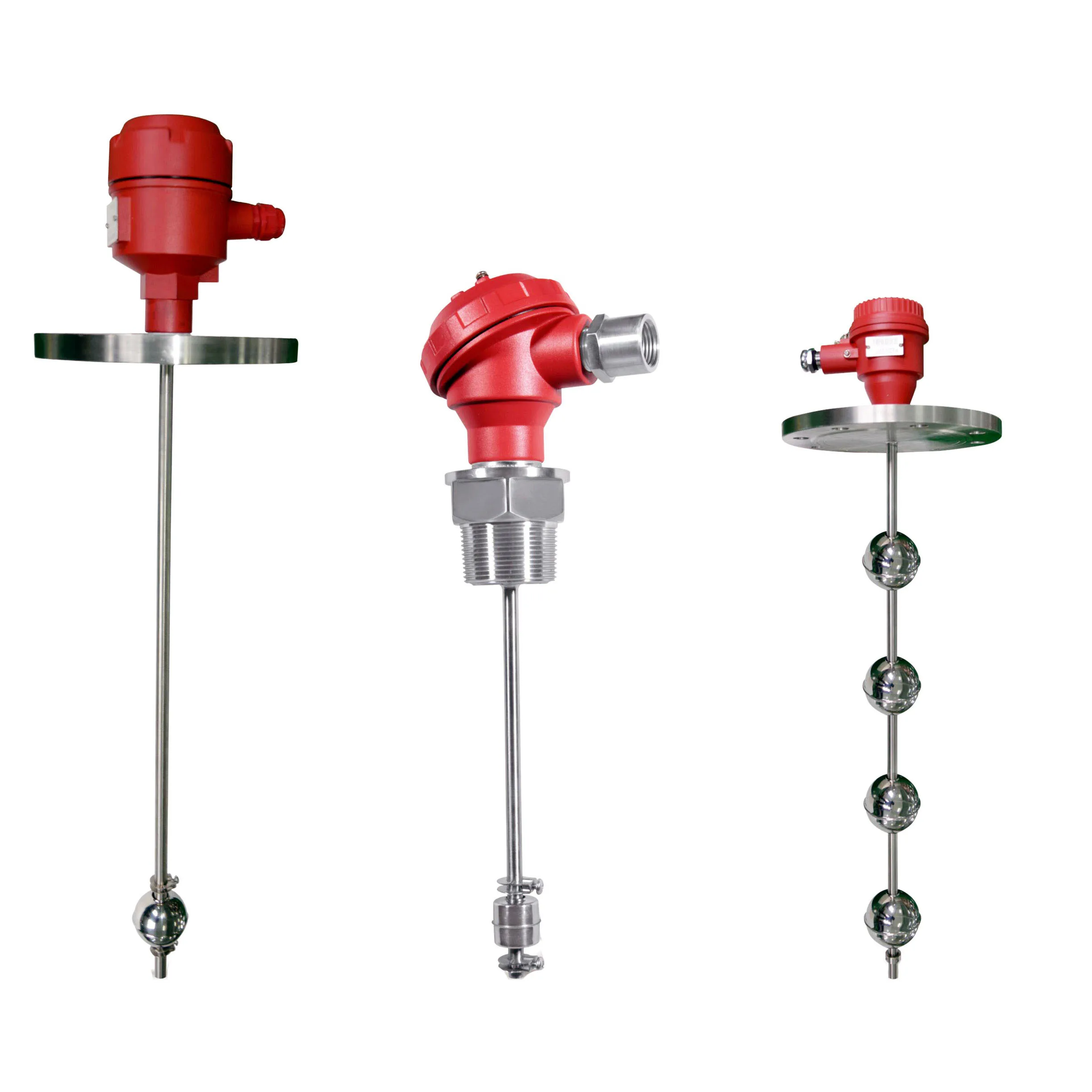

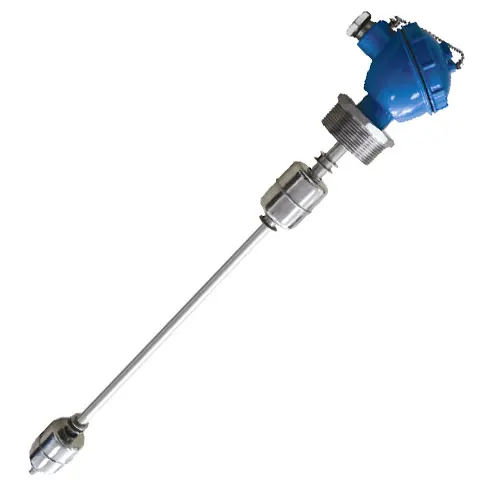

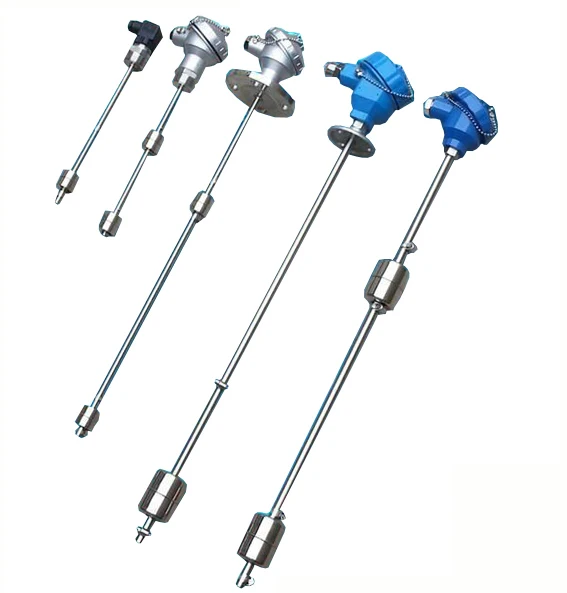

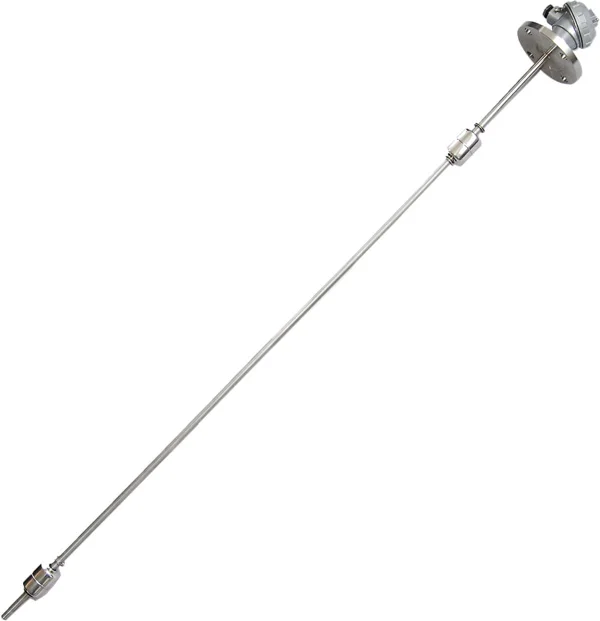

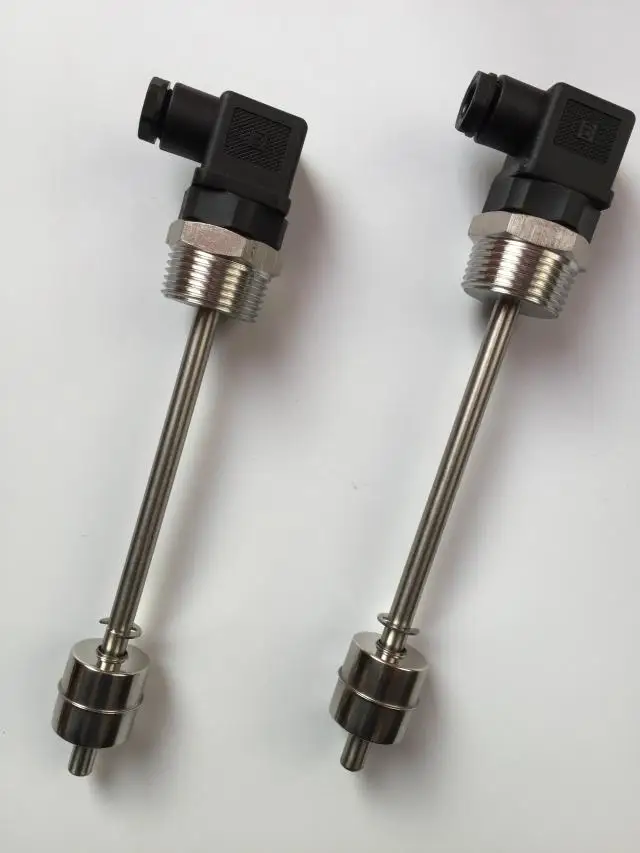

Multi points Magnetic Float Level Switch
The QXGF series is a magnetic float level switch product line based upon two principles, buoyancy and magnetism. The floats ofthe QXGF magnetic float level switch are designed for a specific minimum fluid density (specific gravity), based upon the volume and weight of the float elements.
Level float switch water Level Controller Fuel Liquid Vertical Stainless Steel Float Sensor
FEATURES AT A GLANCE
* Single or Multiple point liquid magnetic float level switch customized to your application
* Simple installation and high reliability
* Cost-effective design
* High temperature and explosion proof units available
* Simple installation and high reliability
* Cost-effective design
* High temperature and explosion proof units available
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Contact capacity | AC220V/1A; DC24V/0.5A |
Working pressure | ≤ 4MPa |
Output signal | SPST NO / NC |
Operating temperature | -30 ~ 200 ℃ |
Protection class | IP65 |
Float material | SUS304/SUS316L |
Body Material | SUS304/SUS316L |
PRODUCT CONFIGURATION
Standard 304 high pressure flang
PTFE cable
Lots of Junction box available
