Характеристики
Product Description

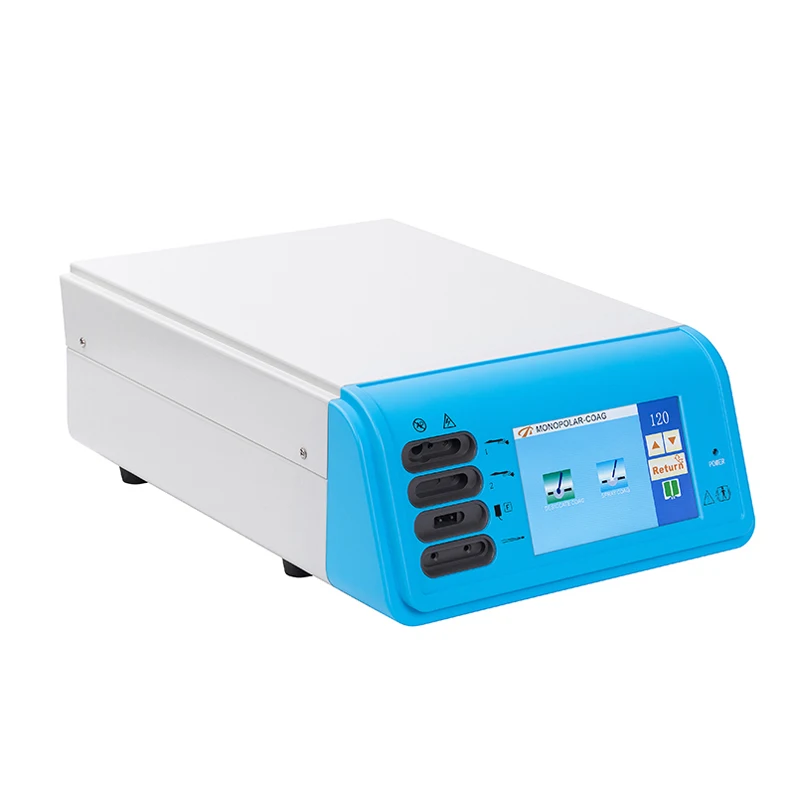

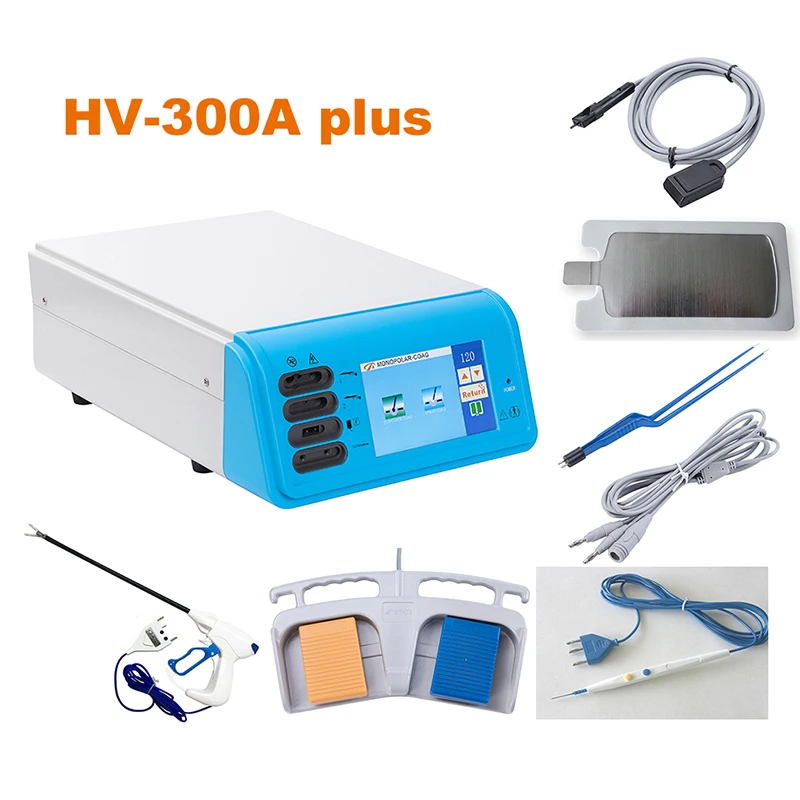

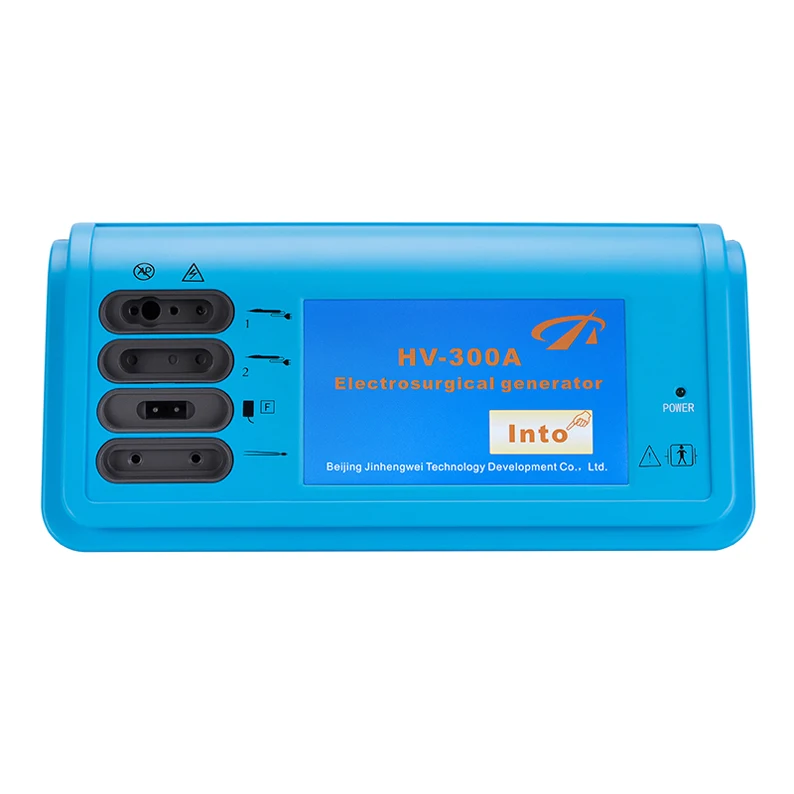

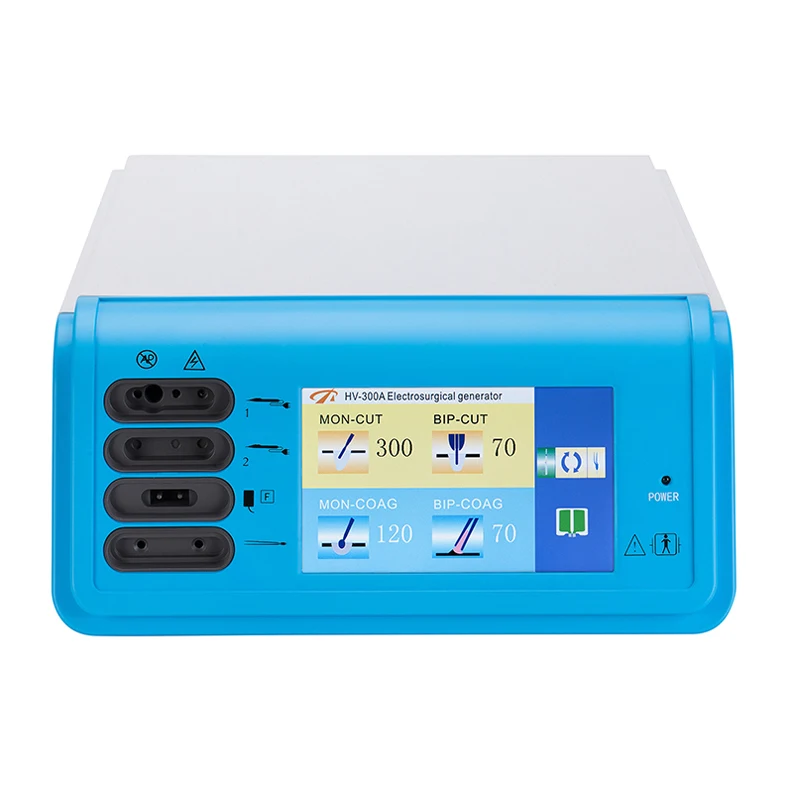

Ahanvos HV-300A Plus LigaSure Vessel sealing Electrosurgical Generator
Surgical Equipment:High Frequency Electrosurgical Generator Unit
Application of Use
Human/Veterinary Surgery
General Surgery; Gastroenterology, Dermatology;
Vascular Surgery; Obstetrics and Gynecology；
Heart/Thoracic Surgery; ORL/ENT;
Minimally Invasive Surgery(MSI)；Cerebral surgery;
Minimally Invasive Surgery(MSI)；Cerebral surgery;
Neurosurgery, Orthopedics & Plastic Surgery;
Trans Urethral Resection (TUR) and etc.
Technical Features
Brand | Ahanvos |
Item Name | High Frequency Electrosurgical Generator |
Material | Stainless Steel |
Main Frequency | 512KHz |
Max Output Power | 300W |
Application | Human/Veterinary Surgery |
Power Supply | 100~240V/50~60Hz |
High Frequency Leaekag | Mono＜150mA;Bip＜60mA |
Power readouts | within ±20% or 5W |
Certificate | CE ISO |
Working Mode | Max.output power | ||
Bipolar Cut | Bipolar Cut | 120W | |
Bipolar Coag | Standard Coag | 150W | |
Seal Safe | 300W | ||
Endo Safe | 100W | ||
Monopolar Cut | Pure | 300W | |
Blend 1 | 250W | ||
Blend 2 | 200W | ||
Blend 3 | 150W | ||
Monopolar Coag | Fulgurat | 120W | |
Spray | 100W | ||
Intelligent Device System

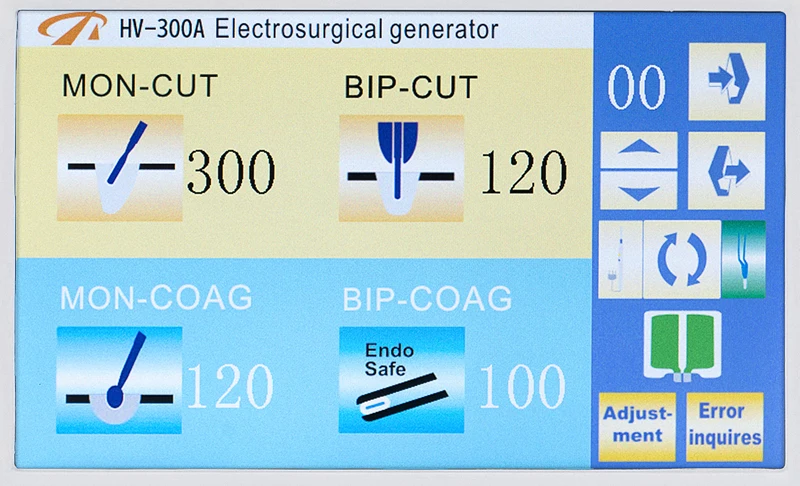

Microprocessor controlled with a wide TFT LCD Touch Screen, clean image quality. The settings and working modes of operation are changed by touching icons on the screen, ensures the users with easy access to all functions, satisfying all the surgeries demands with safety, flexibility, reliability and convenience.
Characteristics
Equipment are designed for conventional Electrosurgical procedures with the ability to automatically adjust, designed for various operations.
Activation
Designed to perform cutting and coagulation during surgical procedures, output activated by Handswitch or Footswitch
REM(Return Electrode Monitoring)
Return electrode (for Monopolar) with quality monitoring system(REM).
This REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, at the same time with Audible and Visual Alarms, as well as real-time dynamic display of the contact quality on the screen between the negative plate and the patient’s skin.
Automatic self-test
When switch on the machine, it will start automatically self-test routine prior to operation.
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type.
When switch on the machine, it will start automatically self-test routine prior to operation.
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type.

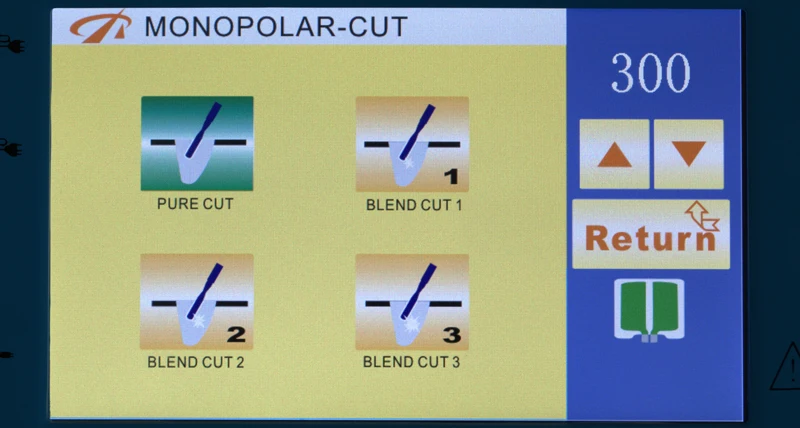

Monopolar Cut
-Multi Monopolar outlet, 3-pin (4mm) outlets and Laparoscopic Microphone head (4mm, 8mm ) outlet
-Different effects for cutting modes , pure cut for fast tissue dissection, while blend cut with a slight coagulation effect
Monopolar Coagulation
-Different coagulation modes provides precise, moderate, enhanced, contact-less coagulation effects
-Possibility of argon plasma coagulation
Bipolar
-Cut with different levels of haemostasis, urological cutting and etc
-Coagulation with Forceps for contact coagulation without sparking
Automatic Start /Stop
Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control for the operation.
TURP Functions
Both workable under Monopolar and Bipolar operating modes
This mode is used in under water environment for surgery especial Resectoscopy, which removes the tissue in theprostate with kinetic plasma under saline liquid.
Ligasure Vessel Sealing (Seal-Safe)
With Bi-clamp or other instruments, enables permanent sealing up large blood vessels up to 7mm diameter under Seal-Safe working modes during open and lapaorscopic surgeries.
Endoscopic Vessel Sealing (Endo-Safe)
With Ligasure handles, enables permanent sealing up large blood vessels up to 7mm diameter under Endo-Safe working modes during Laparoscopic surgeries
Memory Records Features
Memory program that allows customize settings for different interventions and surgeons.
Upgrade Interface
USB/RS232 interface available to connect with computer, which allows remote problem detect as well as further software upgrade.
Compatible with other Equipment
Argon gas module.
Optimum Smoke Evacuation System
Multilanguage Available
Language options: English, Spanish, Portuguese, Turkish and etc.
-Multi Monopolar outlet, 3-pin (4mm) outlets and Laparoscopic Microphone head (4mm, 8mm ) outlet
-Different effects for cutting modes , pure cut for fast tissue dissection, while blend cut with a slight coagulation effect
Monopolar Coagulation
-Different coagulation modes provides precise, moderate, enhanced, contact-less coagulation effects
-Possibility of argon plasma coagulation
Bipolar
-Cut with different levels of haemostasis, urological cutting and etc
-Coagulation with Forceps for contact coagulation without sparking
Automatic Start /Stop
Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control for the operation.
TURP Functions
Both workable under Monopolar and Bipolar operating modes
This mode is used in under water environment for surgery especial Resectoscopy, which removes the tissue in theprostate with kinetic plasma under saline liquid.
Ligasure Vessel Sealing (Seal-Safe)
With Bi-clamp or other instruments, enables permanent sealing up large blood vessels up to 7mm diameter under Seal-Safe working modes during open and lapaorscopic surgeries.
Endoscopic Vessel Sealing (Endo-Safe)
With Ligasure handles, enables permanent sealing up large blood vessels up to 7mm diameter under Endo-Safe working modes during Laparoscopic surgeries
Memory Records Features
Memory program that allows customize settings for different interventions and surgeons.
Upgrade Interface
USB/RS232 interface available to connect with computer, which allows remote problem detect as well as further software upgrade.
Compatible with other Equipment
Argon gas module.
Optimum Smoke Evacuation System
Multilanguage Available
Language options: English, Spanish, Portuguese, Turkish and etc.
Packing and Delivery
Company Profile
Beijing Jinhengwei Technology development Co.,Ltd (Brand "AHANVOS”) is professional manufacturer in the design,research and development of Electrosurgical Generator and accessories.
Main products:HV-300 series and HV-400 series High Frequency Electrosurgical units and accessories such as:Monopolar ESU pencil,Monopolar ESU plate and cable;Two Button Footswitch, Bipolar Forceps and cable and etc,also the Smoke Evacuator for the Leep surgery.
Our company established in 2000,we have one team of experienced technical staffs and professors in this field,which makes our products passed by European CE0434,ISO 13485 and ISO 9001.
AHANVOS is dedicated to provide the best quality and reliable machine to the customers,our aim is to become one of the leading manufacturers for Electrosurgical unit.
AHANVOS is dedicated to provide the best quality and reliable machine to the customers,our aim is to become one of the leading manufacturers for Electrosurgical unit.
Machine Commissioning
FAQ
Q: Are you a factory or a trading company ?
A: We are a Chinese medical equipment manufacturer, All the products are made by us.
Q: Can you accept OEM ?
A: YES! We offer "Ahanvos" brand to you, But if you need we can also offer OEM service.
Q: Which ares are your products usually sold to ?
A: Our products usually exported to North America, South America, The Middle East, South-east, Asia, Europe and so on.
Q: What's your delivery time ?
A: Quantity below 10sets, the delivery time will be in 1 week.
Q: Where are you ?
A: Our address is Room NO.501 , 5/F Building, NO.27 YongWang Road, Daxing biomedical industrial base, Zhongguancun Science Park, Daxing District, Beijing, China.
