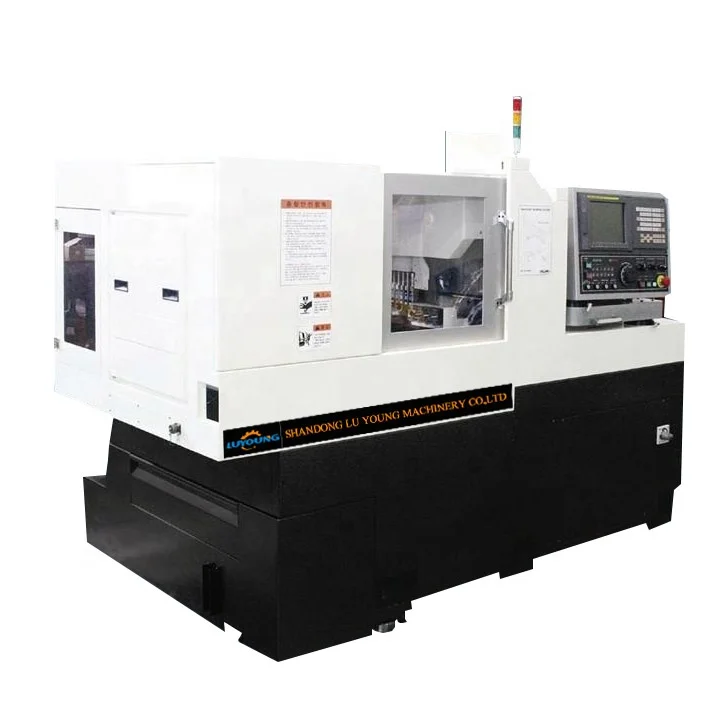

Sm325 Высокая точность 5 оси стоматологический металлический Швейцарский тип автоматический токарный станок с ЧПУ для

  sm325 high precision 5 axis dental metal swiss type cnc automatic lathe for saleconfiguration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender shaft parts.

Specification of  sm325 high precision 5 axis dental metal swiss type cnc automatic lathe for sale

Items		SM325
Machine	Max. RPM	Main10,000/Sub8,000rpm
	Stroke	280mm
	Additional positive brake	1/1000°
	Rapid traverse rate	32m/min
Tooling	O.D Tools	6EA
	Front work tools	5
	Cross driven tools	4
	Back work tools	4
	Eccentricity tools	3
NC	Specification	FANUC 0i-TD
	Controllable axes	7 axis/4axis
	LCD	10.4” MONO
Motor	Main spindle	5.5/7.5kw
	Sub spindle	1.5/2.2kw
	Cross drill	0.55/1.1kw
	Back end	1.0kw
	Servo	1.0kw
	Coolant	0.9kw
	Lubrication	5w
Others	Coolant tank capa.	200L
	Lubrication tank capa.	1.8L
	Center height	1,000mm
	Weight	3800kg
	Thesize(length*width*height)	2200×1477×1660



Application of   sm325 high precision 5 axis dental metal swiss type cnc automatic lathe for sale



Swiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, military, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.



Product Feature



Feature of   sm325 high precision 5 axis dental metal swiss type cnc automatic lathe for sale:

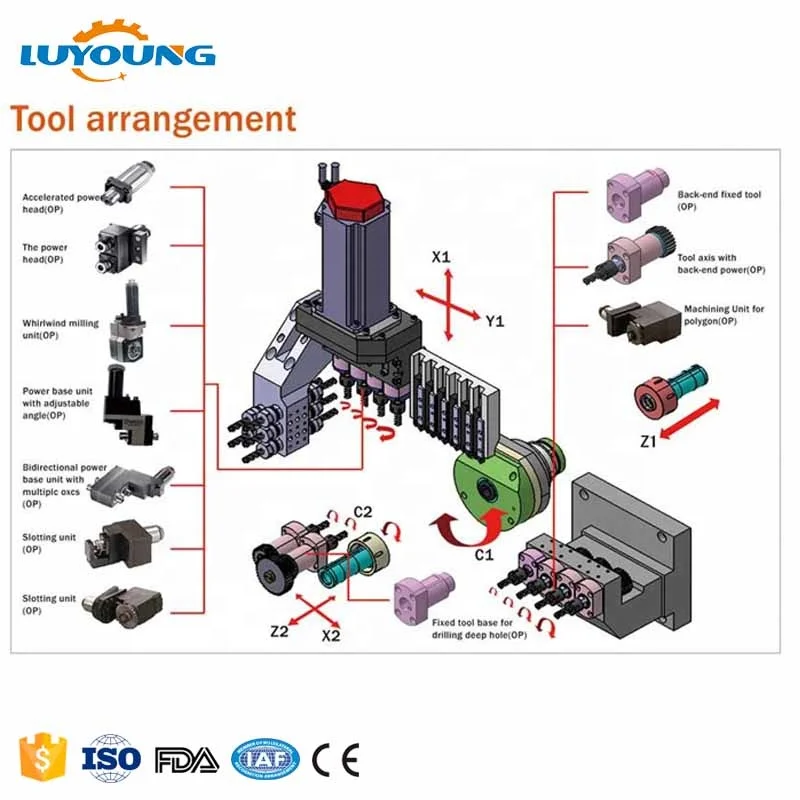

1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.

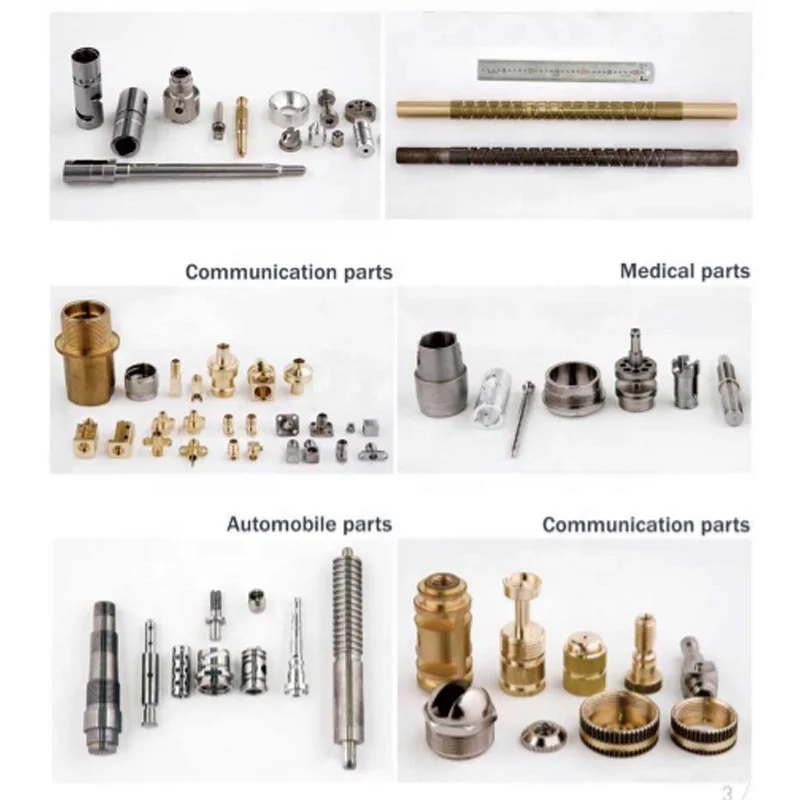

6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools





Why choose us?

Why choose our  sm325 high precision 5 axis dental metal swiss type cnc automatic lathe for sale?

1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.



Company Information

20 years' production experience

The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.









Who choose us?

The products have exported more than 40 countries around the world, please look who choose us:



After-Sales Service

7×24 hours after-sale service





1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.

Packaging & Shipping

Strong packing will protect the goods from any possible damage during transit





FAQ



1.How to get the best quotation?

Tell me the model ,quantity and your requirements, then we will give you our best price to you.

2.If we don’t know the model of the lathe,how to choose the model?

Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.

3.How about the MOQ(Minimum Order Quantity)?

 1 set

4.Can we place an order by TRADE ASSURANCE?

 Of course, all of our orders can be placed by this way. Please rest assured your money.

5.How long about your guarantee period?

12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
