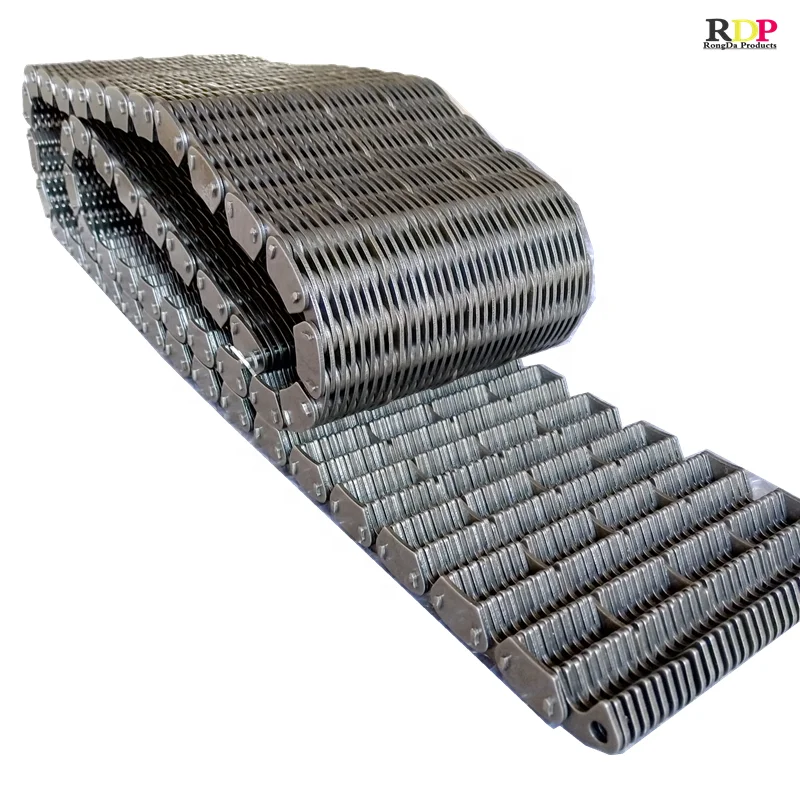

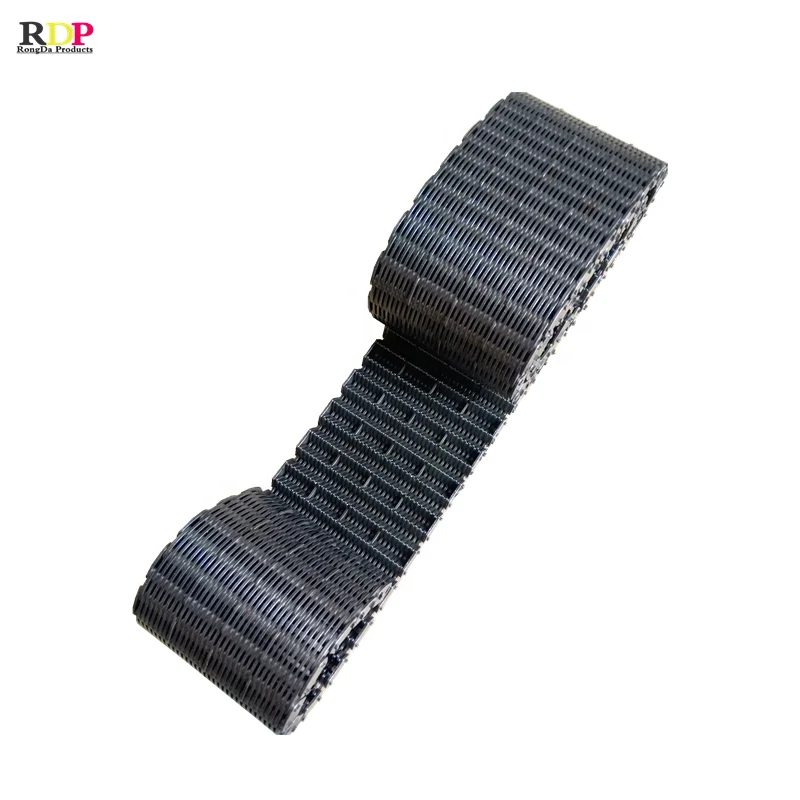

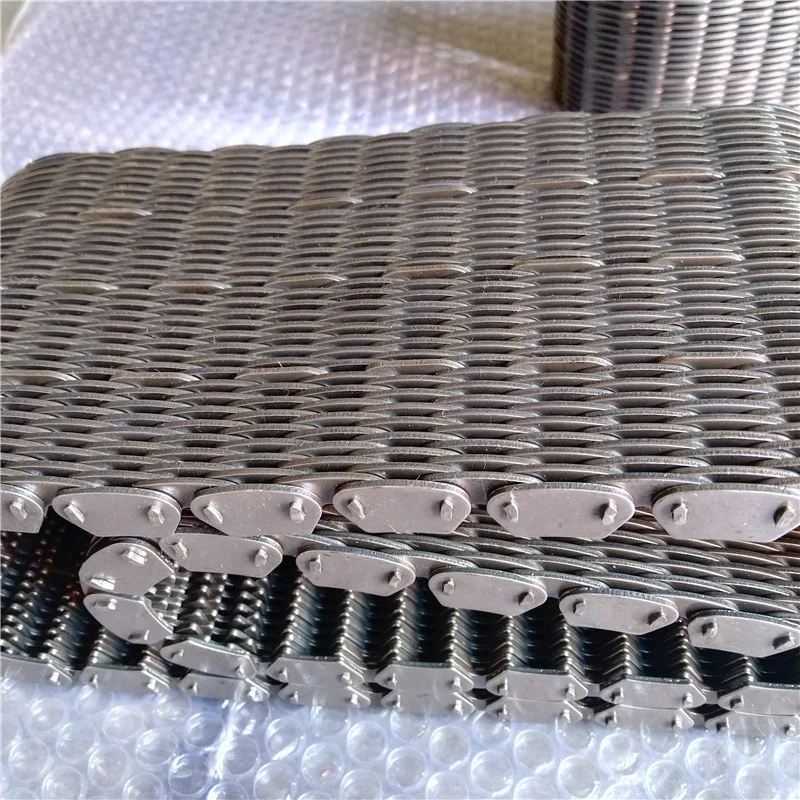

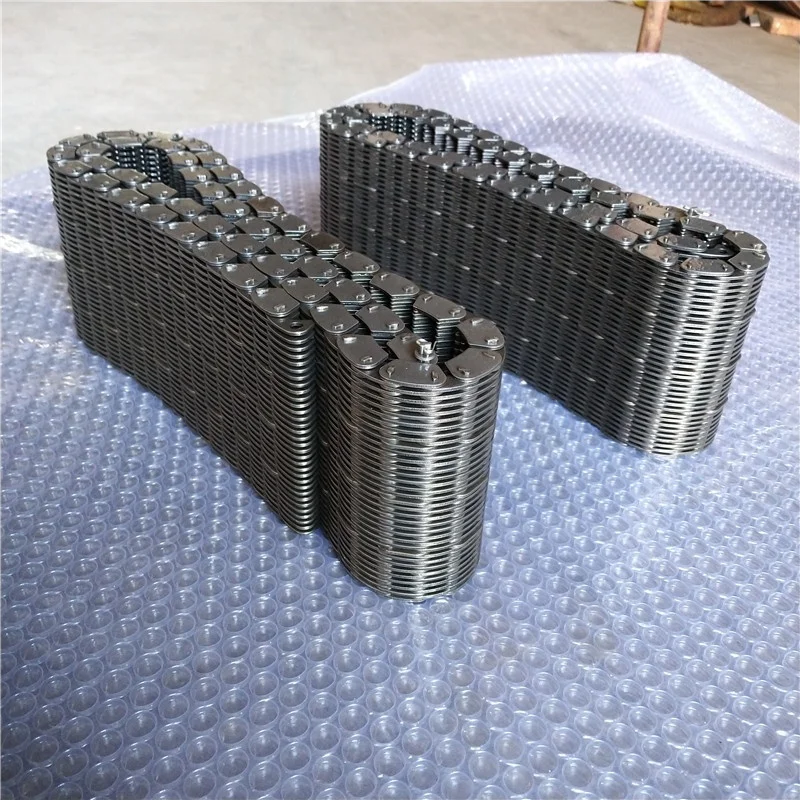

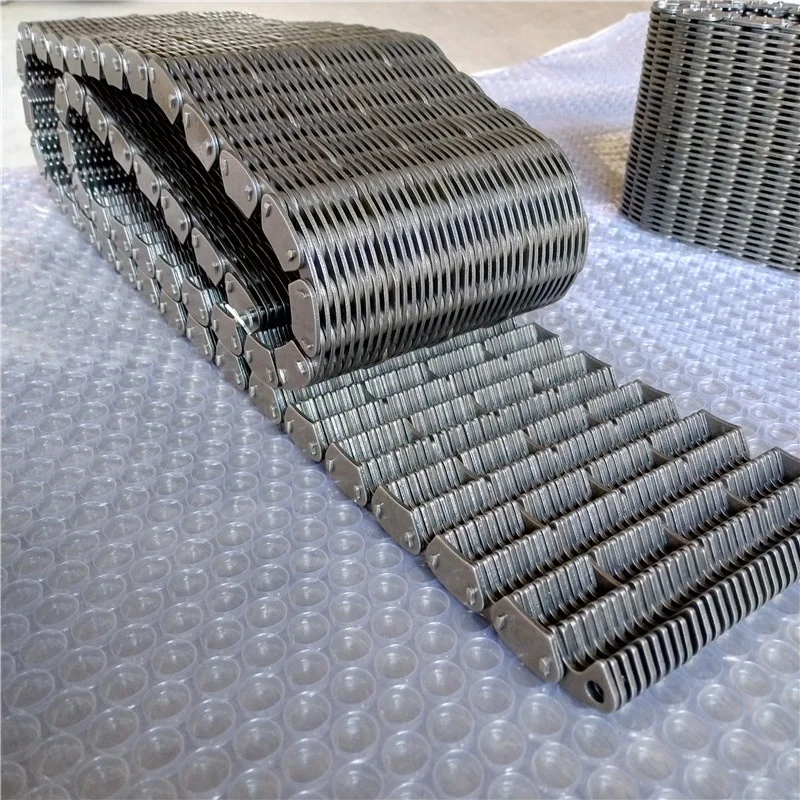

HV416 High-speed, silent-toothed chain with 5-layer guide

The advantages of silent tooth chain are: silent, mute, high speed, high precision, strong bearing and tensile resistance, long service life, longer life than synchronous belt, less noise than roller chain, flat surface than general conveyor belt, high transmission precision, high precision and small error. Now the silent tooth chain is more and more widely used, the high speed silent mute low noise chain gear is more and more common, some people change the original synchronous belt into this silent tooth chain, some people use roller chain noise is too big, also is changing to silent tooth chain gear. Some high-precision transmission lines with high transmission accuracy are also using the silent tooth chain gear, many forging industry fast transmission forging parts are also using the silent tooth chain, in the transmission line there are many need to smooth transport is also using the silent tooth chain as the transport bring delivery object. The present tooth chain has a second of 16 to 30 meters, the silent tooth chain has a single axis, has a double axis, has a pitch of 9.525 mm model CL06SC3,12.7 mm CL08SC4C4,15.875 mm silent tooth chain CL10,SC5,19.05 mm CL16,SC6;31.75 mm tooth chain CL20SC10,38.1 mm silent tooth chain The width of the silent tooth chain is non-standard, the width of the tooth chain is determined by the number of chain pieces. Tooth chain length non-standard custom. The silent tooth chain uses the data required 1, pitch of the silent tooth chain 2. Number of pieces of the silent toothed chain 3. Length of silent toothed chain 4, the guide form of silent tooth chain, 5. Photo of the shaft head with silent teeth Classification of silent tooth chain 1. The double-axis tooth chain has HPC KH HDL HV RPV RP SC 2. CL06CL08CL10CL12CL16CL20CL24 is the single-axis tooth chain Range suitable for tooth chain 1, the synchronous belt transformation, synchronous belt to silent tooth chain. 2, high-speed low-noise environment need silent tooth chain. 3, where transmission accuracy is high need silent tooth gear. 4. The transmission line requires a silent toothed chain. 5. Tooth chain for bending machine 6. Silent toothed chains for gypsum machiner
