RV/автофургон двухуровневое плоское стекло
- Категория: Части корпуса >>>
- Поставщик: Longkou,Yongan,Vehicle,Window,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 126.61 $* | 129.46 $* |
| Jul-19-2025 | 102.8 $* | 104.21 $* |
| Jun-19-2025 | 124.43 $* | 126.12 $* |
| May-19-2025 | 123.40 $* | 125.52 $* |
| Apr-19-2025 | 98.8 $* | 100.62 $* |
| Mar-19-2025 | 121.23 $* | 123.8 $* |
| Feb-19-2025 | 120.92 $* | 122.2 $* |
| Jan-19-2025 | 119.56 $* | 121.44 $* |
Характеристики

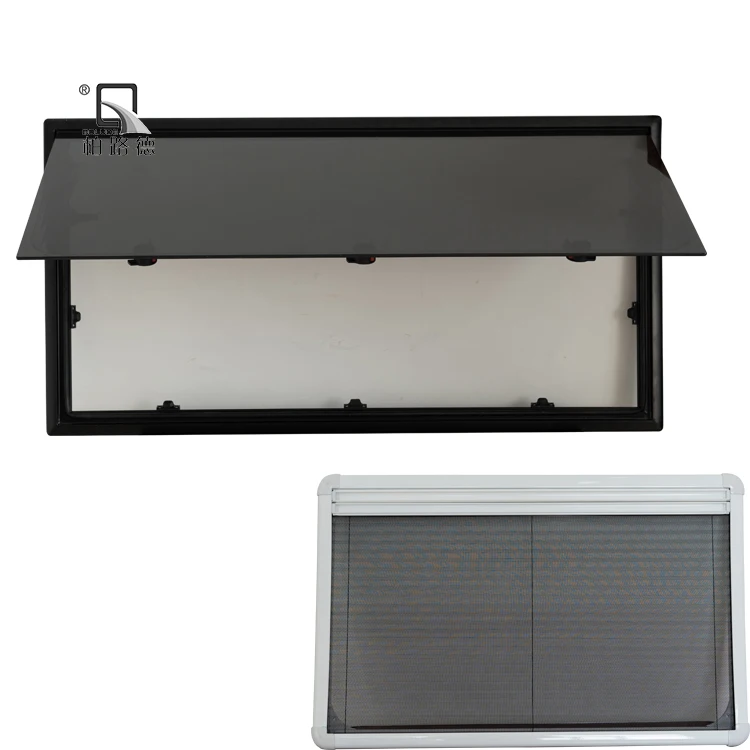

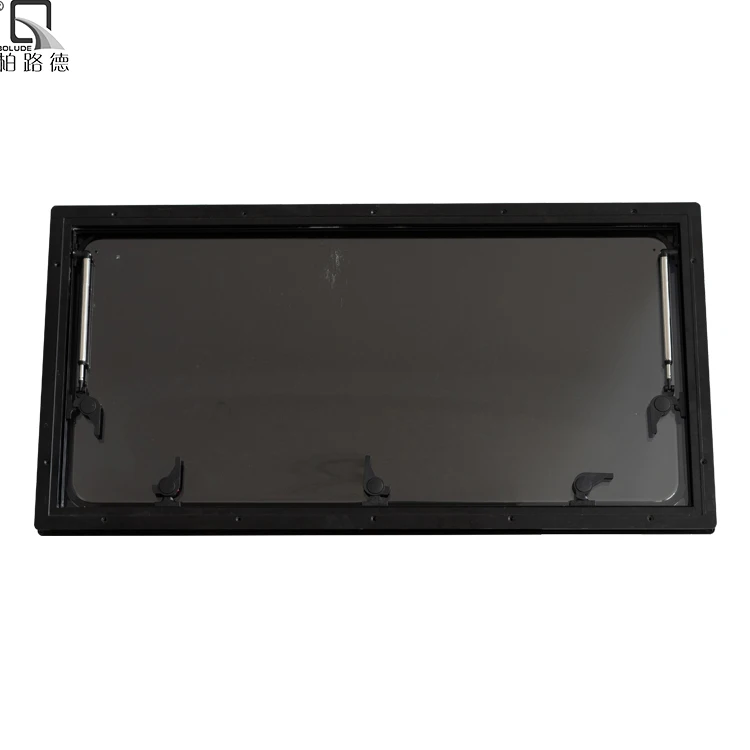

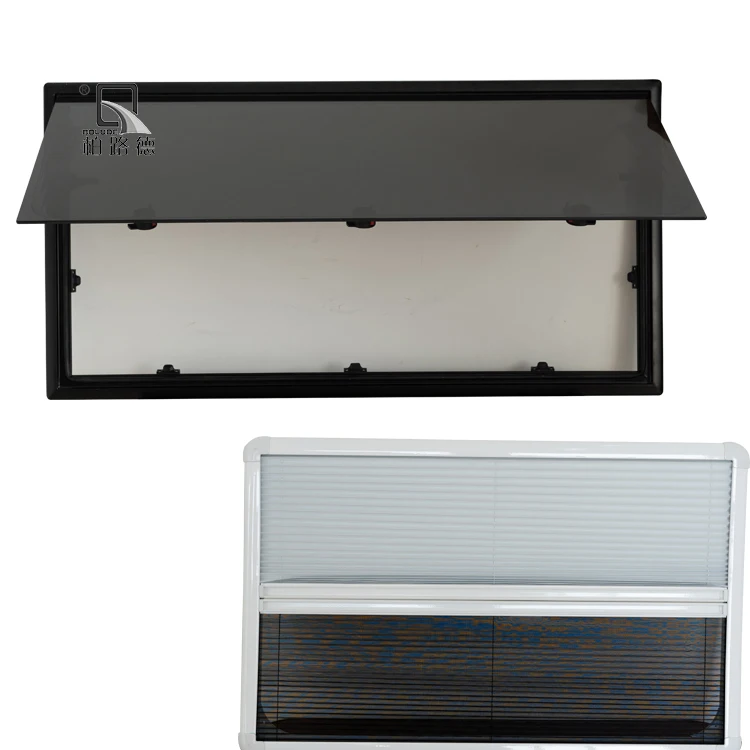

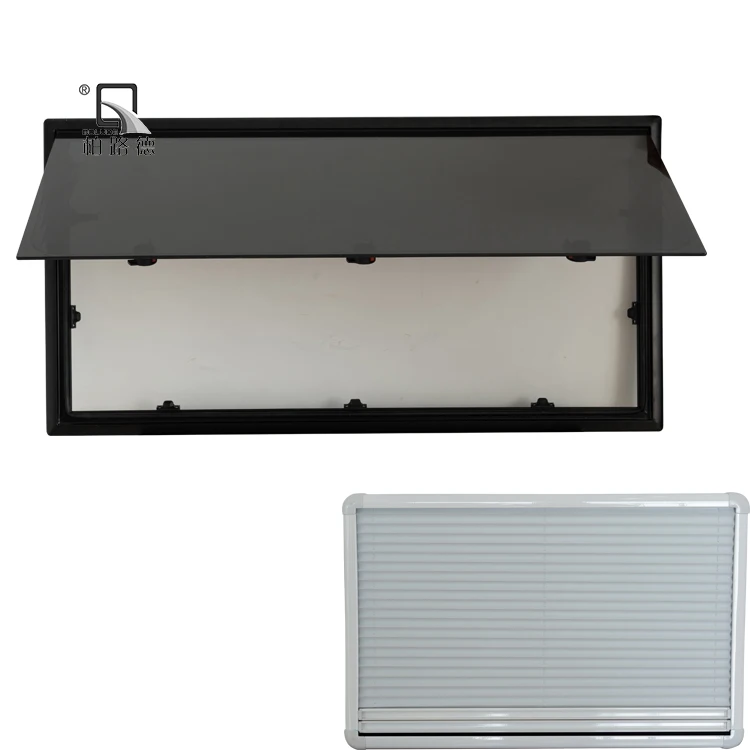

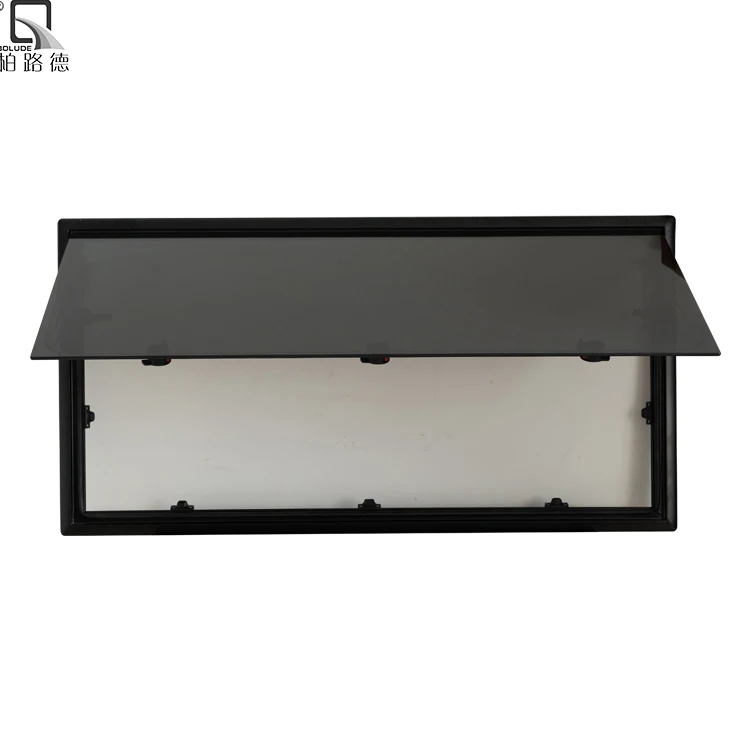

500x350mm RV Right angled corner window for all type caravan window and china top quality acrylic window
RV & CARAVAN Window are specially designed for medium-grade and high-grade RVS. motor homes, horsetrailers, engineering vehicles,
yachts, etc .Quick and easy installation，It provides a comfortable living environment with excellent sound insulation, heat
insulation, mosquito proofing and shading function. Security locking system prevents windows from being opened on the outside.
yachts, etc .Quick and easy installation，It provides a comfortable living environment with excellent sound insulation, heat
insulation, mosquito proofing and shading function. Security locking system prevents windows from being opened on the outside.
Model number | YA-WT-03 | YA-WT-03 | |
Material | Frame | Elaborately-Powder coated high strength aluminum alloy | |
Glass | Double-glazed acrylic glass ,Anti-UV acrylic | ||
Color | Frame | Black, grey ,White (RAL 9003) | |
Glass | Grey or black | ||
Style | Caravan Side-hinged Window | ||
Screen window | Pleated blinds | ||
Abat vent | Dakening screen and fly screen | ||
Fitting thickness | 22-50mm | ||
Function | this window in the light weight ,good insulation , adopt the latest design of structure with patent ,satisfied the requirment for high-grade varavan | ||
Certification | ECE/DOT | ||
Installation | Use Screws Simple and Quick Installation | ||
Package | Well and Good Wooden Crate;5-10pc per Package When Packing | ||
Delivery Period | 30-35Days When We Have Received Your Payments & Deposits | ||
Size can be customized after discussing .
H/W : height /Width of window fitting surface , unit : mm
Perfect combination of outside window and inside wind Outside window adopt the extrapolation
Inside window is point fixed installation adopt the way of pulling up and down , fxed by the hidden screw
Size/mm W*H | Overall/mm W+52 *H+52 | Cut Hole/mm (W+3)*(H+3) | Weight/kg |
497*347 | 545*399 | 500-350 | 2.99 |
497*447 | 549*499 | 500-450 | 3.90 |
497*497 | 549*549 | 500-500 | 4.36 |
497*547 | 549*599 | 500-550 | 4.82 |
897*447 | 949*499 | 900-450 | 7.86 |
897*497 | 949*549 | 900-500 | 8.32 |
897*547 | 949*599 | 900-550 | 8.78 |
897*897 | 949*949 | 900-900 | 11.97 |
997*797 | 1049*849 | 1000-800 | 12.05 |
1097*447 | 1149*499 | 1100-450 | 9.84 |
1097*547 | 1149*599 | 1100-550 | 10.76 |
1197*497 | 1249*549 | 1200-500 | 11.29 |
1197*797 | 1249*849 | 1200-800 | 14.03 |
1447*547 | 1499*599 | 1450-550 | 13.31 |
1197*697 | 1249*749 | 1200-700 | 13.12 |
797*497 | 849*549 | 800-500 | 7.33 |
597*347 | 649*399 | 600*350 | 3.98 |
697*397 | 749*449 | 70*400 | 5.42 |
Open, close, ventilate, insulate, allow sunlightin, prevent insects, and good water seal. It can act as emergencyexit, when the screen and blind are unlocked and window open. Itis equipped with beautiful and high qualityscreen and blind fordifferent needs. The wall thickness is adjustable, Easy installationand operation, durable and reliable, simple structured with manyavailable sizes
1. How can I get samples?
We are ready to offer samples. New clients shall pay for the courier cost.
2. How does your factory do regarding quality control?
Quality is priority.
Every worker keeps the QC from the very beginning to the very end:
1) All raw materials we used are environmental-friendly;
2) Our skillful workers are very careful in handing the stamping, printing, stitching, and packing process;
3) During each process we check the quality and make sure of minimum fake products.
3.Can I print my logo on the goods?
Yes, we can help print logo on the goods or packing boxes. A letter of attorney (letter of authorization) shall be provided for
patent protection purpose.
4.How about the delivery time ?
7-20 days after receiving T/T.
5.What’s the MOQ and payment support ?
MOQ is 10 pcs.
T/T, PayPal are both accepted.
P.S. Please make payment after your purchase. We will arrange the shipping ASAP.
If you have any problems with the outcome of the transaction or product, please don't respond with negative feedback before
contacting us.We are very proud of our customer relations and ratings, and will endeavor to fix any problems.
We are ready to offer samples. New clients shall pay for the courier cost.
2. How does your factory do regarding quality control?
Quality is priority.
Every worker keeps the QC from the very beginning to the very end:
1) All raw materials we used are environmental-friendly;
2) Our skillful workers are very careful in handing the stamping, printing, stitching, and packing process;
3) During each process we check the quality and make sure of minimum fake products.
3.Can I print my logo on the goods?
Yes, we can help print logo on the goods or packing boxes. A letter of attorney (letter of authorization) shall be provided for
patent protection purpose.
We usually produce goods based on customer's samples or based on customer's picture , logo , size etc.
4.How about the delivery time ?
7-20 days after receiving T/T.
5.What’s the MOQ and payment support ?
MOQ is 10 pcs.
T/T, PayPal are both accepted.
P.S. Please make payment after your purchase. We will arrange the shipping ASAP.
If you have any problems with the outcome of the transaction or product, please don't respond with negative feedback before
contacting us.We are very proud of our customer relations and ratings, and will endeavor to fix any problems.
