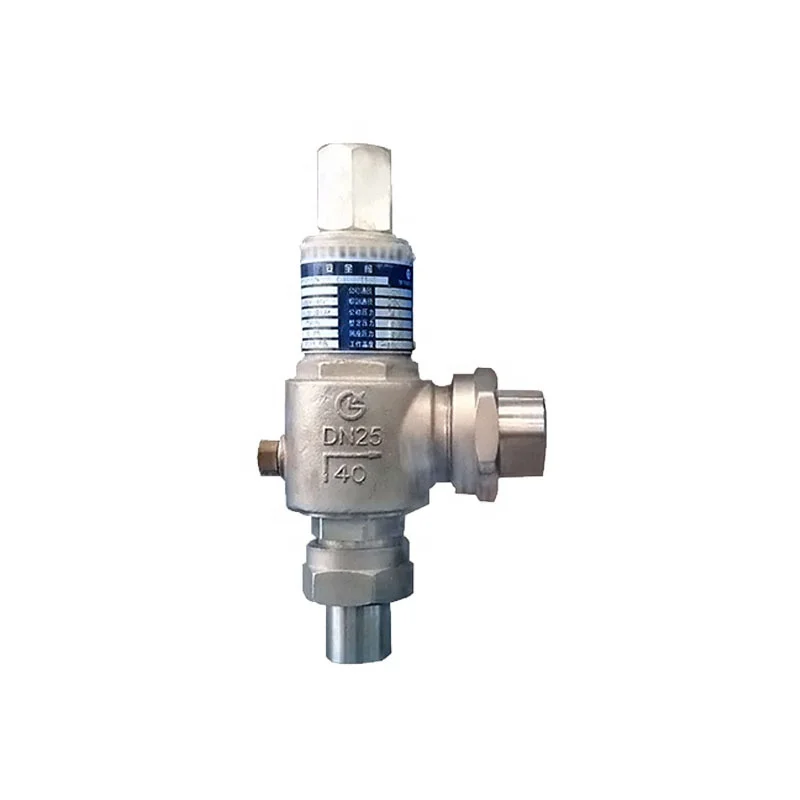

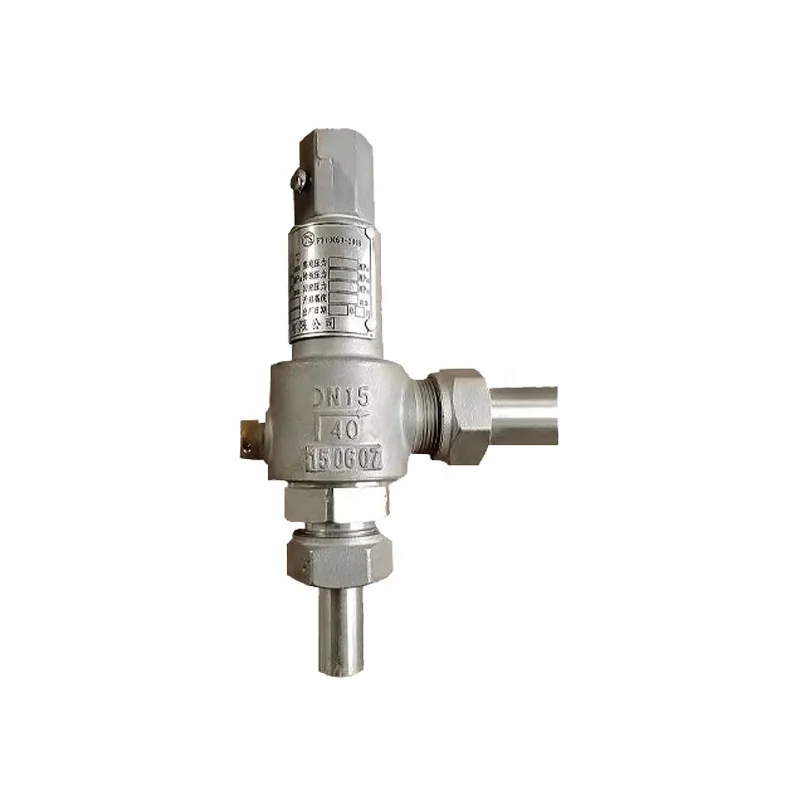

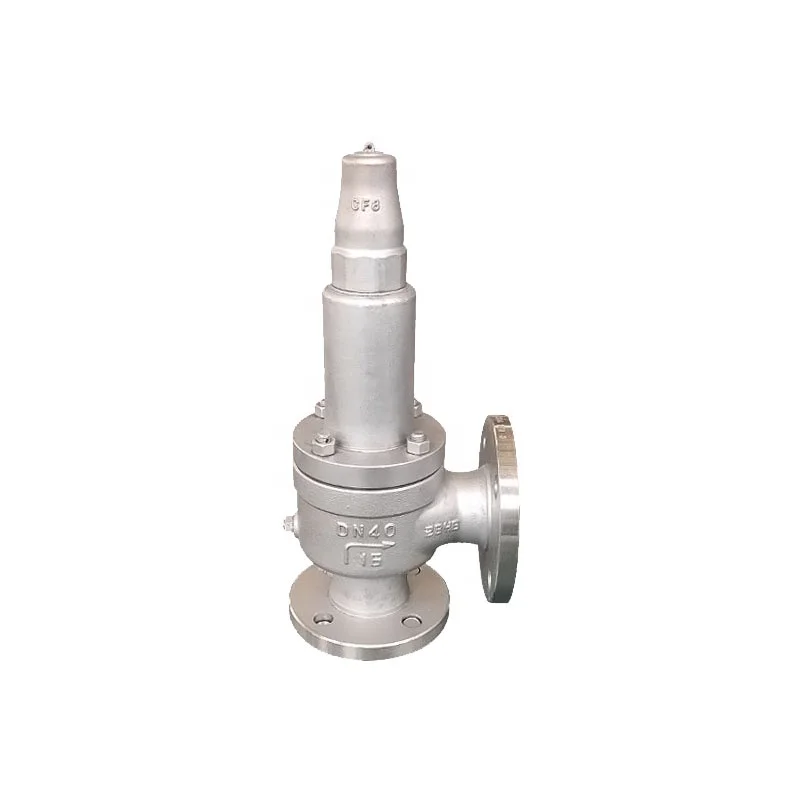

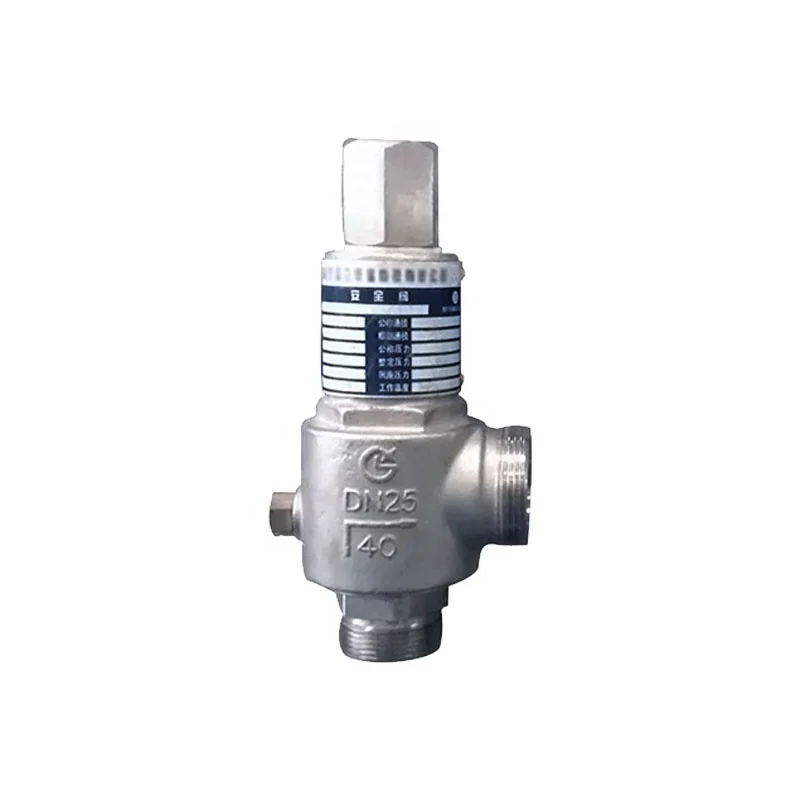

Предохранительный клапан из нержавеющей
- Категория: >>>
- Поставщик: Jianyang,Greenfir,New,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 143.20 $* | 150.48 $* |
| Aug-20-2025 | 142.65 $* | 149.32 $* |
| Jul-20-2025 | 119.45 $* | 125.65 $* |
| Jun-20-2025 | 139.86 $* | 146.96 $* |
| May-20-2025 | 121.71 $* | 127.9 $* |
| Apr-20-2025 | 137.19 $* | 144.95 $* |
| Mar-20-2025 | 136.32 $* | 143.86 $* |
| Feb-20-2025 | 134.86 $* | 141.70 $* |
| Jan-20-2025 | 133.53 $* | 140.71 $* |
Характеристики
Product Description
Cryogenic safety valves are used in applications in which system overpressure in a cryogenic system is not only an extraordinary emergency but may very well occur several times. In this regard, it should be possible to collect and reuse the cryogenic, vaporising fluid - typically helium - for efficiency and cost reasons.
During normal, trouble-free operation of a system, the safety valves must be very tightly sealed in order to prevent fluid leakage to the largest possible extent. In case of an overpressure building up in the system, the valves must be activated exactly at a specific pressure value and dissipate large, cryogenic mass flows. In doing so, the valuable fluid is not released into the environment, but rather forwarded into a buffer container. In contrast to conventional safety valves, the cryogenic safety valves are therefore always activated at the specified pressure, regardless of the pressure that prevails behind the valve. When the pressure falls below a specific value again, the valves are tightly re-sealed. This is all done automatically, without external energy.
Main performance specifications
Nominal diameter：DN10-25mm
Nominal pressure：PN4.0MPa
Applicable medium：LO2\\LN2\\LAr\\LNG etc
Proper temperature:-196℃~+80℃
Set pressure：0.1 ~2.4MPa
Main Material of Parts
Body: CF8
Disc: Stainless steel
Stem: Stainless steel
Sealing ring: Reinforcing PTFE
Spring: 1Cr18Ni9-B
Size Information
Related Products
Packing&Shipping
The transportation method can be selected according to the weight of the goods, including road transportation, railway transportation, air transport and ocean transportation..
After Sales Service
Life-long Service
1.If there is a problem, it will arrive at the scene within 5 working days to deal with the problem.
2.During the warranty period, the company is responsible for replacing the problematic equipment.
3.Outside the warranty period, technical maintenance services are provided, and the costs incurred are borne by the buyer.
3.Outside the warranty period, technical maintenance services are provided, and the costs incurred are borne by the buyer.
Company Introduction
Chengdu Singoly Cryogenic Technology Co., Ltd. was established in April 2008. It is a technology-based joint-stock company specialized in the design, manufacture, sales and technical advisory services of natural gas liquefaction equipment and cryogenic equipment pressure piping components. , Zhongyuan and Southwest Sales Company. The company's registered capital is 19 million yuan and the employees are more than 100.
The company has gathered a group of experienced low-temperature processes and equipment, low-temperature special valve research and development personnel, including 18 people with intermediate and higher professional titles, some have obtained two national patents, with a unique frictionless structure to achieve a switching life of 1 million More than two times of leakage-free double eccentric plate butterfly valve and four-link butterfly valve level R&D personnel, there have been twelve national patents, based on the absorption of U.S.-Japan technology and made significant innovations in low-temperature storage application valve research and development personnel; also There are professional management personnel who have produced and manufactured LNG low temperature according to AP standards and PED legal requirements. The company has new CNC lathes, welding equipment, first-class low-temperature testing and inspection equipment and advanced CAD design center.
The company's professionally designed and manufactured valve varieties are: butterfly, membrane regulating valve, ball valve, globe valve, throttle valve, check valve, pressure reducing valve, safety, instrument valve, breathing valve, three-way switching reading and so on. The nominal diameter is up to 1600mm, the maximum pressure is 42MPa, the use temperature is -269℃, the maximum is +850℃, and there are manual, pneumatic, electric and other transmission methods. Mainly used in air separation equipment, natural gas liquefaction separation equipment, petrochemical tail gas separation equipment, LO2, LN2, LAr, LH2, LCO2 low temperature storage and transportation equipment, pressure swing adsorption oxygen production, nitrogen and hydrogen recovery equipment, ethylene high temperature cracking device, power station And other fields.
The company's production vehicles are 6052 square meters, and 118 sets of various technological equipments, which meet the requirements of permit resource conditions and special valve conditions in TSGD2001-2006 "Pressure Pipe Component Manufacturing License Rules"; the design and manufacture of safety accessories can reach TSGZF001-2006 The requirements of "Safety Valve Safety Technical Supervision Regulations". The company can fully meet the relevant requirements for the production, testing and testing of pressure piping components and safety accessories.
The company has gathered a group of experienced low-temperature processes and equipment, low-temperature special valve research and development personnel, including 18 people with intermediate and higher professional titles, some have obtained two national patents, with a unique frictionless structure to achieve a switching life of 1 million More than two times of leakage-free double eccentric plate butterfly valve and four-link butterfly valve level R&D personnel, there have been twelve national patents, based on the absorption of U.S.-Japan technology and made significant innovations in low-temperature storage application valve research and development personnel; also There are professional management personnel who have produced and manufactured LNG low temperature according to AP standards and PED legal requirements. The company has new CNC lathes, welding equipment, first-class low-temperature testing and inspection equipment and advanced CAD design center.
The company's professionally designed and manufactured valve varieties are: butterfly, membrane regulating valve, ball valve, globe valve, throttle valve, check valve, pressure reducing valve, safety, instrument valve, breathing valve, three-way switching reading and so on. The nominal diameter is up to 1600mm, the maximum pressure is 42MPa, the use temperature is -269℃, the maximum is +850℃, and there are manual, pneumatic, electric and other transmission methods. Mainly used in air separation equipment, natural gas liquefaction separation equipment, petrochemical tail gas separation equipment, LO2, LN2, LAr, LH2, LCO2 low temperature storage and transportation equipment, pressure swing adsorption oxygen production, nitrogen and hydrogen recovery equipment, ethylene high temperature cracking device, power station And other fields.
The company's production vehicles are 6052 square meters, and 118 sets of various technological equipments, which meet the requirements of permit resource conditions and special valve conditions in TSGD2001-2006 "Pressure Pipe Component Manufacturing License Rules"; the design and manufacture of safety accessories can reach TSGZF001-2006 The requirements of "Safety Valve Safety Technical Supervision Regulations". The company can fully meet the relevant requirements for the production, testing and testing of pressure piping components and safety accessories.
"Customer needs as the center, process management as the basis, continuous improvement for quality, and brand innovation for development" is the company's basic philosophy. We will design, manufacture and manufacture products in accordance with the requirements of ISO9001 and API Spec Q1 quality management system. , Sales, installation and commissioning services, etc. to implement the entire process of control to ensure the success of customer applications and market success.
Factory Display
Performance
FAQ
Q1. What is your MOQ?
Our MOQ is one piece.
Q2. Do you provide sample for customer?
Yes, sample is available.
Q3. Do you do OEM service?
Yes, we accept OEM order and can make customer's LOGO on the products.
Q4. Do you support customization?
Yes, customization is acceptable.
Q5. Can you advise suitable cryogenic valves to me?
We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
Q6. How long is your delivery time?
It usually takes 5-30 days depending on the quantity of the order and the stock.
Q2. Do you provide sample for customer?
Yes, sample is available.
Q3. Do you do OEM service?
Yes, we accept OEM order and can make customer's LOGO on the products.
Q4. Do you support customization?
Yes, customization is acceptable.
Q5. Can you advise suitable cryogenic valves to me?
We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.
Q6. How long is your delivery time?
It usually takes 5-30 days depending on the quantity of the order and the stock.
