Лабораторный реактор с двойным слоем из химического стекла мешалкой 1 л 2

Цена:*

Количество:

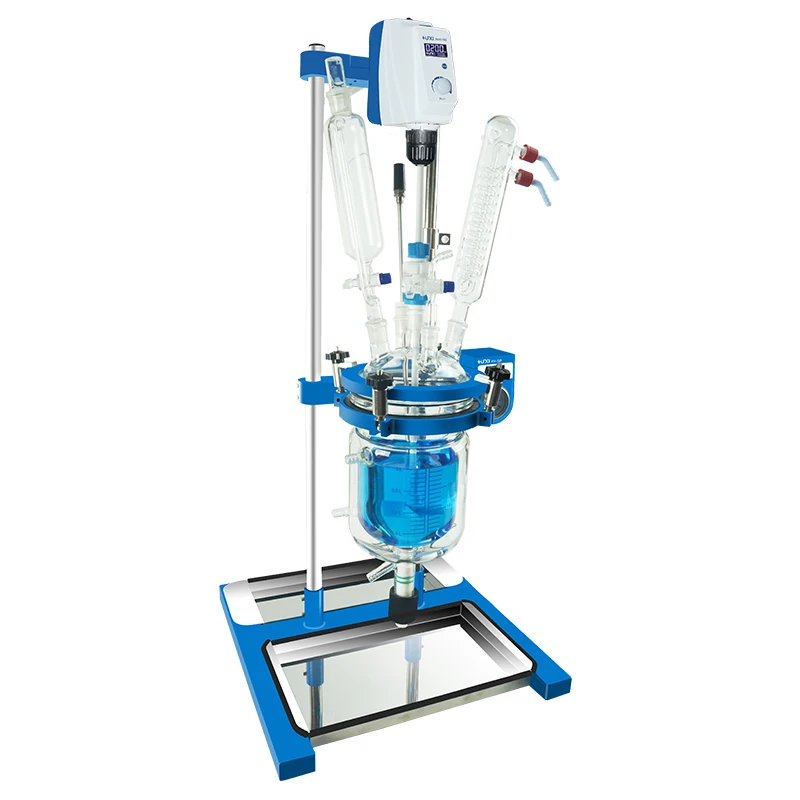

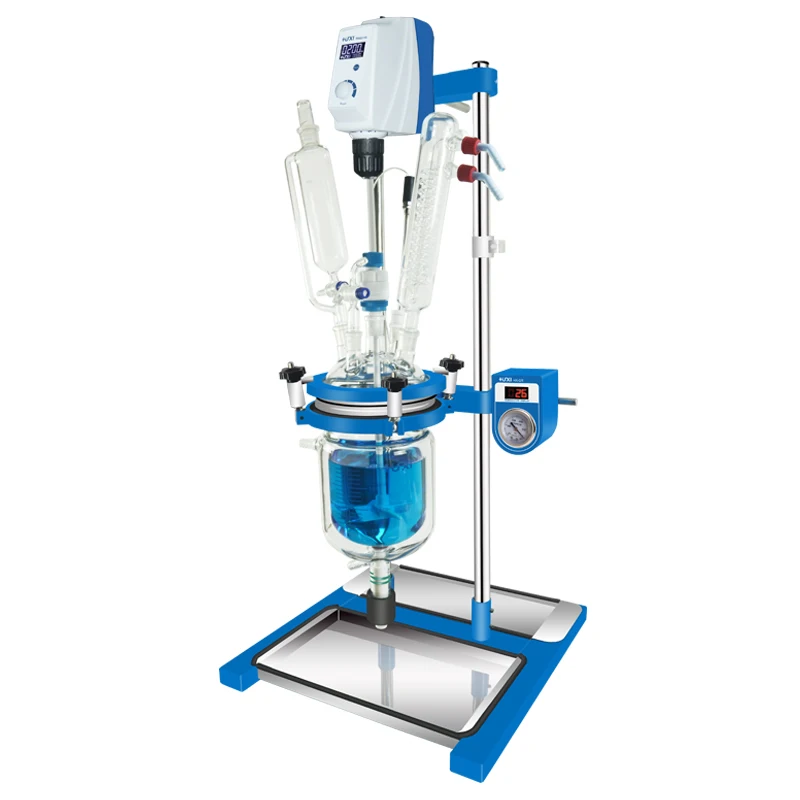

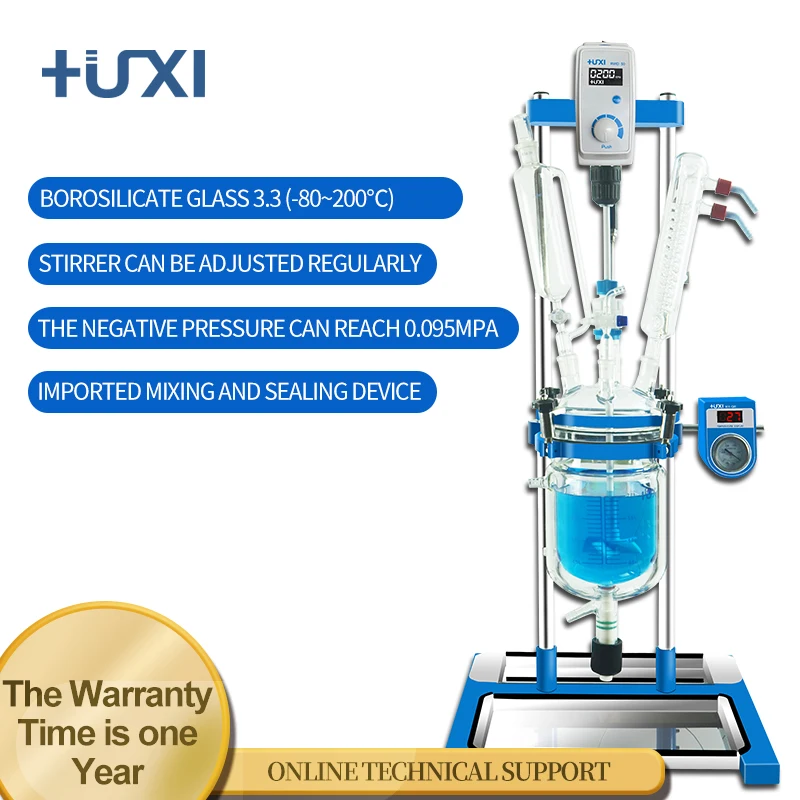

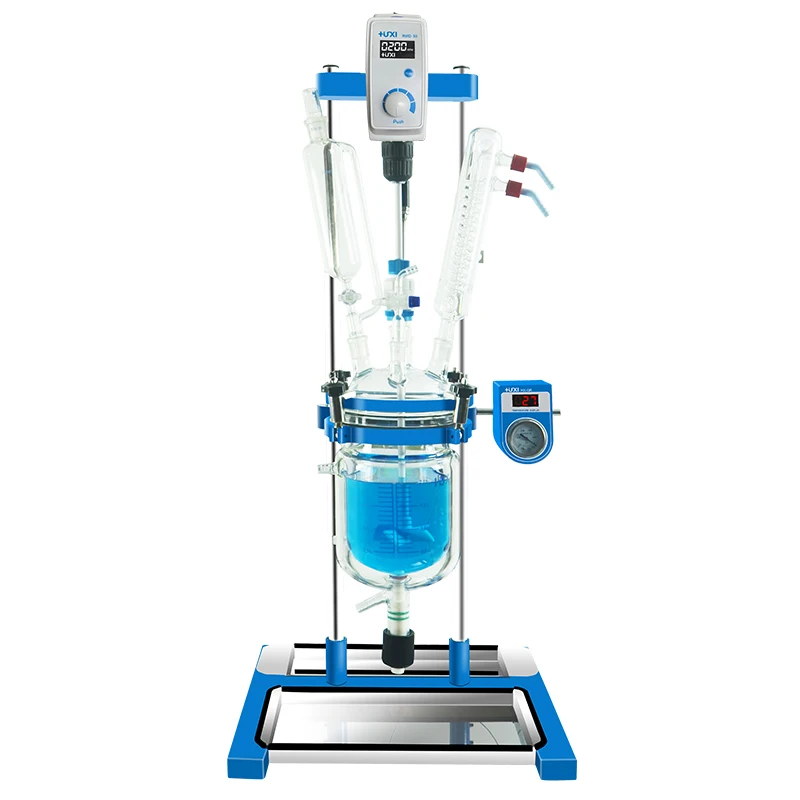

1L 2L 5L Double Layer Laboratory chemical Jacketed Glass Reactor with agitator

The Paramaters of the Main Glass Reactor

The Main Body Part
Model		HF-1L	HF-2L	HF-5L
Item No		1028010001	1028011001	1028012001
Reactor Capacity		1	2	5
Jacket volume		0.3
Condenser freeze area		0.025m2
Funnel Capacity		200ml
Reaction Vessel Lid Size		180mm
Reactor Vessel Lid holes		5
Reaction Vessel Lid Holes	Stirring hole	24# standard Grind
	Temperature sensor hole	24# standard Grind
	Condenser hole	24# standard Grind
	Liquid feeding Connector	19# standard Grind
	Material Feeding Funnel Connector	24# standard Grind
Glass components		borosilicate 3.3 high and low temperature resistant glass
Working temperature of kettle body (℃)		-80℃~200℃
Temperature limit inside and outside the kettle (℃)		≤80
Pressure in the kettle (MPa)		-0.1~0.0
Jacket withstand pressure (MPa)		≤+0.03
Pressure increasing rate of vacuum system (kpa/h):		≤2
Heating/cooling method		High and low temperature, constant temperature bath/circulating pump (optional)

The Stirring Part of the Reactor System

Stirring Part
Motor	RWD50 Overhead Stirrer
Speed Control Mode	Knob
Rotary Speed range	50-500rpm
Speed Display	LCD
Time Set (Min)	1~9999
Mixing Time Set	yes
Rotary Speed Resolution(RPM)	±1
Speed Memory	Yes
Torque( N.cm)	≤70
Viscosity (mPas)	≤10000
Mixing propeller Fixed mode	Self lock
Propeller Diameter allowed(mm	0.5~10)
Overload Protection	Error, stop working
Motor Protection	Error ,stop working
Motor Power (W)	70
Propeller	PTFE 4 blades propeller (8mm*650mm)
Working Voltage(V/Hz)	110V60HZ, 220~240V/50~60

The Temperature Sennsor Part of the Reactor System

Temperature Sensor
Temperature display mode	LED
Temperature Sensor Type	Pt100
Temperature Accuracy(℃)	±1
Temperature Display Accuracy(℃)	0.1
