Корпус газовой линзы 45V26 tig torch
US $1.80-$2.00
Ручной Волоконно-лазерный сварочный
- Категория: Другие товары для сварки и пайки >>>
- Поставщик: Shenzhen,HYD,CNC,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1761.95 $* | 1849.4 $* |
| Aug-20-2025 | 1746.8 $* | 1833.15 $* |
| Jul-20-2025 | 1465.11 $* | 1538.74 $* |
| Jun-20-2025 | 1717.45 $* | 1803.19 $* |
| May-20-2025 | 1495.88 $* | 1570.74 $* |
| Apr-20-2025 | 1687.37 $* | 1771.8 $* |
| Mar-20-2025 | 1672.54 $* | 1756.80 $* |
| Feb-20-2025 | 1658.44 $* | 1741.44 $* |
| Jan-20-2025 | 1643.81 $* | 1725.49 $* |
Характеристики
Product Description
Introduction
The machines appear to laser equipment industries, fills in the blank of hand-held welding.
The machines appear to laser equipment industries, fills in the blank of hand-held welding.
It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes.
Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.
Specification
Product parameters | ||||
Optical properties | Model | LW-W1000 | ||
Out put power | >1000W | |||
Model | Continuous /Modulation | |||
Fiber length | 1070nm | |||
Output power range | <2% | |||
Operating frequency range | 10-5000HZ | |||
Red light signal | 0.5mw | |||
Fiber output head type | QBH | |||
Fiber cable core diameter | 50μm | |||
Fiber cable length | 10M | |||
Electrical characteristics | Voltage | AC220V 1PH 50/60HZ | ||
Machine power cinsumption | 6KW | |||
Laser control method | Externa AD/rs232 | |||
Machine size | 483*191*740mm | |||
Machine weight | 70KG | |||
Operating temperature | <70℃ | |||
Cooling method | Water cooling | |||
Welding head cooling temperature | Room temperature | |||
Laser source cooling temperature | 25℃ | |||
Equipment environment temperature | -10-60℃ | |||
Details Images
Advantages
1)The welding speed is 2-10 times faster than the traditional welding speed.
2)Laser welding consumes less material and has a long-life.
3)Easy to operate.
4)The welding seam is smooth and beautiful, which reduces the subsequent grinding
process and saves time and cost.
5)No deformation, no weld scar, welding firmly.
6)Safer and more environmentally friendly
1)The welding speed is 2-10 times faster than the traditional welding speed.
2)Laser welding consumes less material and has a long-life.
3)Easy to operate.
4)The welding seam is smooth and beautiful, which reduces the subsequent grinding
process and saves time and cost.
5)No deformation, no weld scar, welding firmly.
6)Safer and more environmentally friendly
Fiber laser source
Power stable ,run smoothly 10,0000 hours life,
2 years warranty.

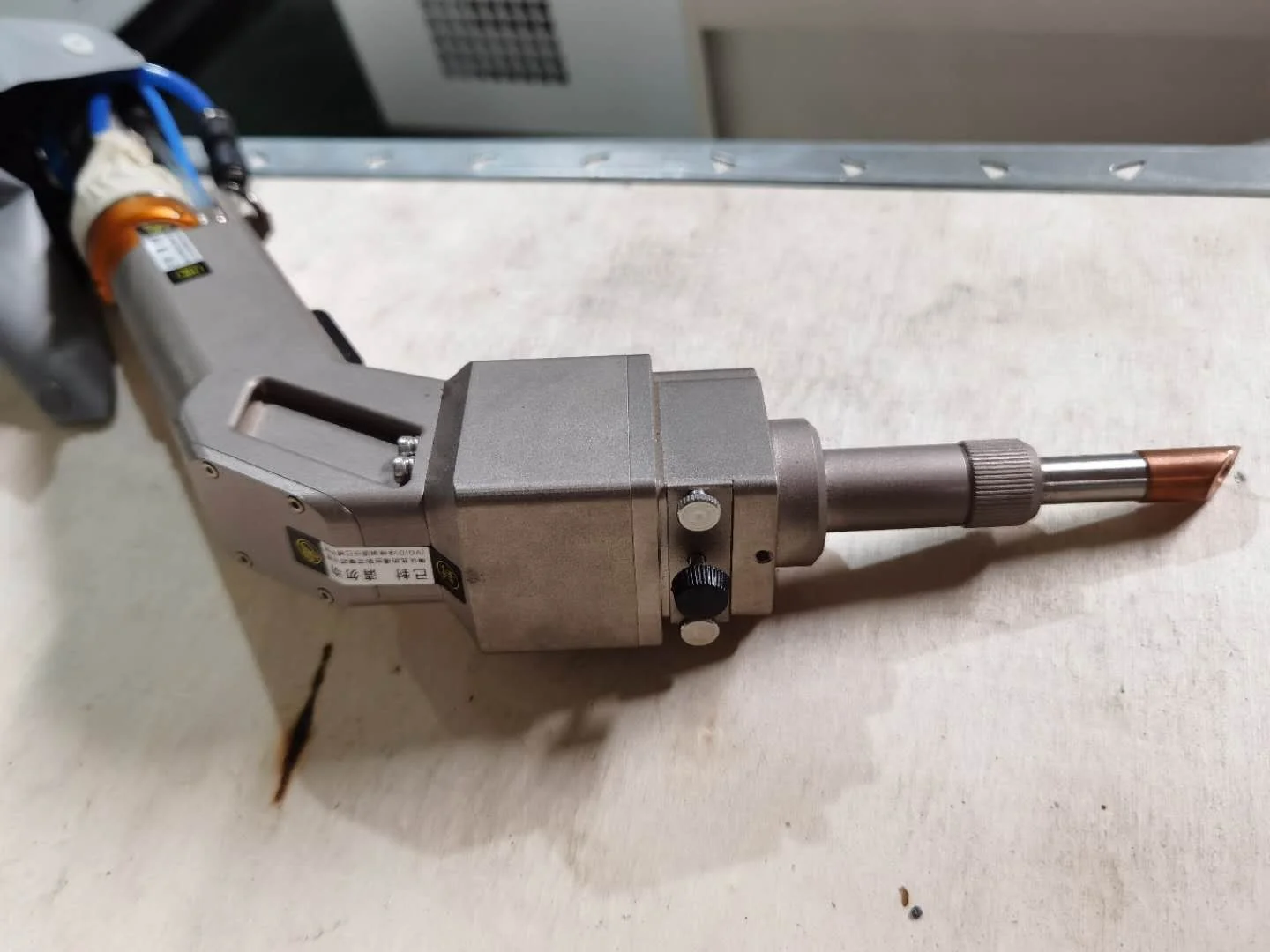

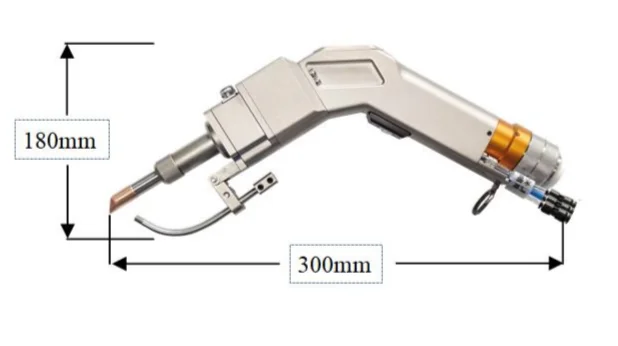

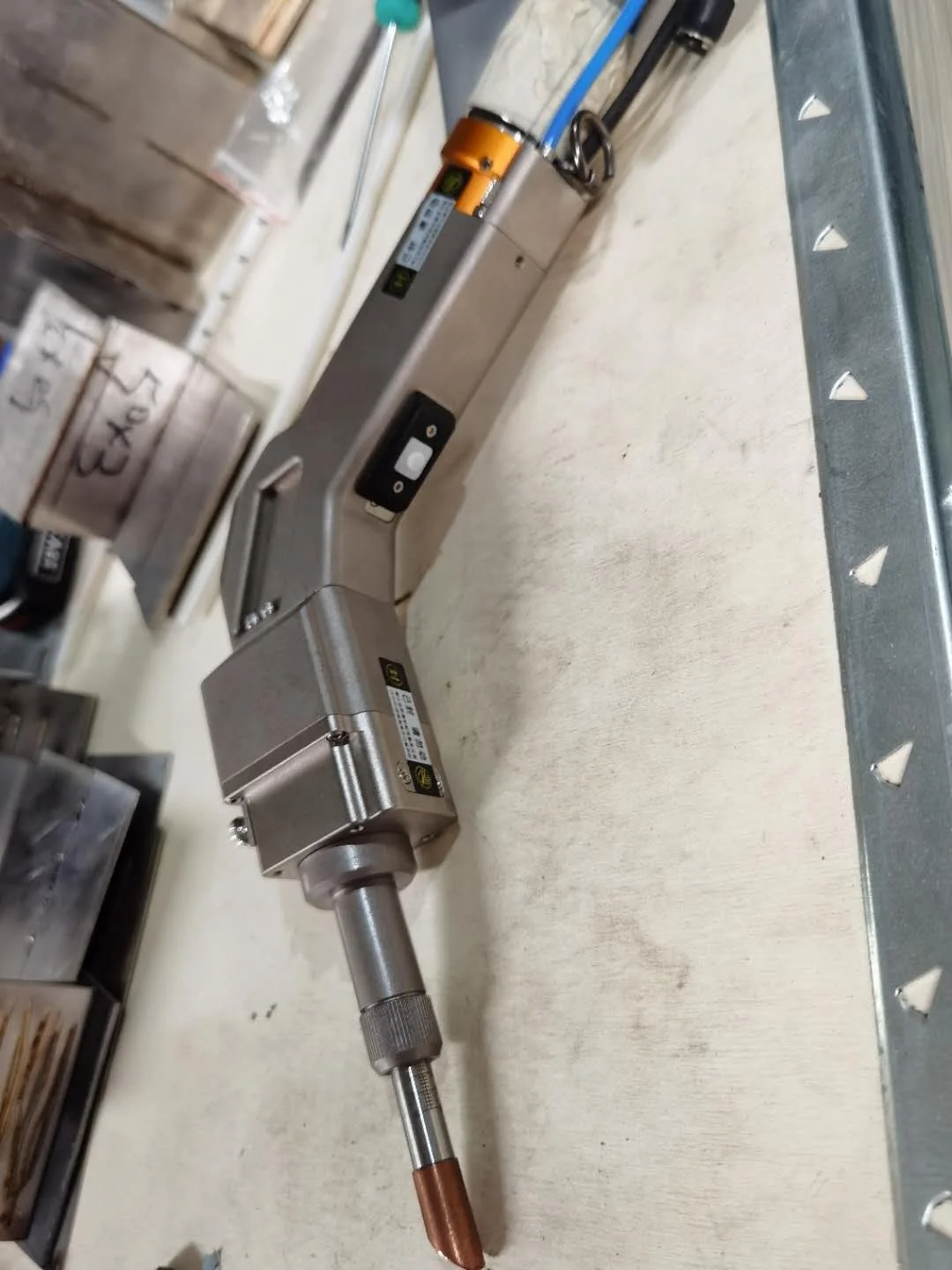

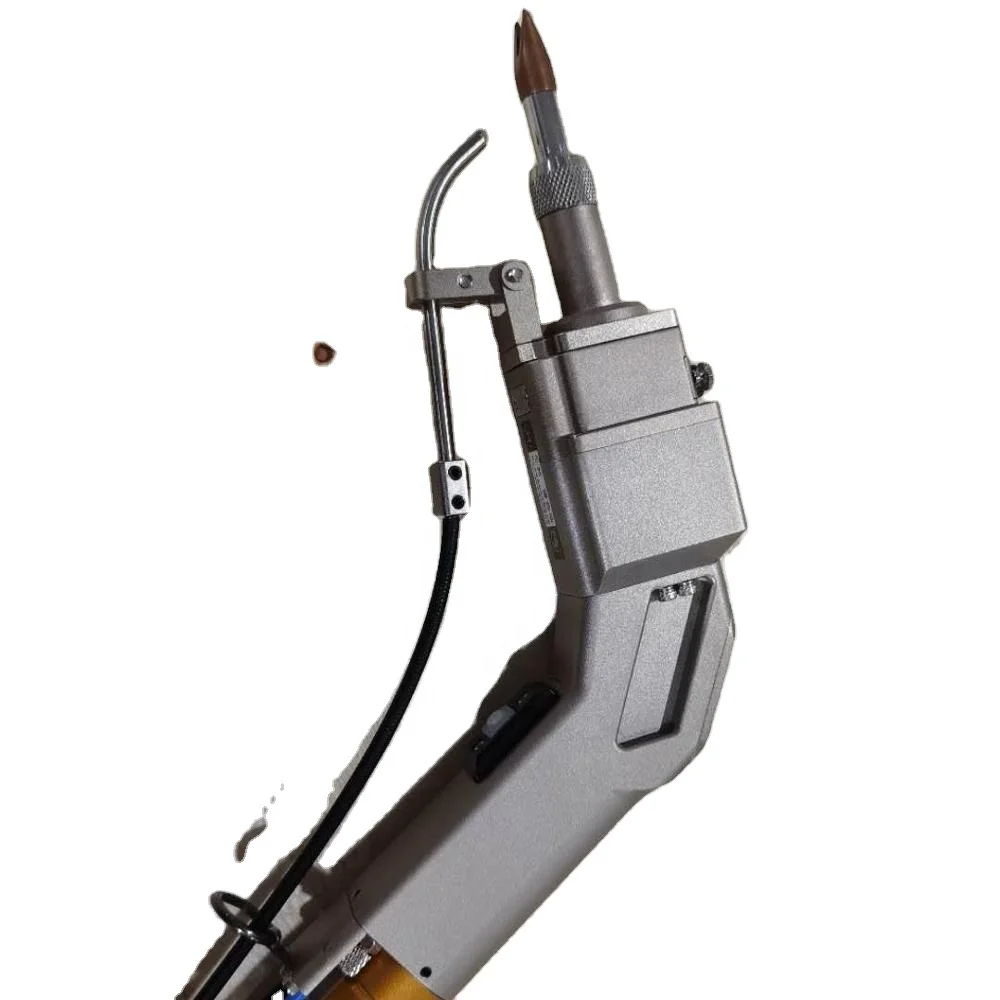

Laser Welding head
The shape is light , the body engineering design method is adopted , and the grip is comfortable ; the hand is easy to control , and the operation is simple and easy to use.
Welding CNC
The good interactive control system expands the tolerance range of the machined parts and the width of the weld ,which solves the disadvantage of samll spot size and better weld formation.
With multiple safety alarms ,it automatically locks light after removing the workpiece,
which is safe.
Packing & Delivery
FAQ
Service after sales
1.Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and
trouble-shooting, and shall give technical guide by e-mail, fax, telephone, Skype…. for fast solution.
2. Welcome to our factory for training.
trouble-shooting, and shall give technical guide by e-mail, fax, telephone, Skype…. for fast solution.
2. Welcome to our factory for training.
3,We will offer training of installation, operation, machine trouble-shooting, and maintenance.
During training in our workshop, we offer free training and living cost for 5 days, limit 2 people.
4. We offer technician to customer site for installation and training, customers need to cover travel cost and local living cost.
Warranty
1, Laser power: Two years warranty, Guaranteed by laser power manufacturer.
2, Machine table: One year warranty, Guaranteed by Lonwill.
4. We offer technician to customer site for installation and training, customers need to cover travel cost and local living cost.
Warranty
1, Laser power: Two years warranty, Guaranteed by laser power manufacturer.
2, Machine table: One year warranty, Guaranteed by Lonwill.
