СВЕТОДИОДНЫЙ Автомобильный знак предупреждение о дорожном движении солнечный радар детектор
- Категория: Дорожные знаки >>>
- Поставщик: Shenzhen,Fulida,Display,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1214.0 $* | 1275.17 $* |
| Aug-17-2025 | 1204.32 $* | 1264.96 $* |
| Jul-17-2025 | 1010.6 $* | 1061.45 $* |
| Jun-17-2025 | 1183.83 $* | 1242.78 $* |
| May-17-2025 | 1030.10 $* | 1082.67 $* |
| Apr-17-2025 | 1163.32 $* | 1221.68 $* |
| Mar-17-2025 | 1153.68 $* | 1211.8 $* |
| Feb-17-2025 | 1142.63 $* | 1199.35 $* |
| Jan-17-2025 | 1132.94 $* | 1189.79 $* |
Характеристики
Product Description
10 Years Factory High Quality Car Speed Two Digital Red Green Led Display Solar Radar Speed Sign
Product Name | LED Radar Speed Sign |
Display Mode | 2 or 3 digit 7-segment LED digit numbers (88,188). Limit speed numbers can be set by remote controller. |
Power Supply | Solar electric power or commercial power optional. Solar Panel 12V100W Battery 12V 65ah or AC220V/110V |
Working Electrical Data | Input voltage 12V, currency: ＜1.5A |
Max Detective Speed | 199km/h |
Detection Range | ≤200m; Response Time: ≤5ms |
Speed Limit NOTE Display | Green number means in limit or safe speed; Red number means out of limit speed. |
Lanes Applied | 3-4 lanes |
Feature | When vehicle drive into the radar detection area (about 100m in the front of radar sign), microwave radar will automatically detect speed of vehicle, speed will be dispalyed on the sign to remind the driver to reduce driving speed,which effectively reduce the road traffic accidents caused by high speed driving. |
Advantages | 1. Speed feedback device has a significant eye-catching inductive driving function, can significantly reduce traffic accidents to achieve safety guidance. 2. Customization Service: Cabinet support Local Language Silk-printing. Font, Limit Speed Number,Pattern,Color and Size Customization also available. |
Weight | 60kg(w/o storage battery, solar panel); 85kg(w/ storage battery, solar panel) |
Cabinet Size(W*H*D) | 690*1284*200MM of 12" ; 810*1404*200MM of 13.4" |
Customization Service: Cabinet support Local Language Silk-printing.
Font, Limit Speed Number,Pattern,Color and Size Customization also available.
Speed Feedback Device Components
1. Speed limited sign(indicating the speed limit of the road section)
2. Such as "Please note your speed" and a dynamic LED(conductor light-emitting diode) display,the above data shows the vehicle's speed.
3. Microwave radar test the speed.
4. Solar power with solar power supply system.
2. Such as "Please note your speed" and a dynamic LED(conductor light-emitting diode) display,the above data shows the vehicle's speed.
3. Microwave radar test the speed.
4. Solar power with solar power supply system.
Speed Feedback Device Install Instructions
1. Fix the solar panel on the frame, then fixed on the speed feedback instrument with screws and nuts.White wires are used for connecting the solar panels and the batteries in the speed feedback box.The positive and negative electrodes are connected one by one.
2. The speed feedback device fixed on the road left or right, or just above the road, so that the direction of the radar port to the car, the tilt angle is not more than 15 degrees.If it is fixed above the road, the radar fixed position should be radar Cavity oblique angle alignment to the car location. At the same time, the higher the distance between the radar and ground, the farther away the radar work. Generally, the distance from ground to radar in 2-7 meters will be better.
3. Open the speed feedback device's back cover, connected the radar date cable, control boards connector one by one.Then adjust position of radar,make it face the direction of coming cars.
4. When the speed back device over the top, fixed the speed feedback with a screw to the column.

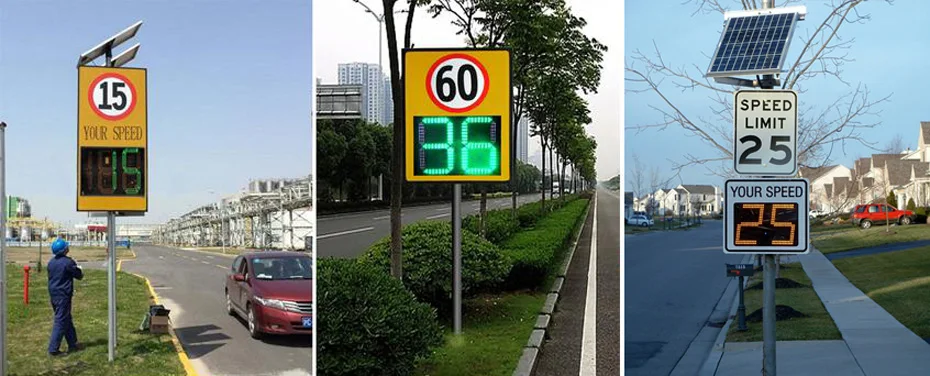

Application
Product Application Area
Schools, hospitals, three-dimensional parking lots, entertainment venues, factory entrance and exits,mining areas,
railwaytransport areas,accident-prone sites, construction sites, temporary construction sections
railwaytransport areas,accident-prone sites, construction sites, temporary construction sections
