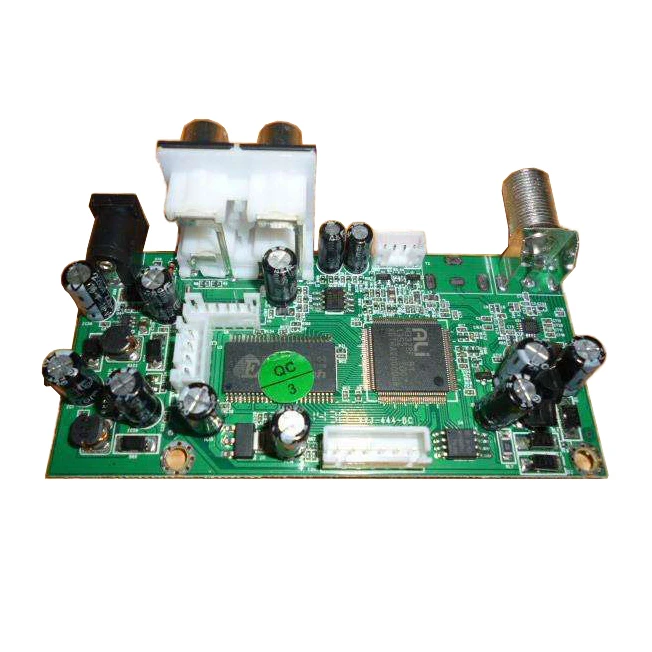

Dvb-s материнская плата pcb Китай (материк) с возможностью нанесения производителем личных электронных схем сервис синий зуб доска фабрики и дизайна PCB печатных

Описание и отзывы

Трекер стоимости

Характеристики

Product Name	dvb-s motherboard pcb China Custom OEM Electronic Circuit Service Blue tooth Board Factory And Design PCB PCBA Manufacturing
Layers	1-24Layers
Thickness	1.6mm
Material	FR-4(Standard FR4,Mid-Tg,FR4,Hi-Tg,FR4,Lead free assembly material),
	Halogan-Free,Ceramic filed,,Polyimide,BT,PPO,PPE,Hybrid,Partial hybrid,etc.
Min.idth/Spacing	Inner layer:3mil/3mil(HOZ),Outer layer:4mil/4mil(1OZ)
Max Copper Thickness	UL certificated:6.0OZ/Pilot run:12OZ
Min.Hole Size	Mechanical drill:8mil(0.2mm)  Laser drill:3mil(0.075mm)
Max.Panel Size	1150mmX560mm
Aspect Ratio	18:01:00
Surface Finishing	ENIG
Special Process	Buried Hole,Blind Hole,Embedded Resistance,Embedded Capacity,Hybrid,Partial hybrid,Partial high density,Back drilling,and Resistance control.
Quality Grade	Standard IPC 2
Board Size	Min 6mm*6mm, Max 400mm*500mm
Board Thickness	0.6mm - 2.0mm
Copper Thickness	0.5oz - 2.0oz
Solder Mask Sides	As per the file
Solder Mask Color	Black
Solder Stop Coating	PI and PET Film
Silkscreen Sides	As per the file
Silkscreen Color	White
Min Annular Ring	4mil
Min Hole Diameter	8mil
Tolerance Dimension	0.05mm
Other Tech	Peelable Solder Mask, Stiffener



One-Stop Service:

Now we have been a factory which can provide one-stop service,

from the PCB production, the components purchasing to the components assemble.

1. PCB Copy

2. PCB drawing / design according to your schematic diagram

3. PCB manufacturing

4. Component sourcing

5. PCB Assembly

6. PCBA 100% test

OEM/ODM/EMS Services For PCBA:

• PCBA, PCB Board assembly: SMT & PTH & BGA

• PCBA and enclosure design

• Components sourcing and purchasing

• Quick prototyping

• Plastic injection molding

• Metal sheet stamping

• Final assembly

• Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

• Custom clearance for material importing and product exporting

Rigid-flex pcb circuit board Process



Our other Rigid-flex pcb board main product

Our Advantage

About US

Our Factory of Rigid-flex pcb board





Our Exhibition

Our Customer Feedback

Packaging&Shipping

Our company is not only trying to give customers a good product,

but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.



Common packaging:

PCB:  Sealed bag, Anti-static bags, Suitable carton.

PCBA:  Antistatic foam bags, Anti-static bags, Suitable carton.



Regular Cartons Specification.

No. Dimension (L*W*H)

Small Size :         33cm*28.5cm*18.5cm

Medium Size:     44.5cm*30cm*15cm

Big Size:              51.5cm*32.5cm*17.5cm



Customized Cartons:

Carton outside according to the requirements

of customers printed the name of the customer address,

mark, the customer needs to specify the destination and other information.

FAQ

1.What does kingfiled need for a customized PCB order?

   When you place a PCB order, you need to provide Gerber or pcb file.

   If you do not have the file in the correct format, you can send all the details related to the products.



2.What does kingfield need for a customized PCBA order?

When you place a PCBA order, you need to provide Gerber or PCB file and the BOM list.



3.What is your quotation policy?

  For the PCB order in large quantity, we will send you the quotation based on the MOQ of the products concerned.



4.What does Kingfield need for other services?

  For PCB clone service, the customer needs to send us the printed circuit board concerned, and also the sharp photos of its front side and the back side.



5.How about the service kingfield offered to the customers?

  If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our

pursuits.



6.Do you have the capability of manufacturing high frequency materials? Like Rogers?

We can manufacture these, while expensive,pls  just contact us for price prior to place the order.
