Блоки зарядных станций переменного тока для
- Категория: Charging Stations >>>
- Поставщик: Wuhan,Hiconics,Intelligent,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1375.91 $* | 1403.14 $* |
| Jul-15-2025 | 1115.19 $* | 1137.76 $* |
| Jun-15-2025 | 1354.9 $* | 1381.33 $* |
| May-15-2025 | 1343.49 $* | 1370.36 $* |
| Apr-15-2025 | 1072.83 $* | 1093.52 $* |
| Mar-15-2025 | 1321.69 $* | 1347.30 $* |
| Feb-15-2025 | 1310.8 $* | 1336.69 $* |
| Jan-15-2025 | 1300.81 $* | 1326.19 $* |
Характеристики
Products Description

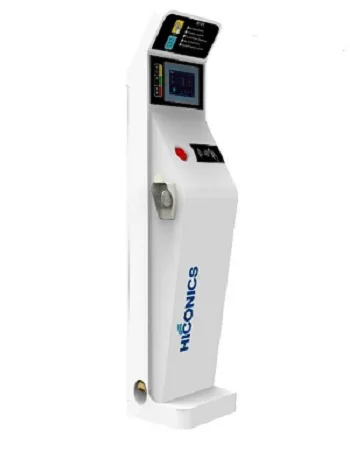

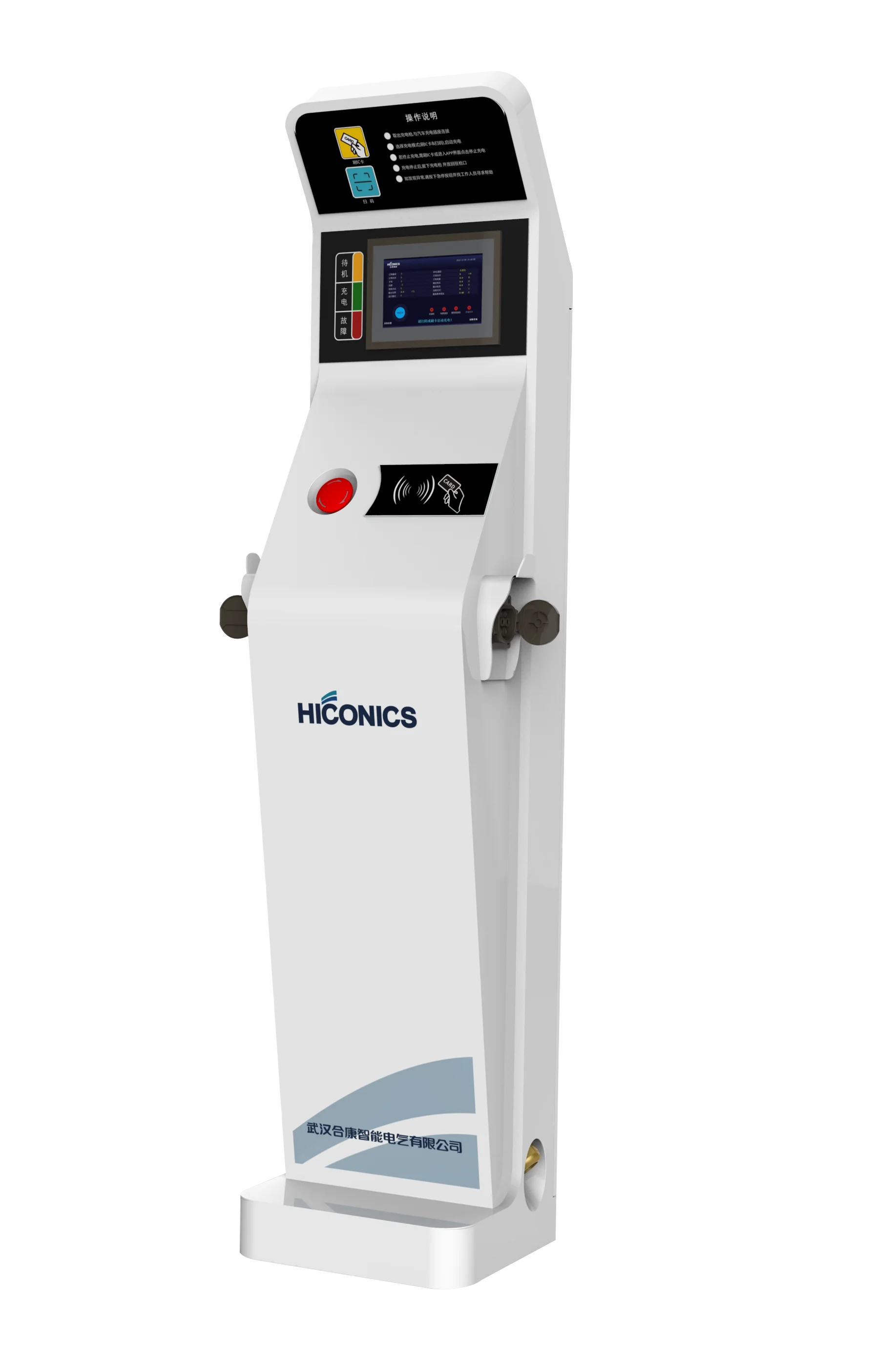

Floor-mounted type AC charger
1.Meet IEC62196 standard type 2 AC.
2.With power up to 43kw plug no. could be selected freely
2.Ergonomic design and have been awarded.
3.Strict control pilot and multiple charging modes of plug & charge, by APP, by IC card.
4.Robust protection methods to avoid personnel injuries.
5.Suitable for parking lot and public charging station.
Details Images
Product Paramenters
Item | Technical Requirements | ||||
Input Features | Nominal Voltage | 400 VAC Three phase | |||
Rated Input Current | 32A 22kW/63A 43kW | ||||
AC Input Frequency Range | 45~65Hz | ||||
AC Input Mode | 3P+N+PE | ||||
Output Features | Rated Output Power | 22 kW/43kW Three phase | |||
Rated Output Voltage | 400 VAC Three phase | ||||
Rated Output Current | 32A 22 kW/63A 43kW | ||||
AC Output Frequency Range | 45~65 Hz | ||||
AC Output Mode | 22kW/43kW (3P+N+PE) | ||||
Protection Features | Robust Protection | Protecting Functions: Input/output Overvoltage Protection, Output Overcurrent Protection, Short Circuit Protection, Emergency Stop Protection, RCD Protection, Earthing Protection, Self-checking after startup Protection | |||
Other Features | Charging Mode | Plug & Charge, RFID, Mobile APP, Back Office System | |||
Communication Protocol | OCPP 1.6 (JSON) could be extended to 2.0 Optional | ||||
Display | 7 inch display | ||||
AC Output Charging Interface | IEC 62196-2-2011 | ||||
Internet/network | 4G, Ethernet/ LAN | ||||
IP Class | IP54 | ||||
Cable Length | 5M Could be customized | ||||
Noise | ≤65dB | ||||
Environmental Protection | Meet 2011/65/EU | ||||
Our Advantages
Why Choose Us?
1. HICONICS possesses 17 years of expertise in the field of driving and energy saving. We are the supplier of Nari Grid Corporation of China and qualified supplier of YUTONG BUS GROUP, the largest bus manufacturer in China.
2. Obtained CE certifications an widely used in over 200 cities inside China and over 10 countries and regions all over the world.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order is accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test
them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order is accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test
them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
Customer Photos

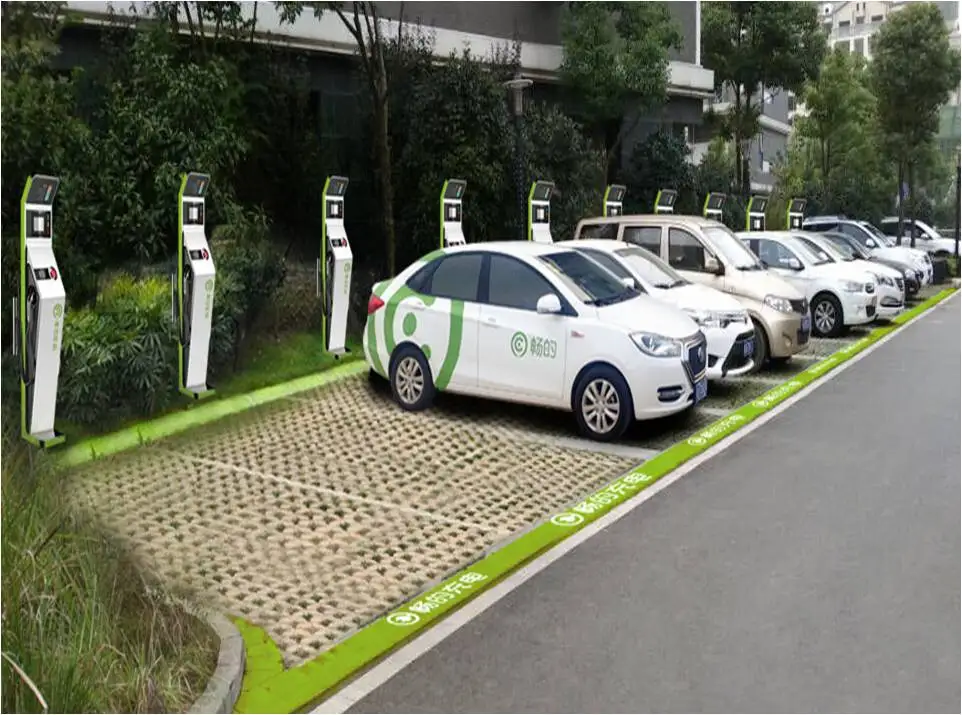

Hiconics charging piles have been widely applied in more than 200 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and Dakks certificates. Hiconics products have been exported to more than 10 countries and regions such as England, France, Bulgaria, Australia and Singapore, etc.
