Цены на электрический Мусоровоз, система для отката мусора с шасси
US $20000-$40000

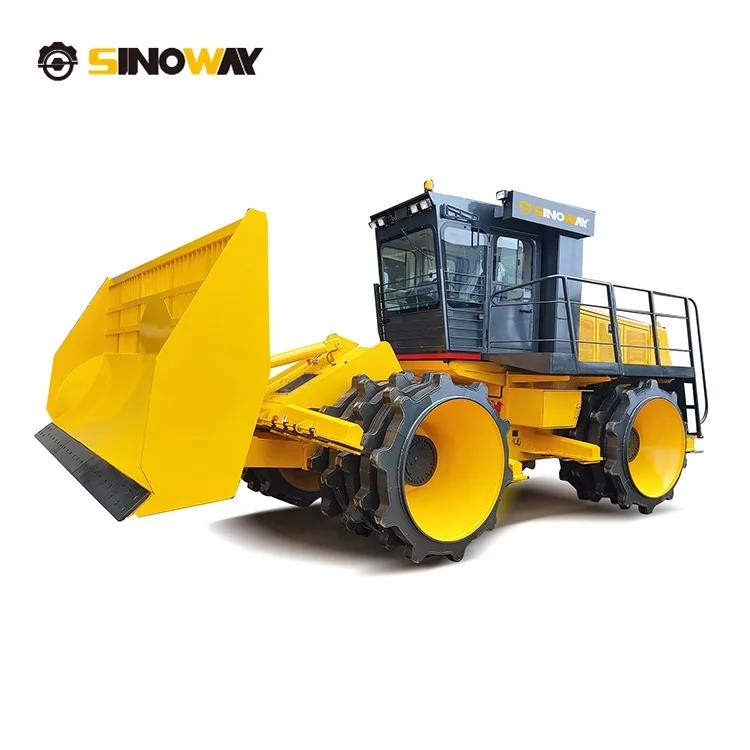

New Condition Trash Compactor 26 ton Refuse compactor for Waste and
- Категория: Мусоровоз >>>
- Поставщик: Sinoway,Industrial,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 117810.63 $* | 123701.54 $* |
| Aug-18-2025 | 116820.16 $* | 122661.61 $* |
| Jul-18-2025 | 98010.54 $* | 102911.54 $* |
| Jun-18-2025 | 114840.58 $* | 120582.35 $* |
| May-18-2025 | 99990.57 $* | 104990.59 $* |
| Apr-18-2025 | 112860.94 $* | 118503.51 $* |
| Mar-18-2025 | 111870.12 $* | 117464.65 $* |
| Feb-18-2025 | 110880.35 $* | 116424.65 $* |
| Jan-18-2025 | 109890.58 $* | 115385.35 $* |
Характеристики
Product Description
Powerful and reliable famous brand water-cooled turbocharged diesel engine with the cold starting system.
Torque converter and power gearshift transmission are applied on four wheels at three speed gears either forward or reverse, suitable for extreme demands in landfill ground.
A No-Spin self-lock differential integrated in the drive axles achieves the optimum traction performance even on rugged terrain.
The high wear life teeth are arranged specially on four compaction wheels. The two scraper bars and two wire cutters per wheel avoid the wire wrap-around and keep the wheel clean.
The front and rear frames are articulated with a massive oscillating movement, ensuring full four-wheel contact on the ground.
Hydraulic steering and blade lifting system is driven by a piston pump with load sensing system, provides smooth and light control, high efficiency and energy economy.
Efficient and free-maintenance OPTIMA battery features cold working performance and extended operating life.
The crucial spots are maintained regularly by computerized central lubrication system. The disinfector spray device is equipped to guard against mosquito.

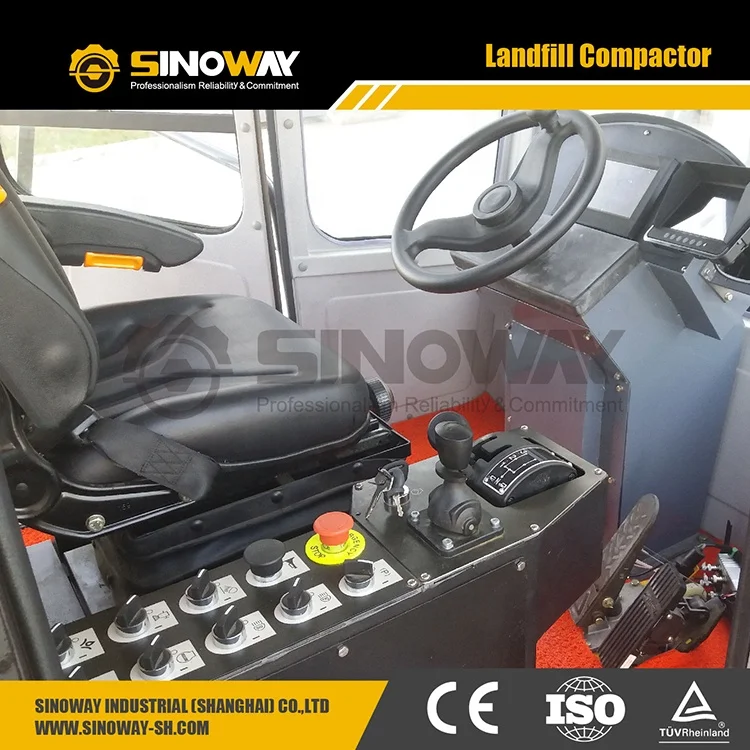

Sealed and comfortable driver's cabin with dual sides of the doors is entered into by fresh air from up to higher point through a fine filter.
Air conditioner with heated and cooled system is available as standard equipment for excellent environments.
The strong frame with sealed and arc type tube design prevents the refuse into the engine compartment and reduces travel resistance.
The Roll-Over Protective Structure (ROPS) as an integral part of the frame,service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
Torque converter and power gearshift transmission are applied on four wheels at three speed gears either forward or reverse, suitable for extreme demands in landfill ground.
A No-Spin self-lock differential integrated in the drive axles achieves the optimum traction performance even on rugged terrain.
The high wear life teeth are arranged specially on four compaction wheels. The two scraper bars and two wire cutters per wheel avoid the wire wrap-around and keep the wheel clean.
The front and rear frames are articulated with a massive oscillating movement, ensuring full four-wheel contact on the ground.
Hydraulic steering and blade lifting system is driven by a piston pump with load sensing system, provides smooth and light control, high efficiency and energy economy.
Efficient and free-maintenance OPTIMA battery features cold working performance and extended operating life.
The crucial spots are maintained regularly by computerized central lubrication system. The disinfector spray device is equipped to guard against mosquito.
Sealed and comfortable driver's cabin with dual sides of the doors is entered into by fresh air from up to higher point through a fine filter.
Air conditioner with heated and cooled system is available as standard equipment for excellent environments.
The strong frame with sealed and arc type tube design prevents the refuse into the engine compartment and reduces travel resistance.
The Roll-Over Protective Structure (ROPS) as an integral part of the frame,service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.

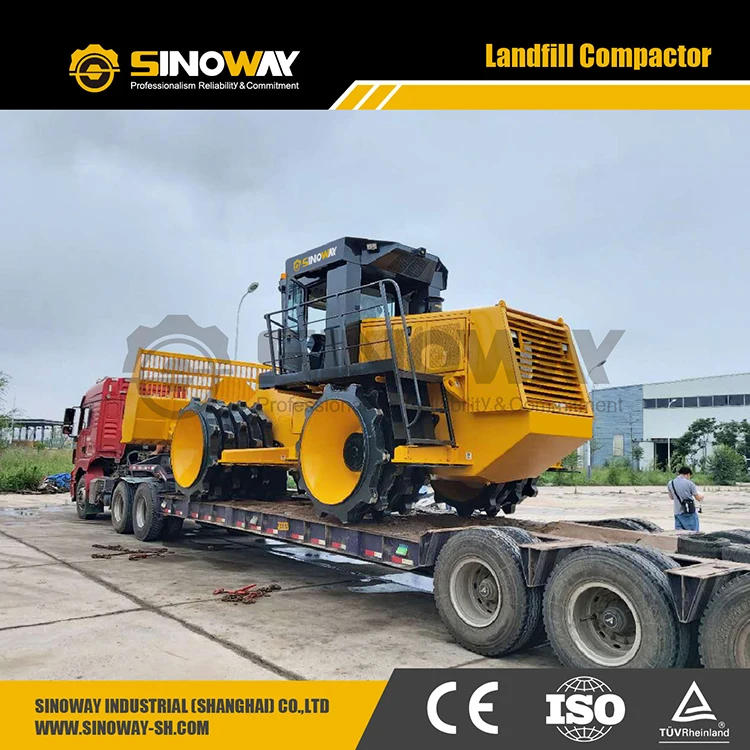

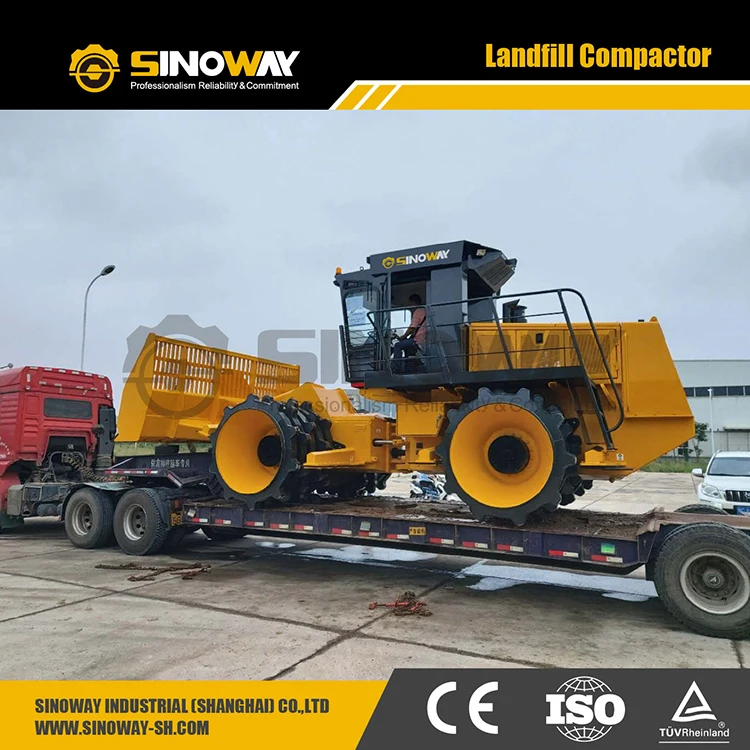

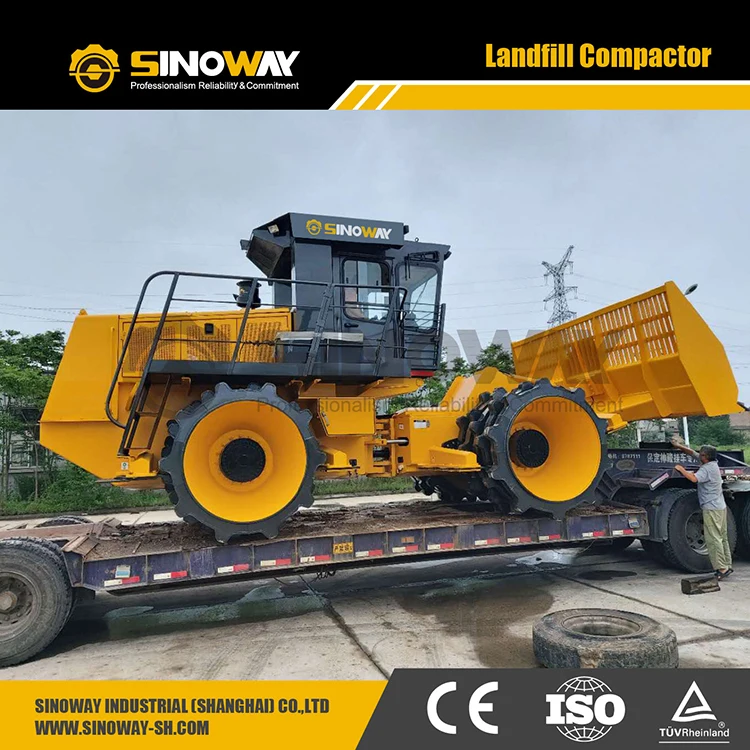

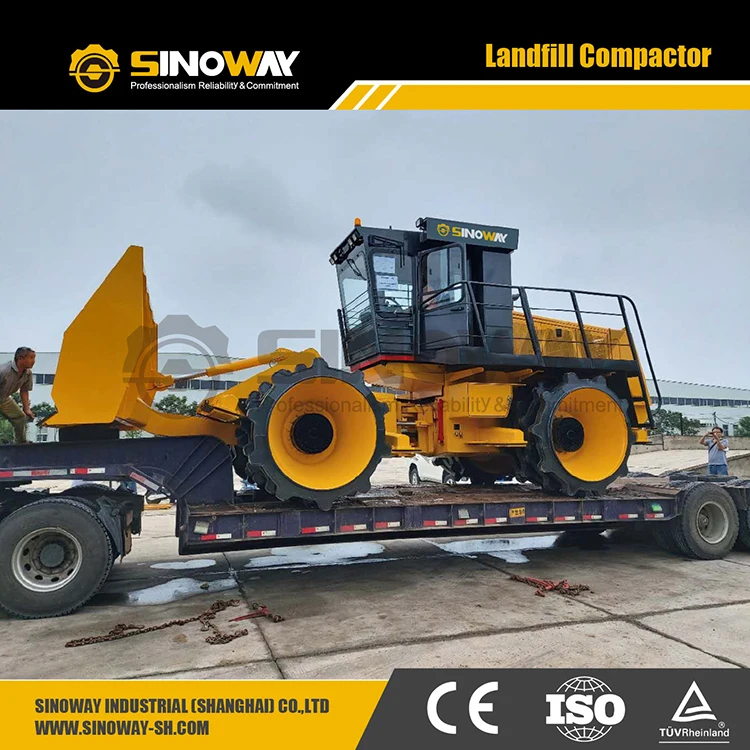

Machine Show
Product Paramenters
Weight | ||
Operating mass | 26000kg | |
Front axle load | 12500kg | |
Rear axle load | 13500kg | |
Dimension | ||
Length | 8150mm | |
Width (dozer blade) | 3800mm | |
Width (at front wheel) | 3430mm | |
Width (at rear wheel) | 3200mm | |
Height | 3810mm | |
Compacting width | 3430mm | |
Dozer blade reach | 2670mm | |
Wheel | ||
Wheel base | 3500mm | |
Ground clearance | 490mm | |
Wheel width (front / rear) | 1195/970mm | |
Wheel diameter (front/rear, including teeth) | 1620/1620mm | |
Wheel diameter (front/rear, without teeth) | 1220/1220mm | |
Teeth No. per wheel (front / rear) | 50/40 | |
Engine | ||
Brand of engine | Shangchai | |
Type of engine | SC9DK | |
Rated power | 192kw | |
Rated speed | 2200rpm | |
Electric system | 24V | |
Drive system | 4 x 4 | |
Travelling speed I (front / rear) | 4.41/4.41km/h | |
Travelling speed II (front / rear) | 7.1/7.1km/h | |
Travelling speed III (front / rear) | 10.87km/7.1km/h | |
Max. gradient capacity | 100% | |
Dozer Blade | ||
Height | 1880mm | |
Width | 3800mm | |
Lifting height | 1200mm | |
Depth | 200mm | |
Brake System | ||
Service brake | Air - over - oil, actuate 4 wheels | |
Parking / emergency brake | Mechanical, brake shoe actuator | |
Steering System | ||
Type | Hydraulic,middle articulated,moveable | |
Steering angle | ±40° | |
Transverse swing angle | ±15° | |
Min. steering radius at the front wheel | 7200mm | |
Capacity | ||
Oil tank | 500L | |
Hydraulic oil tank | 236L | |
