Customized air dryer heatless for compressor compressed
Манометр для воздушного компрессора Yong heng
US $8.00-$16.00
Индивидуальные аиртек осушитель сжатого воздуха для воздушного компрессора (LY-M30NX 3 8
- Категория: Industrial Compressor Parts >>>
- Поставщик: Zhongshan,Lingyu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 253.21 $* | 258.97 $* |
| Jul-19-2025 | 205.84 $* | 209.27 $* |
| Jun-19-2025 | 249.6 $* | 254.85 $* |
| May-19-2025 | 247.92 $* | 252.7 $* |
| Apr-19-2025 | 197.56 $* | 201.98 $* |
| Mar-19-2025 | 243.73 $* | 248.77 $* |
| Feb-19-2025 | 241.57 $* | 246.34 $* |
| Jan-19-2025 | 239.52 $* | 244.62 $* |
Характеристики
Product Description
![baner]()
Customized air dryer heatless for compressor compressed
Product details
| Product name | Modular adsorption dryer |
| Capacity(Nm3/min) | 3.8 |
| Rated air inlet pressure | 0.7MPa |
| Inlet/Outlet | G1.5" |
| Rated intake air temperature | 10 ℃~ 30 ℃ |
| Atmospheric dew point of finished gas | - 40 ℃ |
| Ambient temperature | ≤ 45 ℃ |
| Pressure loss | ≤ 0.02MPa |
| Adsorbent | high efficiency molecular sieve |
| Product Keywords | air dryer heatless,air dryer for compressor,air dryer compressed |
Working principle
working principle:
M-series modular adsorption dryer is a high value-added product newly developed by Lingyu company. Compared with the traditional dryer, this series of products are smaller and smaller. 13X molecular sieve and straight through adsorption chamber make the adsorbent more efficient. At the same time, the whole machine is mainly made of high-quality aluminum alloy, which avoids secondary pollution to the compressed air.
The adsorption module of the modular adsorption dryer is composed of a number of high-strength 6063-T5 aluminum alloy cylinders, each of which is divided into two cavities A and B, and the cavity is filled with adsorbent. When cavity a is adsorbed, cavity B is regenerated by means of decompression regeneration. When cavity B is working, cavity a is regenerated by means of decompression regeneration, and two cavities A and B work alternately.
Technical parameters

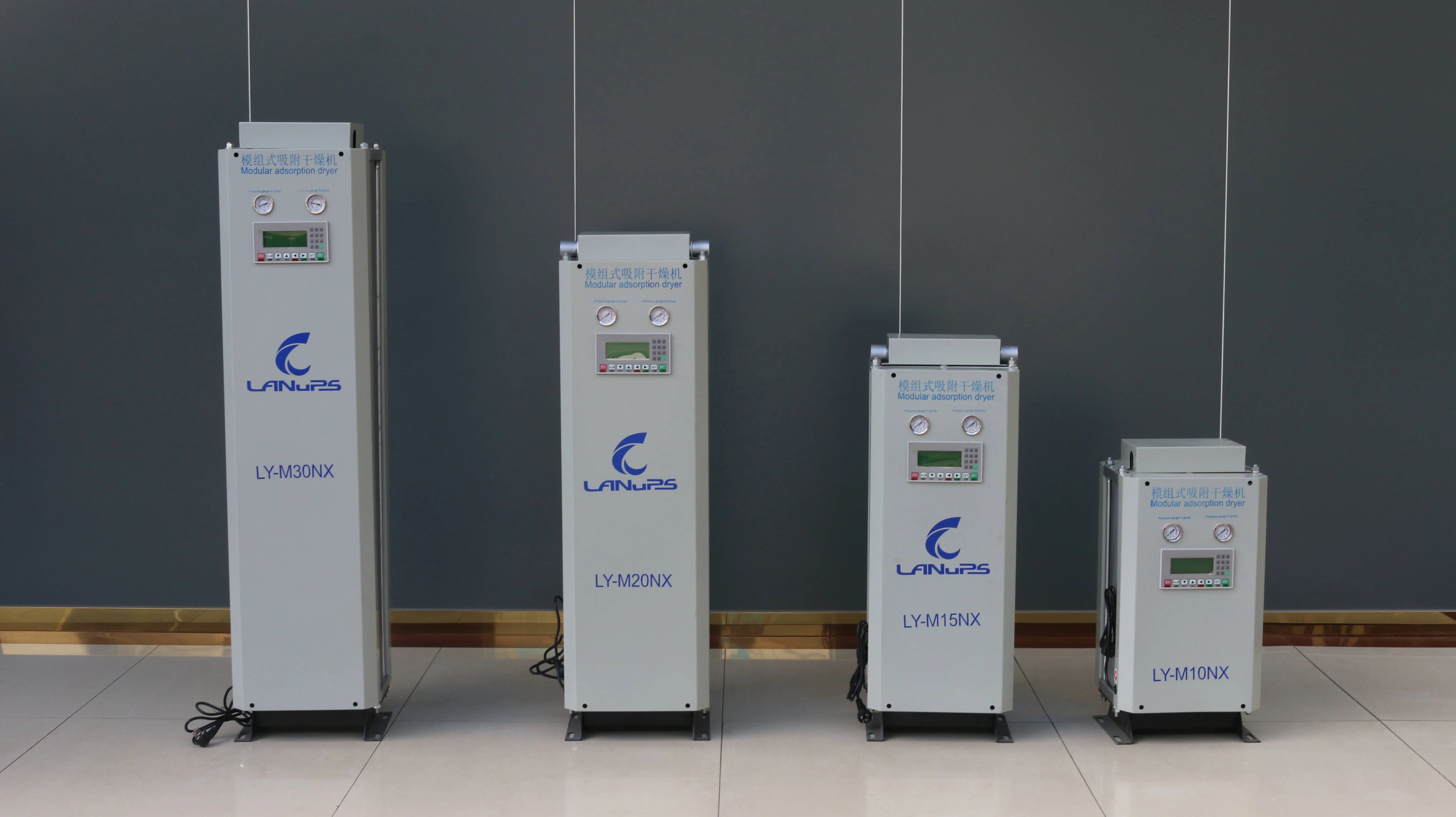

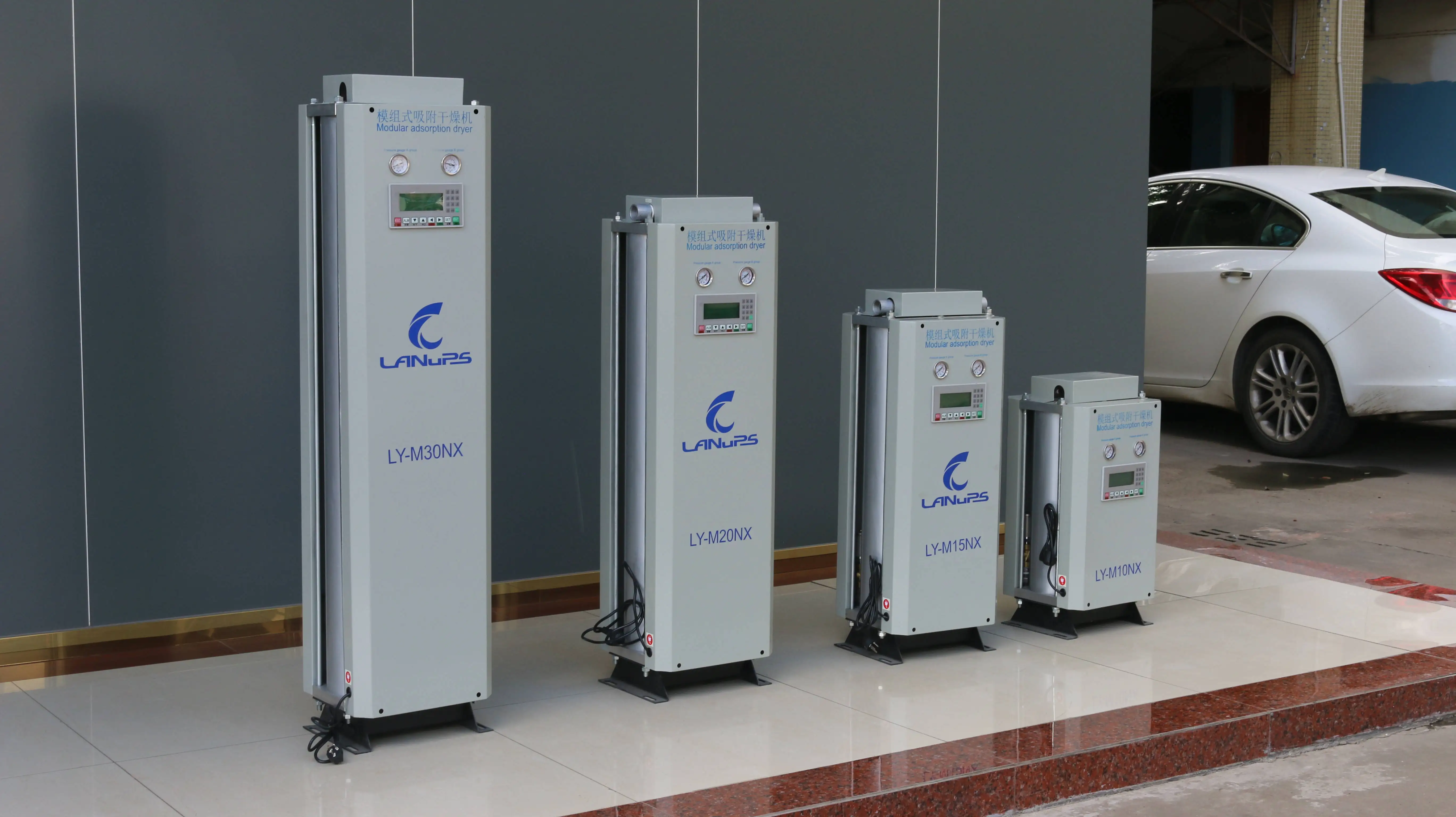

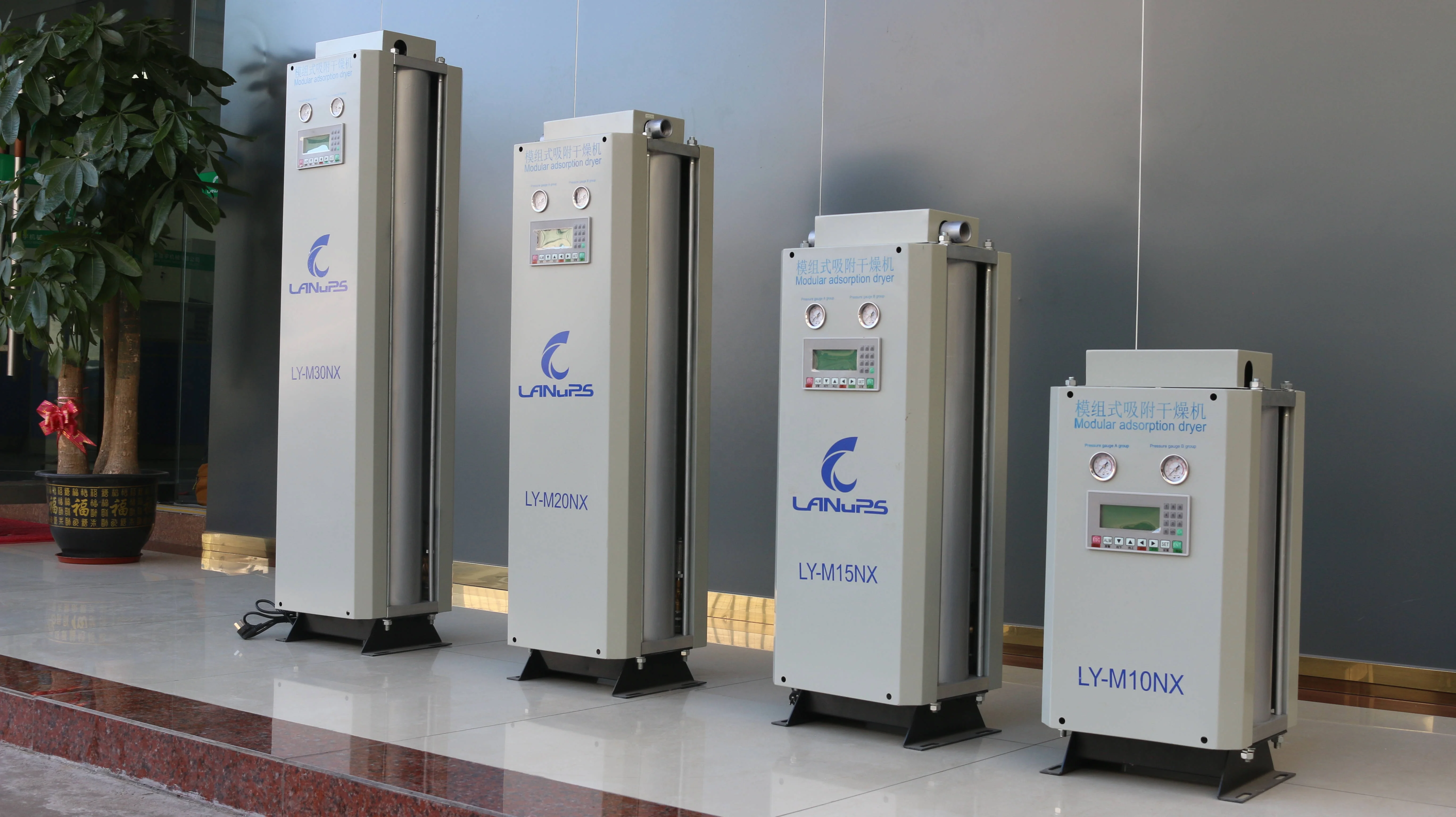

MODEL | Power | Interface | Air flow | Boundary dimension L x W x H(mm) | Weight |
LY-M10NX | 220V/50Hz | G1" | 1.5M³/min | 300 340 690 | 25 |
LY-M20NX | 220V/50Hz | G1" | 2.5M³/min | 300 340 1440 | 60 |

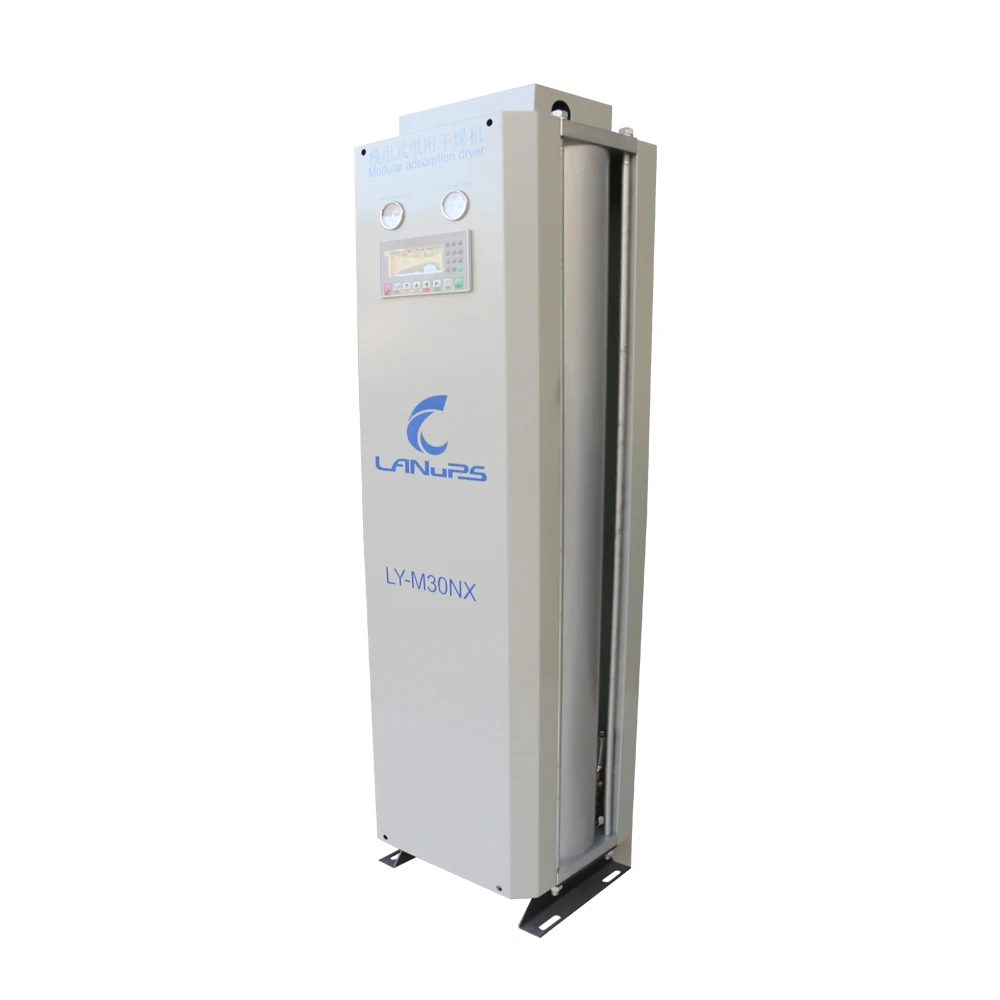

LY-M30NX | 220V/50Hz | G1- 1/ 2" | 3.8M³/min | 300 340 1690 | 70 |
LY-M50NX | 220V/50Hz | G1- 1/ 2" | 6.5M³/min | 635 490 1820 | 190 |
LY-M75NX | 220V/50Hz | G2" | 10.5M³/min | 800 490 1820 | 285 |
LY-M100NX | 220V/50Hz | G2- 1/ 2" | 13.5M³/min | 970 490 1820 | 375 |
LY-M120NX | 220V/50Hz | G2- 1/ 2" | 17.0M³/min | 1130 490 1820 | 470 |
LY-M150NX | 220V/50Hz | G2- 1/ 2" | 21.5M³/min | 1300 490 1820 | 565 |
LY-M180NX | 220V/50Hz | G2- 1/ 2" | 25.0M³/min | 1455 490 1820 | 660 |
LY-M200NX | 220V/50Hz | G2- 1/ 2" | 28.5M³/min | 1620 490 1820 | 755 |
LY-M300NX | 220V/50Hz | DN100 | 35.0M³/min | 1130 750 1820 | 940 |
LY-M350NX | 220V/50Hz | DN100 | 41.5M³/min | 1300 750 1820 | 1130 |
LY-M450NX | 220V/50Hz | DN100 | 49.0M³/min | 1455 750 1820 | 1320 |
LY-M500NX | 220V/50Hz | DN125 | 55.0M³/min | 1620 750 1820 | 1510 |
