4 в 1 agile catv канал rf кодировщик кофдм
- Категория: Радио и ТВ аксессуары >>>
- Поставщик: Yantai,Yatai,Photoelectricity,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 690.20 $* | 725.58 $* |
| Aug-16-2025 | 684.75 $* | 718.61 $* |
| Jul-16-2025 | 574.62 $* | 603.70 $* |
| Jun-16-2025 | 673.22 $* | 707.44 $* |
| May-16-2025 | 586.89 $* | 615.79 $* |
| Apr-16-2025 | 661.5 $* | 694.50 $* |
| Mar-16-2025 | 655.3 $* | 688.84 $* |
| Feb-16-2025 | 650.34 $* | 683.8 $* |
| Jan-16-2025 | 644.67 $* | 676.20 $* |
Характеристики
Offer
ProductOverview
EX2404X is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HD input, 1000M IP ouput,4 number RF output(ATSC,ISDBT,DTMBT,DVB-C/-T),5 MPTS output and SPTS output.Inconclusion, its high integrated
and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key Features
l 4/8/12/16/20/24 HD input, MPEG-4 AVC/H.264 Video encoding
l 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
l 4 RF output ,(ATSC,ISDBT,DTMBT,DVB-C/-T)
l 2 ASI inputs
l 2 ASI Independent output (optional) as copy of 5MPTS
l Support “Null PKT Filter” function
l Support PID Remapping/ PCR accurate adjusting
l PID pass
l LCD,key function
l Control via web management, and easy updates via web
2. Specifications
Input | 8HD inputs | |
1×ASI input, BNC interface | ||
Video | Resolution | 1920×1080_60p 1920×1080_50p |
1920×1080_60i, 1920×1080_50i | ||
1280×720_60p, 1280×720_50p | ||
720x576_50i, 720x480_59.95i | ||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD | |
Bit-rate | 0.8Mbps~19ps (each channel) | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP | |
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
Audio | Encoding | MPEG-1 Layer 2, HE-AAC,LC-AAC |
Sampling rate | 48KHz | |
Resolution | 24-bit | |
Bit-rate | 64Kb/s~384Kb/s each channel | |
Multiplexing | Multiplex 1ASI input and 8 channels hd encoding programs | |
Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream. | |
IP out MPTS, PTS, unicast, multicast, support IP out null packets filter. RF Out(DVB-C: carriers; DVB-T: carriers ISDB-T) | ||
System function | LCD/keyboard operating, network management(SNMP), English control interface | |
Ethernet software upgrade | ||
General | Dimensions (W×D×H) | 482mm×455mm×44.5mm |
Approx weight | 3.2 | |
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Power consumption | 25W | |
Appearance and Description

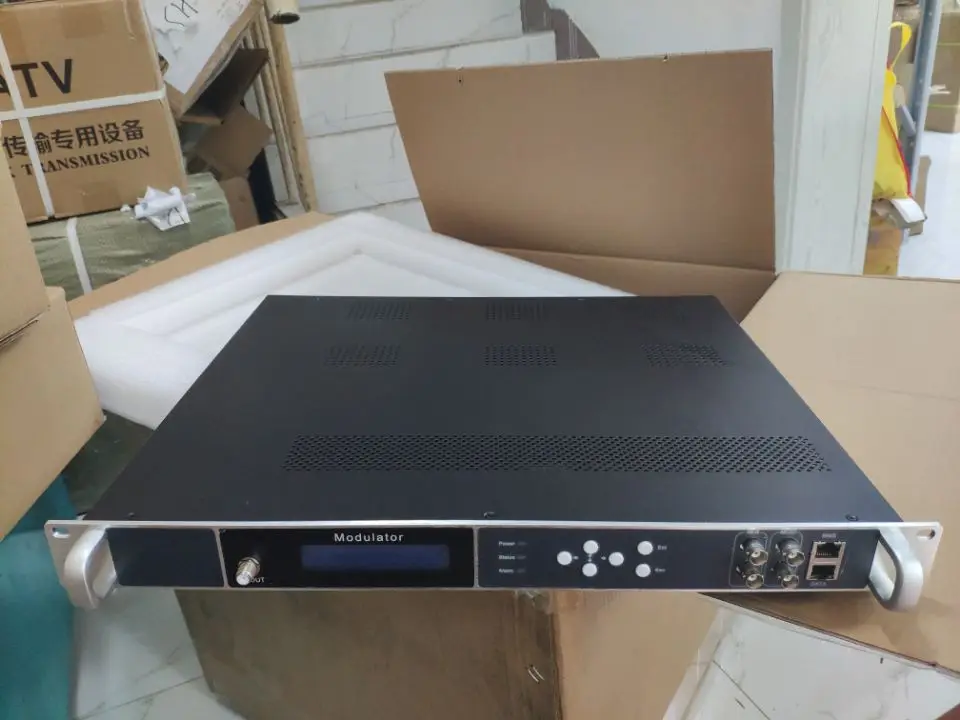

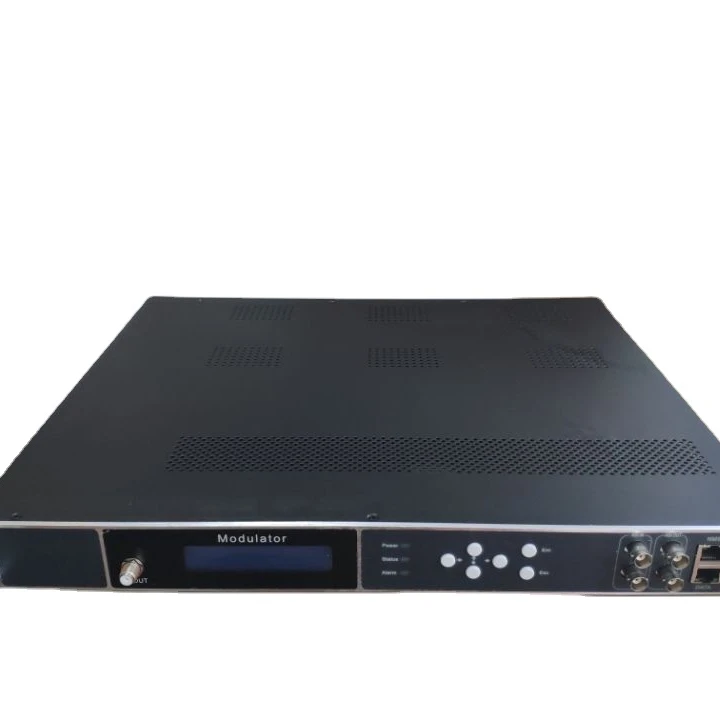

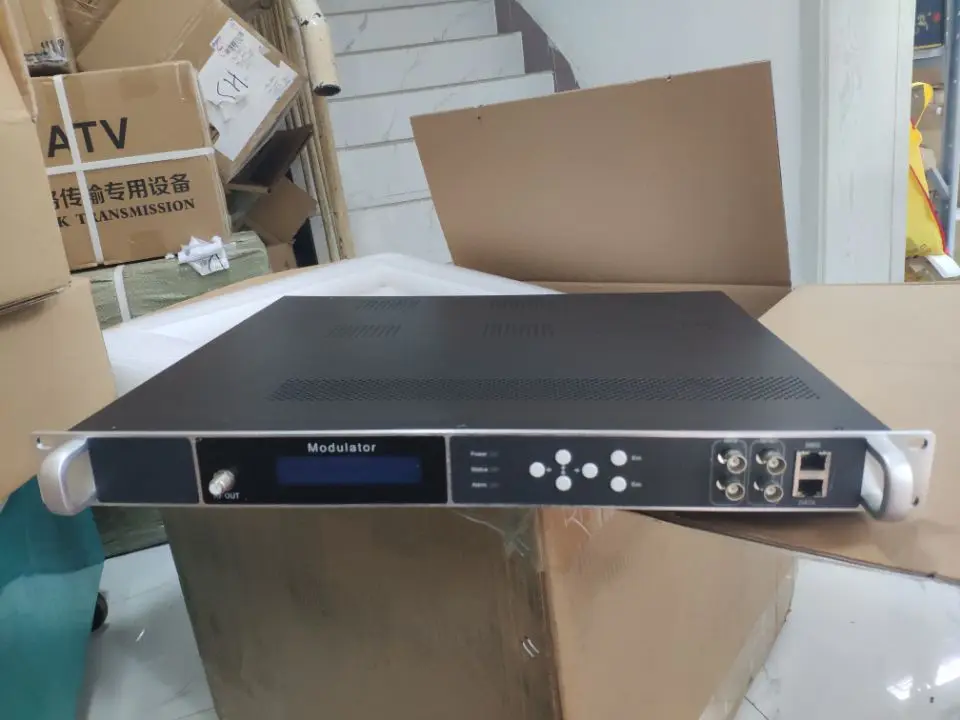

A,Front Panel
1 | LCD display interface |
2 | Power:power indicator, lighting means the encoder has been powered on |
3 | Status:Status indicator, lighting means encoder working well |
4 | Alarm:alarm indicator, lighting means encoder working wrong |
5 | Left button |
6 | Up button |
7 | Down button |
8 | Right button |
9 | Menu:Menu button |
10 | Enter:Enter Button |
B,Back Panel
1~8 | 8 channels HD Inputs |
9 | IP Data out |
10 | SNMP network interface |
11 | ASI Input |
12,13 | 2 Routes ASI Out |
14 | Power switch |
15 | Power Socket |
