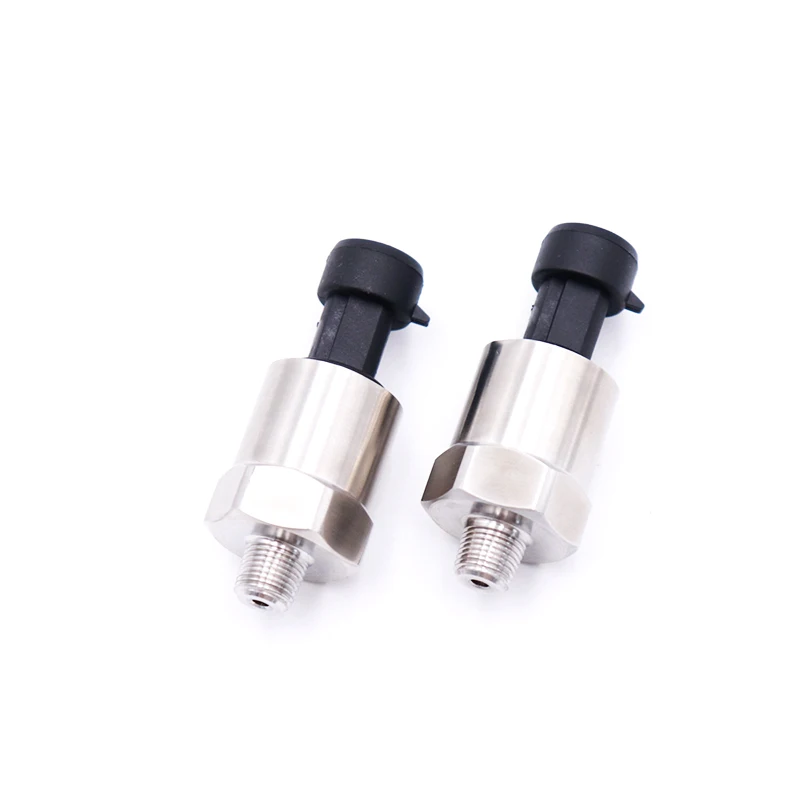

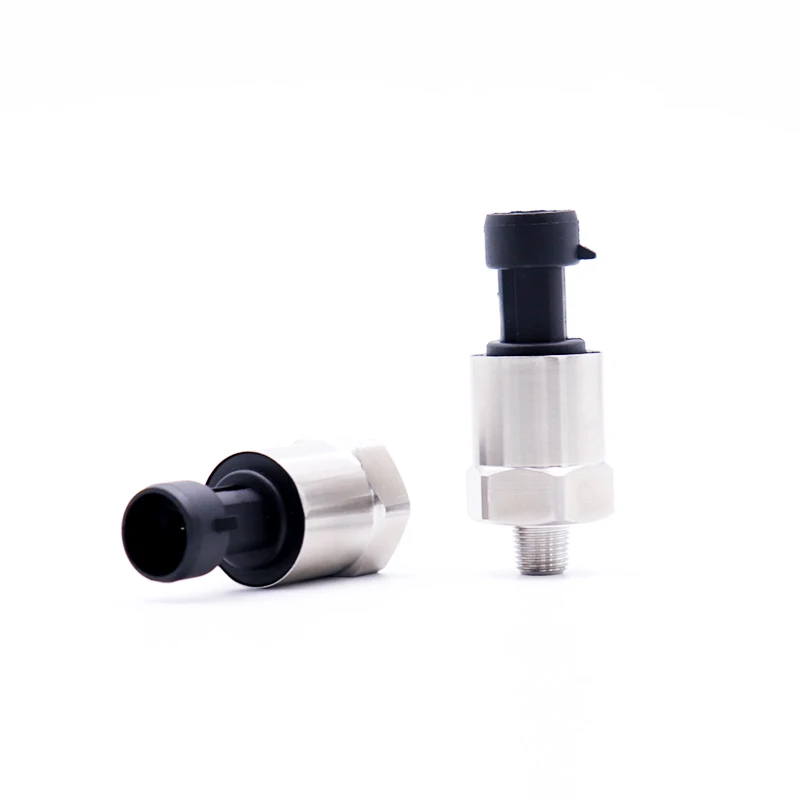

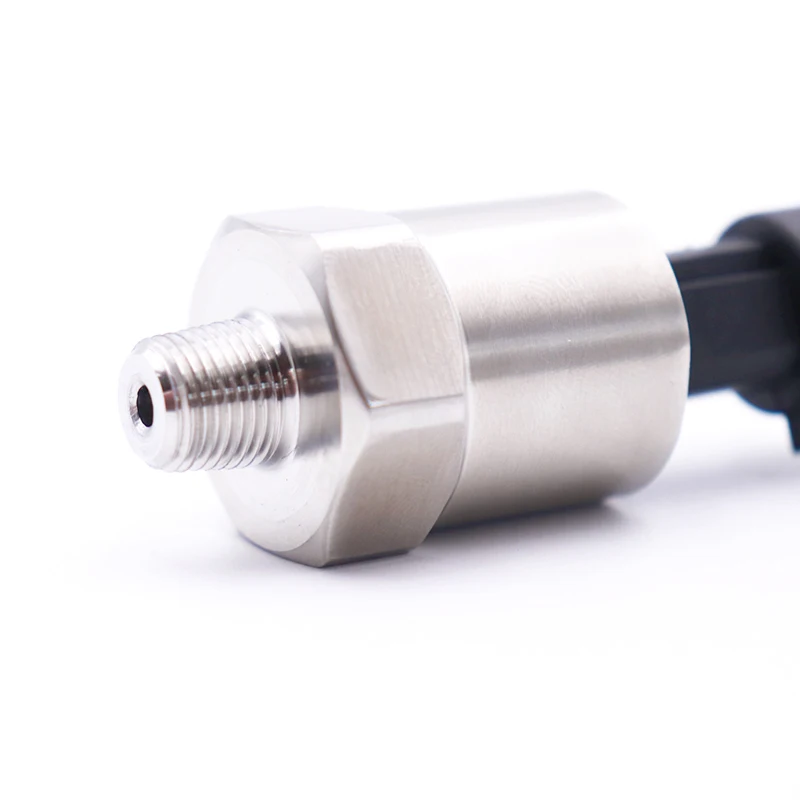

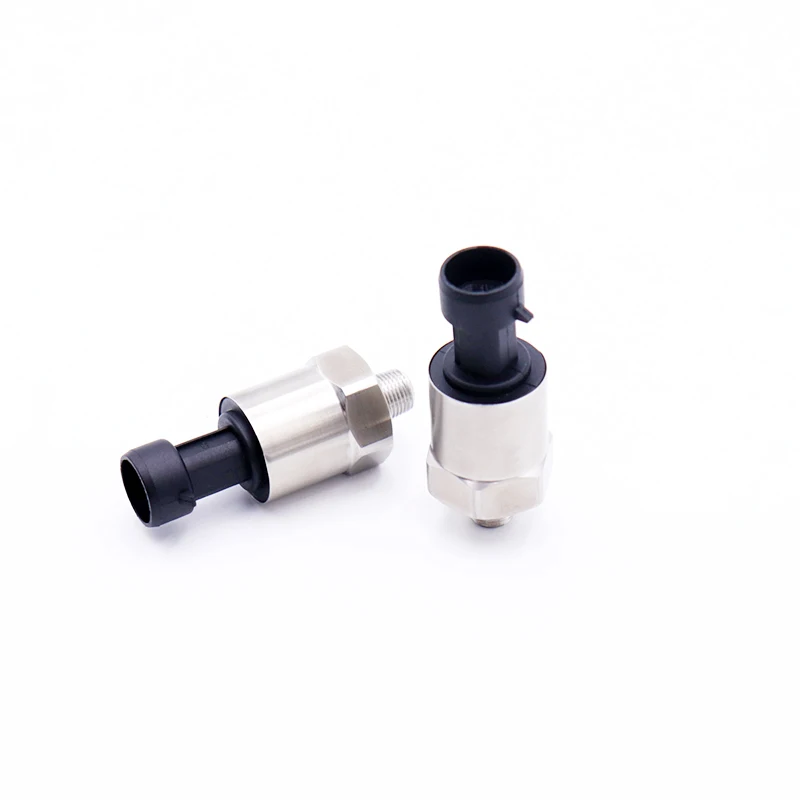

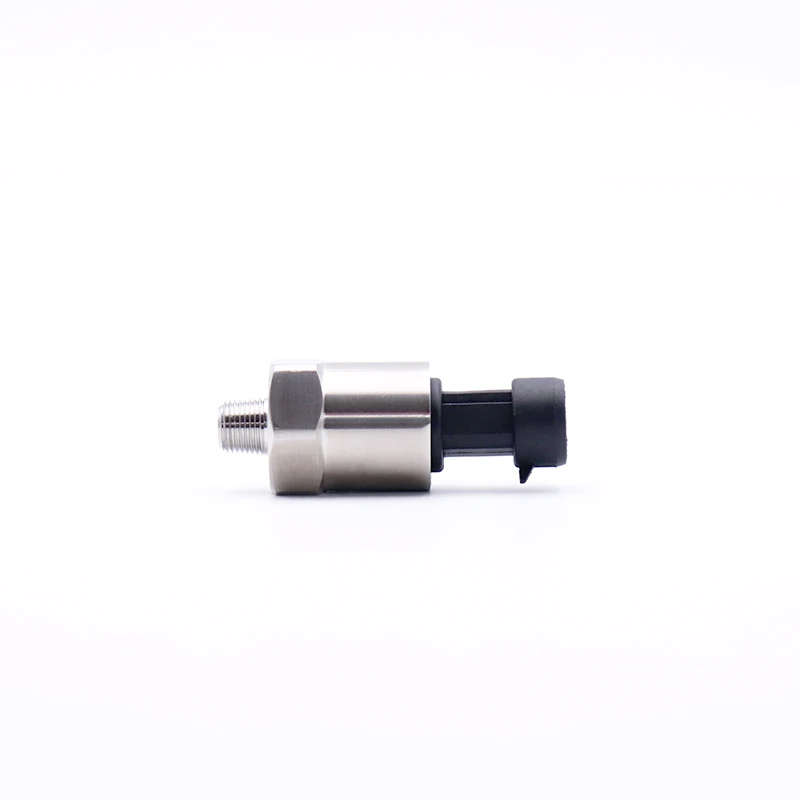

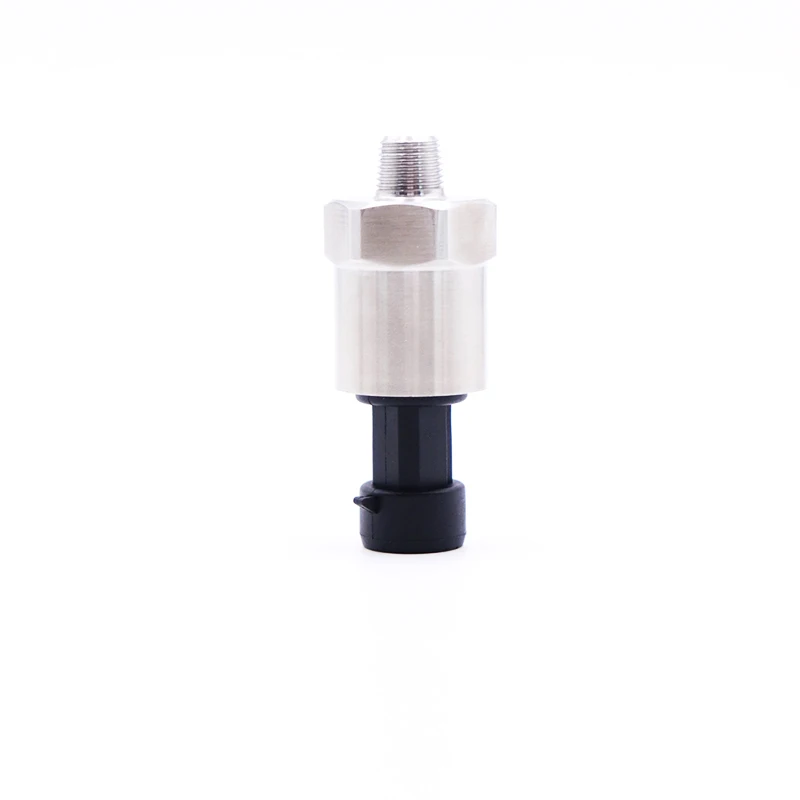

WNK80MA Anti-Icing 4-20mA Compact Pressure Transmitter Sensor For Liquid Gas And Steam







WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.







Applicable media	Liquid, gas and steam
Pressure range	0-20kPa~15MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65







Electrical connection of natural gas regulator









Application:



WNK80MA is solution for below applications:

Pressure measurement of gas, vapor  or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
