Металлическая многофункциональная гидравлическая машина для металлообработки с гибкой резкой и
- Категория: Электро-гидравлический гибочный пресс >>>
- Поставщик: Anhui,Yawei,Machine,Tool,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10591.52 $* | 11121.79 $* |
| Aug-16-2025 | 10502.55 $* | 11027.6 $* |
| Jul-16-2025 | 8811.2 $* | 9252.11 $* |
| Jun-16-2025 | 10324.79 $* | 10840.74 $* |
| May-16-2025 | 8989.14 $* | 9438.38 $* |
| Apr-16-2025 | 10146.8 $* | 10653.61 $* |
| Mar-16-2025 | 10057.7 $* | 10560.64 $* |
| Feb-16-2025 | 9968.33 $* | 10466.19 $* |
| Jan-16-2025 | 9879.45 $* | 10373.8 $* |
Характеристики
Product Description

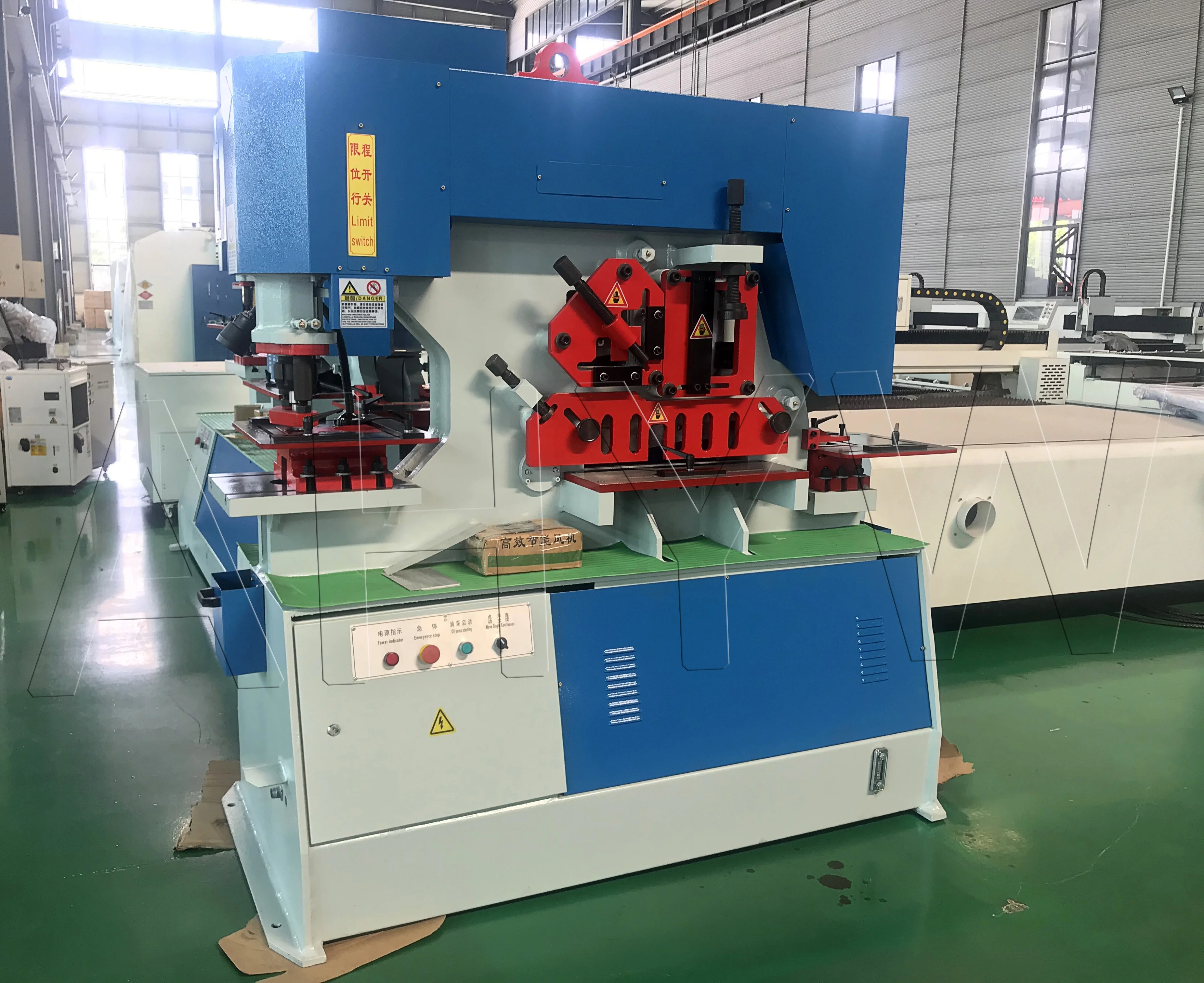

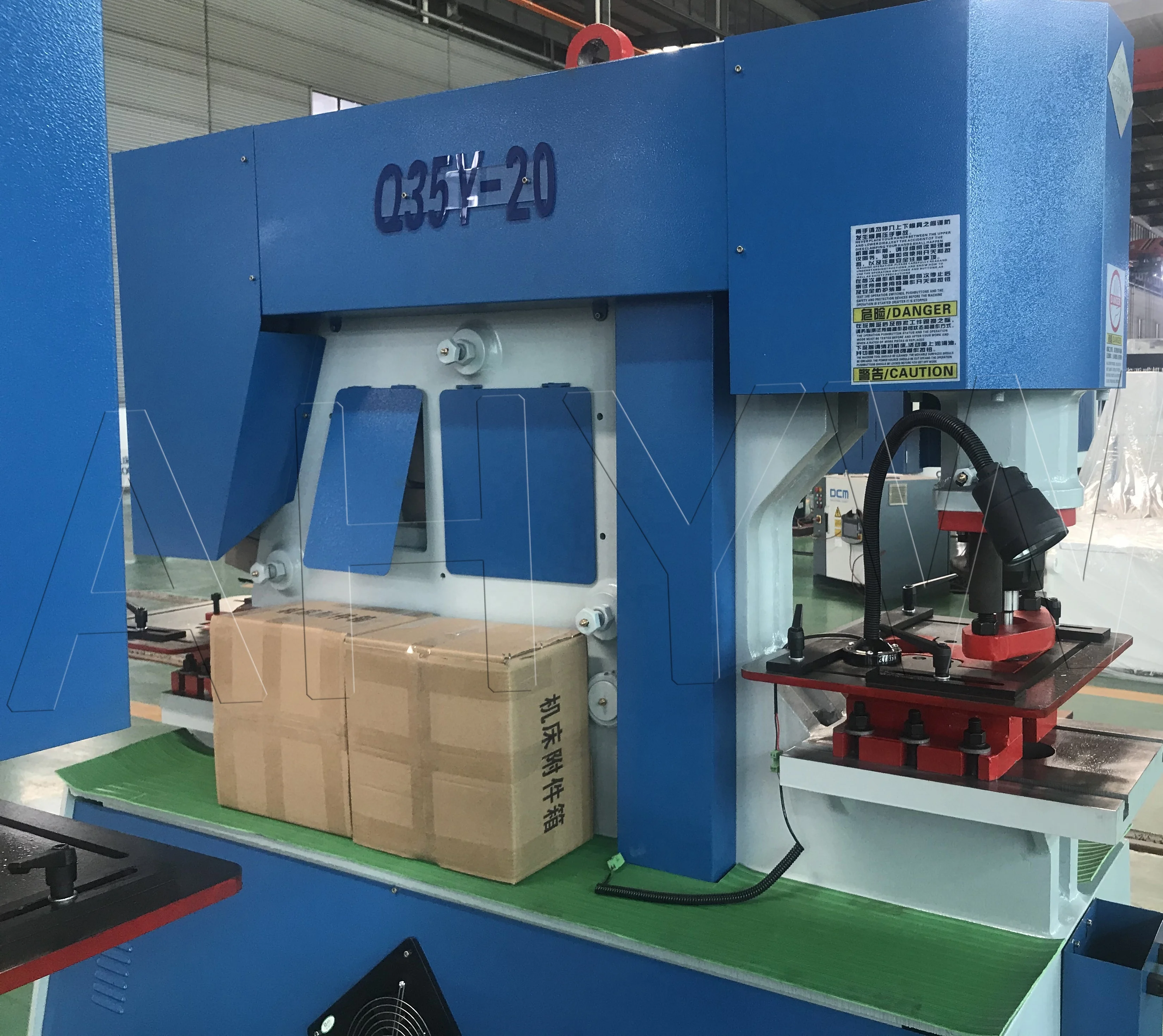

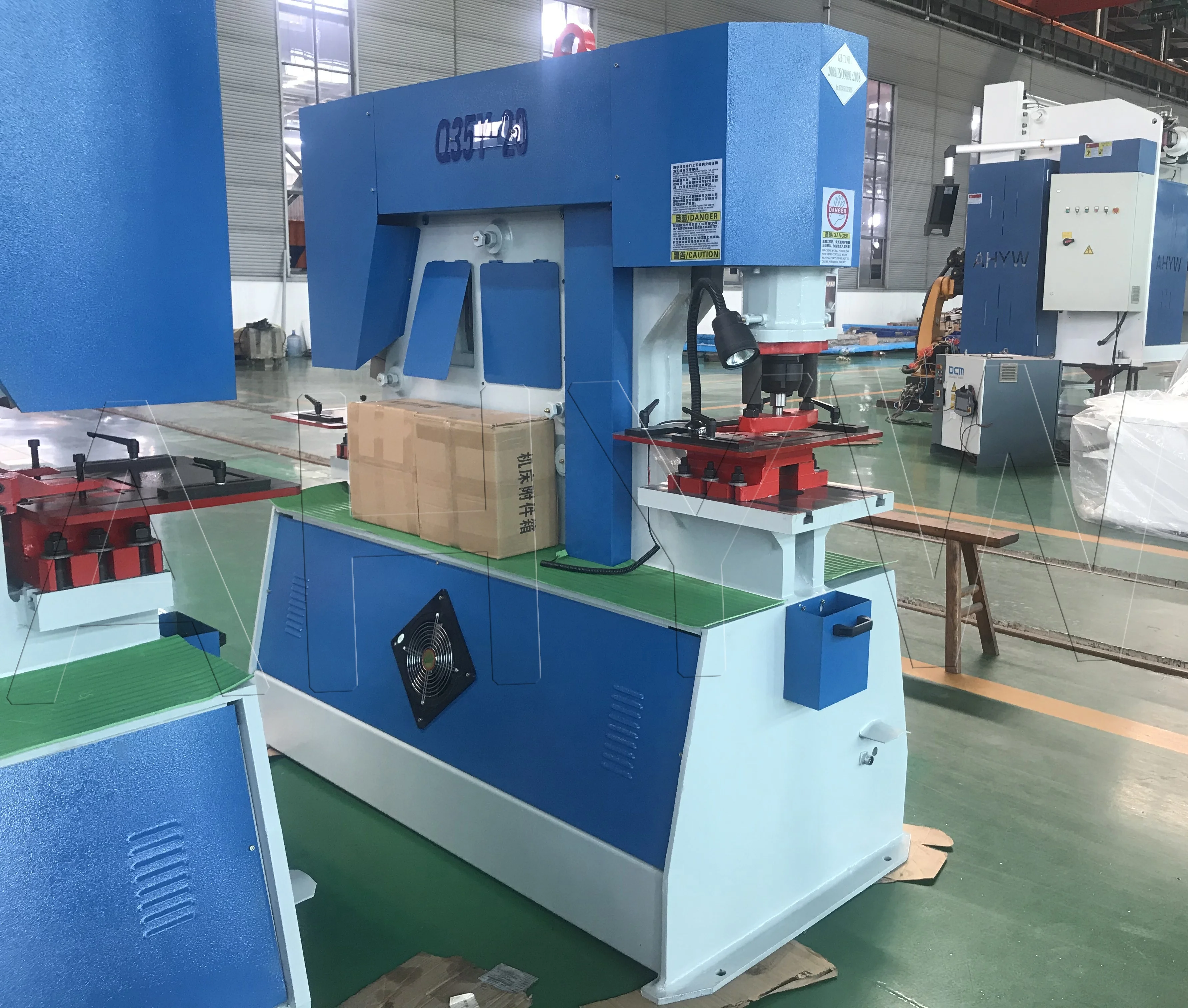

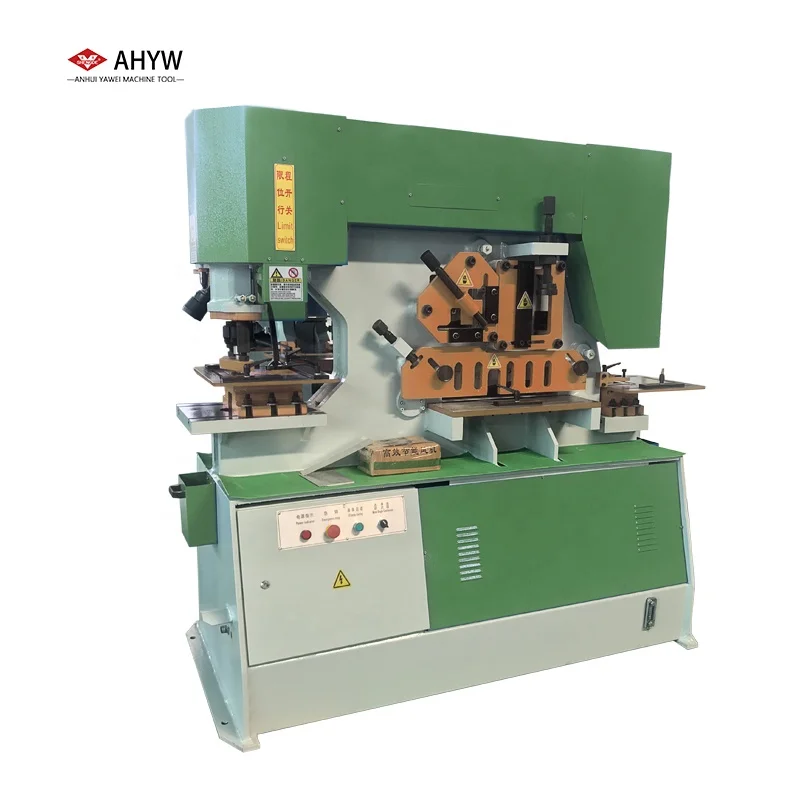

Anhui Yawei 's Q35Y series industrial-grade hydraulic ironworker features multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
⚪ Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.
⚪ Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.
⚪ Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.
⚪ Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
⚪ Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.
⚪ Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.
⚪ Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.
⚪ Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
⚪ Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.
Detailed Images
Flat cutting
Hole Punching
Flat Notching

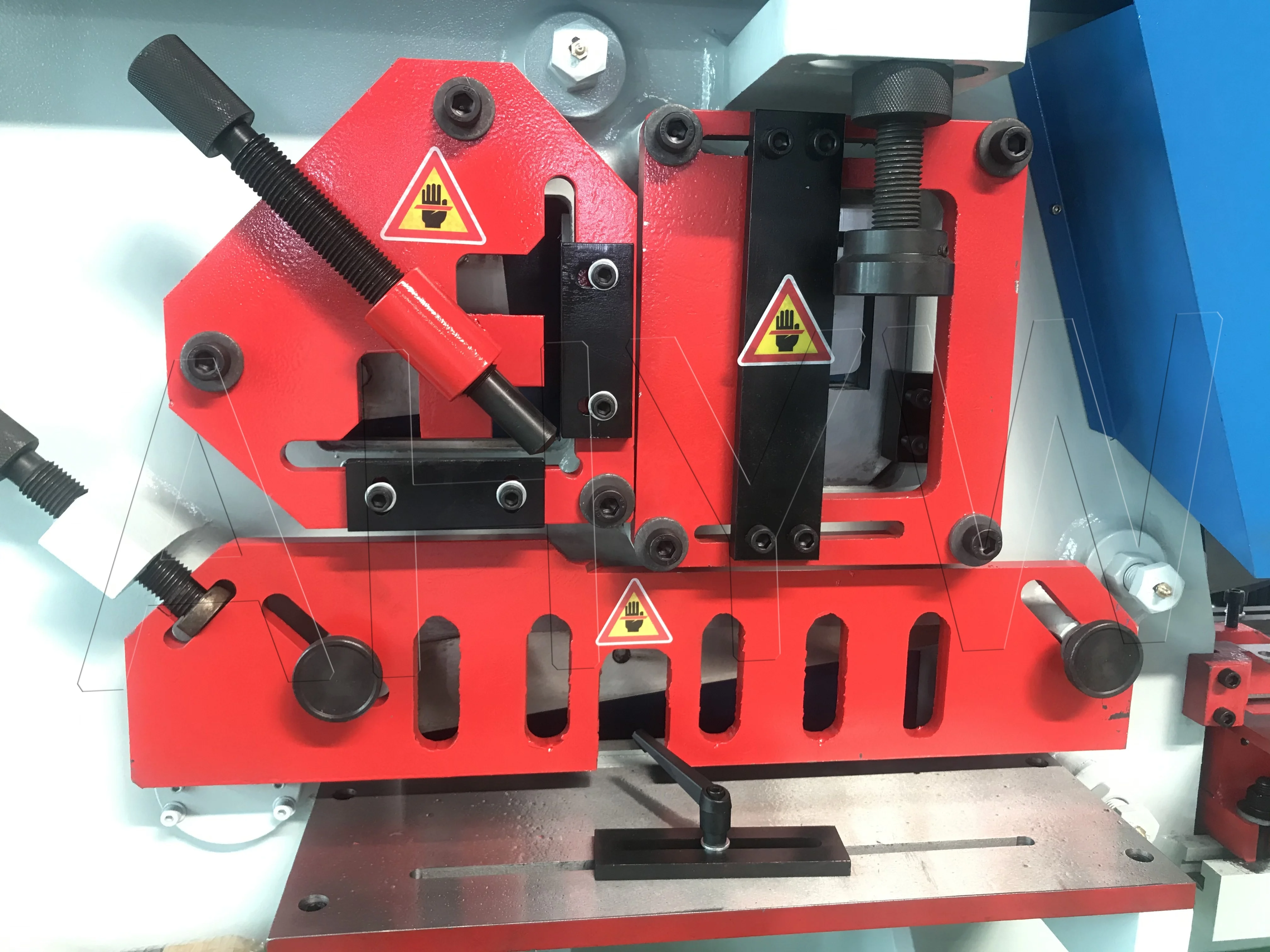

Angle Steel Cutting
Channel Cutting
Profile Steel Cutting
Technical Parameters
Model | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
Pressure(T) | 90 | 120 | 160 | 200 | 250 |
Max.cutting thickness (mm) | 20 | 25 | 30 | 40 | 50 |
Plate strength (N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
One stroke shears size (T*W)(mm) | 20*330 10*480 | 25*330 16*600 | 30*330 20*600 | 35*400 25*700 | 40*400 30*750 |
Slider stroke (mm) | 80 | 80 | 80 | 80 | 80 |
Stroke frequency (times/min) | 12 | 10 | 10 | 10 | 10 |
Throat depth (mm) | 355 | 400 | 600 | 600 | 600 |
Punching depth (mm) | 20 | 25 | 26 | 35 | 40 |
Max.punching dia. (mm) | 30 | 35 | 38 | 40 | 40 |
Main motor power (KW) | 5.5 | 7.5 | 11 | 15 | 18 |
Dimensions (L*W*H) (mm) | 1860*800*1990 | 2355*960*2090 | 2680*1040*2300 | 2970*1240*2350 | 3000*1440*2450 |
Production Process
Related Products
Packing&Shipping
PACKING | ||
Size | (L) * (W) * (H) | |
Weight | T | |
Packaging Details | Ply wooden case is after fumigation treatment. Needn’t timber inspection, saving shipping time. | |
SHIPPING | ||
Means | by sea, by rail | |
Container | 20' GP 40 'GP 40' HQ or OT RT | |
Shipping Details | According to the size and weight of machines, we will provide our customers with optimized shipping solution. | |
Company Introduction
Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 81.88 million, with 120 employee, floor space about 40000 square meters, the location is close to Nanjing Airport and near to Shanghai city.
We specializes in exporting CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world.
We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 90 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. The history of our independent Import and Export experience is more than 12 years.
We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied.
Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at.
Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at.
We want to cooperate with you to promote our sales and build a long term cooperation with you for future business.
Best wishes for you and hope a better tomorrow for all of us!
Facilities & Equipment
Customer Photos
Certification
Our Service
Pre-Sales Service Technical and Sales team work
* Inquiry and consulting support.
* Suggest solution.
* View our Factory.
* Suggest solution.
* View our Factory.
After-Sales Service Engineers and Sales cooperate
* Training how to install the machine, and how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
FAQ
Q1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 15 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. If we are interested in your machine, how to choose proper power?
A: Please inform us the detailed information of your workpiece to be cut, then we will recommend you a suitable power.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 15 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. If we are interested in your machine, how to choose proper power?
A: Please inform us the detailed information of your workpiece to be cut, then we will recommend you a suitable power.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.
We warmly invite you to visit our factory!
