MT25 4G Modem



LTE USB Dongle



I. Overview



      MT25 MiniPCIe to USB Dongle adopt Quectel EC25 Mini PCIe,supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning. MT25 MiniPCIe to USB Dongle is a series of LTE category 4 module
adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates. MT25-EUX Mini PCIe, MT25-AFX Mini PCIe, MT25-AUX Mini PCIe ,MT25-J Mini PCIe and MT25-G Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.



II.Key Benefits

1.Support USB/UART communication interface

2.Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
3.Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
4.LTE Cat 4 Max 150Mbps(DL),Max 50Mbps(UL)
5.USB 2.0 High Speed Interface
6.Embedded Abundant Protocols
7.USB Serial Driver:Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.15, Android 4.x/5.x/6.x/7.x/8.x/9.x



III.Applications
1.Industrial control field
2.Industrial router
3.Medical instruments
4.Industria IoT
5.Rugged tablet PC
6.Self-service equipment
7.Video surveillance
8.Raspberrypi
9.Vehicle interconnection



IV.Parameter

Product Introduction	MT25 MiniPCIe to USB Dongle

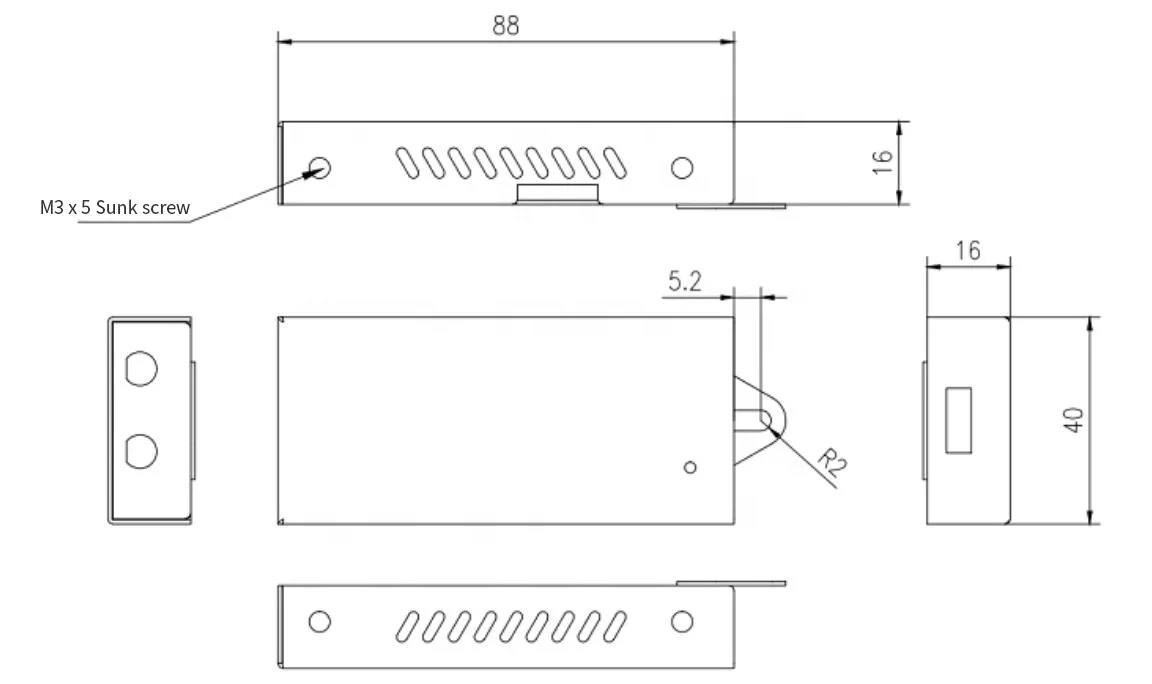

Dimensions	88 x 16x 40(mm)
Module	Quectel EC25 LTE Cat 4 Mini PCIe

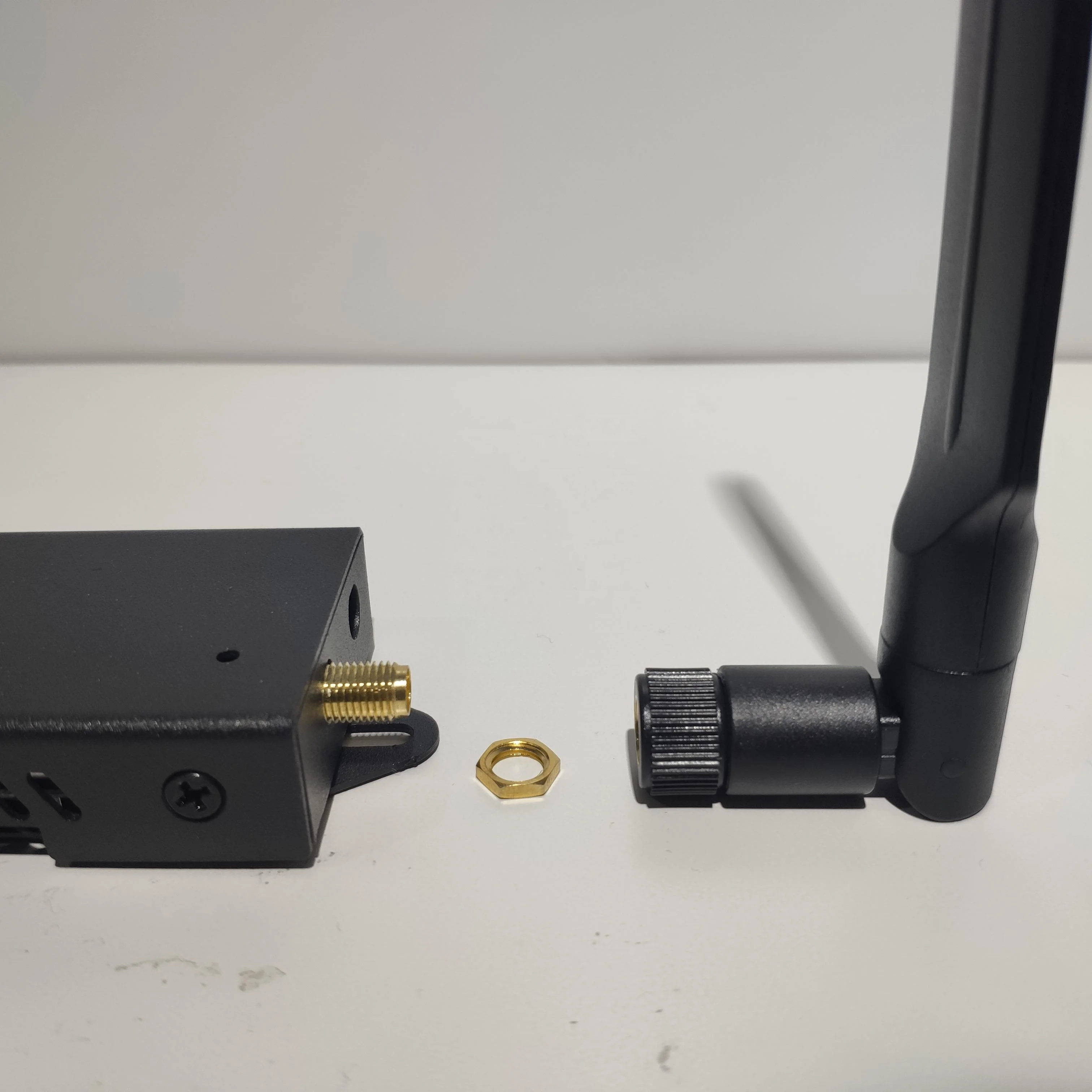

Antenna	1×4G Main antenna,1×4G Auxiliary antenna
Sim card slot	SIM card
Temperature Range	-40°C to 80°C
Rate	Max 150Mbps (DL)/ Max 50Mbps (UL)
Host Interface	USB 2.0
MT25-AFX Variant for North America FirstNet	LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5
Data Transmission	LTE LTE FDD: Max 150Mbps (DL)/ Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/ Max 30Mbps (UL)   UMTS DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL)/ Max 384Kbps (UL) GSM EDGE: Max 296Kbps (DL)/ Max 236.8Kbps (UL) GPRS: Max 107Kbps (DL)/ Max 85.6Kbps (UL)









V.For other MT25 4G Modem

MT25-AFX	North America (LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71)
MT25-AUX	Australia/New Zealand/Latin America (LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28)
MT25-J	Japan (LTE FDD: B1/B3/B8/B18/B19/B26)
MT25-EUX	EMEA/Korea/Thailand/India (LTE FDD: B1/B3/B7/B8/B20/B28A )
