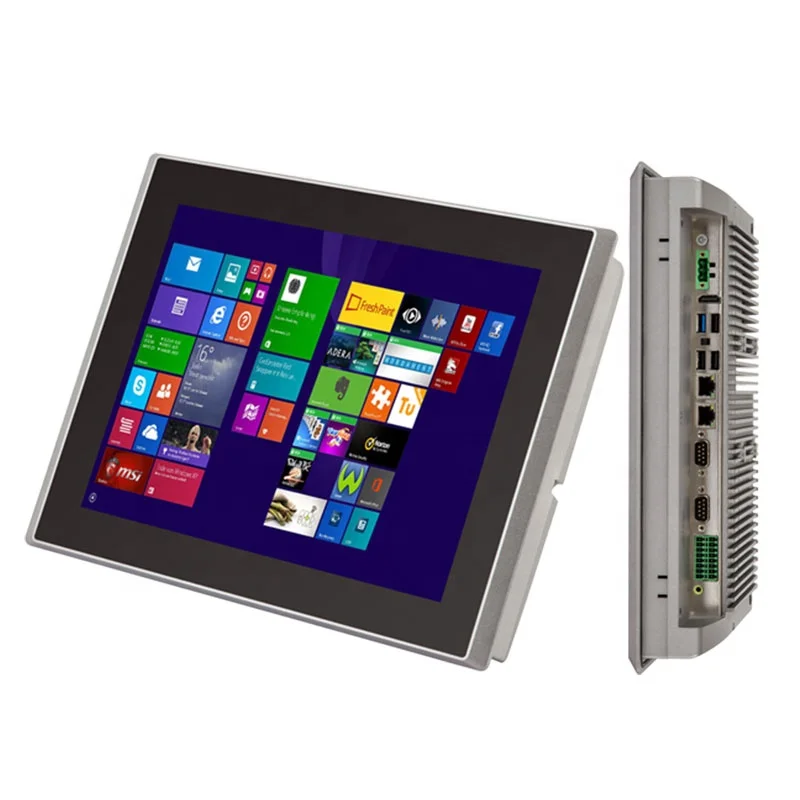

Intel 4th i5 i7 4G RAM 64G SSD высококлассный промышленный панельный ПК 6 * COM 2 LAN
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Shenzhen,Shinho,Electronic,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.25 $* | 0.64 $* |
| Aug-16-2025 | 0.37 $* | 0.77 $* |
| Jul-16-2025 | 0.67 $* | 0.89 $* |
| Jun-16-2025 | 0.96 $* | 0.99 $* |
| May-16-2025 | 0.11 $* | 0.98 $* |
| Apr-16-2025 | 0.9 $* | 0.66 $* |
| Mar-16-2025 | 0.79 $* | 0.92 $* |
| Feb-16-2025 | 0.25 $* | 0.95 $* |
| Jan-16-2025 | 0.50 $* | 0.16 $* |
Характеристики
Product Description
Intel 4th i5 i7 4G RAM 64G SSD High-end Industrial Panel PC 6*COM 2*LAN Industrial Computer
Features
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dustproof.

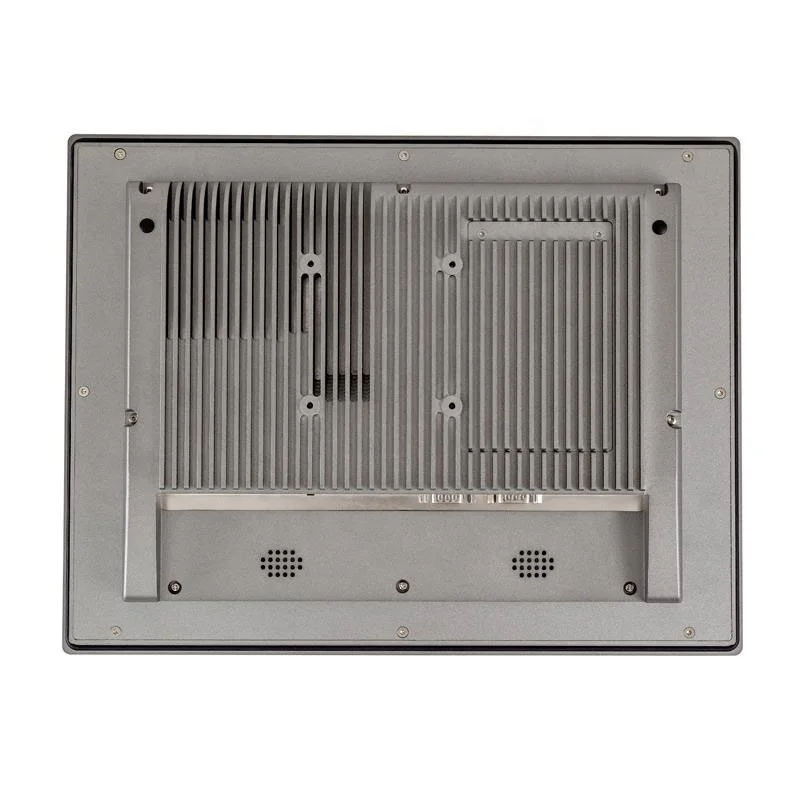

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.

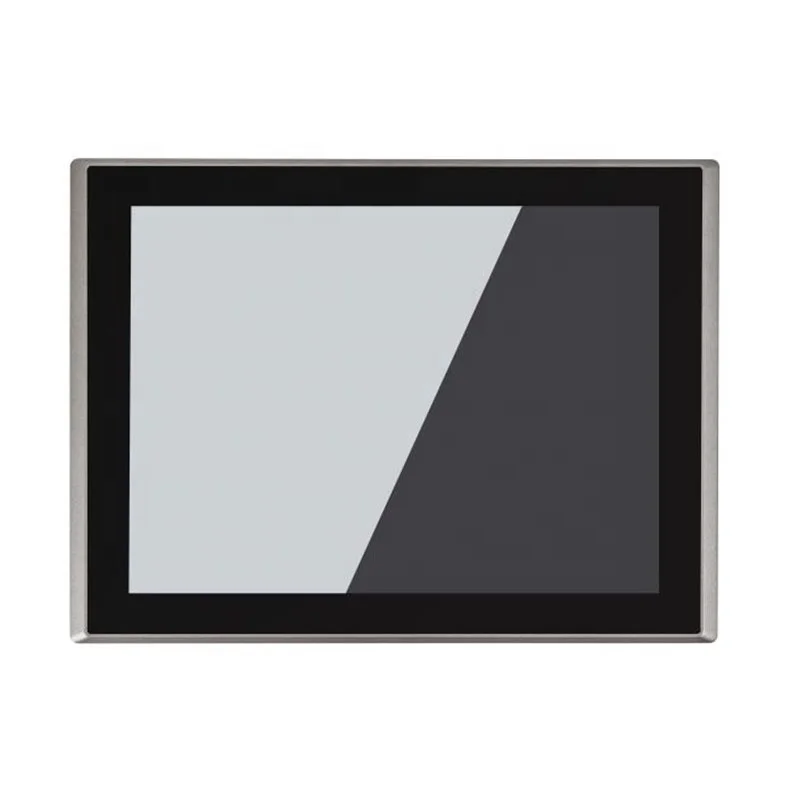

5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
7. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.
8. High performance motherboard, 7x24 continuous operation.
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dustproof.
3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.
5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
7. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.
8. High performance motherboard, 7x24 continuous operation.
Technical Highlights
Cordless motherboard design
With Rubber waterproof ring on the back side.
Specification
PC | ||
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless | |
CPU optional | Intel® Core, I5-4200U, dual core, 1.6GHz, fanless | |
CPU optional | Intel® Core, I7-4500U, dual core, 1.8GHz, fanless | |
CPU optional | Intel® Core, I5-6360U, dual core, 2.0GHz, fanless | |
CPU optional | Intel® Core, I5-7200U, dual core, 2.5GHz, fanless | |
CPU optional | Intel® Core, I7-7500U, dual core, 2.7GHz, fanless | |
CPU optional | Intel® Core, I5-8250U, quad core, 1.6GHz, fanless | |
CPU optional | Intel® Core, I7-8550U, quad core, 1.8GHz, fanless | |
Memory | 4G DDR3 | |
Hard Drive Capacity | 64G SSD | |
Hard Drive Optional | SSD: 128GB, 256GB, 512G SSD | |
HDD: 500GB, 1TB | ||
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller | |
Wireless Network | WIFI | |

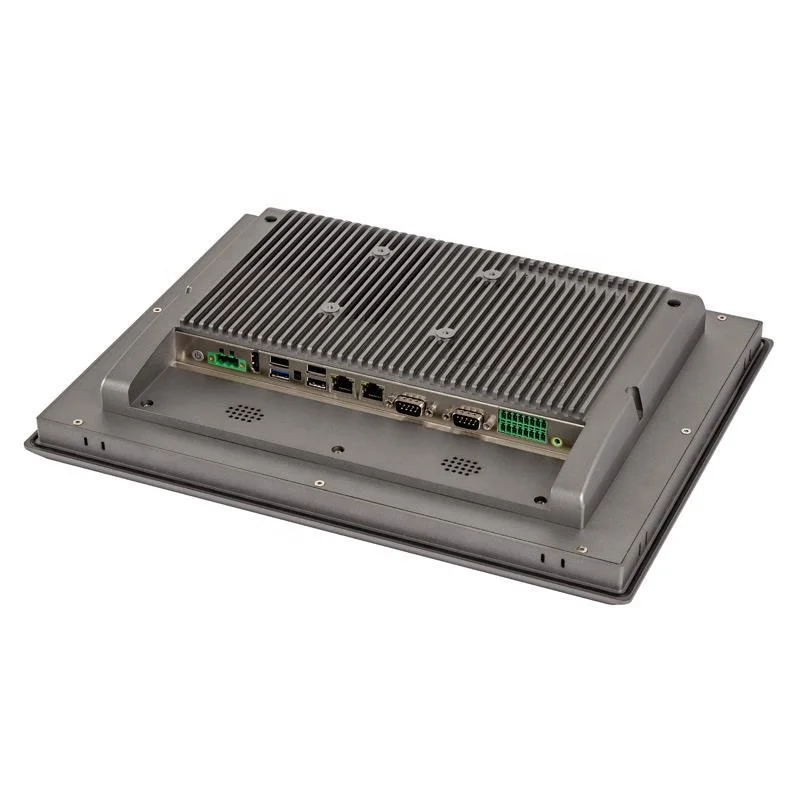

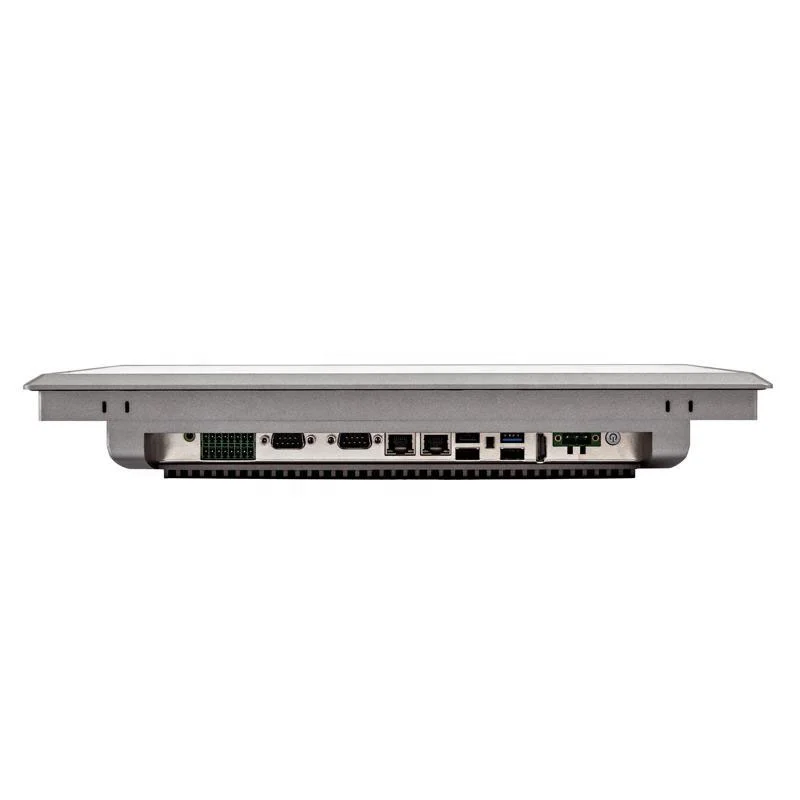

I/O Interface | 3xUSB 2.0, 1xUSB 2.0, 1x built in USB SoftDog, | |
2x DB-9 COM1& COM2, RS232/422/485 | ||
2x3 wire COM3 & COM4 RS232/485 Phoenix terminal, 2x3 wire COM5 & COM6 RS232 | ||
1xPhoenix terminal remote switch interface | ||
1x AT/ATX switch | ||
1x HDMI/Audio Line-out/ Power Button | ||
1x 14 bit GPIO optional | ||
2x 8Ω 1W Amplifier out optional | ||
Expansion slot | MINI-PCIE x 1, on board SIM card slot, support 3G/4G module | |
MINI-PCIE x 1, support WIFI/ Bluetooth | ||
Watchdog timer | 1~255 second Programmable Setting | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. | |
LCD panel | ||
Panel size | 10.1", 12.1", 15", 15.6", 17", 19", 21.5" | |
Resolution | 1024*768, 1280*800, 1280*1024, 1920*1080 | |
Aspect ratio | 4:3, 16:9 | |
Support Color | 16.7M colors | |
Brightness (cd/m²) | 300 | |
Response time | 30ms | |
Contrast ratio | 1000:1 | |
View angle | 85°/85°/85°/85° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | Project Capacitive Touch (10 points) | |
Touch Interface | USB (RS232 optional) | |
Touch response time | 2ms | |
Luminousness | 90% | |
Surface Hardness | 7H | |
Working life | >50 million times | |
Touch options | (5 wire resistive touch optional) | |
Power Supply | ||
External Power Supply | AC 100-240V | |
Working voltage | 9V-36V wide voltage | |
Power consumption | ≤27W | |
Enclosure | ||
Material | Aluminum Alloy | |
Color | Grey | |
VESA mounting | 75x75mm | |
IP grade | Front panel IP65 waterproof | |
Operating Environment | ||
Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C | |
Relative humidity | 10%~90% @ 30° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Packing Details | ||
Accessories | Power adapter, power cord, embedded screws, 2.5-inch hard drive holder | |
Mounting (options) | Embedded mounting screws | |
Wall mounting brackets (optional) | ||
Desk stand holder (optional) | ||
Warranty | 2 year warranty | |
Certificate | CE, FCC, RoHS | |
