Хорошая стабильность длительный срок службы QP3025 высокая скорость сканирования Высокочувствительный динамический внешний лазерный измерительный прибор
- Категория: Лазерные дальномеры >>>
- Поставщик: Shanghai,Qipang,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1396.37 $* | 1424.16 $* |
| Jul-18-2025 | 1132.25 $* | 1155.7 $* |
| Jun-18-2025 | 1374.4 $* | 1401.1 $* |
| May-18-2025 | 1363.78 $* | 1390.39 $* |
| Apr-18-2025 | 1088.96 $* | 1110.56 $* |
| Mar-18-2025 | 1341.61 $* | 1368.95 $* |
| Feb-18-2025 | 1330.49 $* | 1357.6 $* |
| Jan-18-2025 | 1319.59 $* | 1345.55 $* |
Характеристики
Product Description

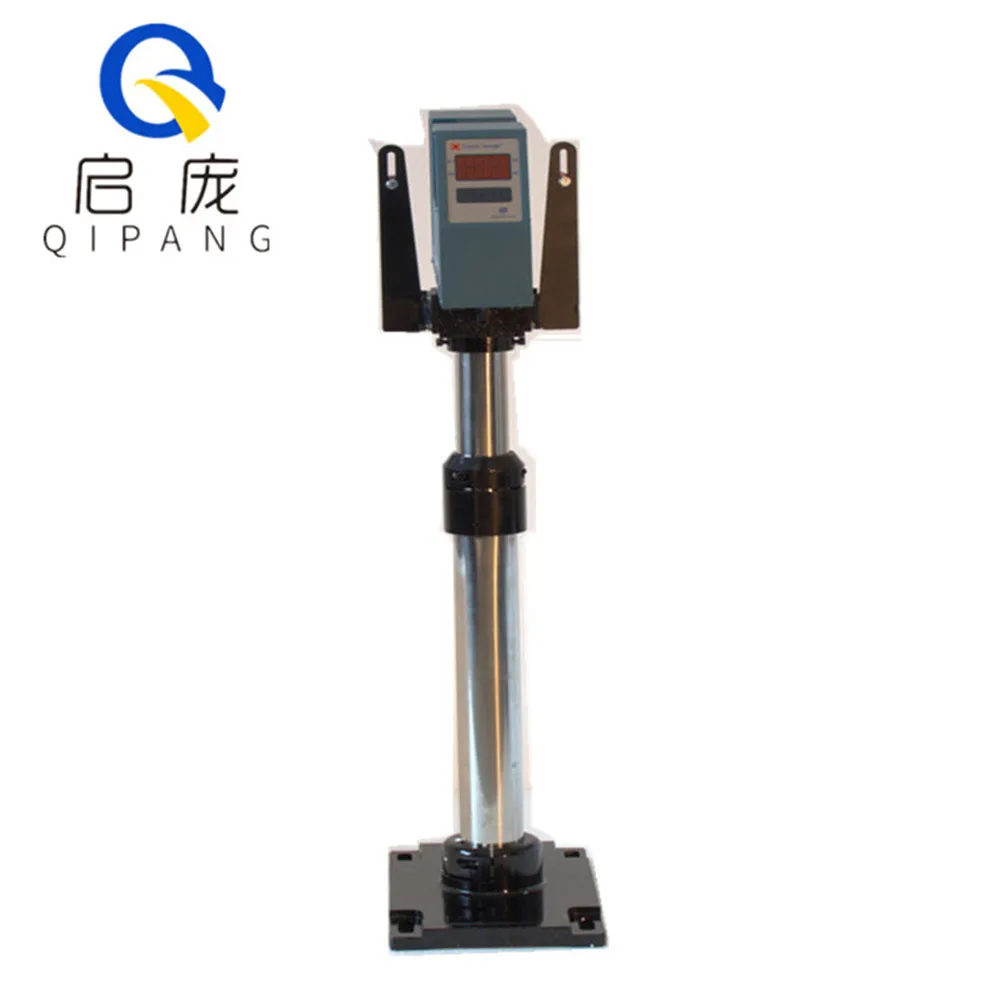

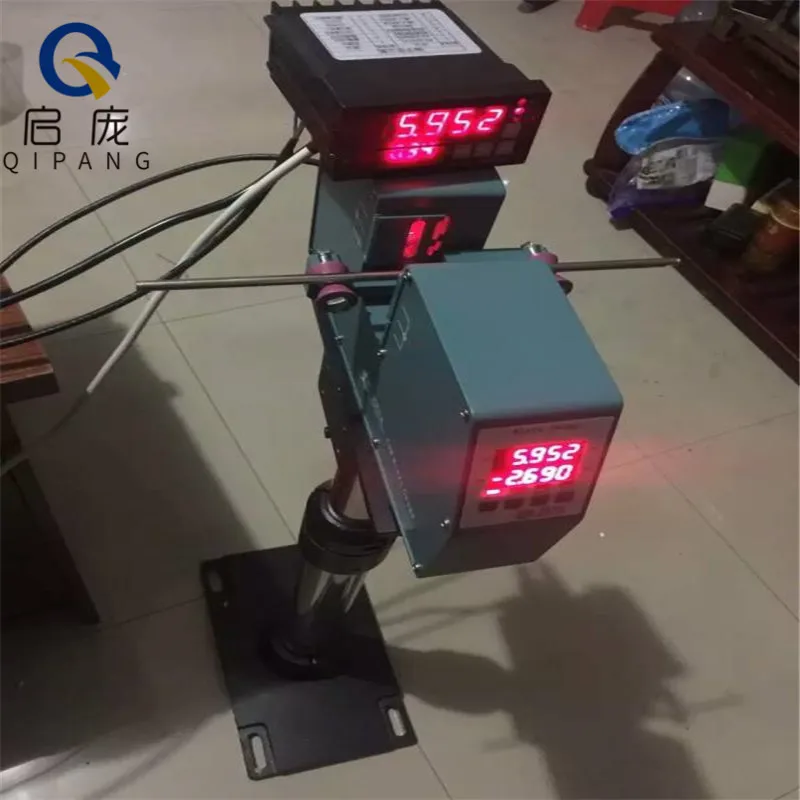

Good Stability Long Life High Scanning Rate QP3025 High Pression Dynamic External Diameter Measuring And Controlling Instrument
QP-3025 dynamic external diameter measuring and controlling instrument is a new generation of outer diameter measuring and controlling instrument in our company. It adopts high precision CCD of high speed pulse infrared light source and computer digital
image processing technology. The new technology has the characteristics of high precision, good stability, long life, high scanning rate, good dynamic performance and so on. QP-3025 adopts the integrated structure of measurement, display and control,and it is very convenient to install and use it.
image processing technology. The new technology has the characteristics of high precision, good stability, long life, high scanning rate, good dynamic performance and so on. QP-3025 adopts the integrated structure of measurement, display and control,and it is very convenient to install and use it.
Input Voltage | Power | Effective measuring range | Recommended measuring range | Measuring Precision |
AC220V, 50/60Hz | Within 50W | 0.1-25mm | 0.2-21mm | 0.02mm |
Scan Rate | Center Adjustable height | Operating Temperature | Dimension | Weight |
1800/s | 850-1100mm | 0-45 | 290mm*100mm*432mm | 14KG |

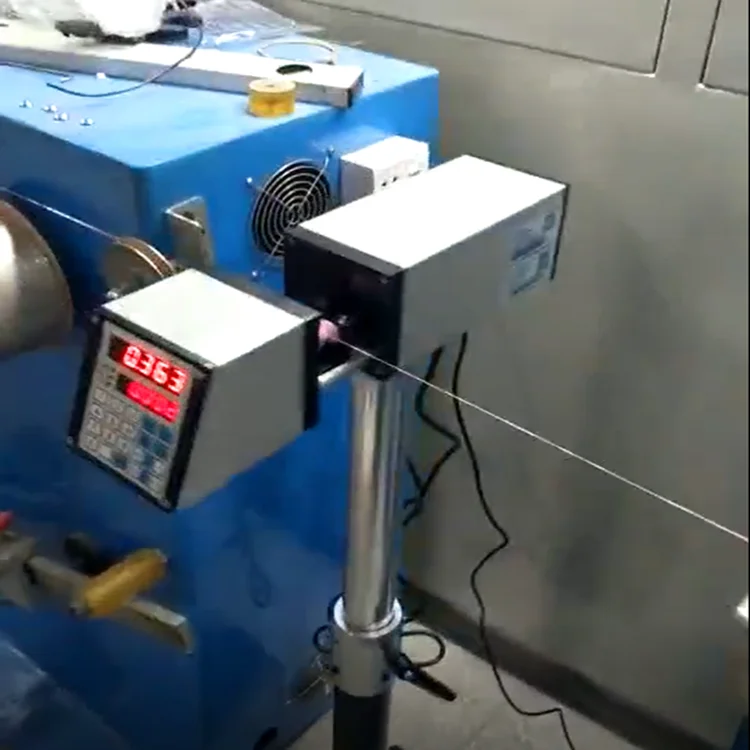

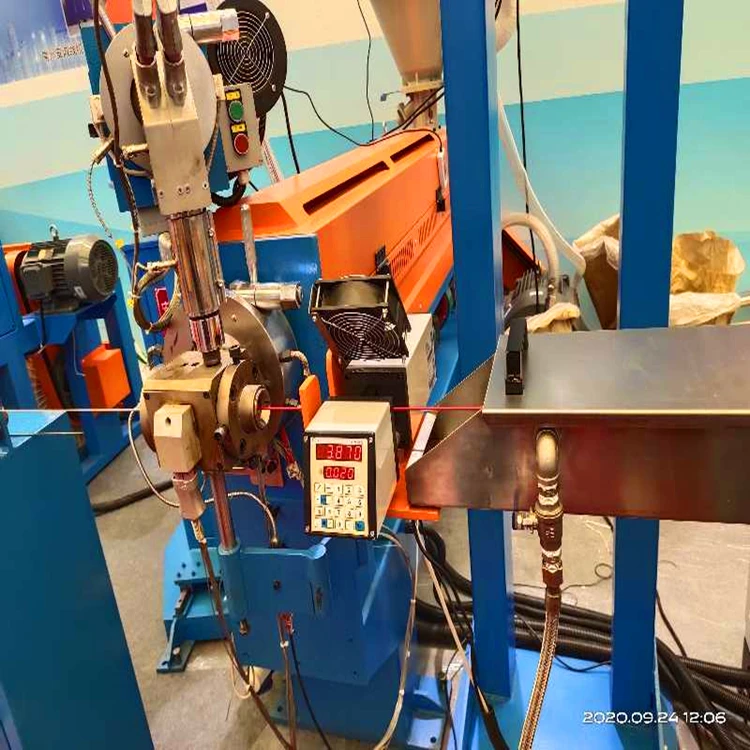

Installation position: the QP- 3025 external diameter measuring and controlling instrument can be installed either in front of the cooling sink or behind the sink. When installed in front of the sink, due to the fact that the measuring head is close to the
extrusion, the best control effect can be obtained when the measuring head is close to the extrusion, but the plastic has not yet been cured, and the nominal value set should be properly corrected. When installed behind the sink, the actual value of the outer diameter of the cable is measured, which is more accurate and reliable, but the control lag is large and the control effect is poor. In addition, it should be noted that the measured cable should be blown dry, the actual use should be based on the degree of water carried by the measured cable, if the nominal value should be increased.
extrusion, the best control effect can be obtained when the measuring head is close to the extrusion, but the plastic has not yet been cured, and the nominal value set should be properly corrected. When installed behind the sink, the actual value of the outer diameter of the cable is measured, which is more accurate and reliable, but the control lag is large and the control effect is poor. In addition, it should be noted that the measured cable should be blown dry, the actual use should be based on the degree of water carried by the measured cable, if the nominal value should be increased.
Realated Diameter measuring instrument | Model |
One-way self-measuring instrument | QP-3020 |
Infrared diameter measuring instrument | QP-3025 |
Laser warp measuring instrument | QP-3025B QP-3050B |
