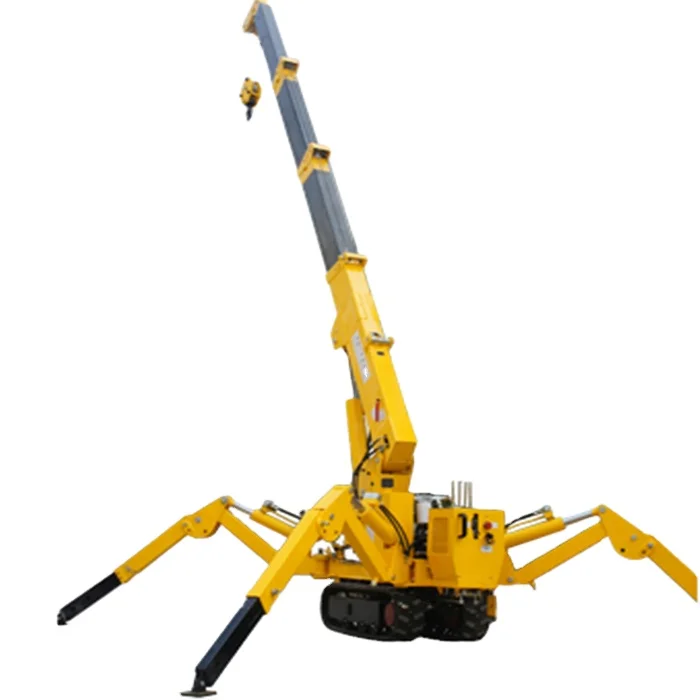

1ton/2ton/3ton/5ton Lifting Mini Electric Spider Crane Small Crawler Cranes with man basket



Contact Person: Ms. Phyllis

whatsApp/Tel/wechat:+86 15737137170

skype: wang.phyllis01

QQ:530090438

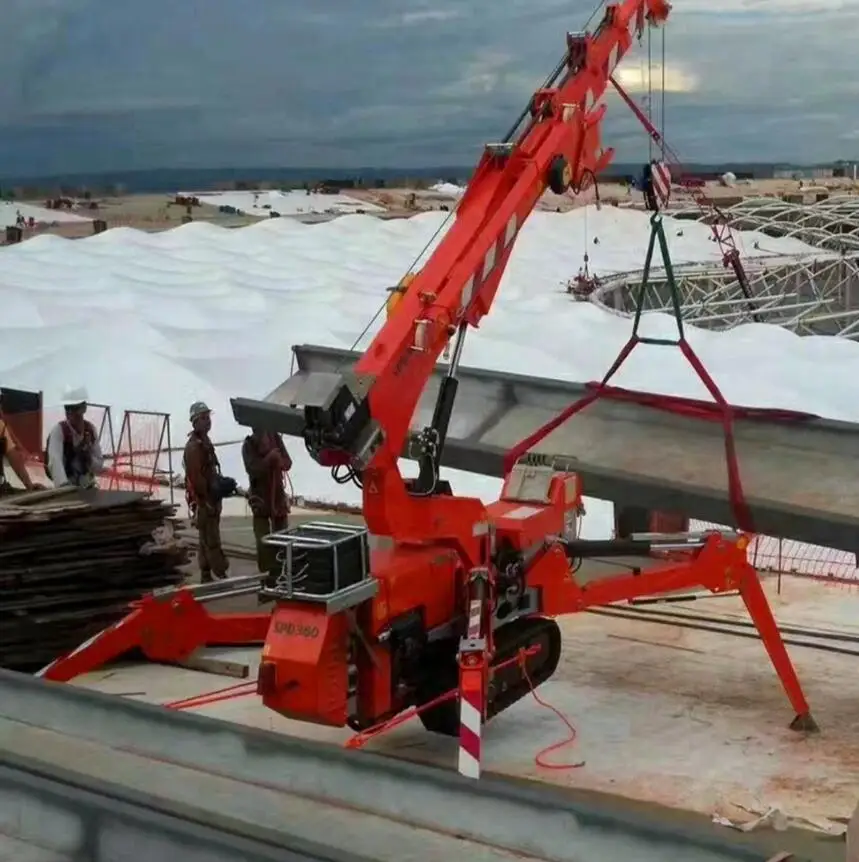

Crawler crane is widely used in the maintenance and installation of electrical equipment in substation, maintenance and installation of mechanical chemical workshop equipment, glass curtain wall, etc.

At present, has been the state grid and southern grid widely use, have been used for the Shanghai world expo, general motors, lanzhou petrochemical, techsport petrochemical, wuhan day ling and Beijing netcom building construction engineering, etc., products have been exported to USA, Australia, Canada, Britain, Brazil, Vietnam, united Arab emirates and other countries.

The maximum folding crane product has the function of supporting leg safety. With a large operating radius, you can perform a variety of lifting operations, which may satisfy your needs.



KB crane pursues excelsior on product quality, and we have passed the Quality System Authentication ISO9001 and CE certificate and Special Equipment Manufacturing License of the P.R.China. We have perfect support network, both in machine selection and after sales. Even young, our products have received extensive recognition with good quality and service.

With strong R&D capabilities, we own a number of patent technology on mini crane.And the patent number is:ZL 2009 20092576.X.KB series mini crane are designde for narrow space work.The cases of Shanghai Tower, General motors, Honda motor, the State Grid and other clients show:KB mini crane can assist you with your Construction, Glazing, Steel Erection, Landscaping, Timber Roofs, Maintenance, Industrial plants, Museums and much more.

At present, our products have been exported to Canada, Britain, Russia, Australia, Brazil, Vietnam , the united Arab emirates , the United States and other countries.

Option:

A range of optional equipment that enables our cranes to adapt to all kinds of work and environmental factors.

PRODUCT FEATURES

• Compact, hydraulic walking.


• Safe design prevents error handling.


• The remote control device is energy-saving and durable.


• Imported hydraulic accessories


• Walking speed level 2


• Remote operation (optional)


• Equipped with 380V power system.


• Torque limiter

PRODUCT SCHEMATIC

TECHNICAL PARAMETERS

Technical parameters
model		KB5.0 crawler crane
specifications		5.00t*2.0m
Maximum radius of homework		16m*0.21t
The largest ground lift		16.8m
The largest underground head		20.5M
Winding device	Hook up speed:	8 m/min (growth 16 m/min) 6 on the rope
	Steel wire rope	Diameter of 9.3 mm * 92 m
Telescopic device	Crane jib form	5 Angle automatic segment
	Crane arm length	4.7m-16.5m
	Telescopic crane boom length/time	11.7m / 54sec
Rolling device	Boom Angle/time	0°-80°/ 24.5sec
Rotary device	Turning Angle/time	0 ° ~ 360 ° continuous / 2.1 RPM (growth rate of 2.5 RPM)
leg	Leg action form	Manual rotation, oil pressure, oil pressure grounding
	Maximum out of range	5670mm*5510m*5030mm

LIFTING TABLE

The biggest location leg hoisting table
4.74/7.70 meters boom		10.65 meters boom		13.56 meters boom		16.50 meters boom
Radius of homework (m)	Total rated lifting weight (t)	Radius of homework (m)	Total rated lifting weight (t)	Radius of homework (m)	Total rated lifting weight (t)	Radius of homework (m)	Total rated lifting weight (t)
< 2.0	5.0	< 3.5	3.03	< 4	2.23	< 5	1.13
2.5	4.16	4.0	2.58	4.5	1.93	5.5	0.98
3.0	3.46	5.0	2.03	5.0	1.73	6.0	0.91
3.5	3.05	6.0	1.68	6.0	1.40	7.0	0.76
4.0	2.60	7.0	1.38	7.0	1.18	8.0	0.65
5.0	2.08	8.0	1.13	8.0	1.03	9.0	0.60
6.0	1.72	9.0	1.05	9.0	0.93	10.0	0.55
7.18	1.45	10.0	0.86	10.0	0.83	11.0	0.49
				11.0	0.69	12.0	0.44
				12.0	0.53	13.0	0.38
				13.0	0.43	14.0	0.32
						15.0	0.26
						16.0	0.21
