Характеристики
Product Description
Electronic Lock Control Diy 433 Mhz Universal Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module and RF Transmitter
Compatible with remote control using these chips:PT1527,EV1527, SCT527, HS1527, SCL1527, FP1527,EV1527
Do not use this remote control to clone other remote controls,you will lose the built-in 1527 encoding
About Working mode:
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A,the relay connects, push the remote button B, the relay dis-connect.
Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or15s , the relay disconnect automatically.
Clearing the code :

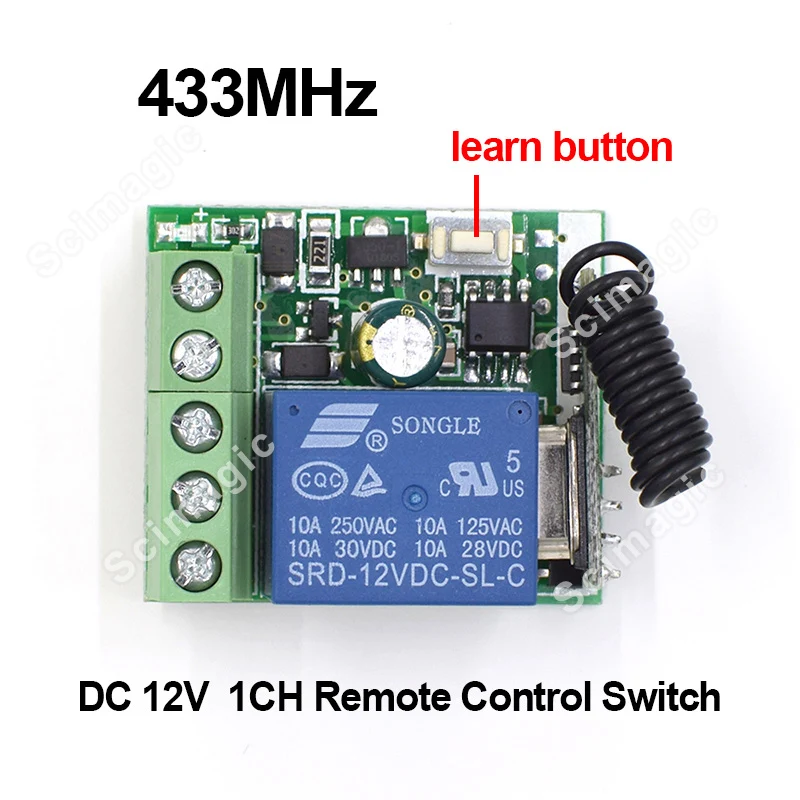

Method 1： Push the learning button on the receivers for 8 times , the codes will be cleaned;
Latching:Push the remote button A,the relay connects, push the remote button B, the relay dis-connect.
Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or15s , the relay disconnect automatically.
Clearing the code :
Method 1： Push the learning button on the receivers for 8 times , the codes will be cleaned;
Method 2： Keeping press the Learning Button on the receiver until the LED indicator ON and then flash,until it flash for 8 times.
it mean the code have been cleared successfully; After clearing the code, all the remote control cannot work any more.
Learning the code :(momentary)
Push the learning key on the receiver once time , it comes into momentary setting mode . Wait for a moment , the LED will be off,it comes into learning state .
Learning the code :(momentary)
Push the learning key on the receiver once time , it comes into momentary setting mode . Wait for a moment , the LED will be off,it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver once time , it comes into momentary setting mode . Wait for a moment , the LED will be off,it comes into learning state .
Learning the code : ( Toggle )
Push the learning key on the receiver once time , it comes into momentary setting mode . Wait for a moment , the LED will be off,it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .
Learning the code :( Time delay mode )
Push the learning key on the receiver forth time , the time dealy for 5 seconds . Push the learning key on the receiver fifth time the time delay for 10 seconds .
Learning the code :( Time delay mode )
Push the learning key on the receiver forth time , the time dealy for 5 seconds . Push the learning key on the receiver fifth time the time delay for 10 seconds .
Push the learning key on the receiver sixth time , the time delay for 15 seconds . The LED indicator will be off .
Push the remote button , LED flashes and off .
After 3 seconds , the LED indicator will be on again,learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF Push the learning key on the receiver triple time , it comes into latching mode . Wait for a moment , the LED indicator on the receiver board will flash then come off.
Push the remote button A . LED flash for 5 times .
Push the remote button B . Led flash for 5 times .
After 3 seconds , the LED indicator will be on again , learning successfully. A = ON , B = OFF .
NOTE
The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
NOTE
The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .

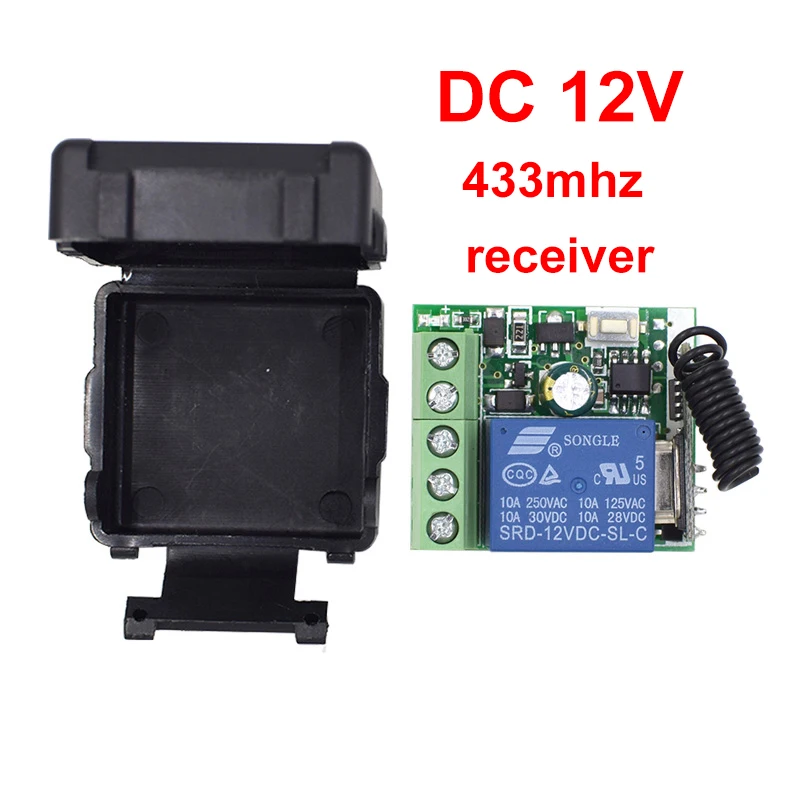

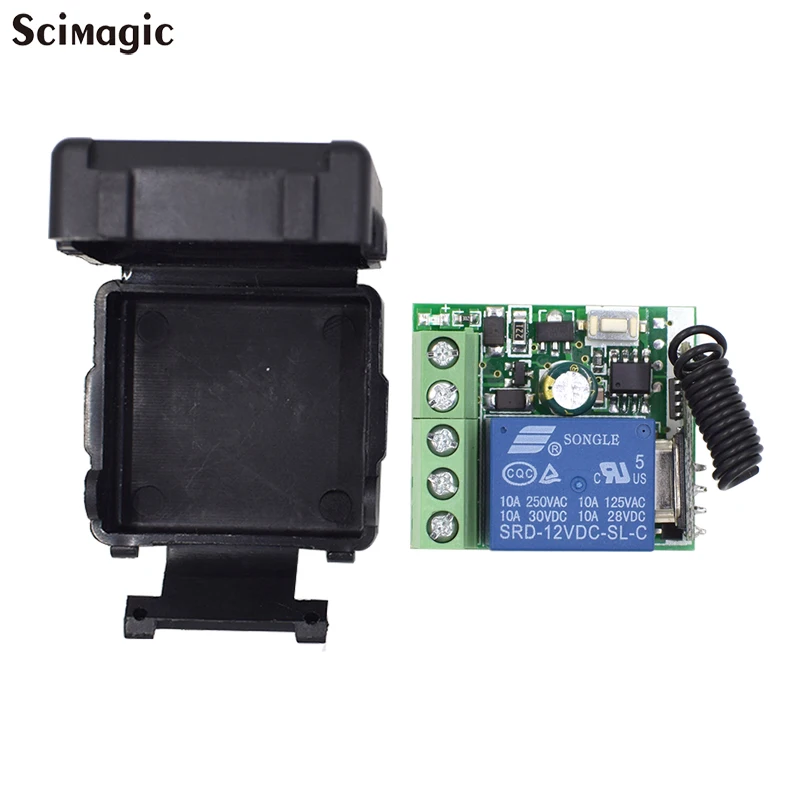

Name | 12V DC 1 Channel Relay RF Switch wireless remote control |
Input Power | DC10V-14V |
Code | Learning code |
RF Frequency | 433Mhz |
Remote storage | 25pcs |

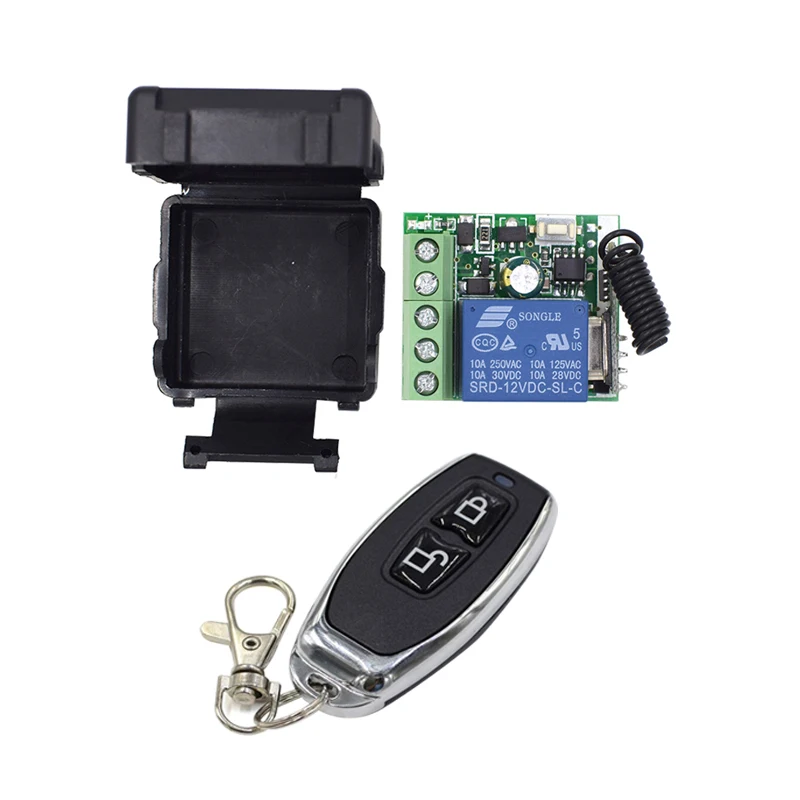

Include | 1 Pcs * Receiver module 1 pcs * RF 433Mhz Transmitter (Battery not included) |
Description
It is a panel 86 wall transmitter that can be stuck onto anywhere.
It is a learning code transmitter EV1527 IC Chip.
It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store. So that the
trouble brought by routing is avoided successfully.
Working Voltage: DC12V 27A Battery (Not included)
Working Frequency: 433mhz
IC Chip: EV1527
Distance: 10-180m (Open Space Long Distance)
Working Current : 20-25ma
Big Button wall Transmitter is your best choice for home or Public Places remote control system.
trouble brought by routing is avoided successfully.
Working Voltage: DC12V 27A Battery (Not included)
Working Frequency: 433mhz
IC Chip: EV1527
Distance: 10-180m (Open Space Long Distance)
Working Current : 20-25ma
Big Button wall Transmitter is your best choice for home or Public Places remote control system.
