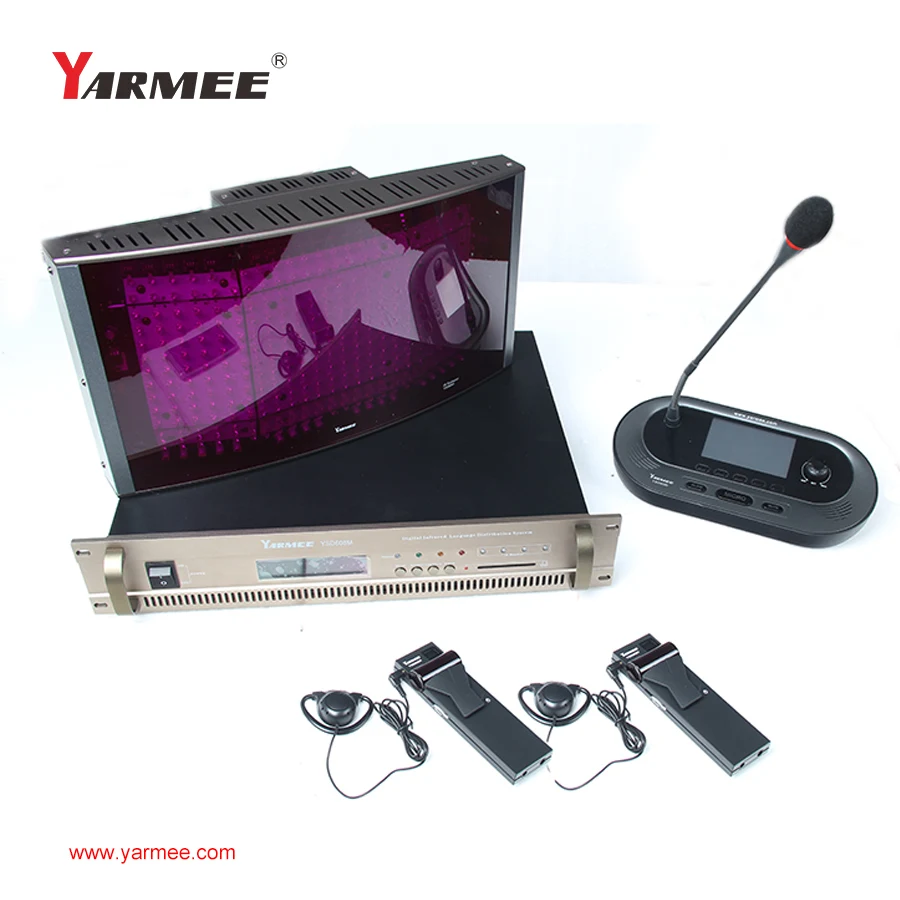

Digital Simultaneous Interpretation System (SICS)--YARMEE
IR Transmission main unit-YSD604M
Simultaneous Interpetration System(SICS)--YARMEE
IR Transmission main unit-YSD604M
1. Compliant to compliant toCompliant to IEC 61603-7 and IEC 60914 2. Compatible with the latest national standard GB 50524-50524 3. Compatible with any other IR system compliant to IEC 61603-7 4. Capable of distributing a maximum of 4, 8, 16 or 32 audio channels 5. 2 ~ 8 MHZ carrier frequencies, compatible with the international standard spectrum 6. Wider signal radiation Angle 7. Use filter lens, against noise interference of light effective, work in sunshine, neon lights and complex environment 8. Hand in hand radiation signal, easy to enlarge the coverage of signal, also be used to configure into many rooms 9. Transmission delay compensation function, guarantee proper signals 10.Infrared cannot penetrate walls or ceiling, ensure the privacy of the meeting, avoid eavesdropping 11. Humanized human-computer interface design, easy to use
Parameter of IR Transmission main unit:
Items
Parameter
Modulation frequency
According to IEC 61603 part 7, Carriers 6 and 7: up to 8MHz
Protocol and modulation
DQPSK, according to IEC technique 61603 part 7
Audio frequency response
20Hz-10kHz (-3dB) at standard quality
Total harmonic distortion at 1 kHz
<0.05%
Crosstalk attenuation at 1 kHz
>80dB
Dynamic range
>80dB
Weighted signal-to noise ratio
>80dB(A)
Power consumption
Operating:100W; Standby: 25W
Asymmetrical audio inputs
+3 dBV nominal, +6dBV maximum(±6dB)
HF output
1 Vpp, 6VDC, 50Ohm
Interpreter console connector interface
12P-DIN
Audio input
RCA x16
Items
Parameter
Audio output
RCA x16
HF output connector interface
BNC x 4
Operating temperature range
0-40 degree
Power supply
AC110V-200V ~ 50Hz-60Hz
Dimensions
485×355×90mm
Mounting
19” rack mounting
N.W
8kg

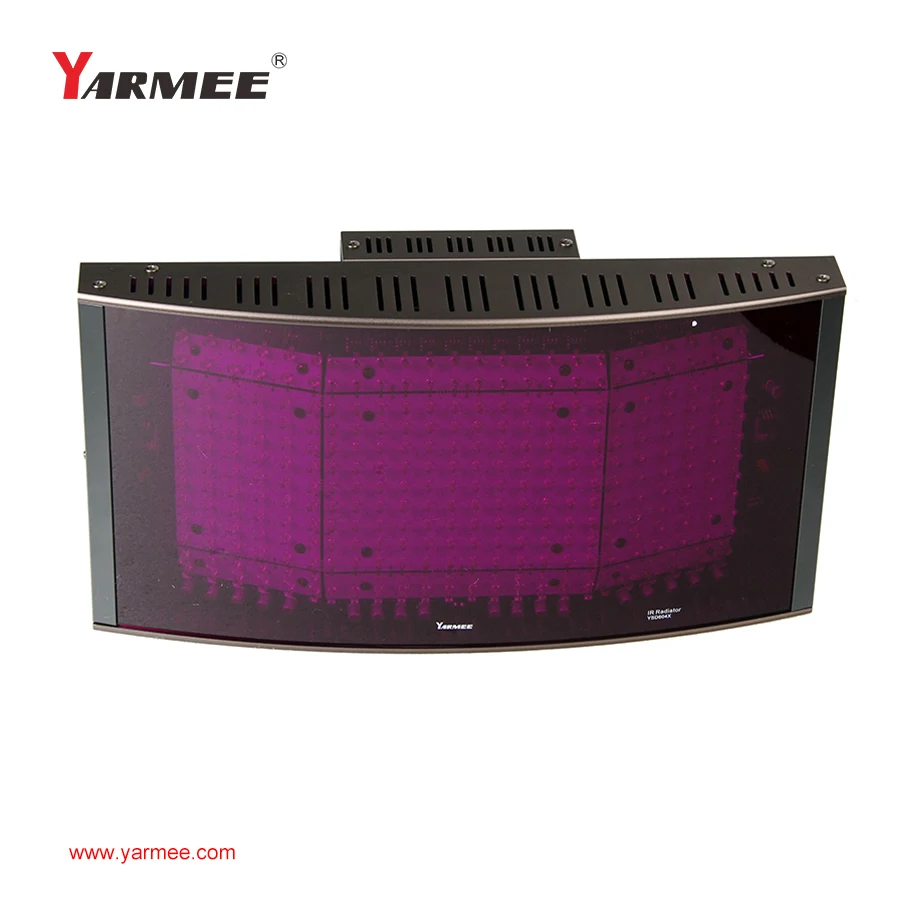

IR Radiator-YSD604X
IR Radiator-YSD604X
1. Compliant to IEC 61603-7 and IEC 60914 2. Immune to interference from HF-driven lighting 3. Coverage up to about 50 meters (25 w) 4. Hand in hand radiation signal, easy to enlarge the coverage of signal, also be used to configure into many rooms 5. Installation: fixed up by bracket or tripod 6. Half-transmitting angle: ±22° 7. Delay compensation for differences in cable lengths between transmitter and radiators
Parameter of digital IR radiator:
Items
Parameter
HF input
Nominal 1 Vpp, minimum 10mVpp
Angle of half intensity
±22°
Total optical peak intensity
24 W/sr
Power consumption
Operating: 30W; Standby:25 W
Transmission distance
<30 meters/16 CH
Number of IREDs
312
Power supply
AC110V-220V ~ 50Hz-60Hz
Dimensions
445×235×113mm
Operating temperature range
0-40 degree
Mounting
Standard: Bracket, Option: tripod
N.W
4.2kg

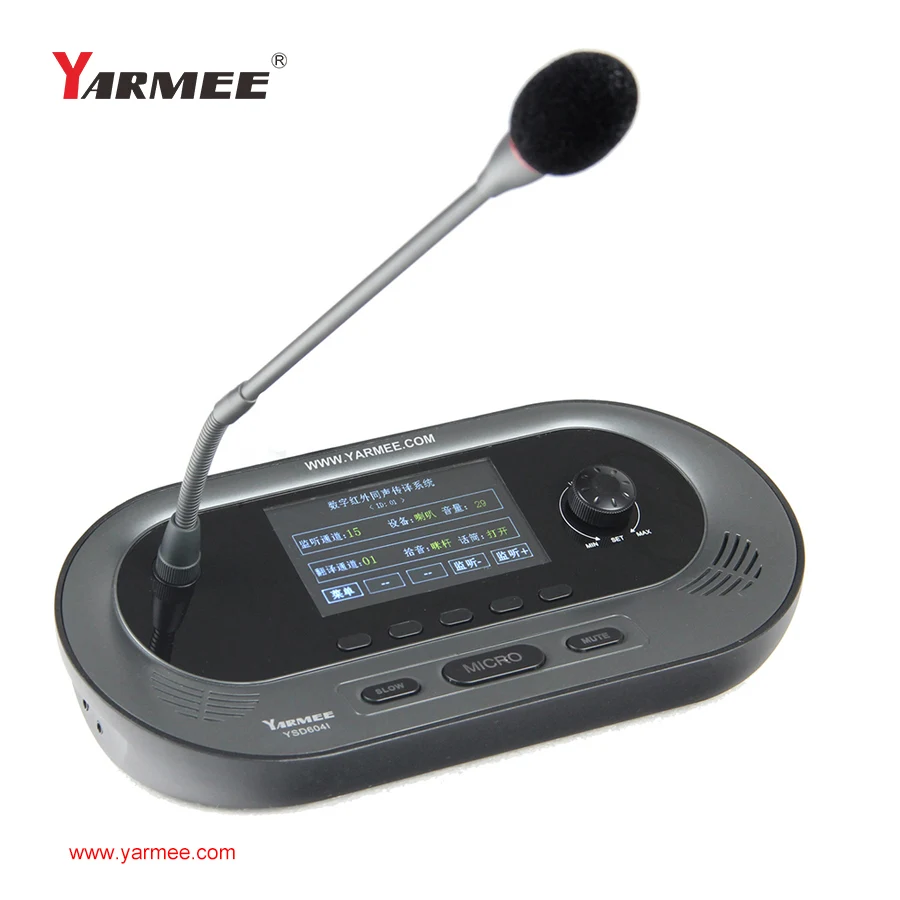

Digital Interpreter Console Unit-YSD604I
Digital Interpreter Console Unit-YSD604I
1. Fully digital design, high sound quality and greatly anti-jamming ability Volume adjust and automatic feedback eliminator 2. Cough elimination function 3. When the speakers speak too fast, can press the request button (missile) requires the speaker “SLOW” speaking speed 4. Configurable secondary translation functions, when the translator did not understand the speaker's language, by listening to the other translators transliteration again on the second translation 5. Support 4, 8, 12, 16, 20, 24, 32 road audio channel 6. Color display, optional headphones and microphones
Parameter of Digital Interpreter Console Unit:
Items
Parameter
Frequency response
50Hz – 20kHz
Sensitivity
-42 ± 2dB
Interpreter connector interface
12P-DIN
Length of gooseneck
410mm
Dimensions
300×150×70mm
Operating temperature range
0-40 degree
N.W
1.7kg

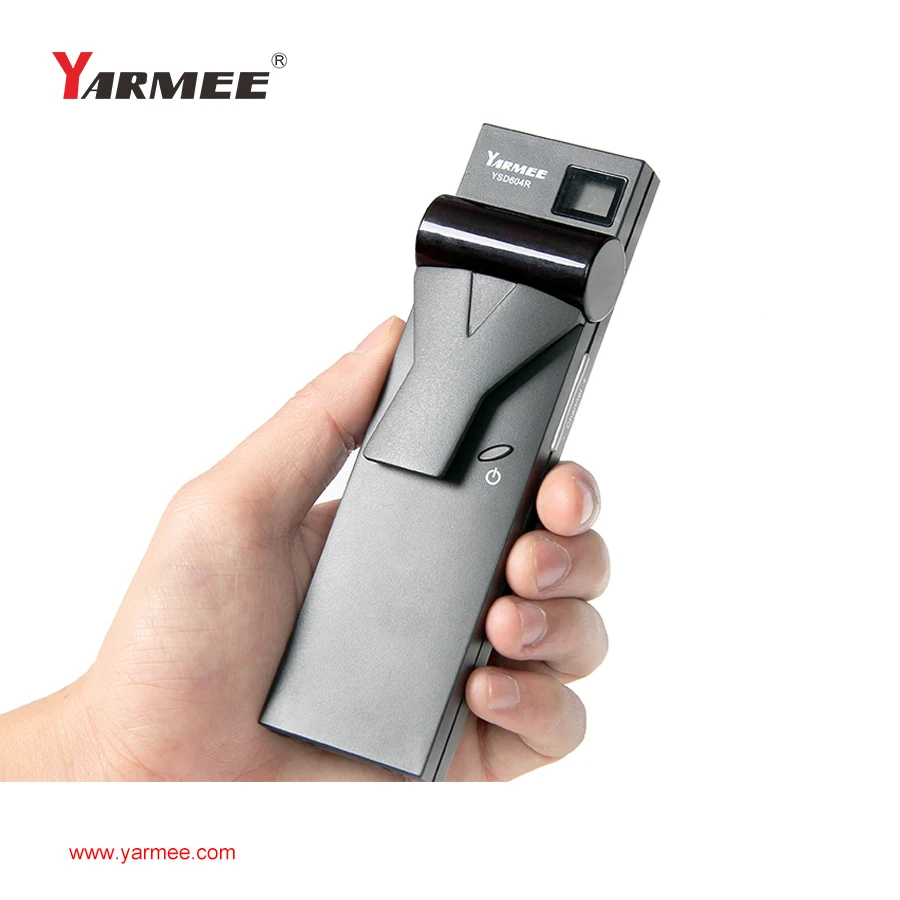

IR Receiver-YSD604R
IR Receiver-YSD604R
1. Support 4,8,16 or 32 channels available 2. Immune to interference from HF-driven lighting 3. Flexible configuration of channels and channel quality modes 4. LCD receiver display channel number and battery capacity 5. 28 level adjustable volume 6. Digital infrared signal transmission, low noise, no broken sound, wide dynamic range Ergonomically compact and elegant design 7. Simple operation, lightweight, convenient to carry 8. Lightweight and handy receiver in conjunction with single earphone or headphone for easy and comfortable use 9. Use rechargeable batteries, can work continuously for 15 hours, and equipped with charging box 10. Setting data electricity saving function 11. Within the scope of the infrared emission, no restricted quantity of the receiver Freedom of movement within the range of IR power radiator 12. Channel selection via up/down button 13. Works without errors, even in bright sunlight 14. Compliant to IEC 61603-7 and IEC 60914
Parameter of digital IR receiver:
Items
Parameter
Receiving sensitivity
-101dBM
Angle of half sensitivity
± 50°
Headphone output level at 2.4V
450 mVrms (Speech at maximum volume, 32 ohm headphone)
Headphone output frequency range
20 Hz to 10 kHz
Headphone output impedance
32 ohm
Max. signal-to-noise ratio
78 dB(A)
Supply voltage
1.8 to 3.6 V, nominal 2.4 V
Power consumption at 2.4V (battery voltage)
60 mA (speech at maximum volume, 32 ohm headphone)
Power consumption (standby)
60 mA
Dimensions
157×49×25mm
Operating temperature range
0-40 degree
N.W
150g without battery

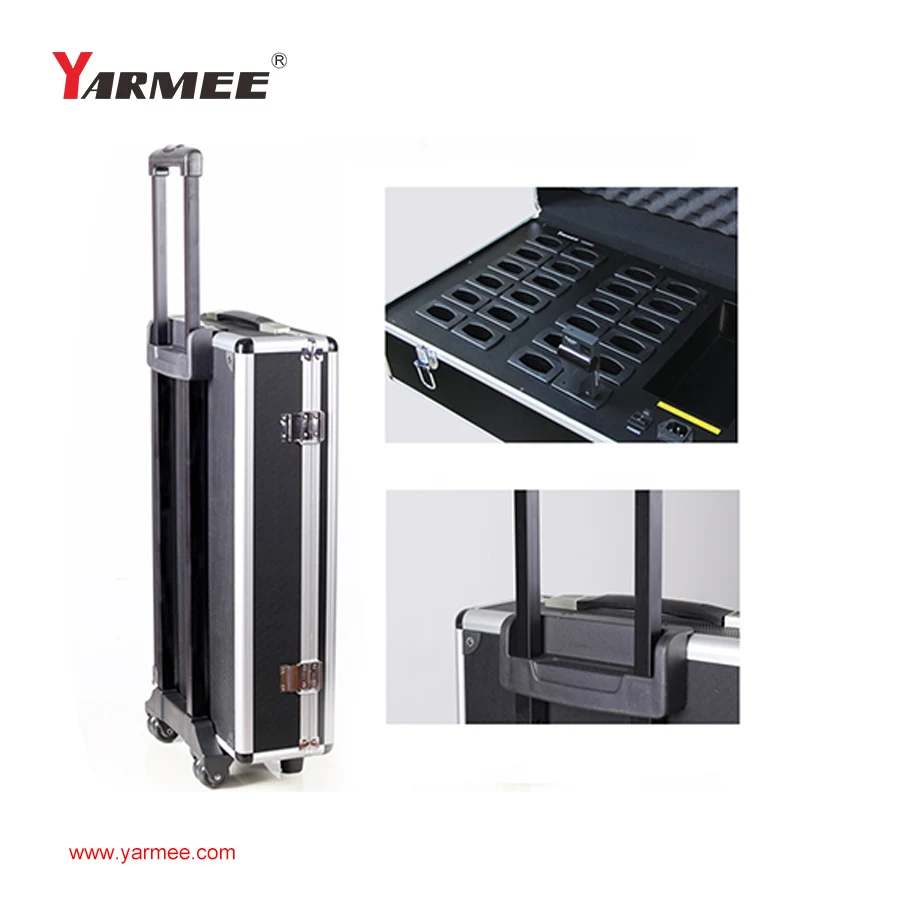

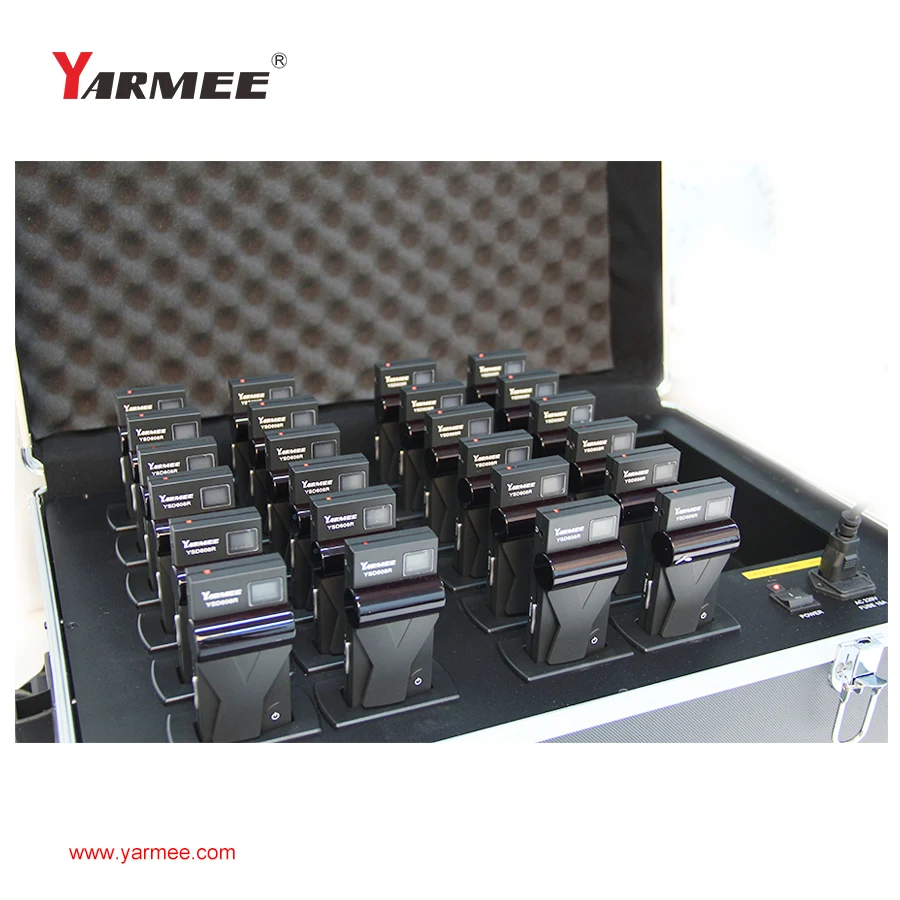

Charger case–YSD604C
220V ac power supply
charges 24 receivers unit per charging
Draw rod extension and convenient pulley for moving
Charging protection function and instructions
