Products Description

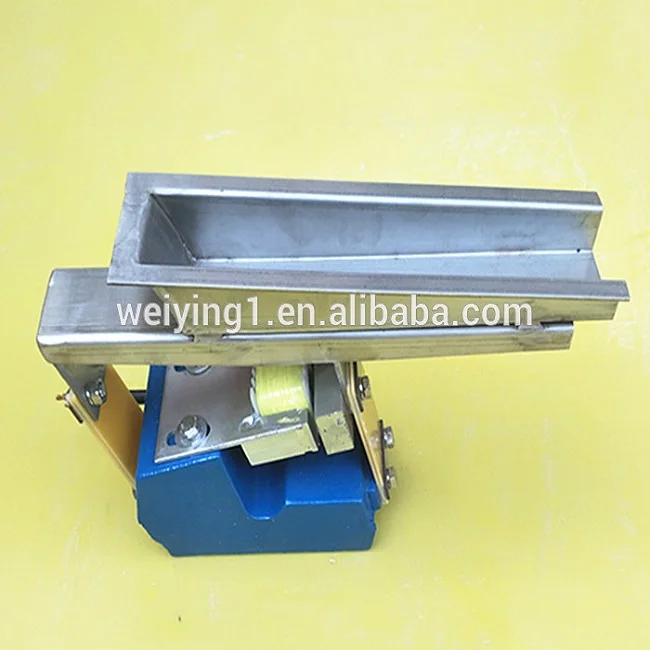

Gzv Series Micro Electromagnetic Vibrating Feeder With Plc Controller
Micro feeder is widely used in light industry, chemical industry, food processing, commercial and other industries, for powder and granular material feeding, batching and quantitative automatic packaging production process, and can realize the centralized control and automatic control. Compared with other types of feeder, micro vibration feeder has the characteristics of small size, light weight, simple structure, less power consumption, stepless adjustment of feed capacity and so on. The machine is equipped with ordinary control box, can realize manual stepless regulation, micro electromagnetic vibration feeder, such as matching automatic control box, can realize manual and automatic adjustment. The miniature vibration feeder is a seat type structure, which can only be placed on the worktable when working. In addition, one or two layers of screen mesh can be added to the feeding tank to become a small vibration screening device.


Product Paramenters






Structure and working principle
With the power on ,a magnetic field will be created .The magnetic force changes into vibrating force, which forces the transmission trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the transmission trough body, which causes the forward motion and transmission of the materials.


Model
GZV0.5
GZV1
GZV2
GZV3
GZV4
GZV5
GZV6
GZV8
Capacity(t/h)
0.05
0.1
0.5
1
2
4
6
8
Frequency
(r/min)
3000
3000
3000
3000
3000
3000
3000
3000
Voltage(V)
220
220
220
220
220
220
220
220
Power(w)
3.5
5
8
20
25
30
50
100
Weight（Kg）
5kg
5kg
7kg
13kg
20kg
23kg
53kg
70kg
Double Amplitude(mm)
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5




型号
B
B1
B2
B3
L
L1
L2
H
H1
GZV 0.5
30
50
50
76
200
285
95
20
170
GZV 1
40
60
50
80
200
273
95
20
170
GZV 2
60
80
60
80
300
374
100
30
190
GZV 3
80
110
75
106
400
480
224
40
230
GZV 4
100
130
80
120
500
568
295
50
260
GZV 5
120
150
95
120
550
630
330
60
270
GZV 6
200
240
120
180
600
760
440
70
320
GZV 8
300
3400
180
230
1000
1050
560
70
340


The feed groove can be customized according to the requirements






Details Images




GZV series feeders must be equipped with an electric control box, and the electric control box is provided with a power switch, a flow control knob, a rectifier and a Mameter indicating the current
change.
Factory Direct Sale GZV Electric Vibrator Motor
Please contact me for the latest quotation




Packing&shipping


The electromagnetic vibration feeder is packed in wooden cases

Our products are packed in wooden cases, which can effectively prevent the goods from being damaged in transit.
Factory Direct Sale GZV Electric Vibrator Motor




Our Company




From Xinxiang Weiying Machinery Co.,Ltd
We are a professional manufacturer of lifting platform, has a history of five years, technology in the industry in a leading
position.Where can we buy all the GZV micro electromagnetic vibration feeder , and customers can enjoy our company's long-term technical consulting services. Our products can be OEM production, to meet your special needs.We have a long-term cooperation with the shipping company, which can make the goods faster and more efficient, so that they can be safely delivered to the designated place as a guest1.



The product conforms to the national safety standard and has obtained CE and ISO certification
