Турбина для выработки электроэнергии
US $890.00-$1100
DTEC биомассы и MSW электростанции паровой турбинный N6-3.53 газификации отходов к электричеству
- Категория: Генерация электроэнергии >>>
- Поставщик: Dongturbo,Electric,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.42 $* | 0.86 $* |
| Aug-18-2025 | 0.45 $* | 0.53 $* |
| Jul-18-2025 | 0.36 $* | 0.33 $* |
| Jun-18-2025 | 0.80 $* | 0.91 $* |
| May-18-2025 | 0.72 $* | 0.96 $* |
| Apr-18-2025 | 0.61 $* | 0.66 $* |
| Mar-18-2025 | 0.30 $* | 0.71 $* |
| Feb-18-2025 | 0.84 $* | 0.54 $* |
| Jan-18-2025 | 0.70 $* | 0.77 $* |
Характеристики
Product Description
Due to the limited steam production of waste incineration power plants, all steam turbines suitable for waste incineration power plants are condensing steam turbines. A medium pressure or sub-high-pressure condensing steam turbine with a power of 6~12MW, strong water corrosion resistance in low-pressure section and strong off-design capability is most suitable for waste incineration power plants.

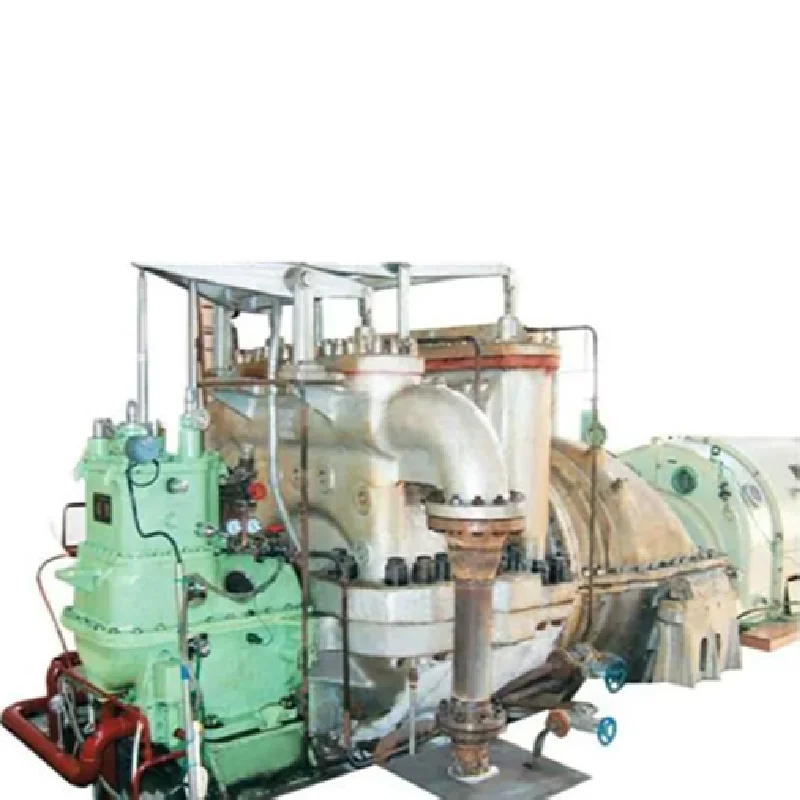

MSW Power Station Steam Turbine (6~12MW)
MSW Power Station Steam Turbine (6~12MW)
Parameters
Model | Power(MW) | Speed(RPM) | Direction | Inlet | Outlet Pressure（Mpa)） | Feed Water Temp. (℃) | ||
Pressure(Mpa) | Temp.(℃) | |||||||
N6-3.53 | 6 | 3000 | From steam turbine Steam inlet direction Look clockwise | 3.53 | 390 | 8.43 | 130 | |
N6.5-3.80 | 6 | 3000 | 3.8 | 395 | 8.7 | 140 | ||
N12-3.8 | 12 | 3000 | 3.8 | 390 | 7.88 | 145.4 | ||
Model | Operating floor elevation | Turbine body weight | Total Weight of Upper Half | Total Rotor Weight | Size | Turbine Center Height |
N6-3.53 | 7 | 27 | 10 | 4.5 | 4641×2600×3035 | 750 |
N6.5-3.80 | 7 | 27 | 10 | 4.5 | 4641×2600×3035 | 750 |
N12-3.8 | 7 | 44 | 13.8 | 6.45 | 5288×3590×3530 | 750 |
Layout: single or double layer
Speed Control System: Hydraulic actuator manufactured by Siemens Technology of German Electro-hydraulic Converter for 505 Digital Governor of USA
Super speed protection: Two sets of mechanical hammer and solenoid valve electronic intelligent control
Steam seal form: stainless steel sheet labyrinth seal
Main valve: Integrated automatic main valve (combined regulating valve)
Main shaft assembly: multi-speed stage impeller blade, rotor and impeller interference set, impeller blade mounted
Lubricating system: forced oil lubrication, with fuel tank, thin oil station and cooler
Thermal expansion compensation: front bearing support sliding heat compensation
Electrical configuration: full set of electronic control cabinet, protection cabinet, main control cabinet, supporting Siemens generator
Truck unit: Electric wheel
Speed Control System: Hydraulic actuator manufactured by Siemens Technology of German Electro-hydraulic Converter for 505 Digital Governor of USA
Super speed protection: Two sets of mechanical hammer and solenoid valve electronic intelligent control
Steam seal form: stainless steel sheet labyrinth seal
Main valve: Integrated automatic main valve (combined regulating valve)
Main shaft assembly: multi-speed stage impeller blade, rotor and impeller interference set, impeller blade mounted
Lubricating system: forced oil lubrication, with fuel tank, thin oil station and cooler
Thermal expansion compensation: front bearing support sliding heat compensation
Electrical configuration: full set of electronic control cabinet, protection cabinet, main control cabinet, supporting Siemens generator
Truck unit: Electric wheel
Our advantages:
1. With a steam turbine manufacture experience of more than 20 years.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
Application
1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven
air blowers, compressors, and other highly energy-intensive equipment.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven
air blowers, compressors, and other highly energy-intensive equipment.
Specification
Manufacturing & Facility
1. GMB2550r CNC gantry miller is processing
runner blade
runner blade
Manufacturing & Facility
2.CNC coil 12-axis expander imported from France
Manufacturing & Facility
3. Dovetail miller
Manufacturing & Facility
4. 10m Vertical lathe
Manufacturing & Facility
5. A corner of workshop
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Actually, in addition to various steam turbines,we can also provide you with all kinds of steam turbine parts. Please feel free to contact us at any time when you are interested in our products.
spare parts include:
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;
Company Profile
Know more about our company
We, Dongturbo Electric Company Ltd.(DTEC). DTEC is an international corporation, with its headquarter in Chengdu, China, and manufacturing bases in Deyang and Kunming, China, mainly engaged in the manufacturing of power & electric equipments, EPCC (engineering, procurement, construction, commissioning), and export and import business. DTEC also has branches and joint venture in Malaysia, Thailand, and Philippine. Our business scope covers EPC, supply equipment and materials for thermal power inc luding boiler, turbine, generator and their auxiliaries, BOP, electric and C& I etc.; EPC and equipment supply for PV, thermal solar power, Wind & PV hybrid and energy storage system.; spare parts supply and power plant overhaul and maintenance;
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
