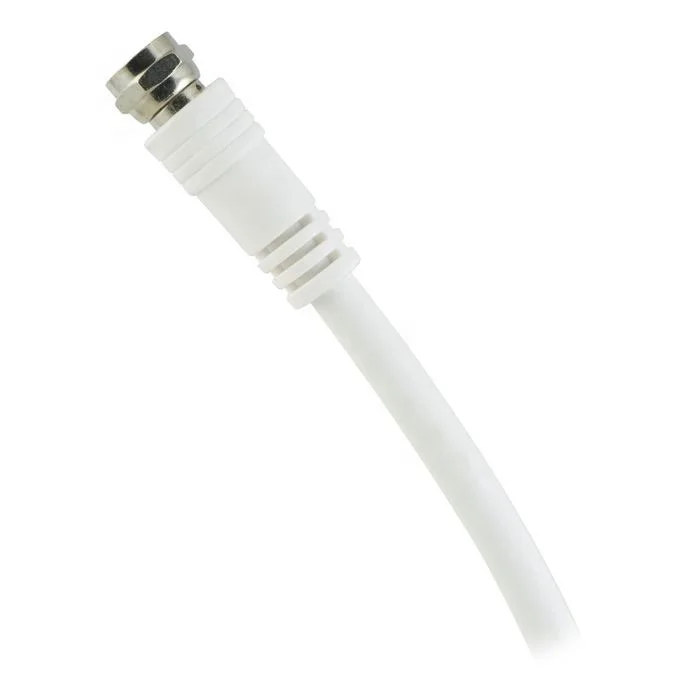

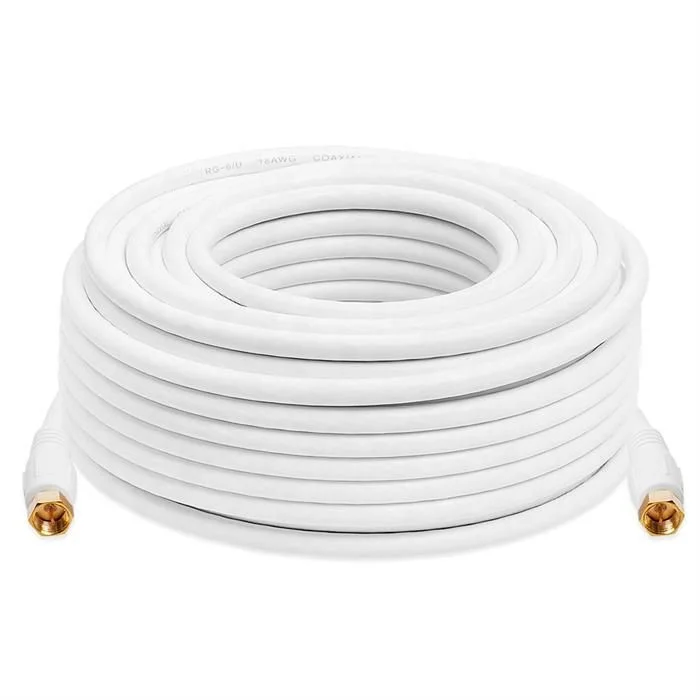

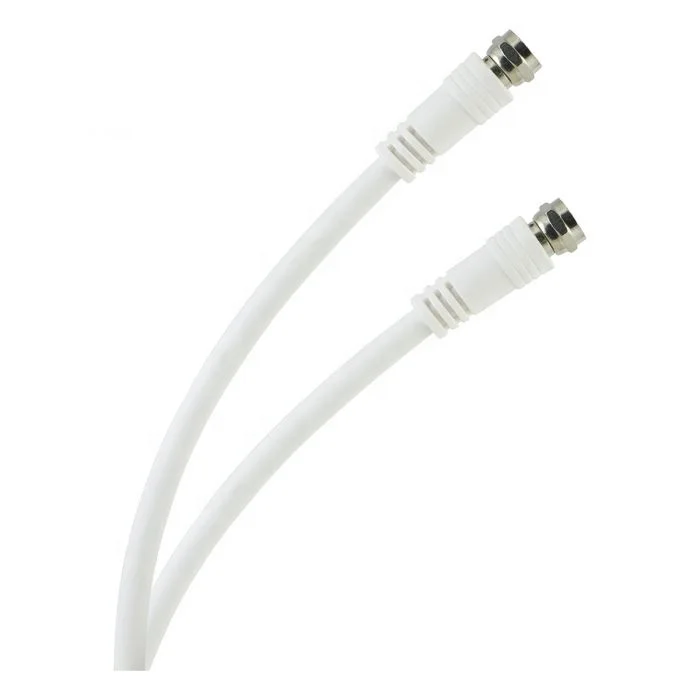

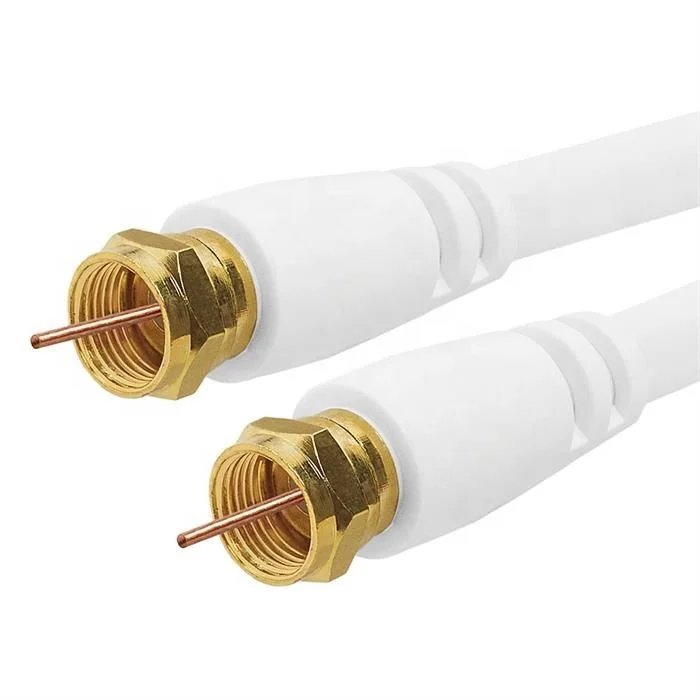

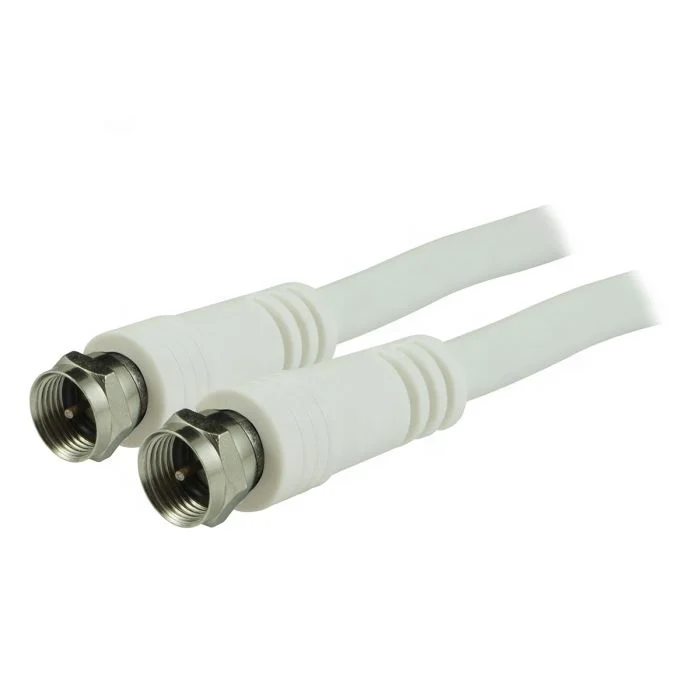

RG6 F разъем коаксиальный кабель ТВ антенна соединительный с разъемом
- Категория: Telecommunications >>>
- Поставщик: Hangzhou,Jianye,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 19.47 $* | 19.33 $* |
| Jul-20-2025 | 15.41 $* | 15.66 $* |
| Jun-20-2025 | 19.19 $* | 19.44 $* |
| May-20-2025 | 19.46 $* | 19.79 $* |
| Apr-20-2025 | 15.83 $* | 15.23 $* |
| Mar-20-2025 | 18.3 $* | 18.91 $* |
| Feb-20-2025 | 18.98 $* | 18.77 $* |
| Jan-20-2025 | 18.94 $* | 18.88 $* |
Характеристики
Products Description
Application:
1, CATV-community antenna television
2, CCTV-closed-circuit television
3, DBS-direct broadcasting satellite
Standard | TRI-Shield | QUAD-Shield | ||
Conductor | material | BC/CCA/CCS | BC/CCA/CCS | BC/CCA/CCS |
Nom.Dia. | 1.02mm | 1.02mm | 1.02mm | |
Dielectric | material | Foam PE/Solid PE | Foam PE/Solid PE | Foam PE/Solid PE |
Nom.Dia | 4.8mm | 4.8mm | 4.8mm | |
Shield | Material | AL Foil+AL/BC/CCA Braiding+Al Foil | AL Foil+AL/BC/CCA Braiding+Al Foil | (AL Foil+AL/BC/CCA Braiding)*2 |
Coverage | 45%-95% | 45%-95% | 60%/40% | |
Jacket | Material | PVC/PE | PVC/PE | PVC/PE |
Nom.Thick | 0.8mm | 0.8mm | 0.8mm | |
Nom.Dia. | 6.8mm | 7.06mm | 7.42mm |
Attenuation | ||||
Frequency(MHZ) | Maximum(dB/100ft) | Maximum(dB/100m) | ||
5 | 0.58 | 1.9 | ||
55 | 1.6 | 5.25 | ||
187 | 2.85 | 9.35 | ||
300 | 3.55 | 11.64 | ||
450 | 4.4 | 14.43 | ||
600 | 5.1 | 16.73 | ||
750 | 5.65 | 18.54 | ||
865 | 6.1 | 20.01 | ||
1000 | 6.55 | 21.49 | ||
Nominal Impedance(Ohm) | 75+/-3 | |||
Nominal Velocity of Propagation(%) | 85 | |||
Nominal Capacitance(pF/m) | 50 | |||
Speaker Test(VAC) | 4000 | |||
SRL(dB) | 20 | |||
Details Images
Application
Product packaging
Coaxial Cable packing :
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
Company Profile
Hangzhou Jianye Cable Co.,Ltd is a Professional manufacturer with more than 10 years experience in the communications cable industry in China. We can manufacture and supply coaxial cables, lan cables, fiber optic cables and the cable assembly etc,. we have 16 produce lines can supply 8*40ft containers cargo per day . some cables such as RG59,RG6 with power , cat5e ,cat6 ,cat7
,Drop cable,ADSS cable, GYXTW cable , hot sell at south east ,Europe, America ,mid east market and good feedback.Our factory is located in Lin an Hangzhou city,only 3 hours to Shanghai and Ningbo sea Port , Convenient transportation and fast delivery .
We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We have very advanced testing machines, including Agilent, HP analyzer, OTDR... We Controls the quality constantly and strictly in order to give the best products to the users.
Our company always devotes to developing custom cables according to clients needs. We can make design for you from specification to logo , packing , look forward to working with you and getting mutual benefit in future.welcome visit us any time . thank you .
,Drop cable,ADSS cable, GYXTW cable , hot sell at south east ,Europe, America ,mid east market and good feedback.Our factory is located in Lin an Hangzhou city,only 3 hours to Shanghai and Ningbo sea Port , Convenient transportation and fast delivery .
We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We have very advanced testing machines, including Agilent, HP analyzer, OTDR... We Controls the quality constantly and strictly in order to give the best products to the users.
Our company always devotes to developing custom cables according to clients needs. We can make design for you from specification to logo , packing , look forward to working with you and getting mutual benefit in future.welcome visit us any time . thank you .
