Трехшарошечное долото API 17 1/2 дюйма IADC537 TCI Буровая головка для нефти и


Поделиться:


Цена:5 700,00 $ - 5 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 6783.58 $* 7122.7 $*
Aug-18-2025 6726.8 $* 7062.59 $*
Jul-18-2025 5643.22 $* 5925.33 $*
Jun-18-2025 6612.73 $* 6943.53 $*
May-18-2025 5757.72 $* 6045.56 $*
Apr-18-2025 6498.75 $* 6823.97 $*
Mar-18-2025 6441.19 $* 6763.24 $*
Feb-18-2025 6384.20 $* 6703.37 $*
Jan-18-2025 6327.43 $* 6643.25 $*

Характеристики



Product Description

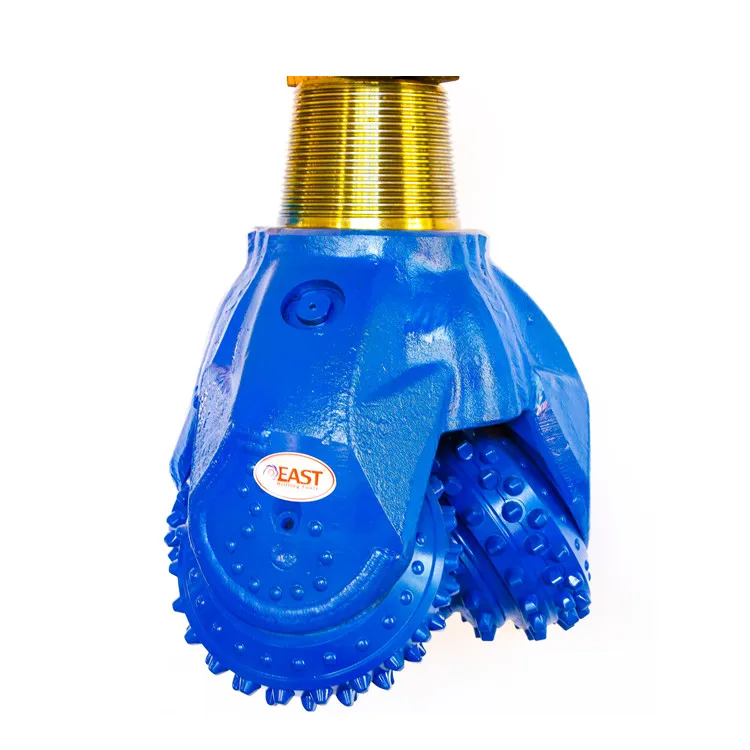

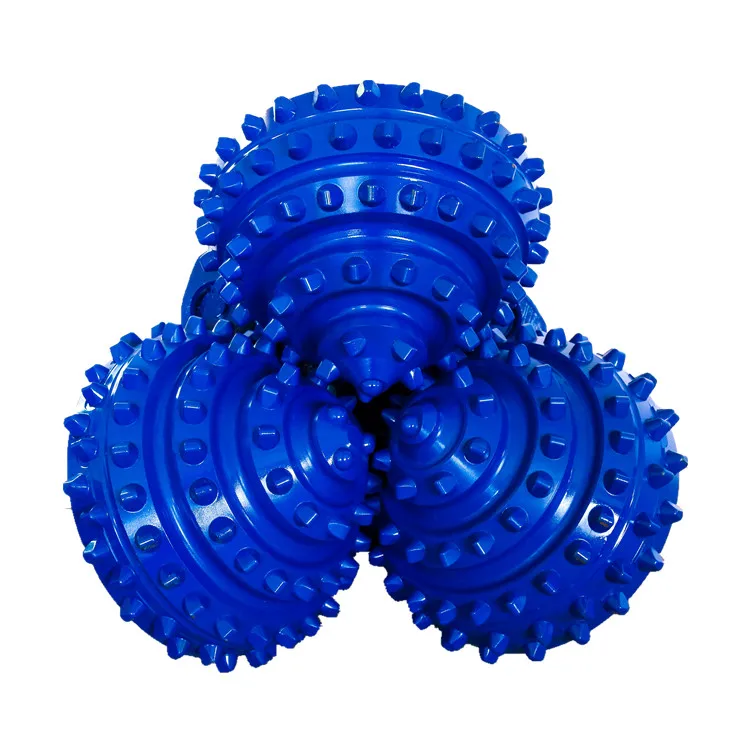

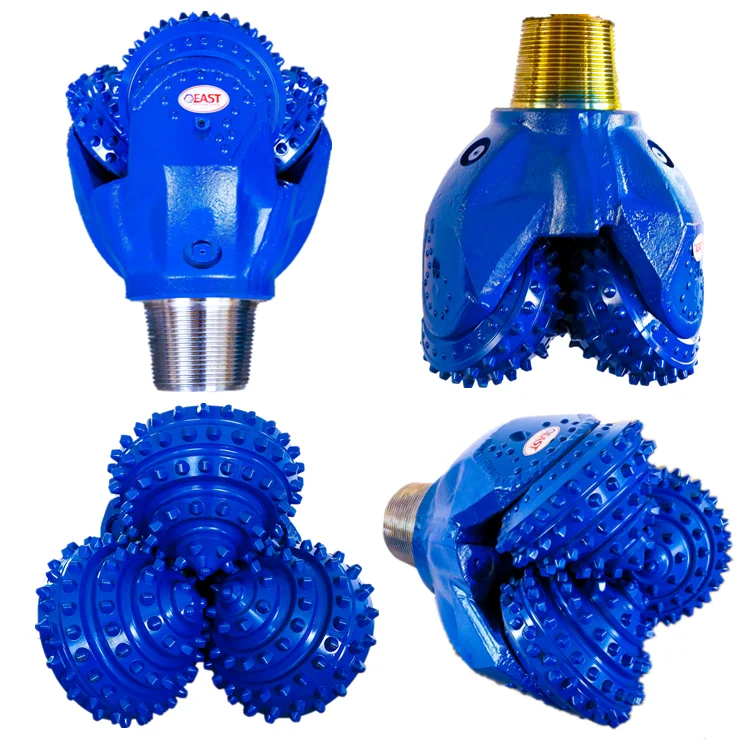

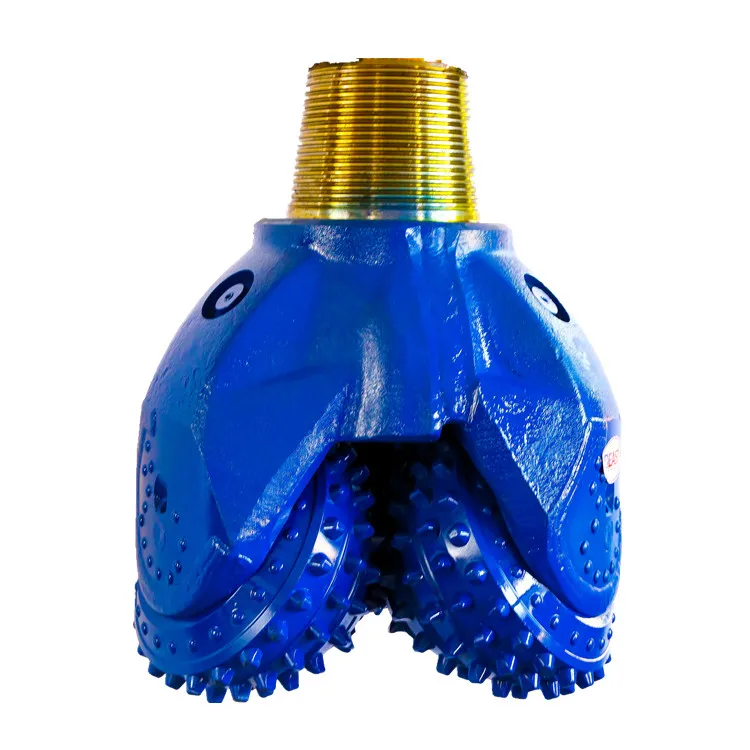

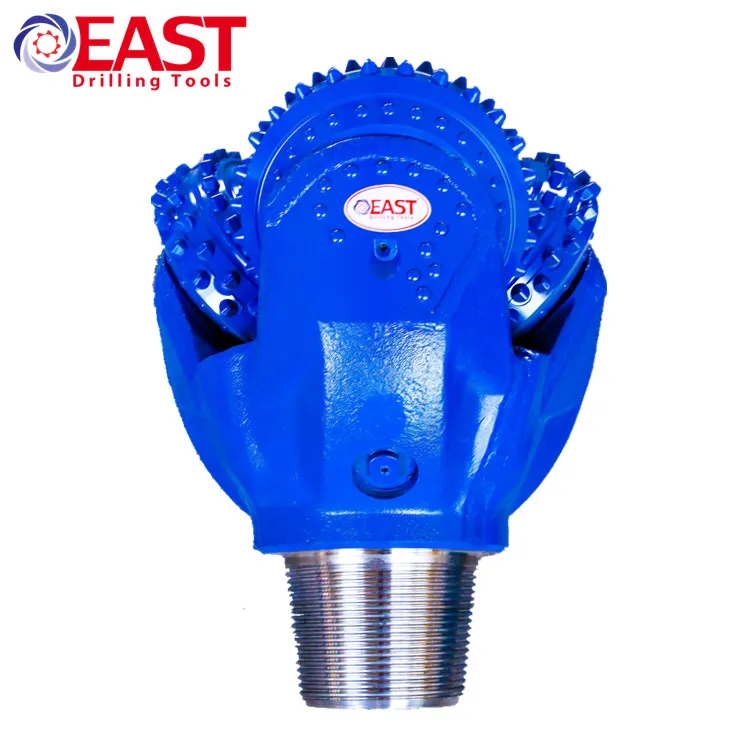

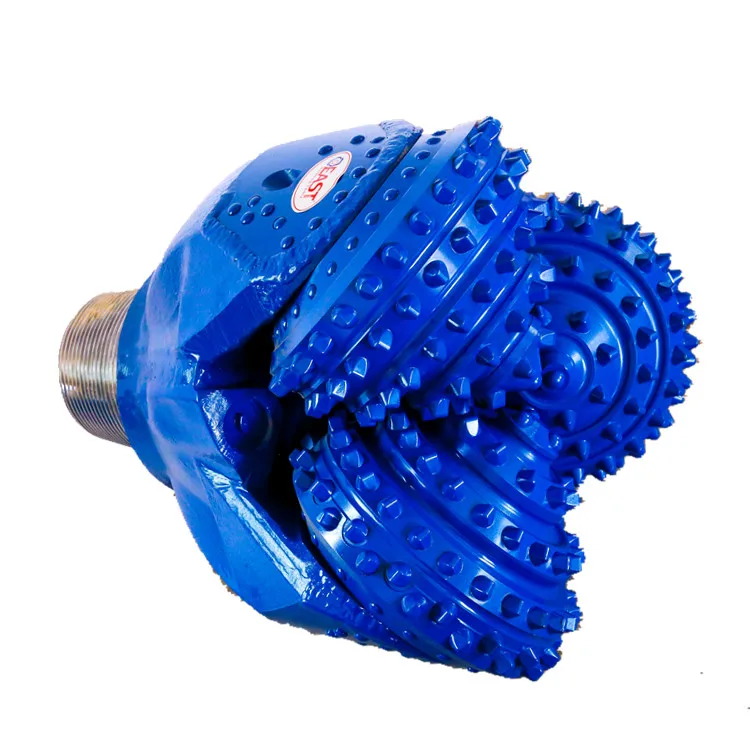

API 17 1/2" IADC537 TCI tricone bit oil gas bit rock drill head
Tricone bit is mainly used in oil well,water well, and geothermal well drilling engineering.Our well drilling bit is designed and manufactured according to the standard of API 7-1. Its features as long life, high drilling efficiency and low operation cost.
At present, more than 20 types drilling bit with sizes ranging from 3" to 26" have been developed by our team, which can be applied to different formations from soft to very hard.
There are two main bearings which are O-Ring sealed and Metal Sealed,it can meet clients difference requirements with different drilling technologies such as conventional drilling and directional drilling.




API 17 1/2" IADC537 TCI tricone bit oil gas bit rock drill head
 Bit Diameter
17 1/2"=444.5 mm
 IADC
537
Pin Thread
API Reg. 7 5/8
Bearing
O-Ring Sealed Bearing
Net/Gross Weight
280Kgs
Packing Size
500*500*650 mm
Rotary Speed
120~50RPM
Normal WOB
 0.35~1.05 KN/MM
Cutting Structure
Large dia offset crested scoop compacts in inner row,with added number of compact rows,and a row of trimmers is added between
gauge row and heel row.
Drilling Formation
Medium with low compressive strength and high drill ability,such as shale,clay,sandstone and soft limestone,etc


Optional Features of Tricone Bit


G - Guage Protection
Special carbide inserts are strategically fixed on the back
of cones to effectively reduce wear in abrasive formation and directional and horizontal wells and extend the bit life.
L - Bit Stabilization
The function of bit stabilization is for improving working situation of bit,which can effectively protect head abd compensator recess in well drilling.


C - Center Jet
Center jet can avoid bit balling,eliminate resorting area of fluid at bottom hole,expedition upward flow of cutting and improve ROP.Its suitable for drilling in soft to medium soft formations with low compressive strength and high drill ability.
T - Enhanced Carbide Inserts
The enhanced carbide inserts in heel ,gage rows and head OD can make the bit to work long time and better performance when drilling in more abrasive ,hard and extreme hard formations.



  K - Hard Formation Cutting Structure
The bit adopts unique design parameters and extended cutting tooth-top to imporve the bottom hole crushing wolume and bottom hole coverage of the teeth and improve the penetration rate of the bit in the hard formation drilling.


 X - Wedge Tooth
The main cutting teeth of the bit are wedge-shaped teeth, which have the characteristics of high cutting efficiency and strong crushing resistance for a specific medium soft to medium hard formation, effectively
improving the penetration rate of the bit and making the bit working long time.




 Y - Conical Insert Shape
The main cutting teeth of the bit are conical teeth,which are suitable for drilling in hard and brittle formation.usually IADC 637 tricone bit use this shape carbide insert on cones.


About us


Cangzhou East Drilling Tools Co.,Ltd  is a China professional manufacturer of tricone bit,PDC bit,hole opener ,drag bit in Oil&Gas,Mining and Water Well Drilling fields.

Our company has worked on production and exporting business more than 10 years and have exported to America,UK,Canada,Italy,Dubai,Singapore,Brazil,South Africa and so on.

We have professional team to offer good quality drilling bits and also can provid creative solutions for youSo welcome to visit us !





Why Choose us ?


Cangzhou East Drilling Tools Co.,ltd
As one of the professional suppliers of tricone bit and PDC drill bit in China
* we have more than 500+ clients around the world
* 14+ years export experience can offer good service for you
So if you have any inquiry,pls feel free to contact us !




EAST Drilling Tricone Bit Stock for Normal Types
Diameters
IADC Code
Pin Size
Net/Gross Weight
 Stock Quantity
7 7/8"=200 mm
116,117,127,537,637
API Reg. 4 1/2"
32/35 Kgs
20 Pieces
     8 1/2"=215.9 mm
117,127,437,517,537,637
API Reg. 4 1/2"
40/45 Kgs
50 Pieces
     9 1/2"=214.3 mm
117,127,437,517,537,637
API Reg. 6 5/8"
50/58 Kgs
30 Pieces
     9 7/8"=250 mm
117,127,437,517,537,637
API Reg. 6 5/8"
55/68 Kgs
20 Pieces
    12 1/4"=311 mm
117,127,437,517,537
API Reg. 6 5/8"
80/95 Kgs
32 Pieces
    13 5/8"=346 mm
117,127,437,517,537
API Reg. 6 5/8"
110/125 Kgs
12 Pieces
    14 3/4"=375 mm
117,127,437,517,537
API Reg. 7 5/8"
130 /145 Kgs
12 Pieces
    17 1/2"=444.5 mm
117,127,437,517,537,637
API Reg. 7 5/8"
270/290 Kgs
15 Pieces
Notice:  the stock was changed every week,if you need ready stock,pls confirm with us in advance


Recommend Products


TCI Tricone Bit
Steel Tooth Bit
PDC Bit


Step Drag Bit
Core Barrel
Single Roller Cone


Hole Opener / Reamer Bit
Wellhead Tools
Casing&Drill Pipe


Packing & Delivery


Packing

Plywood box is the most popular packing for tricone bit,we also accpet special packing reqirement before shipment or production.For example ,Carton Box Design with your company name.



Delivery

Usually we have enough stock for the normal size of tricone bits ,so the delivery time will be 2-3 work days,we need this time to paint and packing.If we dont have stock or stock is not enough,we will need 7-30 work days to produce as your requirement.







FAQ


Q: Are you trading company or manufacturer ?

A: We are factory and has exported many years.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. We need  produce time 7-15 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for testing with very good price but is not free,we can reduce some money for further coopertation .



Q: What is your terms of payment ?

A: If the goods on stock, 100% in advance. If the lead time more than 10 work days,Payment 30% T/T in advance ,rest balance before shippment,or 100% payment in advance through Alibaba.com.
If you have another question, pls feel free to contact us as below:
