Дизельная генераторная установка электронный блок управления скоростью регулятор скорости ESD5500
- Категория: Детали и аксессуары для генераторов >>>
- Поставщик: Ningde,Safety,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 24.0 $* | 25.2 $* |
| Aug-16-2025 | 24.64 $* | 25.54 $* |
| Jul-16-2025 | 20.89 $* | 21.44 $* |
| Jun-16-2025 | 23.41 $* | 24.88 $* |
| May-16-2025 | 20.97 $* | 21.22 $* |
| Apr-16-2025 | 23.49 $* | 24.1 $* |
| Mar-16-2025 | 23.95 $* | 24.90 $* |
| Feb-16-2025 | 22.53 $* | 23.97 $* |
| Jan-16-2025 | 22.75 $* | 23.3 $* |
Характеристики
Specification
Speed stablity | Better than ±0.25% | Speed range | 1Khz ~ 7.5Khz |
Thermostablity | Max ±1% | Idle adjustment | 160 ± 20Hz ~ Rated speed 95% |
Products Description
Features：
1. This product adopts full electronic closed loop design.
2. It can control a wide range of engines.
3. Fast and precise response to instantaneous changes.
4. It can prevent reverse battery voltage, instantaneous pulse voltage.
5. Easy to install, pre-adjustable, adjustable speed work idle.
6. High reliability and it can withstand all kinds of electromagnetic interference around the engine.
2. It can control a wide range of engines.
3. Fast and precise response to instantaneous changes.
4. It can prevent reverse battery voltage, instantaneous pulse voltage.
5. Easy to install, pre-adjustable, adjustable speed work idle.
6. High reliability and it can withstand all kinds of electromagnetic interference around the engine.
Specification：

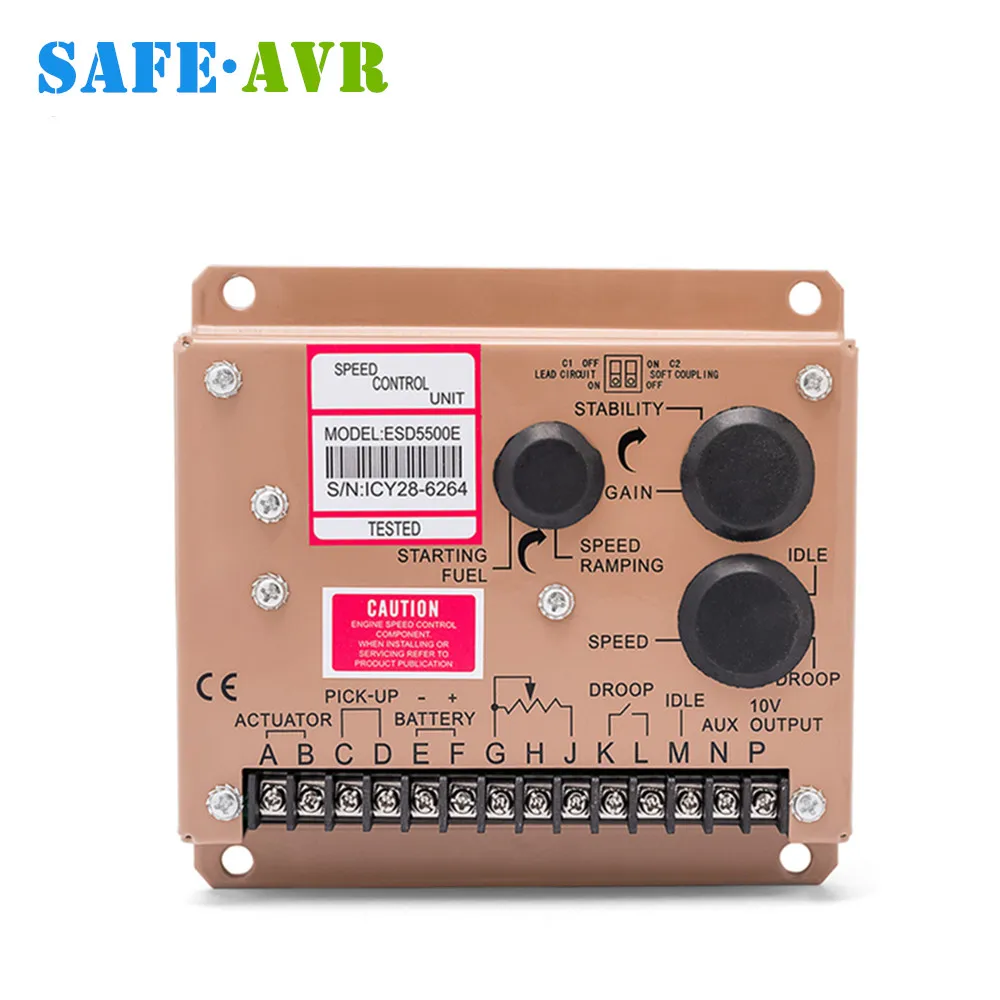

--Model: ESD5500E
--Speed range: 1KHz ~ 7.5KHz
--Thermostability: Max.+1%
--IDLE adjustment: 160±20Hz ~ 95% of rated speed
--DROOP adjustment: The minimum position is 15Hz +6Hz/ load current change per ampere
--The maximum position is 400Hz +75Hz/ load current change per ampere
--External speed adjustment:±200Hz (external 1KQ)
--Weight: Approx.600g/ 21.2oz
--Speed range: 1KHz ~ 7.5KHz
--Thermostability: Max.+1%
--IDLE adjustment: 160±20Hz ~ 95% of rated speed
--DROOP adjustment: The minimum position is 15Hz +6Hz/ load current change per ampere
--The maximum position is 400Hz +75Hz/ load current change per ampere
--External speed adjustment:±200Hz (external 1KQ)
--Weight: Approx.600g/ 21.2oz
Package list:

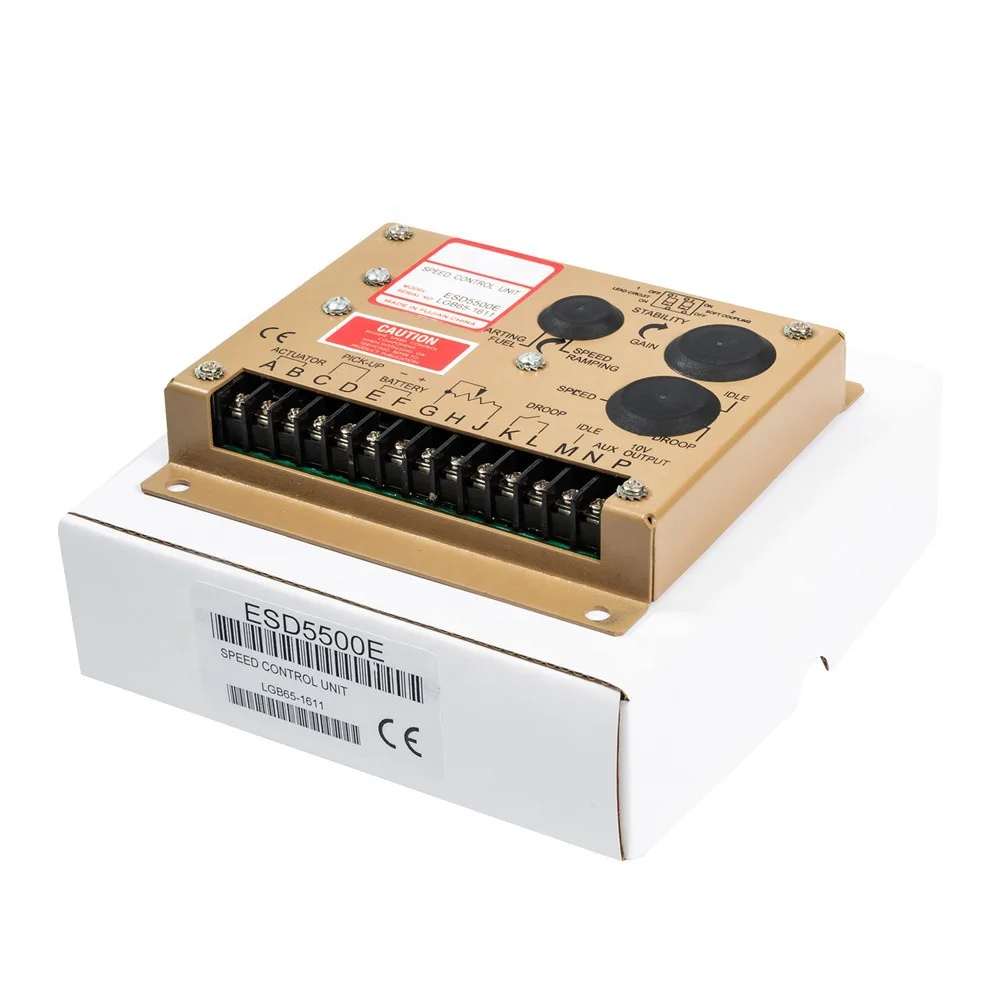

1 * Speed Controller ESD5500E
Note：
Please allow slight error due to manual measurement. Thanks for your understanding.

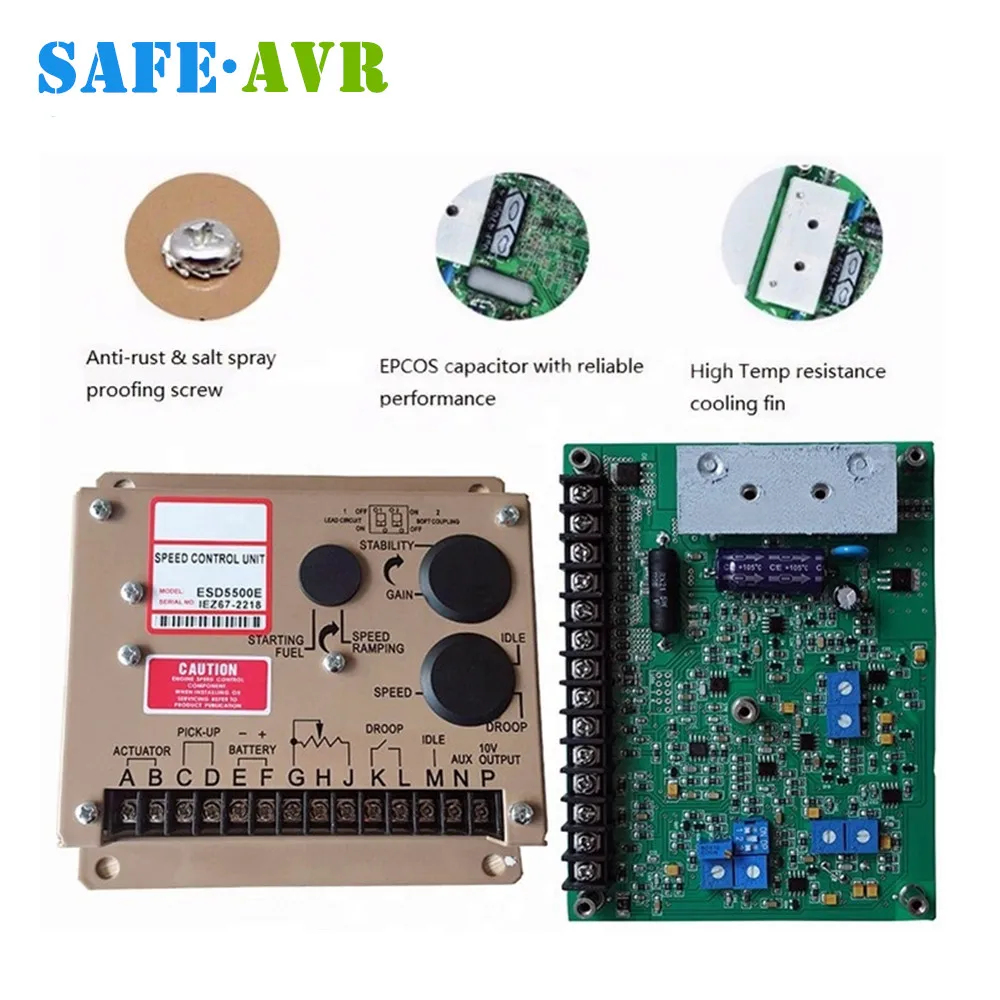

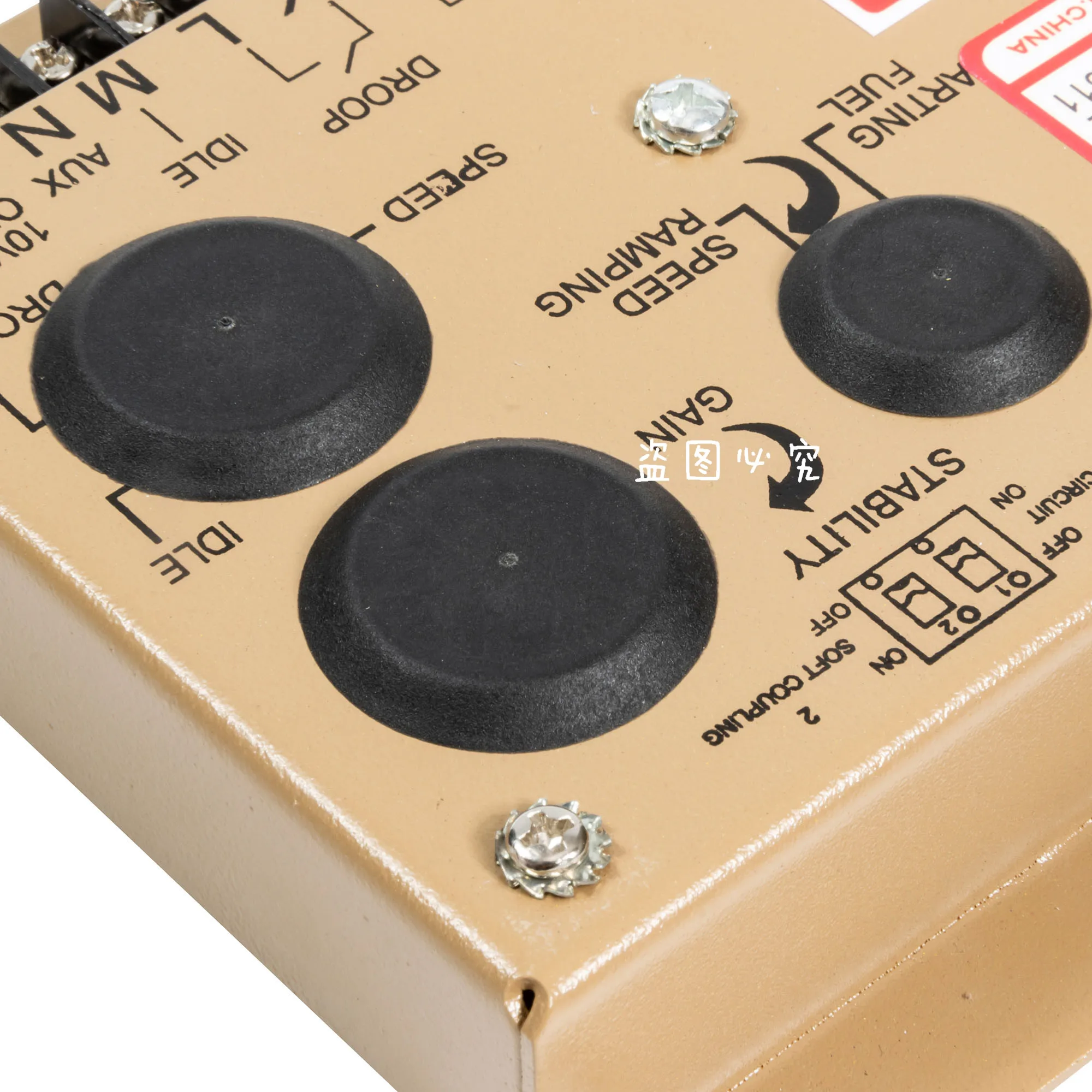

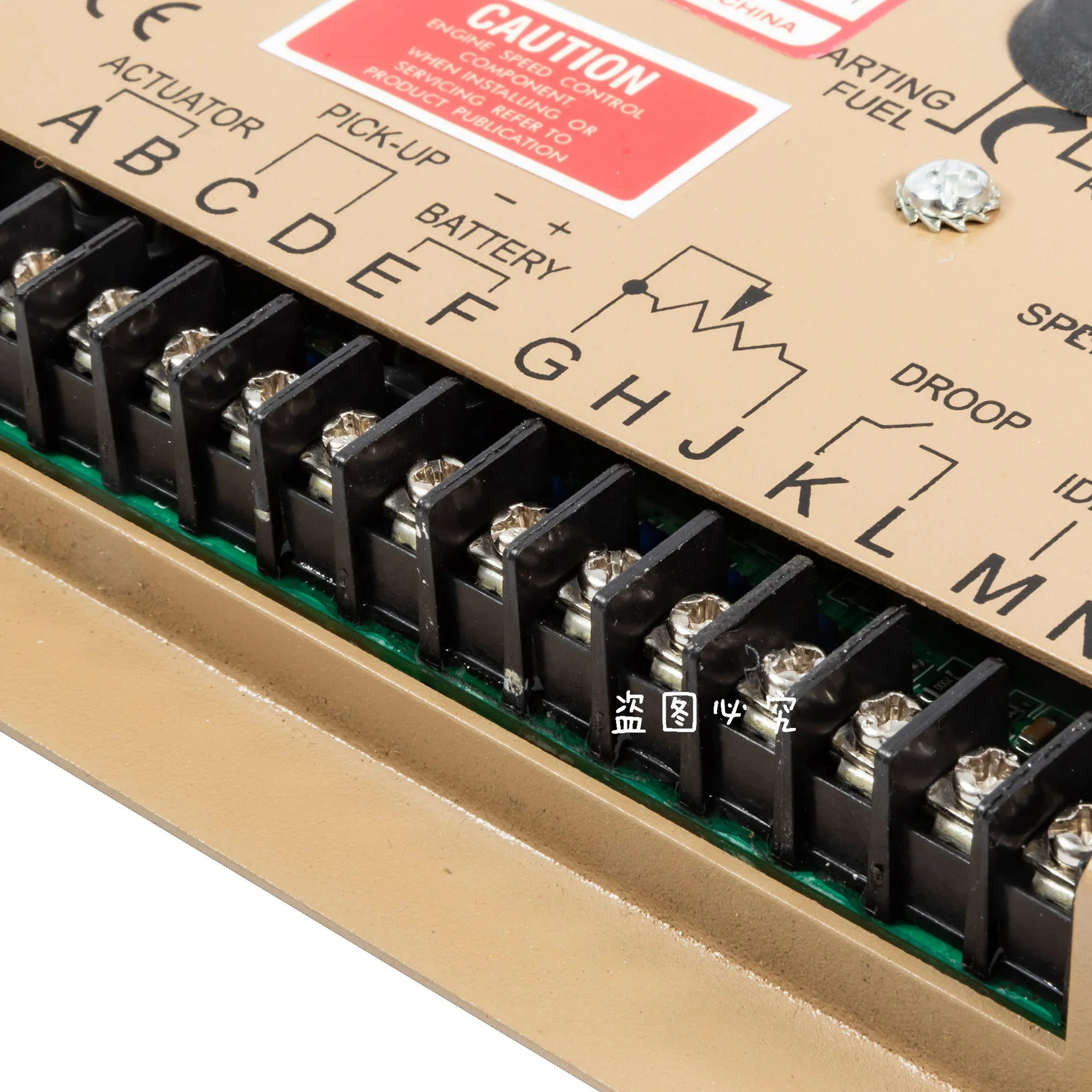

ESD5500E Electronic Governor For Generator is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
Details Images
You May Like
Company Profile
Fu'an Safe Electronics Co.,Ltd is located in Fu'an, a beautiful coastal city in Fujian province, and also known as the small and medium motor capital of China, which neighbors Fuzhou port and Changle airport, and enjoys convenient water transport. Safe set up on 2010, specializes in producing parts and components for diesel generator set, such as Cummins engine governor rectifiers, chargers ,avrs t,generator controllers and has accumulated years of operational and managerial experiences in this trade. It has also established long-term, stable partnerships with a number of domestic motor manufacturers and agents. We always focused on research, development and innovation. .In order to ensure high quality, we have set up systematic & experienced teams and rigorously enforced rules. Our products have been exported to Middle East,South America,South Asia,Europe and are very popular among consumers. Once you give us the chance, we will provide you with our best quality products with professional design,reasonable price, fast delivery and sincere service.
Packing & Delivery
FAQ
Q: Is our company a trade company or factory?
A: We are manufacturer, we have own factory for AVR, Rectifier diodes. And have OEM factory for other parts like control moduel ,speed control and canopy parts etc. Which is certified by Alibaba and our showed photos can prove it.
Q: Are the products original ?
A: Most the goods are replaced type made in china, but can 100% replaced the original one with reliable performance. Also we supply the Original parts for the parts too.Welcome to inquiry
Q: What' s the warranty?
A: Standard warranty 12months for all the goods. Vip enjoy 24months warranty
Q: Whats the leading time for the goods?
A: 80% of goods in stock supply will be sent out immediately against payment. Whole process time for your information
1. 2-3days to express warehouse from our city;
2. 6-12 days from china to your address
1. 2-3days to express warehouse from our city;
2. 6-12 days from china to your address
Q: Can you provide the free sample?
A: Usually we didnt provide the free sample.But can apply some free sample according to your company qualification.But freight cost should be paid by customer.
