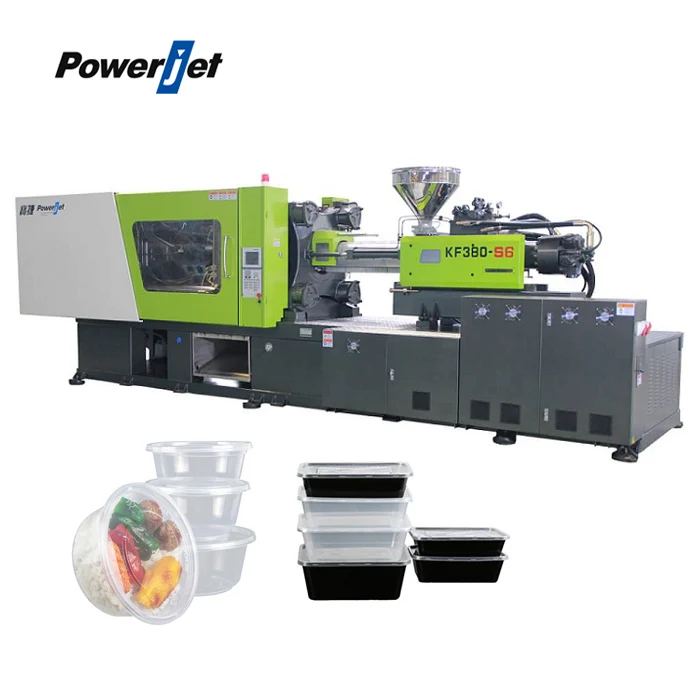

Powerjet high speed food box container thin wall plastic injection molding machine



Powerjet provides specialized injection molding machines dedicated to plastic cutlery products, such as: thin-wall food box containers, plastic spoons, forks and knives, etc..  We have improved the injection system to makes thin-wall products easier to solidify, and can save 30-50% of energy compared to common models.

KF series is our specialized injection molding machine for thin-wall products



FEATURES:

1:Energy-Saving 30%~50%
Servo motor with energy-saving controlled hydraulic systems can save electricity up to 30%~50%.

2:Low Temperature Injection
Low Temperature Injection Makes More Energy Saving And Keeping Products With High Tenacity And Toughness By Our Innovative Plasticizing System.

3:Low Pressure Injection
Low Pressure Injection To Gain Better Mechanical Protection And Longer Mould Service Life. Also Makes Molding Products With Low Stress And Deformation.

4:Fast Response Speed
Optimized Control System Response Speed Let Our Shooting Rate Reaching The Best Short Time Within 0.3 Seconds.

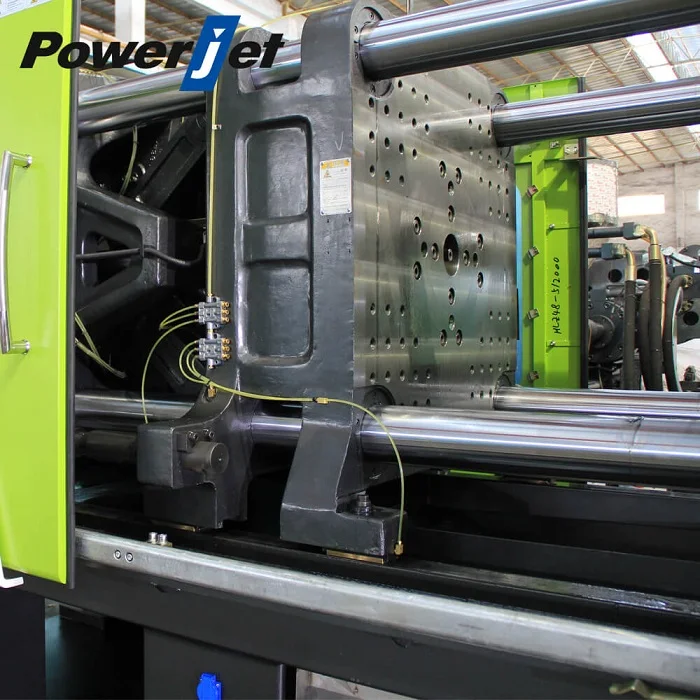

3-Platen Clamping System
Brand new 3-platen clamping design, which will optimize the stress distribution and has higher rigidity and more stable performance, meeting the demand of rapid mechanical movement.



Duplex Pull Rods
Injection movement structure of duplex pull rods can consolidate location and have more precise centering.



Oil Circuit Design
Special oil circuit design greatly improves the injected acceleration & movement.



Rigid Frame
New rigid frame and better shock-absorbing guarantee more stable production.



Guide Rail
Low resistance linear guide rail, positioning precision, fast response, high repeatability.

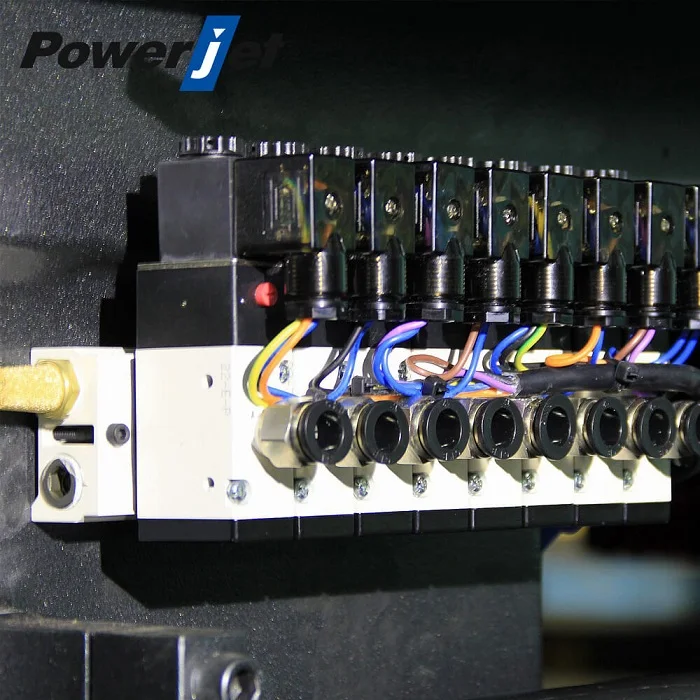

Air Blowing
The standard configuration of multi-sets of air blowing is designed specially for fast cycle production.

Parameter Description:

	DESCRIPTION	UNIT	KF380-S8
CLAMPING UNIT	Clamping force	KN	380
	Opening stroke	mm	580
	Max.datlight	mm	1230
	Platen size	mm	1000*1000
	Space between bars	mm	670*670
	Max.mold height	mm	650
	Min.mold height	mm	240
	Ejector stroke	mm	180
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	52
	Screw L/D Ratio	L/D	22
	Injection Pressure	MPa	188
	Shot volume	cm3	425
	Screw stroke	mm	200
	Screw speed	rpm	300
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	40+40
	Heater power	KW	28.5

About our company:

Powerjet Plastic Machinery Co., LTD is a high-tech enterprise with more than 20 years of experience in plastic machinery for injection molding and blow molding, which is dominated by "energy saving, high efficiency, high speed and precision".
Powerjet also focuses on the development of special injection molding machines according to customer needs, such as machines for PET preforms, PVC/PPR accessories, thin-walled products, silicone, bakelite and various materials, and provides a one-stop professional solution.
Welcome your contact and consults.
