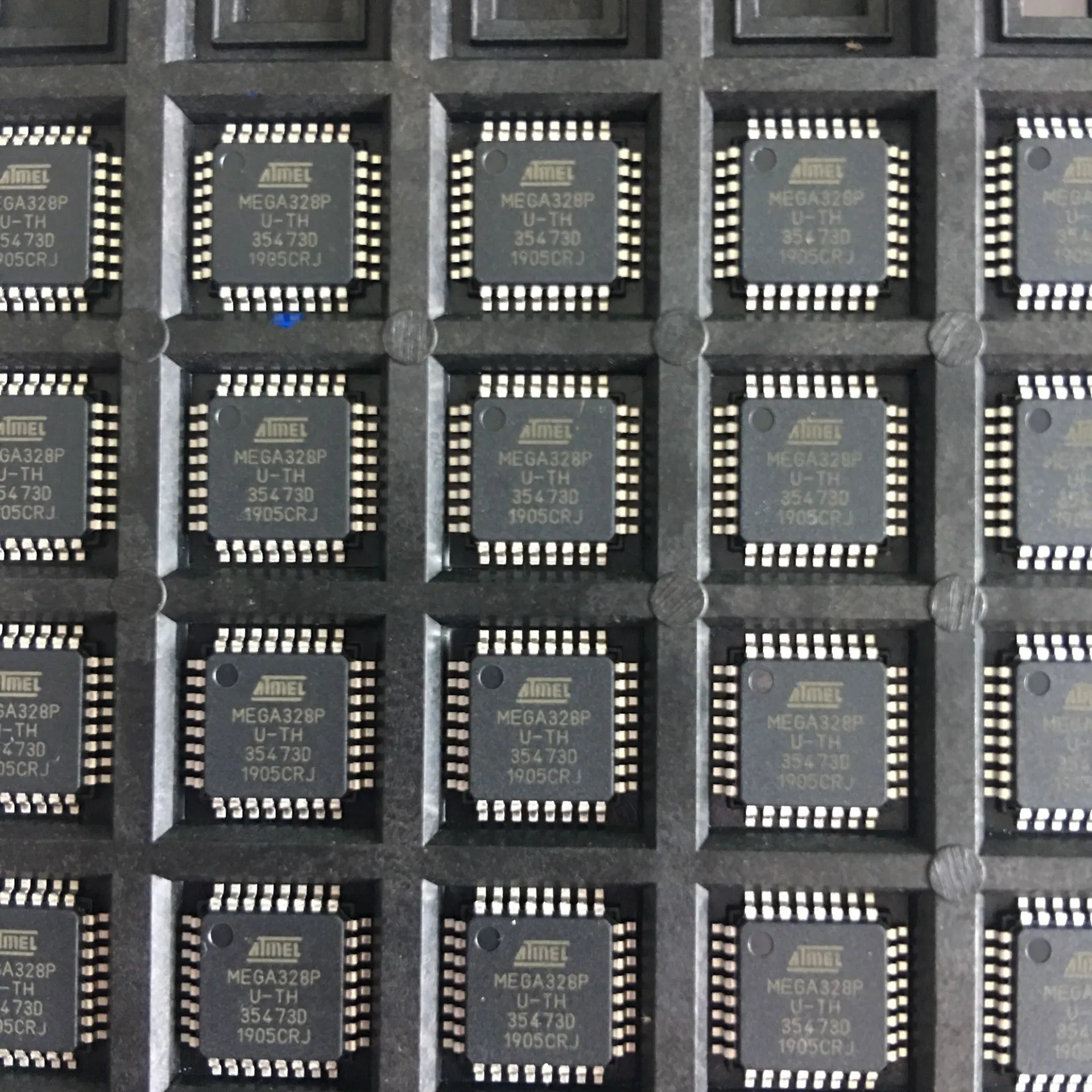

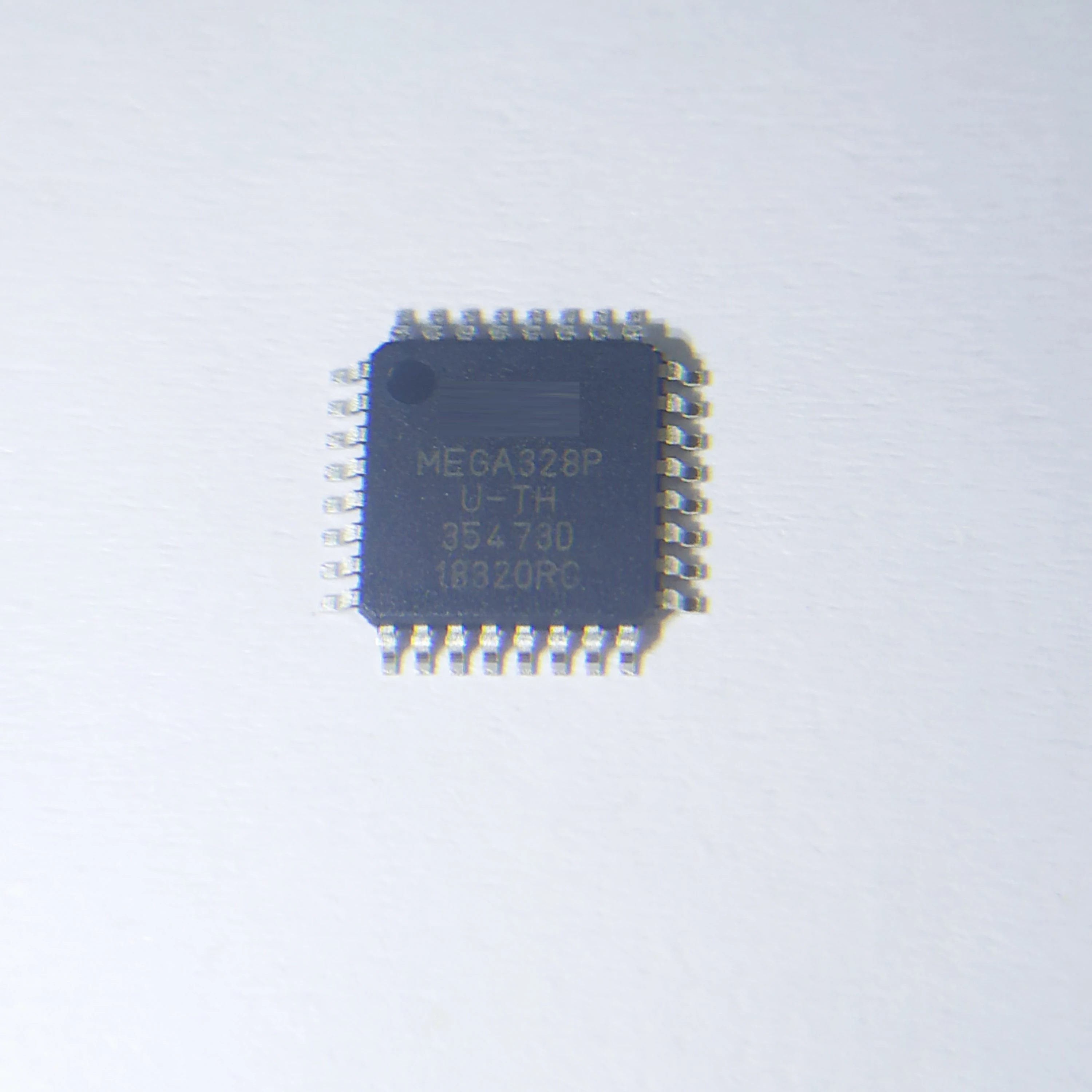

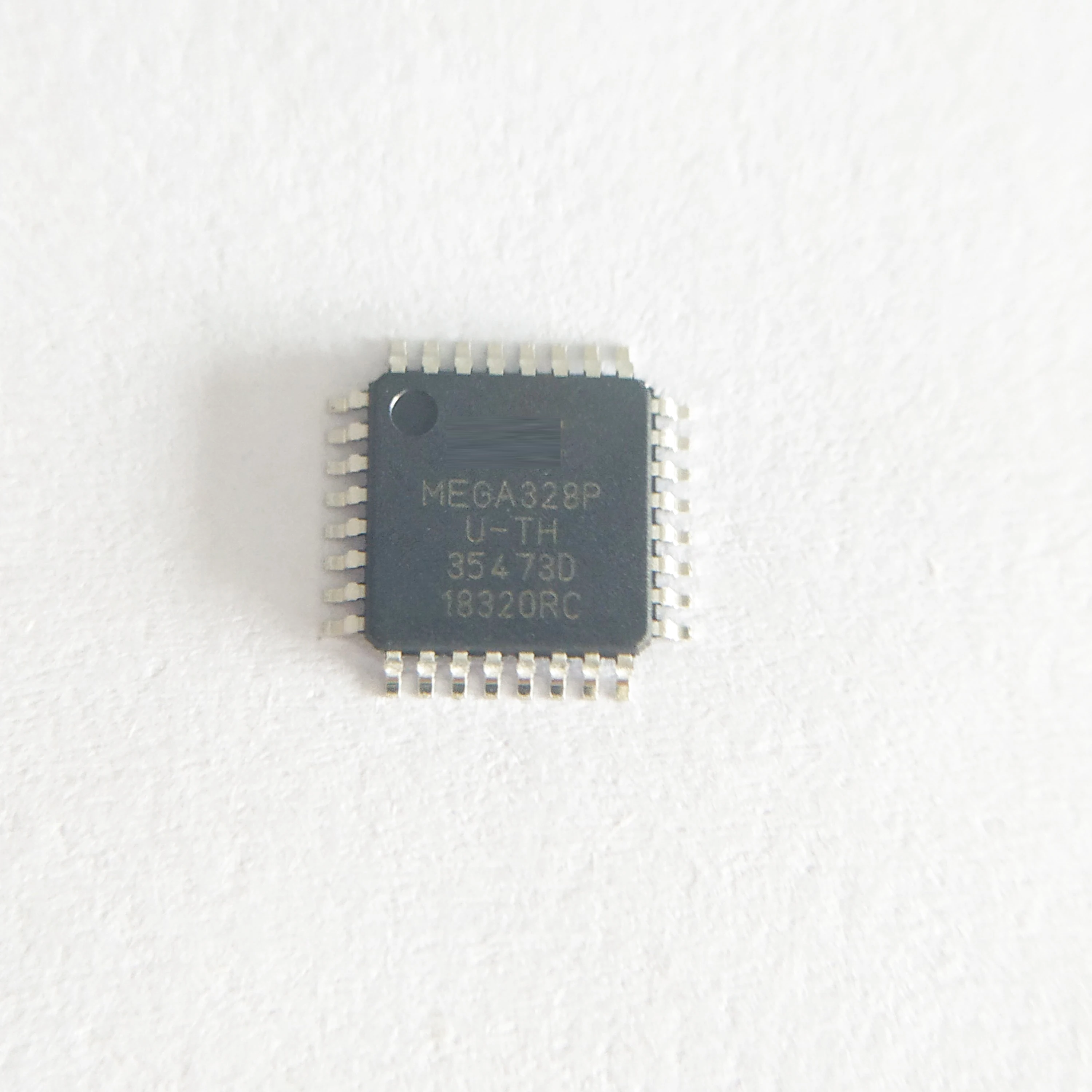

Inkson MCU 8 бит AVR ATmega328 серии 32KB флеш 32tqfp микроконтроллеры ATMEGA328P ATMEGA328P-AU интегральные схемы



Lead Shape	Gull-wing
Package Height	1
Package Width	7
Package Length	7
PCB changed	32
Family Name	ATmega
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	Flash
Program Memory Size	32KB
RAM Size	2KB
Programmability	Yes
Process Technology	CMOS
Interface Type	SPI/TWI/USART
Number of I/Os	23
No. of Timers	3
Timers Resolution (bit)	16
PWM	6
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
USART	1
UART	0
USB	0
SPI	2
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Minimum Operating Supply Voltage (V)	1.8
Typical Operating Supply Voltage (V)	3.3|5|2.5
Maximum Operating Supply Voltage (V)	5.5
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Packaging	Tray
CECC Qualified	No
Standard Package Name	QFP
Supplier Package	TQFP
Pin Count	32










1. Are these parts Original and New?

Yes, there are original and local factory products, if you have not mentioned, we will always sell you original and new parts.



2.When will parts ship after payment?

Normally parts we ship in 1-2 days after payment, if you are really urgent,please feel free to send me message, and we can push.



3.Are they real stocks? Can have discount if need large quantity?

Yes, parts you can order directly all have in stock. If you need large quantity, please message us first, we will apply best price for you.
