Лидер продаж шариковый винт с двойной гайкой 2505 для
- Категория: Шариковые винтовые передачи >>>
- Поставщик: Nanjing,Technical,Equipment,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 9567.73 $* | 9758.32 $* |
| Jul-17-2025 | 7759.64 $* | 7914.76 $* |
| Jun-17-2025 | 9416.60 $* | 9604.2 $* |
| May-17-2025 | 9341.62 $* | 9528.62 $* |
| Apr-17-2025 | 7458.74 $* | 7607.18 $* |
| Mar-17-2025 | 9190.45 $* | 9374.19 $* |
| Feb-17-2025 | 9115.98 $* | 9297.66 $* |
| Jan-17-2025 | 9040.7 $* | 9221.45 $* |
Характеристики
Product Description

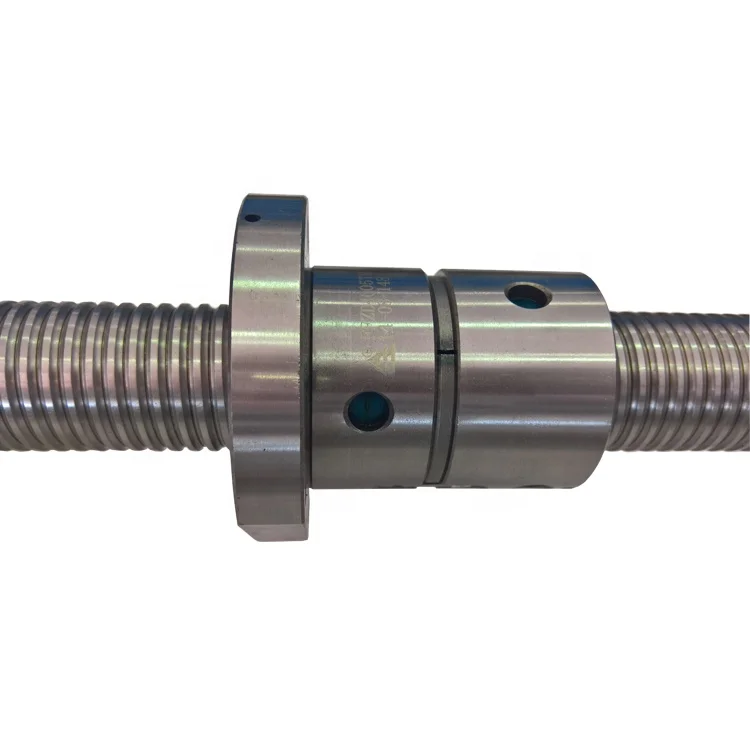

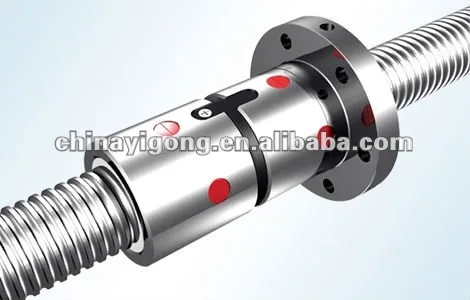

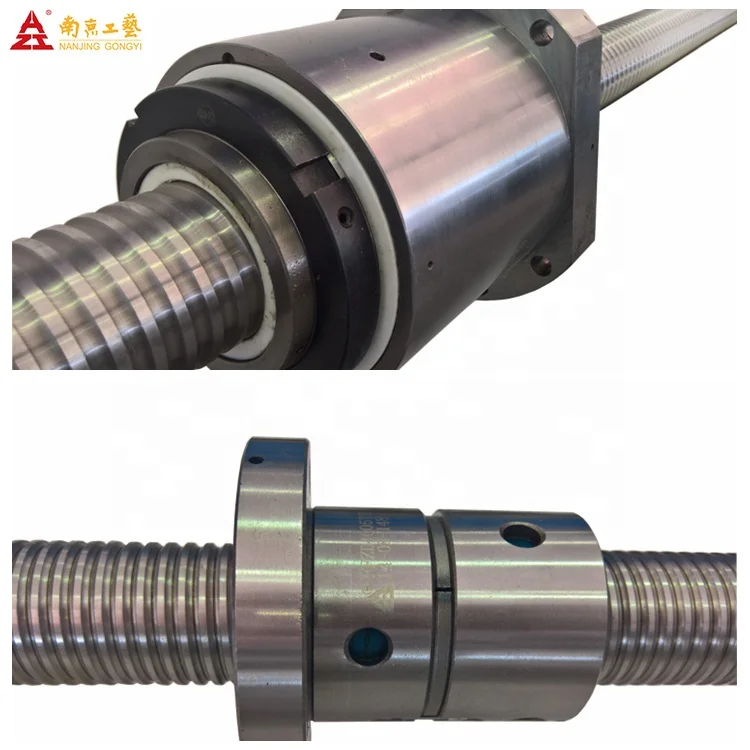

Hot sale double nut 2505 ball screw for gantry
Specification
| Product name | Hot sale double nut 2505 ball screw for gantry |
| Circulation mode | F/J/DK/DG/C |
| Accuracy grade | 1/2/3/4/5/7/10 |
| Sealed type | Standard:MN (MM,MX,MY,MZ can be chosen) |
| Rail length | Customized |
| Preload mode | D/L/B/Z |
| Application | Machining center,NC lathe machine,wire spark machine,portage device,wood machinery,laser machine,precision testinstrument,packing machine,food machinery,medical machinery,tool grinding machine,plane grinding machine |
| Code and spec. |
Nominal dia. Do |
Basic lead Ph0 |
Outer dia. d1 |
Ball dia. Dw |
Bottom dia.of ball screw d2 |
Number of circle n |
Basic rated load | Rigiity Kc N/μm | |
|
Dynamic load CaKN |
Static load Coa KN | ||||||||
| DKF2506-4 | 25 | 6 | 24 | 3 | 22.0 | 4 | 12.8 | 32.5 | 534 |
| DKF2506-5 | 25 | 6 | 24 | 3 | 22.0 | 5 | 15.6 | 39.0 | 660 |
| DKF2510-4 | 25 | 10 | 24 | 3.969 | 21.1 | 4 | 16.1 | 39.3 | 505 |
| DKF3206-5 | 32 | 6 | 31 | 3.969 | 28.1 | 5 | 25.4 | 67.6 | 832 |
| DKF3206-6 | 32 | 6 | 31 | 3.969 | 28.1 | 6 | 30.0 | 81.8 | 990 |
| DKF3210-4 | 32 | 10 | 31 | 6.35 | 26.4 | 4 | 33.7 | 81.2 | 662 |
| DKF3210-5 | 32 | 10 | 31 | 6.35 | 26.4 | 5 | 41.6 | 103.7 | 830 |
| DKF3212-4 | 32 | 12 | 31 | 6.35 | 26.4 | 4 | 33.8 | 81.4 | 663 |
| DKF3212-5 | 32 | 12 | 31 | 6.35 | 26.4 | 5 | 41.6 | 103.9 | 831 |
| DKF4010-5 | 40 | 10 | 39 | 6.35 | 34.4 | 5 | 46.9 | 131.2 | 1013 |
| DKF4010-6 | 40 | 10 | 39 | 6.35 | 34.4 | 6 | 55.3 | 158.8 | 1215 |
| DKF4012-5 | 40 | 12 | 39 | 6.35 | 34.7 | 5 | 46.9 | 131.3 | 1011 |
| DKF4012-6 | 40 | 12 | 39 | 6.35 | 34.7 | 6 | 55.3 | 158.8 | 1214 |
| DKF4016-5 | 40 | 16 | 39 | 6.35 | 34.7 | 5 | 46.5 | 131.3 | 1004 |
| DKF4016-6 | 40 | 16 | 39 | 6.35 | 34.7 | 6 | 55.1 | 158.9 | 1206 |
| DKF4020-5 | 40 | 20 | 39 | 6.35 | 34.7 | 5 | 46.7 | 131.3 | 1004 |
| DKF4020-6 | 40 | 20 | 39 | 6.35 | 34.7 | 6 | 55.0 | 158.9 | 1205 |
| DKF4025-4 | 40 | 25 | 39 | 6.35 | 34.7 | 4 | 37.9 | 103.7 | 794 |
| DKF4025-5 | 40 | 25 | 39 | 6.35 | 34.7 | 5 | 46.5 | 131.3 | 995 |
| DKF5010-5 | 50 | 10 | 49 | 6.35 | 44.4 | 5 | 52.2 | 165.0 | 1219 |
| DKF5010-6 | 50 | 10 | 49 | 6.35 | 44.4 | 6 | 61.5 | 199.6 | 1461 |
| DKF5012-5 | 50 | 12 | 49 | 6.35 | 44.4 | 5 | 52.2 | 165.0 | 1219 |
| DKF5012-6 | 50 | 12 | 49 | 6.35 | 44.4 | 6 | 61.5 | 199.6 | 1461 |
| DKF5016-5 | 50 | 16 | 49 | 6.35 | 44.4 | 5 | 52.2 | 165.5 | 1226 |
| DKF5016-6 | 50 | 16 | 49 | 6.35 | 44.4 | 6 | 61.5 | 200.2 | 1470 |
| DKF5020-5 | 50 | 20 | 49 | 6.35 | 44.4 | 5 | 52.1 | 165.7 | 1215 |
| DKF5020-6 | 50 | 20 | 49 | 6.35 | 44.4 | 6 | 61.4 | 200.5 | 1457 |
| DKF5025-4 | 50 | 25 | 49 | 6.35 | 44.4 | 4 | 42.3 | 130.4 | 966 |
