Машина для производства древесного угля Брикетирования Древесных
- Категория: Briquette Machines >>>
- Поставщик: Anyang,Ainuok,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.6 $* | 0.36 $* |
| Aug-19-2025 | 0.94 $* | 0.72 $* |
| Jul-19-2025 | 0.62 $* | 0.11 $* |
| Jun-19-2025 | 0.45 $* | 0.88 $* |
| May-19-2025 | 0.93 $* | 0.58 $* |
| Apr-19-2025 | 0.68 $* | 0.48 $* |
| Mar-19-2025 | 0.61 $* | 0.88 $* |
| Feb-19-2025 | 0.1 $* | 0.73 $* |
| Jan-19-2025 | 0.51 $* | 0.82 $* |
Характеристики
Product Description
Feature:
1.The raw materials will by formed by the punching needles of the machine and the final products have high density and easy to
burn, long lasting burning as well.

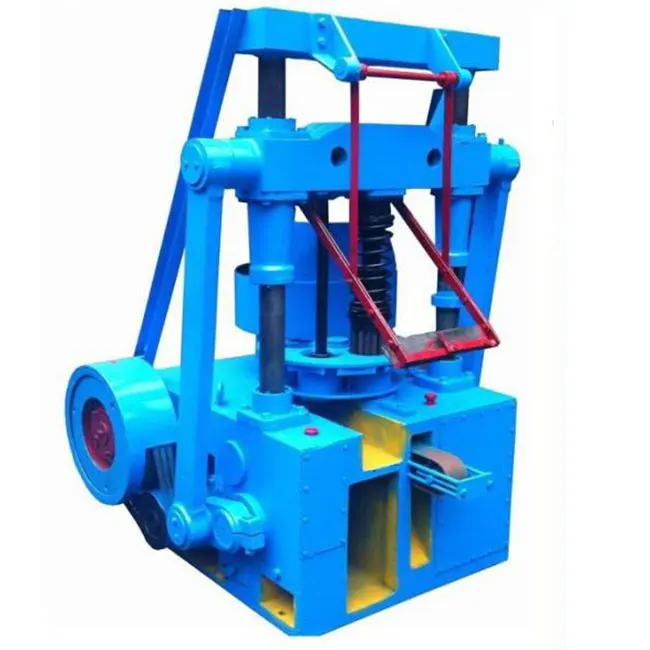

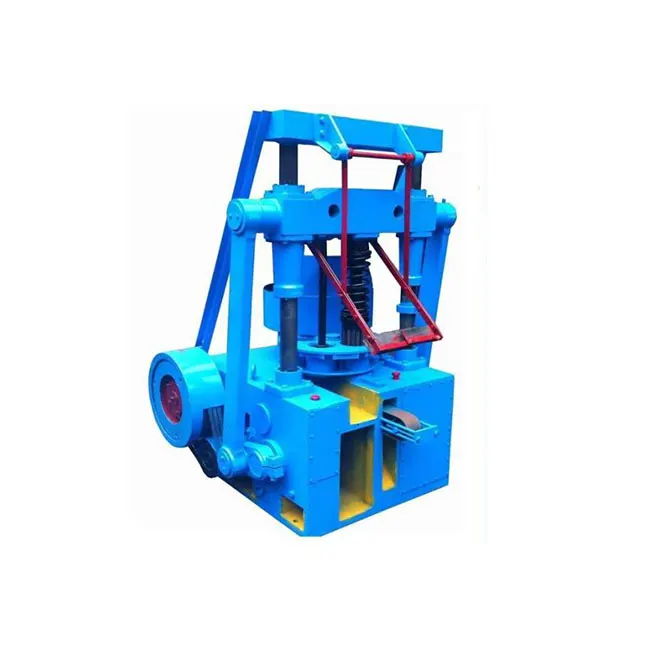

2.The machine consists of frame part, driving part, feeding part, press shaping part, and finished
product delivery part.
2.1) Frame part: platen, engine base.
2.2). Driving part: motor, pulley, gear, transmission shaft. The gear is driven by the pulley connect with the motor by belts. The
gear movement drives the transmission shaft. The transmission shaft drives the plate.
2.3). Feeder parts: rotation shaft, hopper, mixer etc.

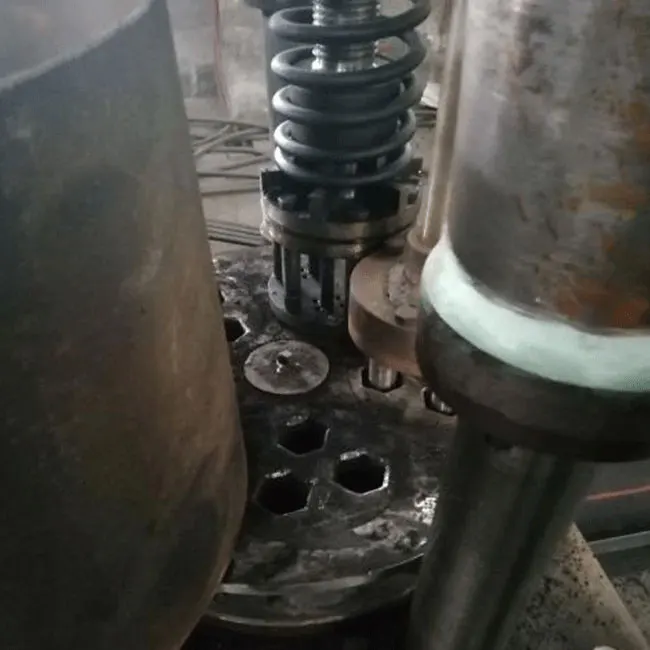

2.4). Briquette press part: four slide bars, punch, punch seat, platen, mold sole, spring.
2.5). Delivery part: delivery rack, pulley, and belt conveyor.
1.The raw materials will by formed by the punching needles of the machine and the final products have high density and easy to
burn, long lasting burning as well.
2.The machine consists of frame part, driving part, feeding part, press shaping part, and finished
product delivery part.
2.1) Frame part: platen, engine base.
2.2). Driving part: motor, pulley, gear, transmission shaft. The gear is driven by the pulley connect with the motor by belts. The
gear movement drives the transmission shaft. The transmission shaft drives the plate.
2.3). Feeder parts: rotation shaft, hopper, mixer etc.
2.4). Briquette press part: four slide bars, punch, punch seat, platen, mold sole, spring.
2.5). Delivery part: delivery rack, pulley, and belt conveyor.
Specification
Model | HBM-140 |
Capacity | 45 pieces / min |
Diameter | Φ100-140mm |
Height | 70-80mm |
70-80mm | 7.5 kw 380v / 50hz, 3 phase or Custom |
Overall Dimension | 1.32 * 1.26 * 1.85m |
Machine Weight | 1600kg |
Equipped Power | 7.5KW |
Pulley Speed | 406 r +-10 r |

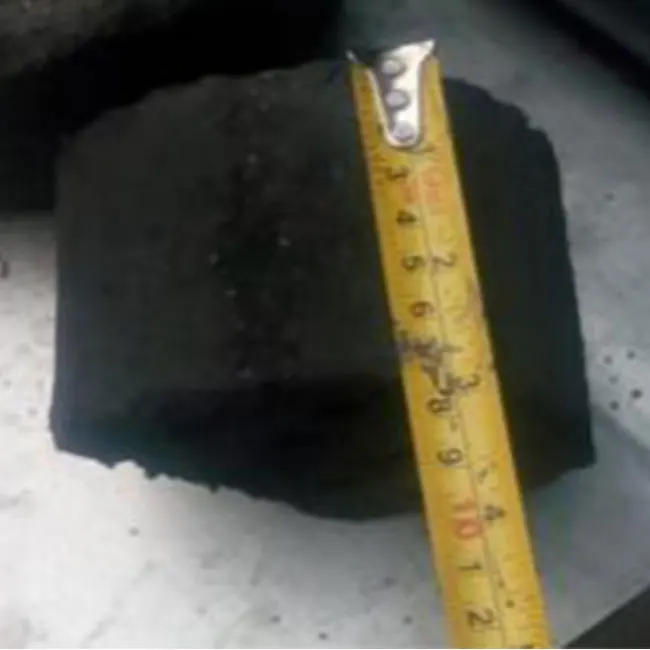

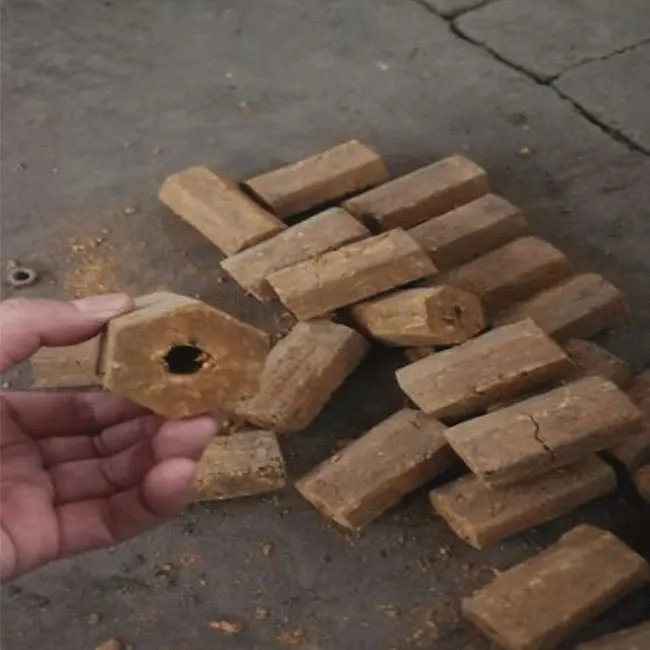

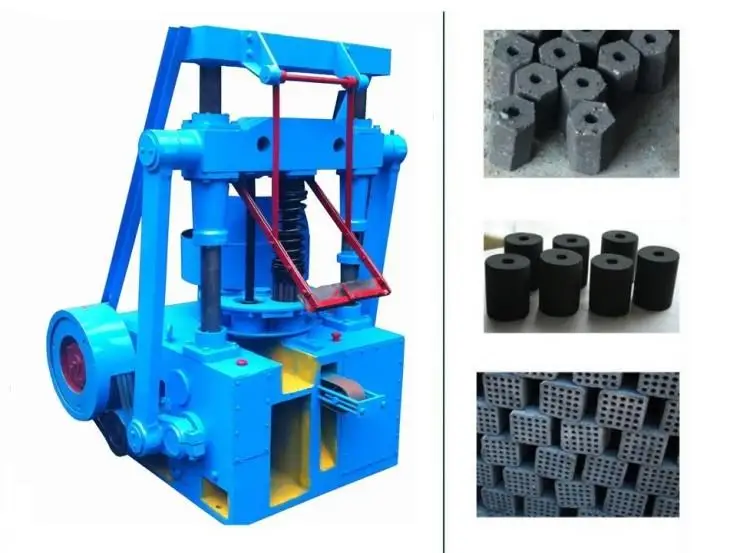

Final briquettes from the honeycomb coal briquette machine :
(1) Shapes of final briquettes: There are different shapes, such as cylindrical,round, square, flower shapes
and fan-shaped, hexagonal shape,etc. Or we can custom moulds as your requirements.
(2) Honeycomb diameter: 120mm; 140mm; 160mm; 180mm; 220mm or custom-made diameter.
(3) Honeycomb height: 80±5.0mm;90±5.0mm
(4) Inside hole diameter is:14-16mm or 25mm.
(5) Hole number:16PCS ; 19PCS or required hole number.
(6) Binder formula: we have 6 kinds binder formula, we also can offer water-proof formula and instant ignite(combustion-improver)
to our customers free of charge.
(1) Shapes of final briquettes: There are different shapes, such as cylindrical,round, square, flower shapes
and fan-shaped, hexagonal shape,etc. Or we can custom moulds as your requirements.
(2) Honeycomb diameter: 120mm; 140mm; 160mm; 180mm; 220mm or custom-made diameter.
(3) Honeycomb height: 80±5.0mm;90±5.0mm
(4) Inside hole diameter is:14-16mm or 25mm.
(5) Hole number:16PCS ; 19PCS or required hole number.
(6) Binder formula: we have 6 kinds binder formula, we also can offer water-proof formula and instant ignite(combustion-improver)
to our customers free of charge.
Packing & Delivery
FAQ
Q1:What’s the delivery method?
Normally by shipping line packed by wooden case in 20GP or 40 Feet container.
Air express also available.
Q2: What’s the delivery time?
Within 10-15 days when we got the 30% deposit .
Q3: What’s the payment term?
T/T, Western Union, L/C, etc
Trade Assurance of Alibaba is highly recommended
Q4: How long is the warranty period?
1 year. Free spare parts for replacement.
Life-time after-sale service. Technicians stand by 24/7 to offer support
Q5: How do I operate the machine?
1) We offer the best operation manual with the machine.
2) Specific drawings or teaching videos are offered, if necessary
Q6: How do I get the machine?
1) Contact me for latest prices. We confirm the products details.
2) We send you the PI with our bank account
3) We prepare the products after we get your advanced deposit
4) We send you photos of the machine before and after packing
5) You pay the balance, we deliver the machine
6) We send you the B/L and other papers, keep track till you get the machine
Hot Tags: wood branch waste shedder, China, manufacturers, factory, cheap, low price, made in China
Normally by shipping line packed by wooden case in 20GP or 40 Feet container.
Air express also available.
Q2: What’s the delivery time?
Within 10-15 days when we got the 30% deposit .
Q3: What’s the payment term?
T/T, Western Union, L/C, etc
Trade Assurance of Alibaba is highly recommended
Q4: How long is the warranty period?
1 year. Free spare parts for replacement.
Life-time after-sale service. Technicians stand by 24/7 to offer support
Q5: How do I operate the machine?
1) We offer the best operation manual with the machine.
2) Specific drawings or teaching videos are offered, if necessary
Q6: How do I get the machine?
1) Contact me for latest prices. We confirm the products details.
2) We send you the PI with our bank account
3) We prepare the products after we get your advanced deposit
4) We send you photos of the machine before and after packing
5) You pay the balance, we deliver the machine
6) We send you the B/L and other papers, keep track till you get the machine
Hot Tags: wood branch waste shedder, China, manufacturers, factory, cheap, low price, made in China
