Dredger Spare Parts -Cutter Head Machine Marine High Efficiency River Sand Suction
- Категория: Dredger >>>
- Поставщик: Shandong,Eterne,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.42 $* | 0.3 $* |
| Aug-20-2025 | 0.2 $* | 0.64 $* |
| Jul-20-2025 | 0.9 $* | 0.19 $* |
| Jun-20-2025 | 0.73 $* | 0.10 $* |
| May-20-2025 | 0.99 $* | 0.41 $* |
| Apr-20-2025 | 0.70 $* | 0.50 $* |
| Mar-20-2025 | 0.99 $* | 0.92 $* |
| Feb-20-2025 | 0.9 $* | 0.47 $* |
| Jan-20-2025 | 0.5 $* | 0.34 $* |
Характеристики

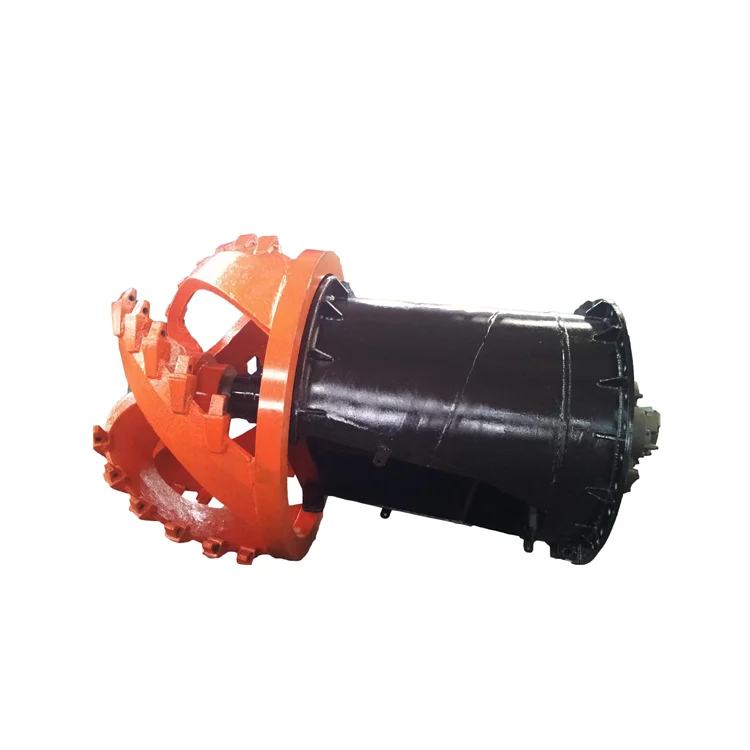

Dredger Spare Parts -Cutter Head Machine Marine High Efficiency River Sand Suction Dredger Cutter Head
Product Description
The Cutter head is equipped at the forefront of the cutter suction dredger. Since the dredging process starts with excavation and slurry creation, a cutter suction dredger's performance is mainly defined by its cutter head.
Specification
Model | CSD-150 | CSD-200 | CSD-250 | CSD-300 | CSD-450 | CSD-500 | |||||
Cutter Dia. | 1000 | 1300 | 1300 | 1500 | 1700 | 2050 | |||||
Power(kw) | 30 | 50 | 50 | 80 | 170 | 300 | |||||
Displacement | 3960 | 10170 | 10170 | 11870 | 21490 | 42000 | |||||
Torque | 9.5 | 22 | 22 | 25 | 50 | 96 | |||||
Cutting speed | 1.6 | 2.0 | 2.0 | 2.4 | 2.7 | 3.2 | |||||
Working pressure | 16 | ||||||||||
Cutter teeth | 25/ZGM13 | 30/ZGM13 | 35/ZGM13 | 40/ZGM13 | |||||||
Cutter arm quantity | 5 | ||||||||||
Cutter arm material | ZG35SiMn | ||||||||||
Replace frequency | 180 | 180 | 180 | 160 | 130 | 120 | |||||
Features:
* 1. complete range
* 2. up to 3000mm in diameter
* 3. up to 1,400kW of the cutting power
* 4. refined teeth and cutting edge design
* 5. variety of cutterheads to meet your requirement
* 6. low cost for productivity
* 7. easy maintenance (replaceable teeth system)
* 1. complete range
* 2. up to 3000mm in diameter
* 3. up to 1,400kW of the cutting power
* 4. refined teeth and cutting edge design
* 5. variety of cutterheads to meet your requirement
* 6. low cost for productivity
* 7. easy maintenance (replaceable teeth system)

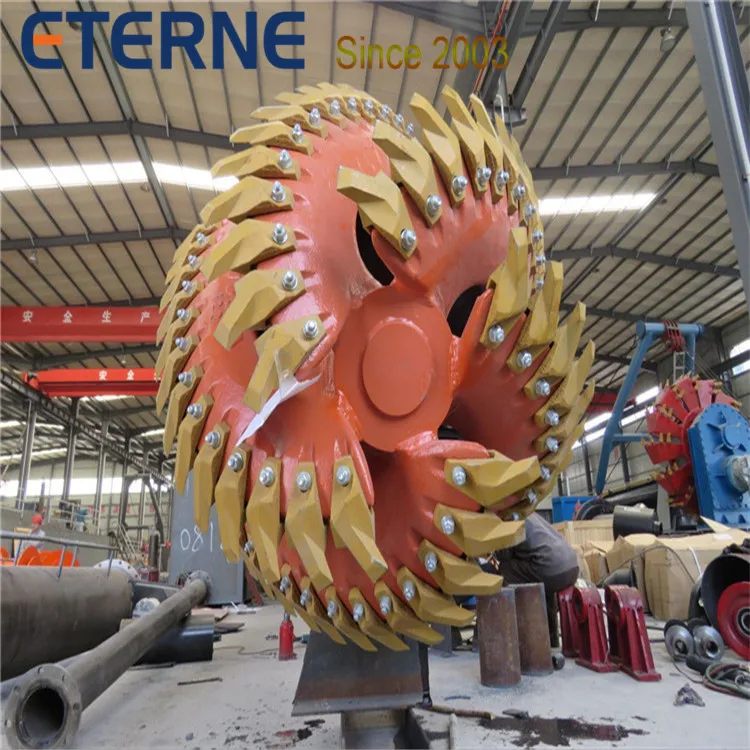

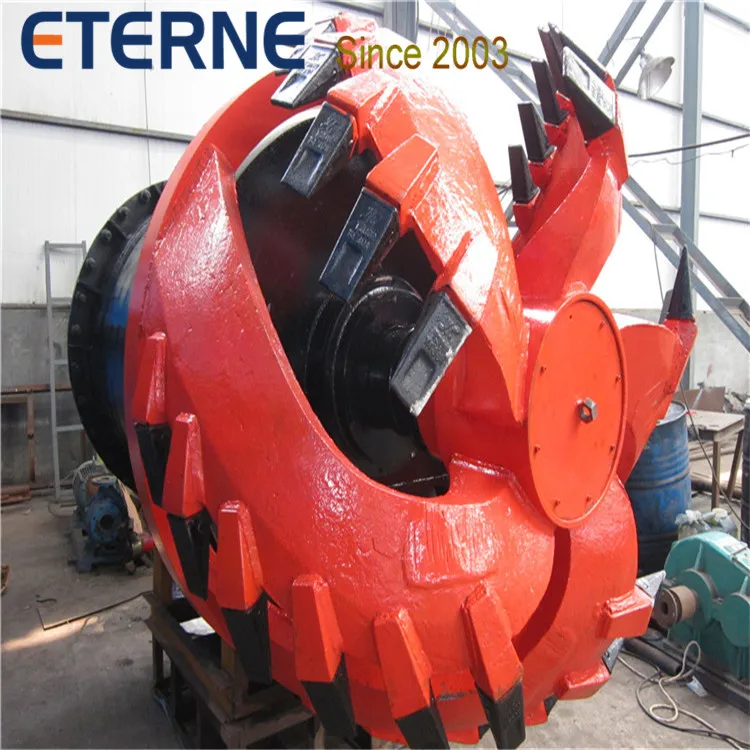

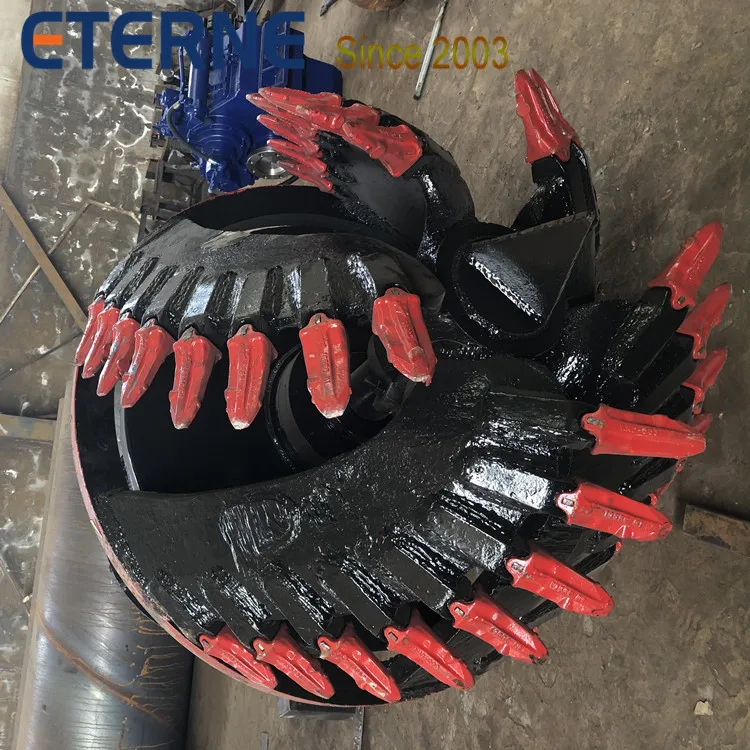

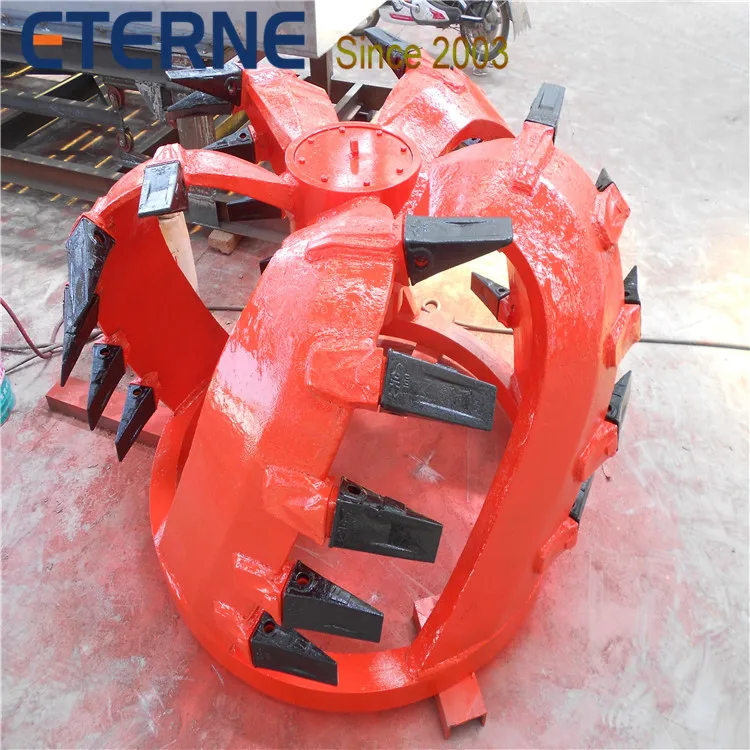

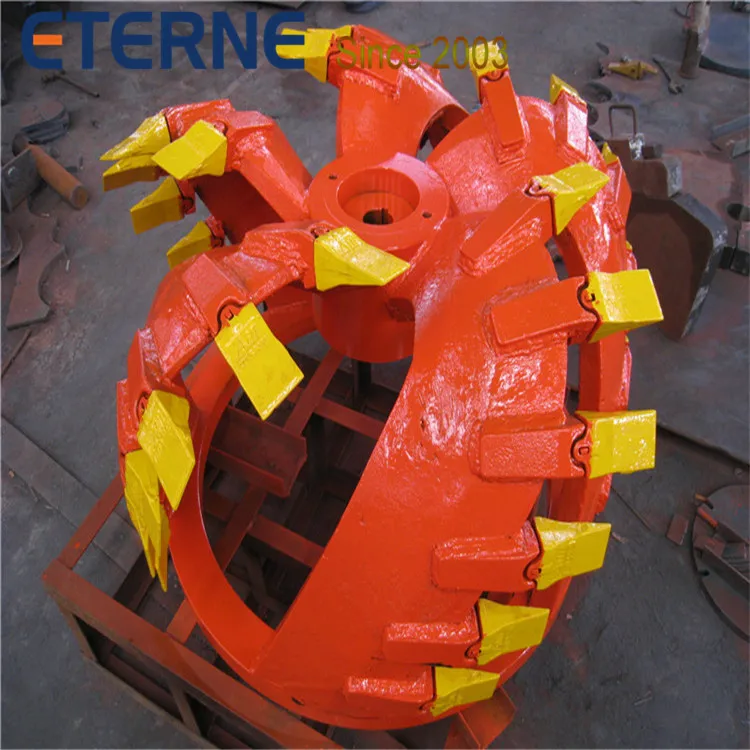

Details Images
Exquisite production process
1.Professional Engineer design
2.Working capacity can be customized
1.Have a beautiful appearance
2.Easy maintenance (replaceable teeth system)
3.Refined teeth and cutting edge design
3.Refined teeth and cutting edge design
Packing & Delivery
Packaging Details:Standard export case.
Port:Shanghai, Qingdao, etc.
Lead Time :Shipped in 60 days after payment.
Lead Time :Shipped in 60 days after payment.
Relative Products
Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad.
Customer Photos
Our products have Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mongolia, Myanmar, Papua New Guinea,Indonesia, Fiji,South Africa, Ghana, Benin,
Company Profile
Shandong Eterne Machinery Co.,Ltd.is a modern enterprise comes from Weifang city,Shandong
Province,China,which is integrating R&D,production and service including mining equipment and woodworkingequipment.
Province,China,which is integrating R&D,production and service including mining equipment and woodworkingequipment.
There lated companies are Ninjing Country Wanfa Wood working Machinery Co.,Ltd.(Wanfa),WeifangJintong Envrionment Protection Company(Jintong).
Wanfa is our mother company which was built in 2003,who produce wood working machinery such
as kinds of edge banding machine,sliding panel saw,CNC router etc.
as kinds of edge banding machine,sliding panel saw,CNC router etc.
FAQ
1. Are you factory?
Yes, established in 2003, over 15 years factory.
Yes, established in 2003, over 15 years factory.
2. How big are you?
In total 6 work shops, 15,000㎡, office 3000㎡, 80 workers.
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment.
4. Whats the capacity of the
from 5TPH to 450TPH.
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required.
In total 6 work shops, 15,000㎡, office 3000㎡, 80 workers.
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment.
4. Whats the capacity of the
from 5TPH to 450TPH.
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required.
