OLG01-N + 4G внешний единичный рекламно-информационный материал канала LoRa шлюз 433/868/915 МГц низкое
- Категория: Модули Ethernet и POE >>>
- Поставщик: Shanghai,Belite,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 156.13 $* | 159.11 $* |
| Jul-15-2025 | 127.14 $* | 130.18 $* |
| Jun-15-2025 | 154.88 $* | 157.63 $* |
| May-15-2025 | 153.15 $* | 156.65 $* |
| Apr-15-2025 | 122.58 $* | 124.56 $* |
| Mar-15-2025 | 150.5 $* | 153.7 $* |
| Feb-15-2025 | 149.69 $* | 152.62 $* |
| Jan-15-2025 | 148.50 $* | 151.1 $* |
Характеристики
PRODUCT INFORMATION
Brand: | Canruo |
Model: | OLG01-N+4G |
Source category: | Outdoor gateway |
Time to market: | Stock available |
Battery capacity: | Power Input: 12V DC |
Processor: | 400MHz, 24K MIPS |
Flash: | 16MB |
RAM: | 64MB |
PRODUCT DETAILS
OLG01-N is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The
LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.
OLG01-N has rich internet connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.
OLG01-N can support Limited LoRaWAN protocol in single frequency and customized LoRa transmit protocol. Different from OLG01, OLG01-N use the Linux to directly control the sx1276/sx1278 LoRa module which increase the communication efficiency and simplify the software design.
OLG01-N can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.
Except LoRaWAN mode, LG01-N can support mutiply working mode such as: MQTT mode, TCP/IP Client mode to fit different requirement for IoT connection.
LG01-N base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. the LG01-N is only of its 1/4 or less cost. This make the OLG01-N very suitable to set up small scale LoRa network.
LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.
OLG01-N has rich internet connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.
OLG01-N can support Limited LoRaWAN protocol in single frequency and customized LoRa transmit protocol. Different from OLG01, OLG01-N use the Linux to directly control the sx1276/sx1278 LoRa module which increase the communication efficiency and simplify the software design.
OLG01-N can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.
Except LoRaWAN mode, LG01-N can support mutiply working mode such as: MQTT mode, TCP/IP Client mode to fit different requirement for IoT connection.
LG01-N base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. the LG01-N is only of its 1/4 or less cost. This make the OLG01-N very suitable to set up small scale LoRa network.

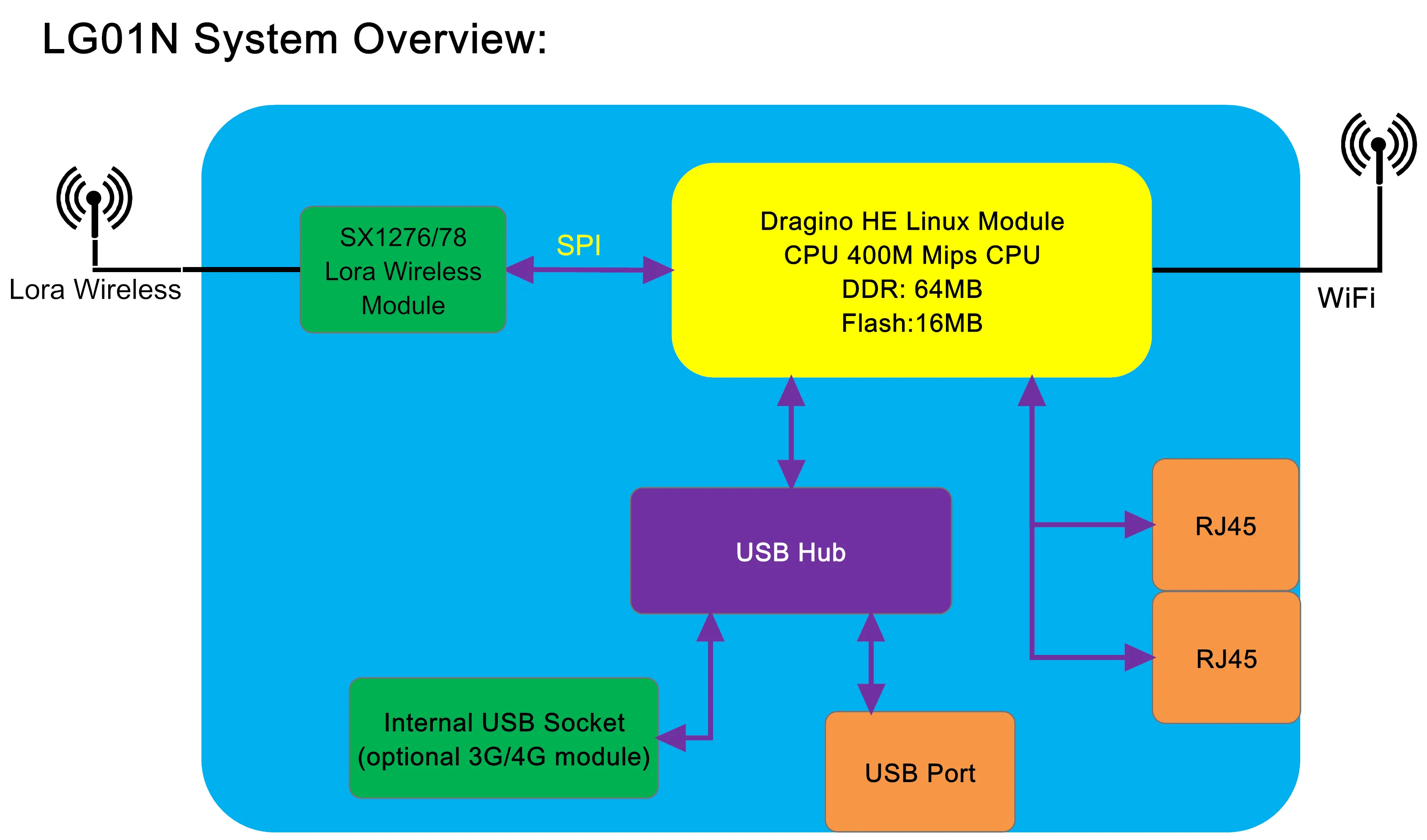

Specifications:
Linux Side:
Processor: 400MHz, 24K MIPS
Flash: 16MB ; RAM: 64MB
Cellular 4G LTE (optional):
Quectel EC25 LTE module (Clink the link to find the right model for your region)
Micro SIM Slot
Internal 4G Antenna + External 4G Sticker Antenna.
Up to 100Mbps downlink and 50Mbps uplink data rates
Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Interfaces:
10M/100M RJ45 Ports x 2
WiFi : 802.11 b/g/n
LoRa Wireless
Power Input: 12V DC
1 x LoRa Interface
Features:
Open Source OpenWrt system
Low power consumption
Firmware upgrade via Web
Software upgradable via network
Flexible protocol to connect to IoT servers
Auto-Provisioning
Built-in web server
Managed by Web GUI, SSH via LAN or WiFi
Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module
Failsafe design provides robustly system
1 x SX1276/SX1278 LoRa module
Limited support in LoRaWAN/ Support Private LoRa protocol
Support upto 300 nodes
LoRa band available at 433/868/915/920 Mhz
Max range in LoRa: 5~10 km. Density Area:>500m
Applications:
Wireless Alarm and Security Systems
Home and Building Automation
Automated Meter Reading
Industrial Monitoring and Control
Long range Irrigation Systems
GPS tracker,etc
LoRaWAN Reapeter
Linux Side:
Processor: 400MHz, 24K MIPS
Flash: 16MB ; RAM: 64MB
Cellular 4G LTE (optional):
Quectel EC25 LTE module (Clink the link to find the right model for your region)
Micro SIM Slot
Internal 4G Antenna + External 4G Sticker Antenna.
Up to 100Mbps downlink and 50Mbps uplink data rates
Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Interfaces:
10M/100M RJ45 Ports x 2
WiFi : 802.11 b/g/n
LoRa Wireless
Power Input: 12V DC
1 x LoRa Interface
Features:
Open Source OpenWrt system
Low power consumption
Firmware upgrade via Web
Software upgradable via network
Flexible protocol to connect to IoT servers
Auto-Provisioning
Built-in web server
Managed by Web GUI, SSH via LAN or WiFi
Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module
Failsafe design provides robustly system
1 x SX1276/SX1278 LoRa module
Limited support in LoRaWAN/ Support Private LoRa protocol
Support upto 300 nodes
LoRa band available at 433/868/915/920 Mhz
Max range in LoRa: 5~10 km. Density Area:>500m
Applications:
Wireless Alarm and Security Systems
Home and Building Automation
Automated Meter Reading
Industrial Monitoring and Control
Long range Irrigation Systems
GPS tracker,etc
LoRaWAN Reapeter

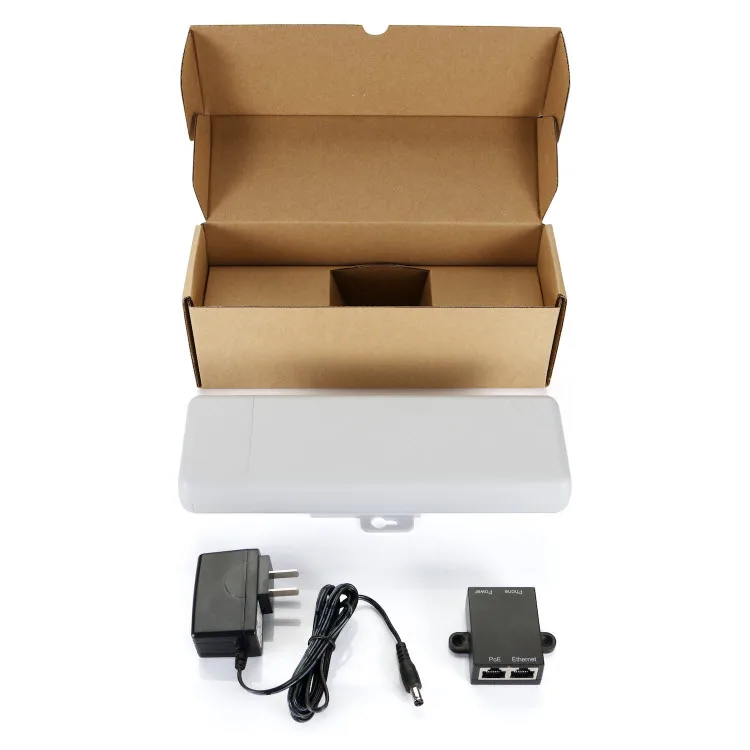

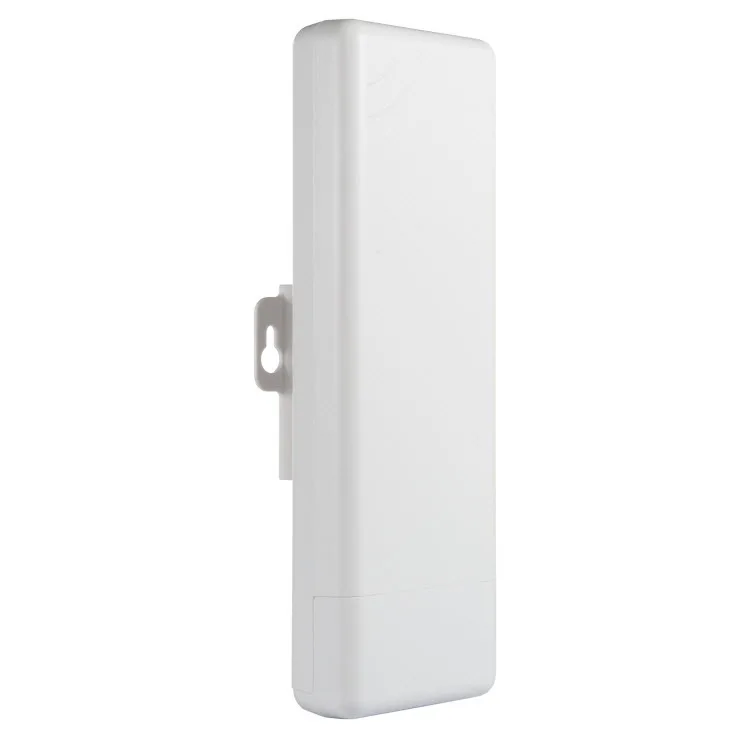

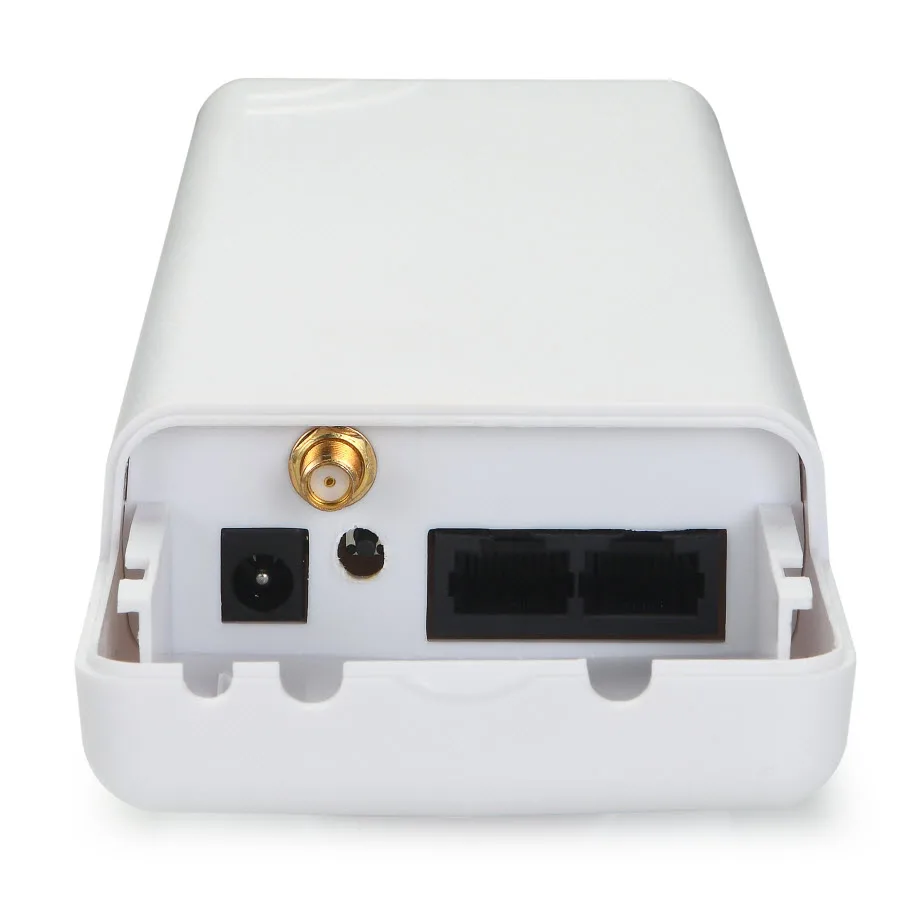

PRODUCT SHOW
