Характеристики
Product Description
Cheap Factory Price refrigerated air dryer refrigeranted compressed industrial
Product details
| Product name | air compressor dryer |
| Capacity(Nm3/min) | 13.5 |
| Rated air inlet pressure | 0.7MPa |
| Rated intake air temperature | 50℃ |
| Inlet/Outlet | 2-1/2" |
| Pressure dew point | 2-10 ℃ |
| Rated ambient temperature | 32 ℃ (2 ℃~ 45 ℃ allowed) |
| Pressure loss | ≤ 0.02MPa |

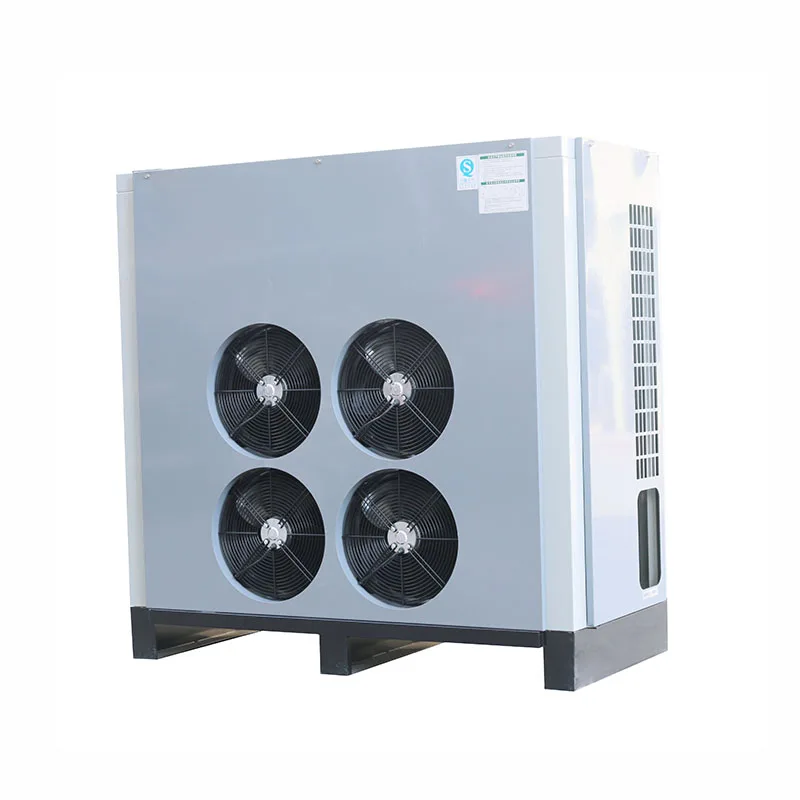

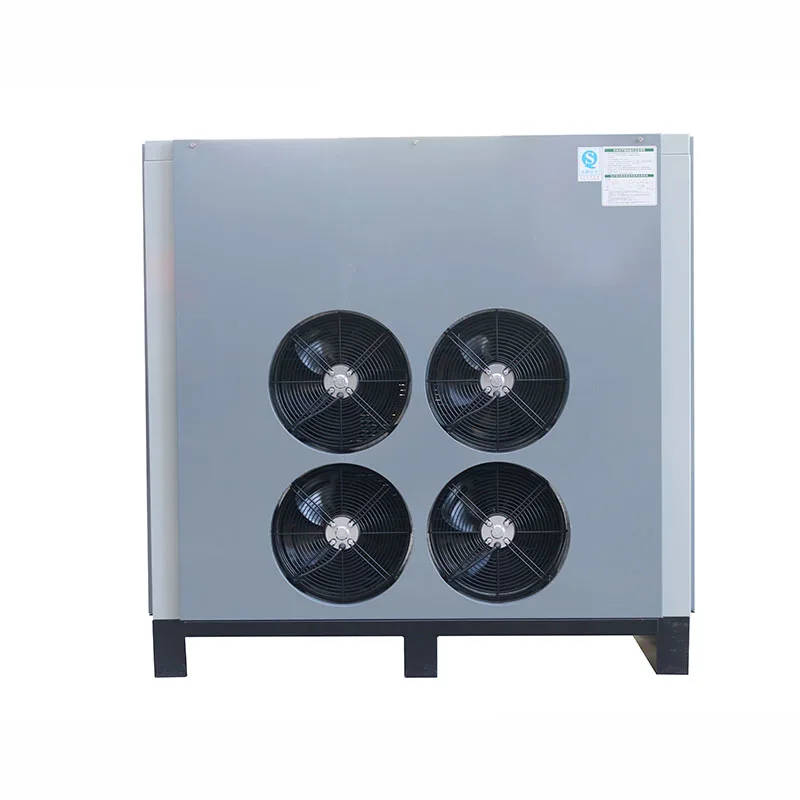

| Cooling mode | air cooling |
| Refrigerant | R22 |
| Product Keywords | refrigerated air dryer,refrigeranted air compressed dryer,industrial refrigerated air dryer |

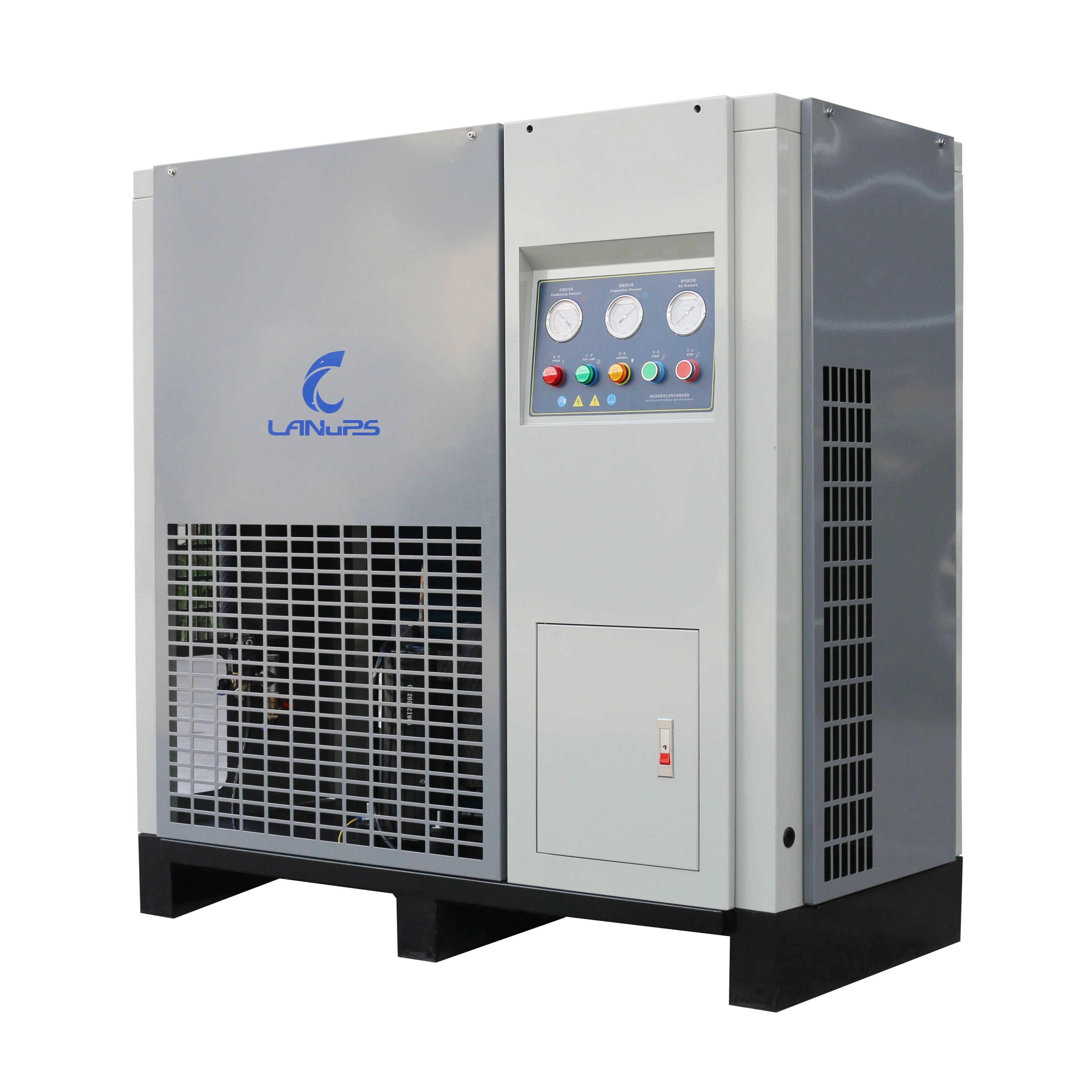

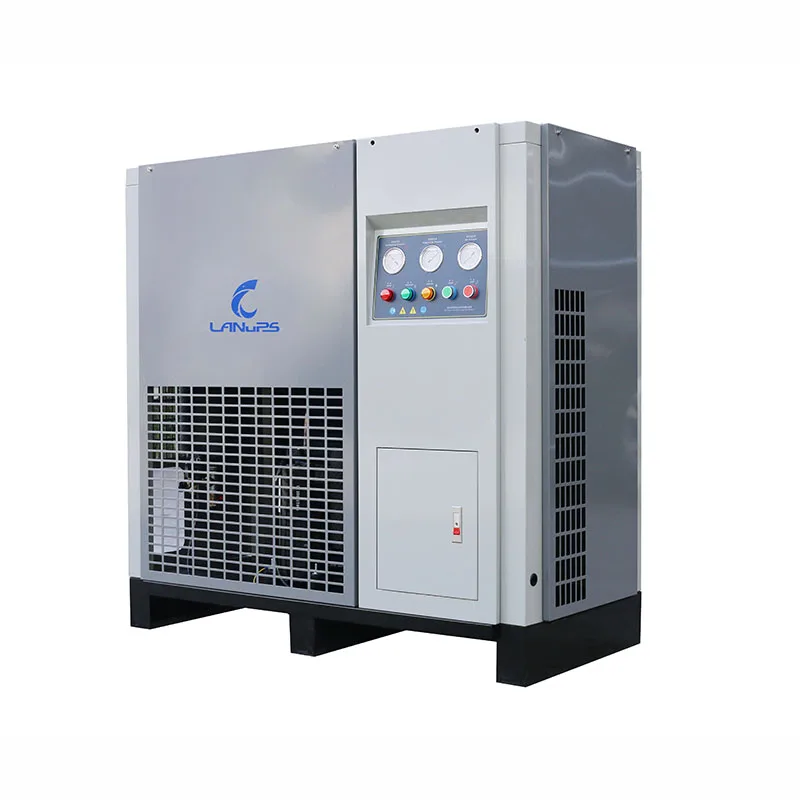

AH series air-cooled refrigerated dryer is a regular series product of Lingyu company, which is stable and durable. This series of products adopt the traditional shell and tube design, which has an ultra wide application range and is suitable for most working conditions.
Working principle
working principle:
The refrigeration dryer uses the principle of refrigeration to reduce the temperature of the compressed air, so that the water vapor in the compressed air is supersaturated at low temperature and cold condensed into liquid water beads, and then the condensed water (including some oil and dust) is separated from the compressed air by means of air-water separation and discharged out of the machine through the drainer, so as to obtain the dry compressed air.
Technical parameters
| Technical parameters of AH series air-cooled refrigerated dryer | ||||||
| MODEL | Capacity(Nm³/min) | Voltage(V/Hz) | Overall power(KW) | Inlet/Outlet | Weight(Kg) | Dimension(H×W×D) |
| LY-D10AC | 1.5 | 220/50 | 0.8 | G1" | 52 | 710H×440W×680 D |
| LY-D20AC | 2.5 | 220/50 | 0.9 | G1" | 73 | 800H×440W×880 D |
| LY-D30AH | 3.8 | 220/50 | 1.1 | G1-1/2" | 95 | 930H×500W×980 D |
| LY-D50AH | 6.5 | 220/50 | 1.5 | G1-1/2" | 115 | 1000H×600 W×1030 D |
| LY-D75AH | 10.5 | 220/50 | 2.2 | G2" | 160 | 1150H×650 W×1250 D |
| LY-D100AH | 13.5 | 380/50 | 2.8 | G2-1/2" | 225 | 1300H×650 W×1350 D |
| LY-D120AH | 17.0 | 380/50 | 2.8 | G2-1/2" | 235 | 1300H×650 W×1350 D |
| LY-D150AH | 21.5 | 380/50 | 5.2 | G3" | 345 | 1430H×700 W×1450 D |
| LY-D180AH | 25.0 | 380/50 | 5.2 | G3" | 395 | 1430H×700 W×1450 D |
| LY-D200AH | 28.5 | 380/50 | 5.5 | DN80 | 530 | 1600H×1550 W×850 D |
| LY-D250AH | 32.0 | 380/50 | 6.2 | DN80 | 580 | 1600H×1550 W×850 D |
| LY-D300AH | 37.0 | 380/50 | 7.8 | DN100 | 680 | 1730H×1700 W×850 D |
| LY-D350AH | 41.5 | 380/50 | 7.8 | DN100 | 750 | 1730H×1700 W×850 D |
| LY-D400AH | 45.0 | 380/50 | 10.5 | DN100 | 800 | 1830H×1850 W×950 D |
| LY-D450AH | 50.0 | 380/50 | 10.5 | DN100 | 850 | 1830H×1850 W×950 D |
| LY-D500AH | 55.0 | 380/50 | 11.7 | DN125 | 910 | 1790 H×1950W×1300 D |
| LY-D550AH | 60.0 | 380/50 | 11.7 | DN125 | 950 | 1790 H×1950W×1300 D |
| LY-D600AH | 65.0 | 380/50 | 11.9 | DN125 | 1100 | 1790 H×2300W×1330 D |
| LY-D700AH | 75.0 | 380/50 | 13.9 | DN125 | 1250 | 1820 H×2390W×1395 D |
| LY-D800AH | 85.0 | 380/50 | 14.4 | DN125 | 1450 | 1845 H×2400W×1420 D |
| LY-D900AH | 95.0 | 380/50 | 16.7 | DN150 | 1600 | 1900 H×2450W×1400 D |
| LY-D1100AH | 110.0 | 380/50 | 18.3 | DN150 | 1700 | 1980 H×2450W×1500 D |
| Note: the above data is for reference, contact us for detailed technical parameters. | ||||||
