4 порта din-рейка промышленный poe переключатель
- Категория: >>>
- Поставщик: Xiamen,Four-Faith,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 253.5 $* | 258.10 $* |
| Jul-16-2025 | 205.59 $* | 209.13 $* |
| Jun-16-2025 | 249.47 $* | 254.54 $* |
| May-16-2025 | 247.38 $* | 252.76 $* |
| Apr-16-2025 | 197.30 $* | 201.31 $* |
| Mar-16-2025 | 243.82 $* | 248.19 $* |
| Feb-16-2025 | 241.10 $* | 246.71 $* |
| Jan-16-2025 | 239.66 $* | 244.60 $* |
Характеристики

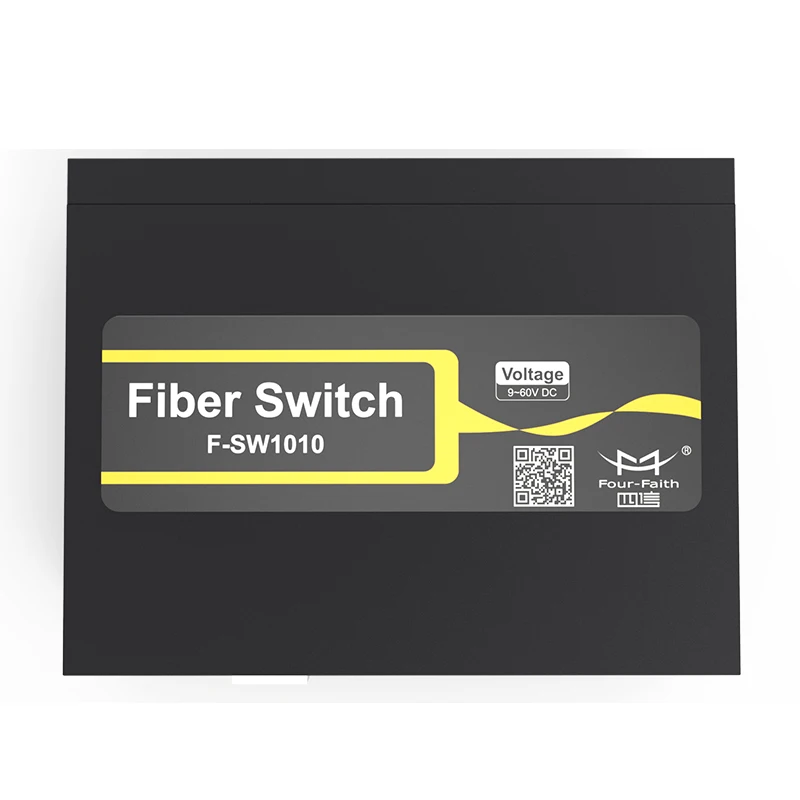

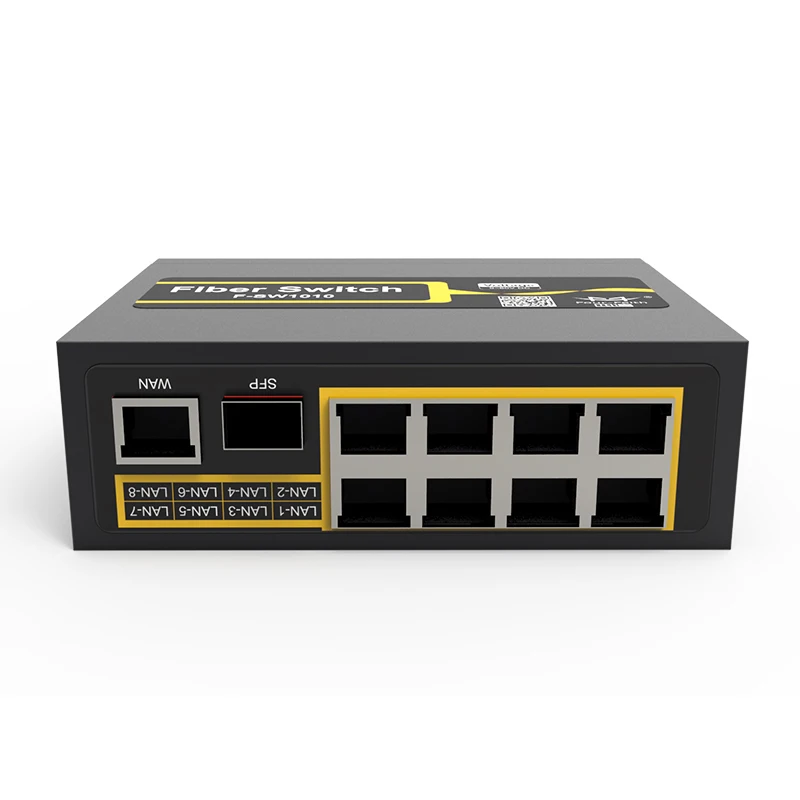

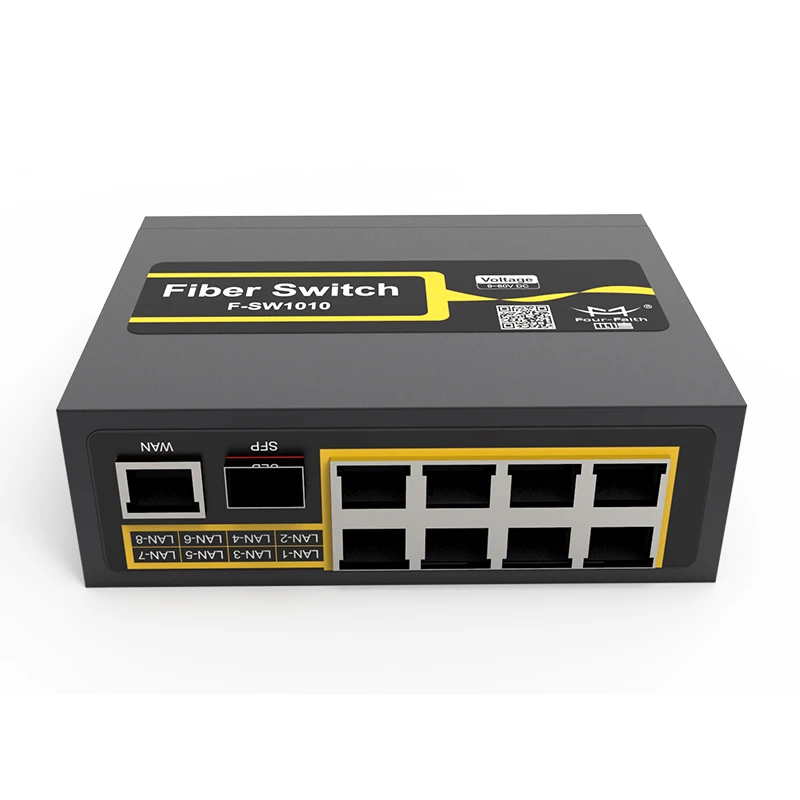

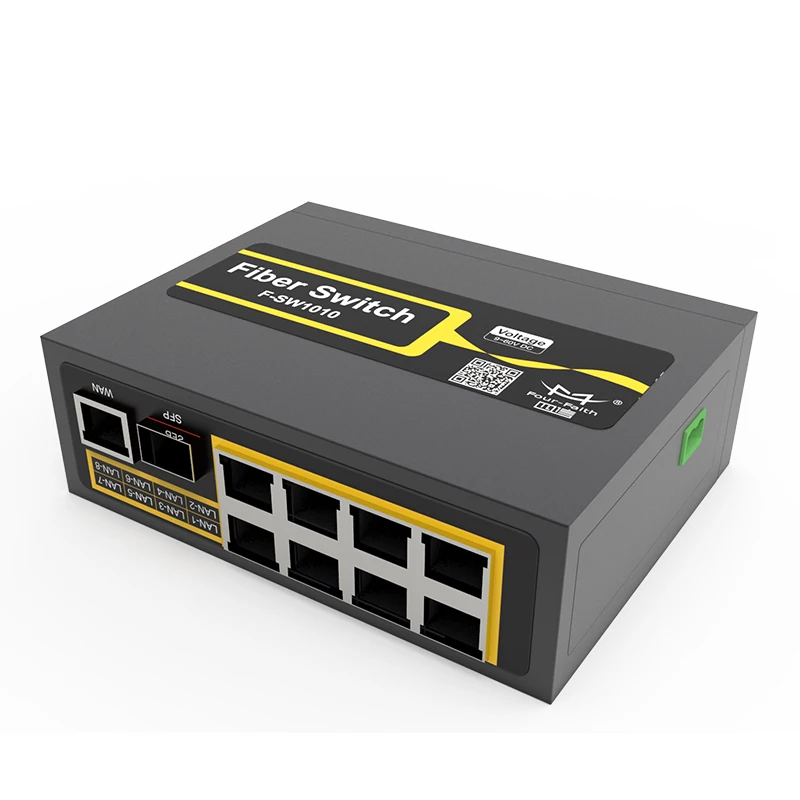

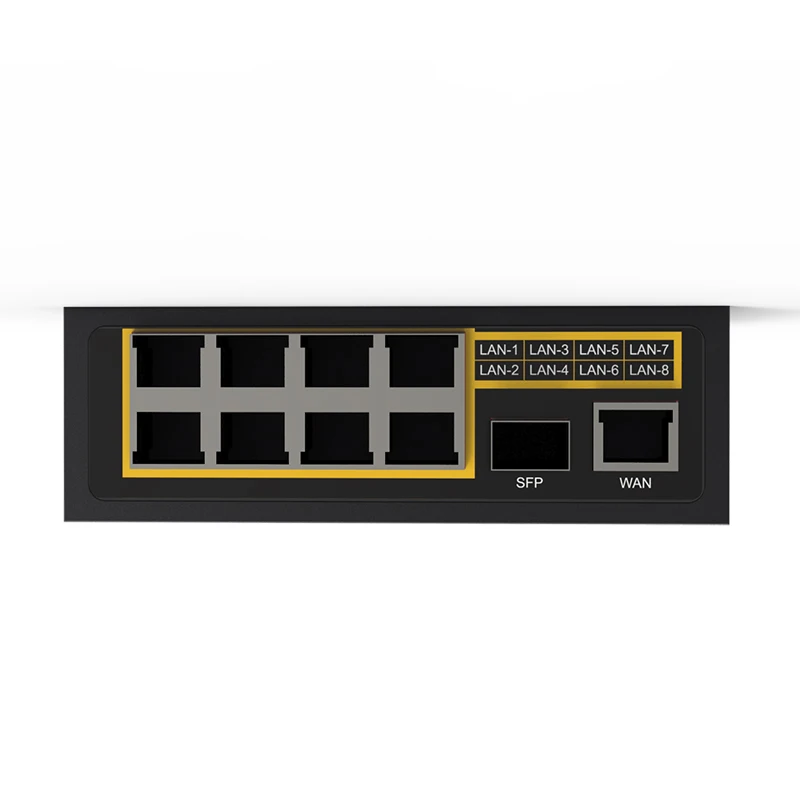

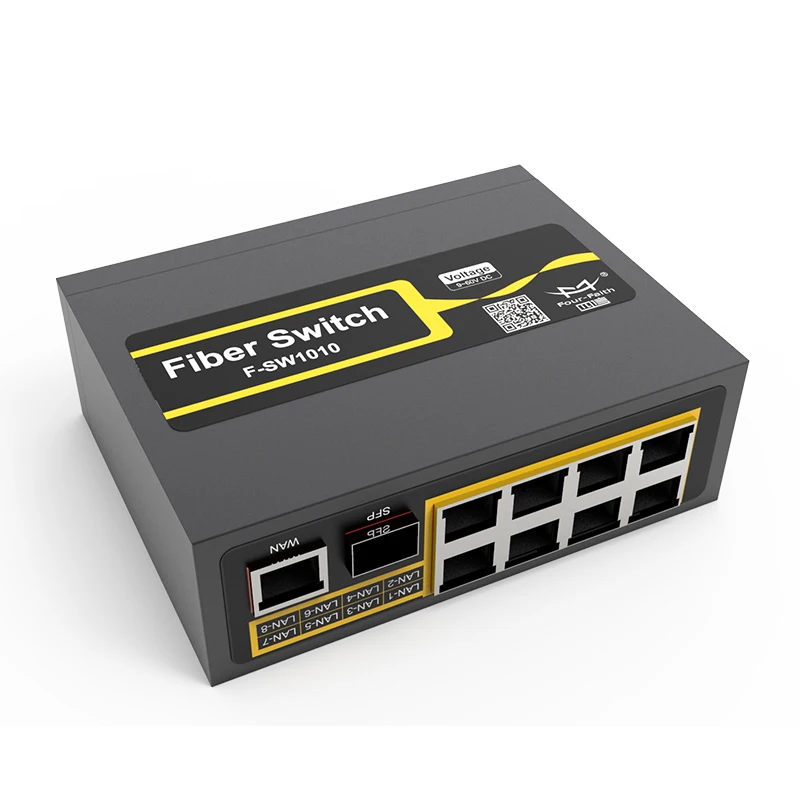

F-SW1010 Industrial Grade High Performance 10-Port Unmanaged Industrial PoE Ethernet Switch
1000M Port, High-Speed Transmission
Support 1 x 1000M BaseSFP slot & 1 x 10/100/1000M Base-T Ethernet Port, high-speed forwarding ensure data transferred in real-time without blocked.
Metal Casing, Well Heat Dissipation Performance
Fanness cooling system with high-strength metal casing, well heat dissipation performance without any noise.
Industrial Grade Protection, Suitable for Most Harsh Environment
IP40 with wide operating temperate range, can be work with full load under -35~75°C, providing stable and reliable network communication in nay harsh environment
Plug-n-Play, Easy to Use
Just need to plug in the ethernet cable with network device and F-SW1010 Unmanaged Switch, data can be transmitted without any extra setting
PoE Power Supply
8 x LAN ports all support PoE power supply, maximum 40W with each port, and 120W for total.
Suitable for Various Applications
Compatible with multiple servers, hubs, devices to build complex network, suitable for home, office, factory, etc.
Specification
| Standard | |
| Ethernet Standard | IEEE802.3(10 Base-T),IEEE802.3u(100Base-TX &100Base-FX),IEEE802.3z(1000Base- TX&1000Base-X),IEEE802.3x(flow control) |
| Interface | |
| SFP Slot | Number:1 Type:SFP(LC,single/dual optional) Rate:1000Base-X |
| 1000M Ethernet Port | Number:1 Type:RJ45 Rate:10/100/1000M Adaptive |
| Power | 5.08mm Terminal Block Interface |
| Transmission Distance | |
| Ethernet Cable | 100m(Standard CAT5/CAT5e),250m(CAT6) |
| Fiber | Support single/dual mode fiber, dual:550M;single:20/40/60/80/100KM |
| Characters | |
| Application Level | 2 |
| Processing Type | Store-and-forward |
| Backplane Bandwidth | 3.6Gbps |
| Packet Forwarding Rate | 2.68Mpps |
| Mac Table Size | 2K |
| Power | |
| Input Power | DC9~36V, 40~60V (PoE Version) |
| Consumption | <5W, PoE Version<120W |
| Interface | 5.08mmTerminal Block Interface,with Overload Current and Reverse Polarity Protection |
| Operating Environment | |
| Operating Temperature | -40℃~75℃ |
| Relative Humidity | 0~90% (non-condensing) |
